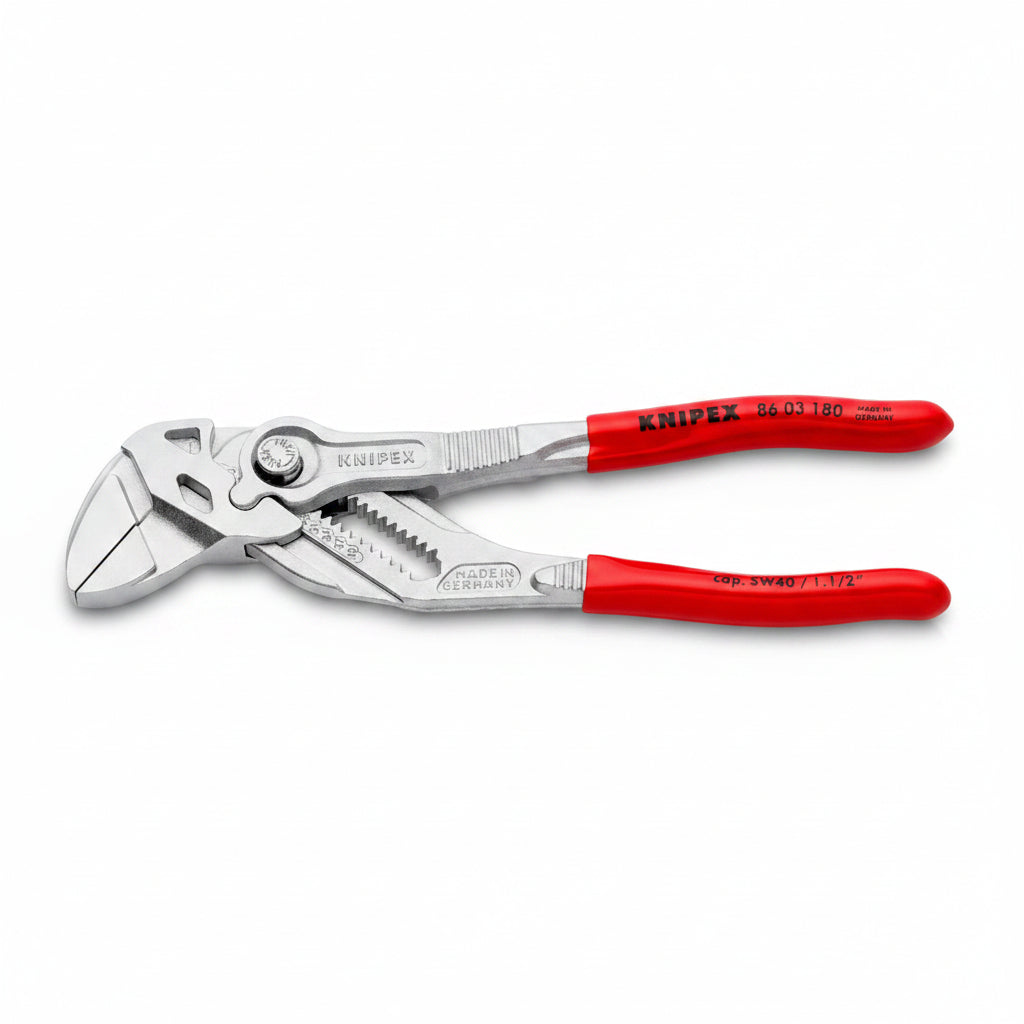

KNIPEX Pliers Wrench (Pliers and a wrench in a single tool)
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
Pickup currently unavailable.
This product needs 2-3 business days to process.
Features
- Replaces the need for sets of metric and imperial spanners
- Smooth jaws for damage free installation of plated fittings - working directly on chrome!
- Great for gripping, holding, pressing and bending workpieces
- Zero backlash jaw pressure prevents damage to edges of sensitive components
- Fast adjustment by pushing a button directly on the workpiece
- No unintentional shift of the gripping jaws and no slipping of the joint
- Parallel jaws give a more solid grip; its design allows flexible adjustment of all widths up to the specified maximum size
- The ratchet type principle allows quick and easy tightening and release of all bolted connections
- High lever transmission for strong gripping power
Specifications
| Part No. | 86 03 180 |
| EAN | 4003773035466 |
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | with plastic coating |
| Weight | 230 g |
| Dimensions | 180 x 44 x 15 mm |
| REACH compliant | does not contain SVHC |
| RoHS compliant | not applicable |
| Jaw thickness (joint) (B2) | 8.0 mm |
| Joint thickness (B3) | 12.0 mm |
| Tips thickness (B1) | 5.0 mm |
| Adjustment positions | 15 |
| Capacities for nuts | Ø 1 1/2 Inch |
| Capacities for nuts | max. 40 mm |
Pliers and spanner in one tool

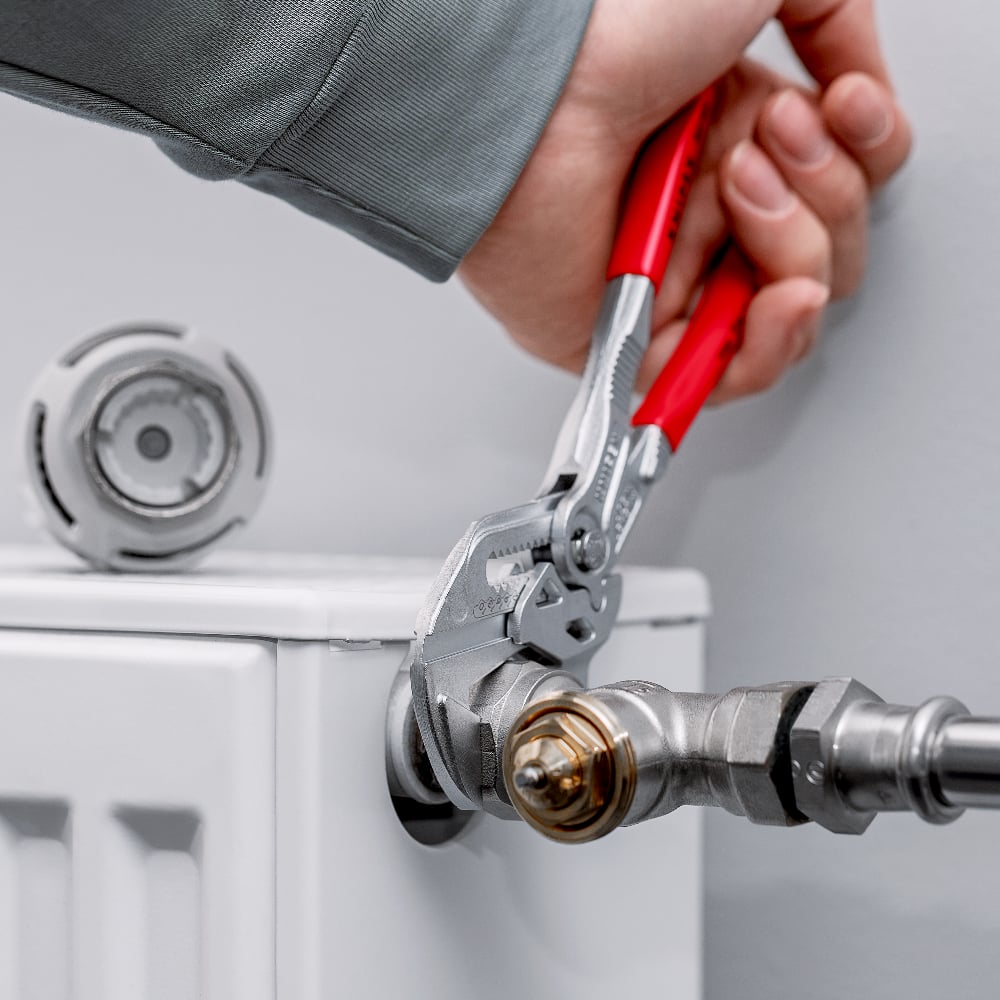

The Knipex pliers wrench 86 03 180 - for classic applications such as In sanitary areas.
The wrench combines many functions: It replaces metric as imperial a whole set of spanners, can be adjusted very quickly and directly at the workpiece at the touch of a button and continuously packs all gripping widths up to 40 mm or 1 1/2 inch. The joint bolt locks securely in place, which prevents accidental adjustment. The smooth gripping jaws stand in parallel and pack the work piece without damaging edges and sensitive surfaces - work directly on chrome.
The Knipex pliers wrench.

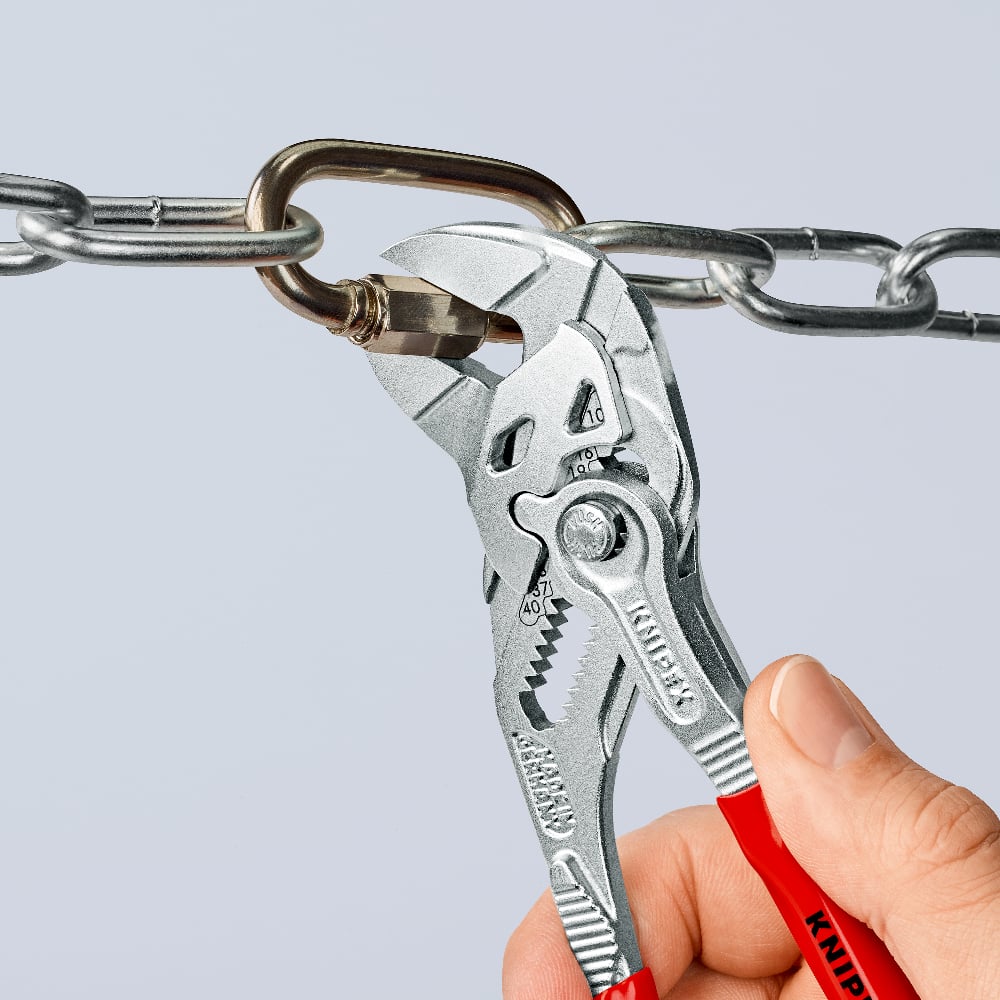

10x reinforcement of hand force: The excellent mechanism of the pliers key strengthens the applied hand force by 10 times. Work pieces hold it securely like a vice. Even flat objects can be grabbed and processed easily thanks to the high pressing force and the parallel jaws.

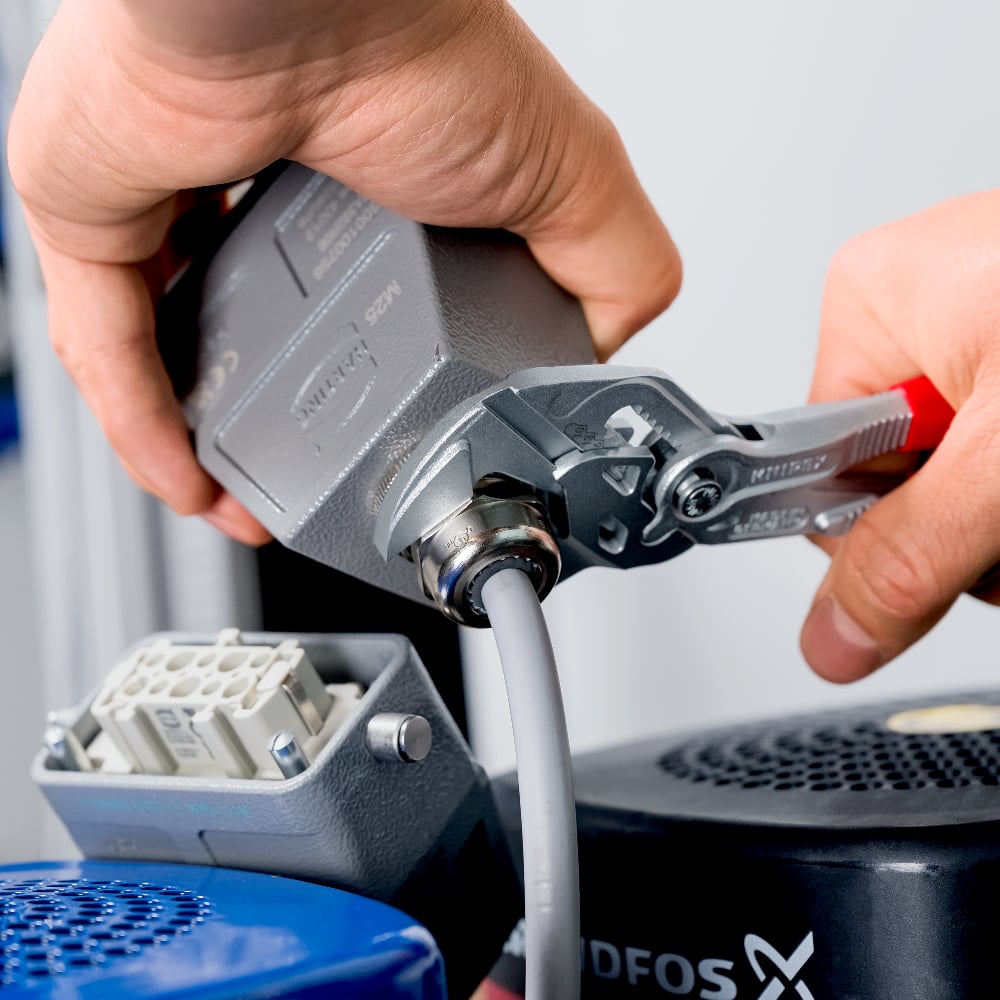

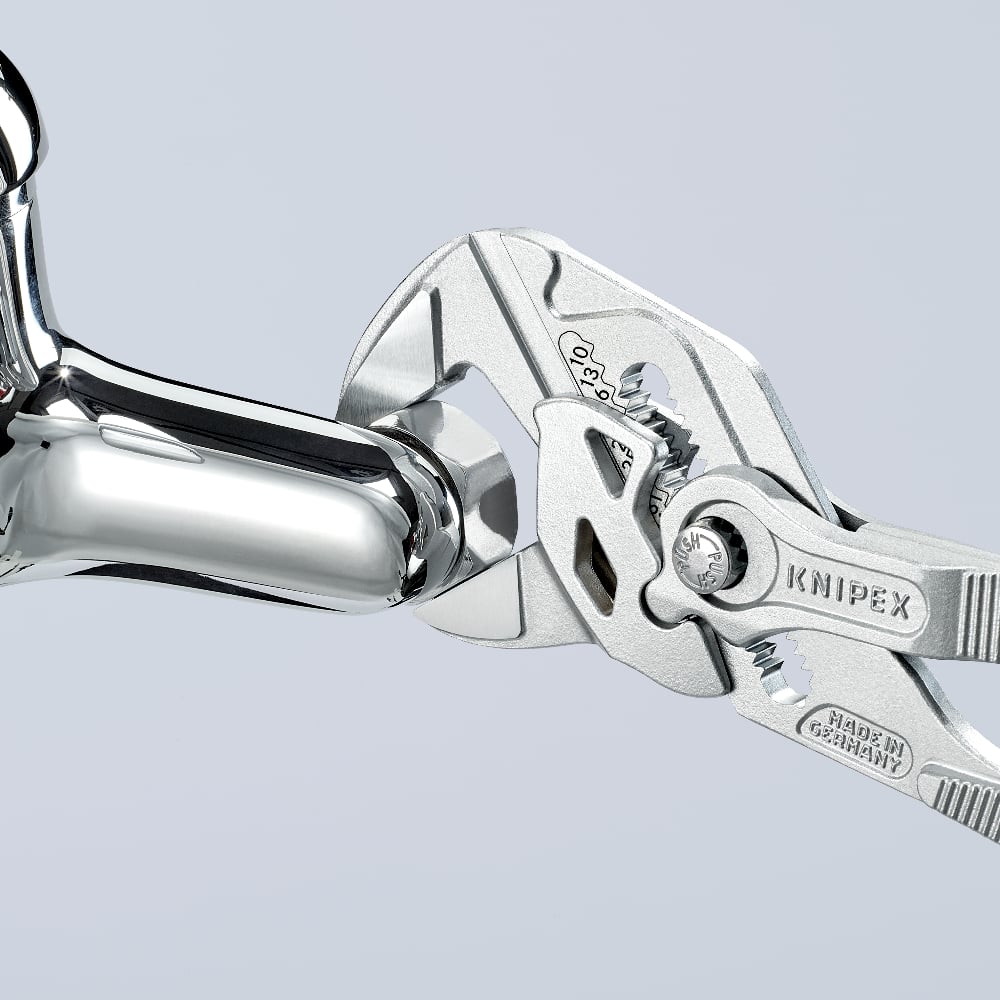

Gentle to use
Work on refined or very sensitive surfaces (eg. B.Fittings in the bathroom) can be made to a gentle material.

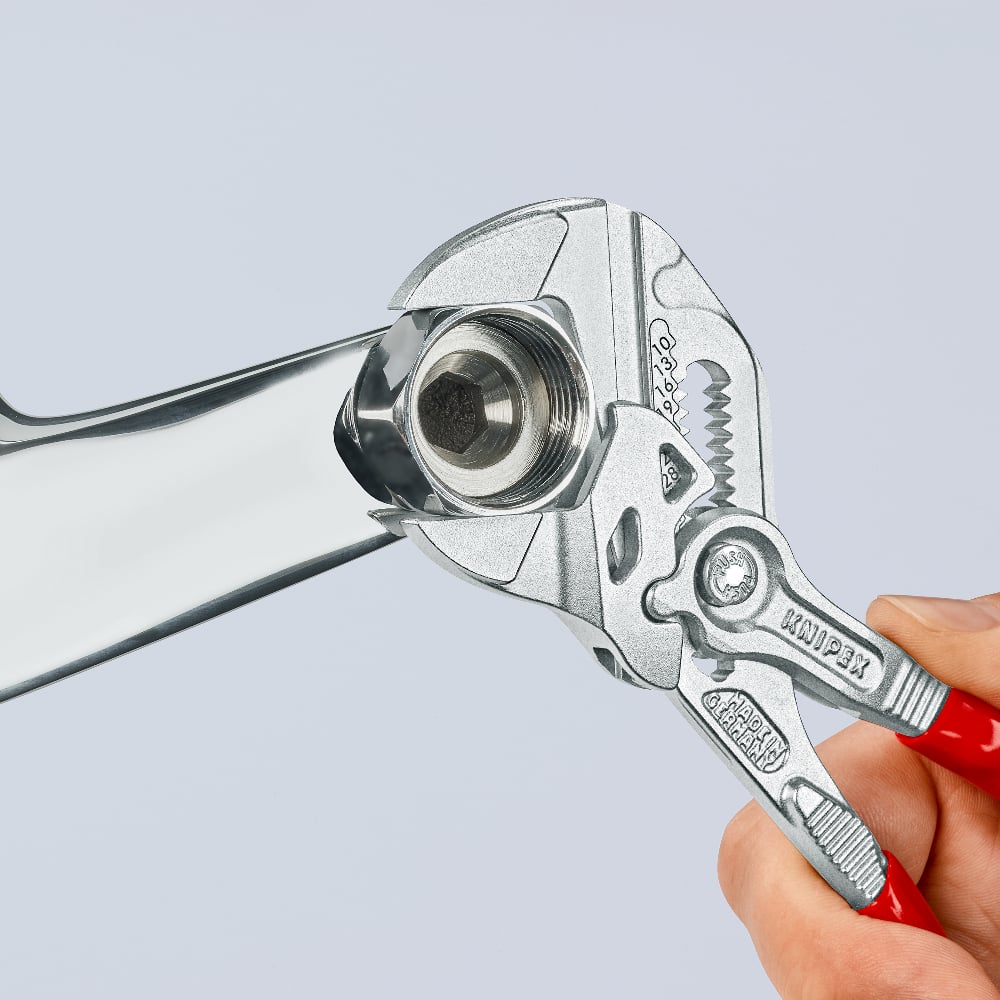

Ratchet principle
The special hub of the gripping jaws allows time-saving screws according to the ratchet principle.
*Picture shows old model

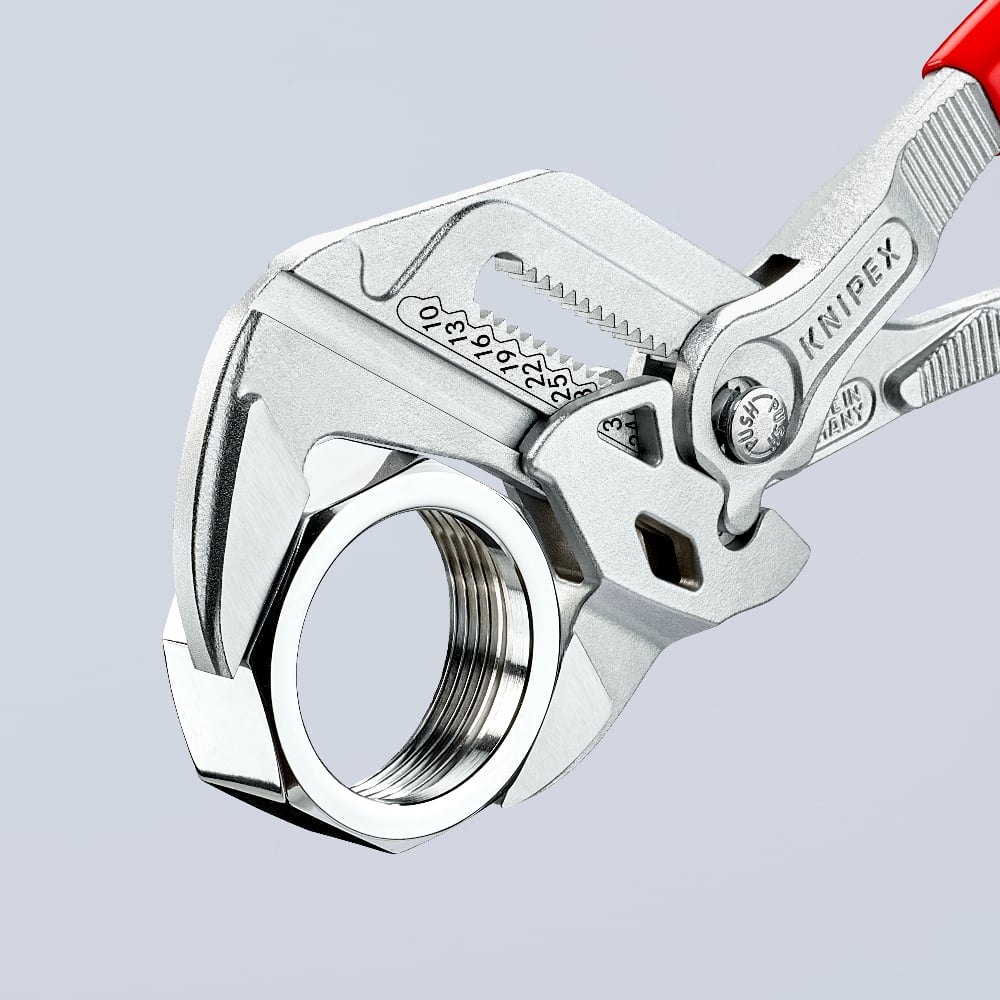

Quick push button adjustment
Replaces a full set of spanners: Can be adjusted directly on the workpiece (up to 40 mm / 1 1/2 inch).

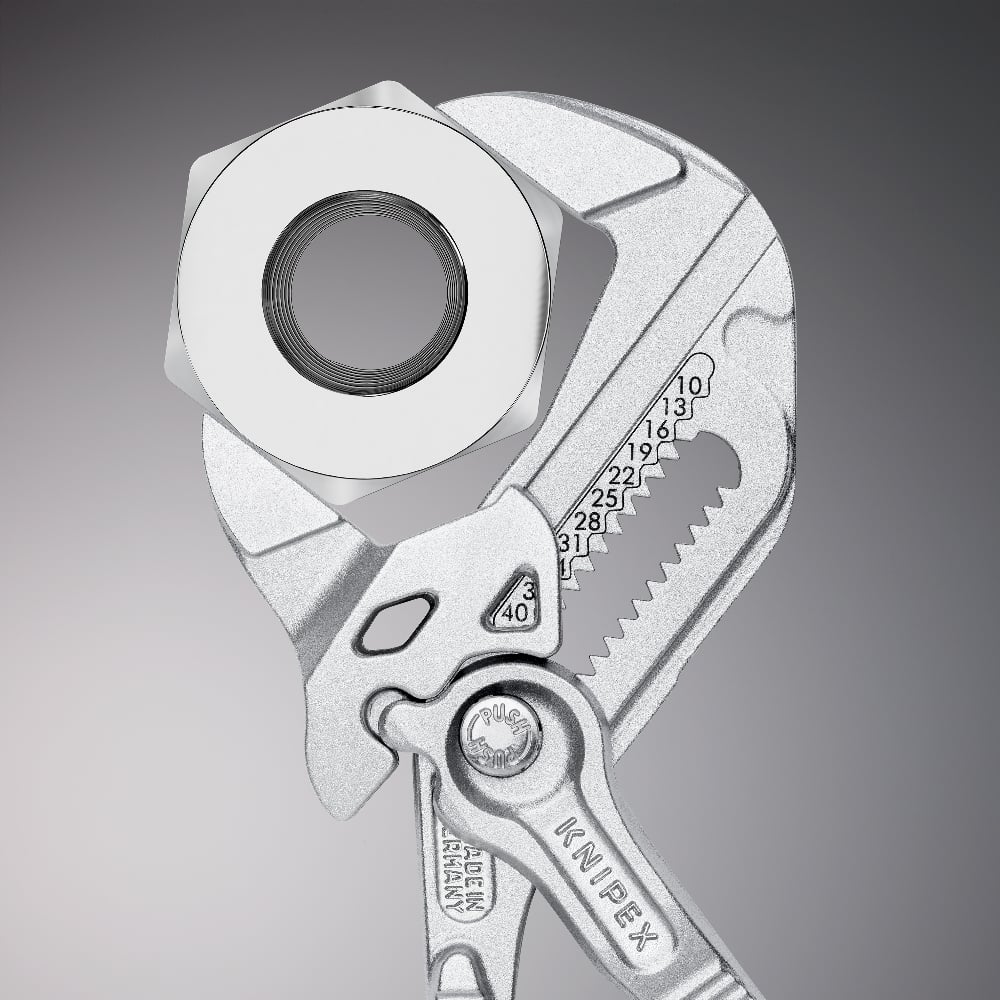

Laser-cut size scale
The revised Knipex pliers have two lasered scales: metric on the front, imperial on the back. This means that you can also adjust the grip distance in advance for difficult to reach workpieces.
