Testo
Testo 755-1 Current/voltage Tester
$386.10 AUD (Inc GST)
/
0590 7551
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
Pickup currently unavailable.
This product needs 1-2 business days to process.
- Easy, reliable operation through automatic measurement parameter detection
- DIN EN 61243-3:2014 and DIN EN 61010‑1:2011 certified
- Exchangeable measuring tips
- Suitable for almost all electrical measuring tasks

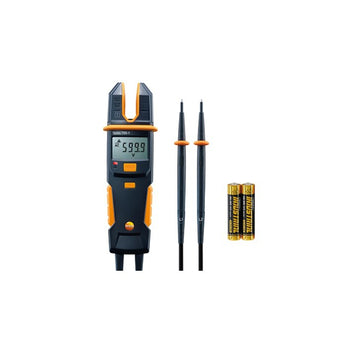

testo 755-1 - Current/voltage tester, batteries and measuring tips
DC voltage
| Measuring range |
6 to 600 V
|
|---|---|
| Resolution |
0.1 V
|
| Accuracy |
50 to 600.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
|
AC voltage
| Measuring range |
6 to 600 V
|
|---|---|
| Resolution |
0.1 V
|
| Accuracy |
50 to 600.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)
|
AC current
| Measuring range |
0.1 to 200 A
|
|---|---|
| Resolution |
0.1 A
|
| Accuracy |
± (3 % of mv + 3 Digits)
|
Resistance
| Measuring range |
30 Ohm to 100 kOhm
|
|---|---|
| Accuracy |
± (1 % of mv + 5 Digits)
|
General technical data
| Operating humidity |
0 to 75 %RH
|
|---|---|
| Weight |
320 g
|
| Dimensions |
199 x 62 x 40 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61243-3; EN 61010-1
|
| Battery type |
2 AAA micro batteries
|
| Display size |
one-line
|
| Display type |
LCD (Liquid Crystal Display)
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600V; CAT III 1000V
|
| Authorizations |
CSA; CE
|
Instrument Measurement Functions
| Continuity testing |
yes
|
|---|---|
| Display ligthing |
yes
|
| Hold |
yes
|
| Measuring point illumination |
yes
|
| Display (counts) |
4,000
|
| Autom. measurement parameter detection |
yes
|
