Testo
Testo 750-3 Voltage Tester
$281.60 AUD (Inc GST)
/
0590 7503
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
Pickup currently unavailable.
This product needs 1-2 business days to process.
- Clear, patented all-round LED display
- In accordance with DIN EN 61243-3:2014 and CAT III
- LC display showing the reading
- RC trigger function and vibrating load buttons

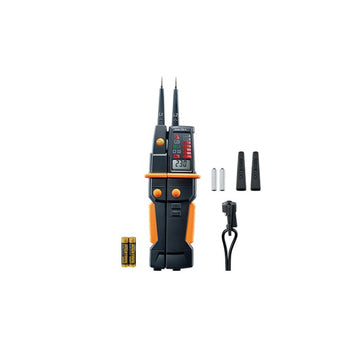

testo 750-3 Voltage Tester, batteries, measuring tip protector and measuring tip caps. Additional features: suitable for single pole voltage testing, torch light, RC trigger function, LC display to show current reading. See product specs below for details.
DC voltage
| Measuring range |
10 to 690 V
|
|---|---|
| Resolution |
1 V
|
| Accuracy |
± (3 % of mv + 5 Digits)
|
AC voltage
| Measuring range |
10 to 690 V
|
|---|---|
| Resolution |
1 V
|
| Accuracy |
± (3 % of mv + 5 Digits)
|
General technical data
| Operating humidity |
0 to 95 %RH
|
|---|---|
| Weight |
295 g
|
| Dimensions |
270 x 72 x 35 mm
|
| Operating temperature |
-10.0 to 50.0 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61243-3; EN 61326-1; EN 61010-1
|
| Battery type |
2 AAA micro batteries
|
| Display size |
one-line
|
| Display type |
LCD (Liquid Crystal Display)
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600 V; CAT III 690 V
|
| Authorizations |
TÜV; CSA; CE
|
Instrument Measurement Functions
| Continuity testing |
yes
|
|---|---|
| Display ligthing |
yes
|
| Hold |
yes
|
| RDC/RC trigger function |
yes
|
| Rotating magnetic field testing |
yes
|
| Single pole phase testing |
yes
|
| Measuring point illumination |
yes
|
