Testo
Testo 750-1 Voltage Tester
$132.00 AUD (Inc GST)
/
0590 7501
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
Pickup currently unavailable.
This product needs 1-2 business days to process.
- Clear, patented all-round LED display
- Complies with the current standard for voltage detectors DIN EN 61243-3: 2010
- Fibre-optics for optimum voltage indication
- Robust housing with ergonomic handle and anti-slip ring

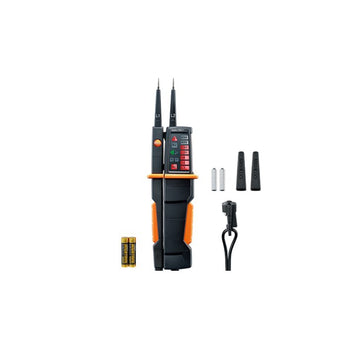

testo 750-1 Voltage Tester, batteries, measuring tip protector and measuring tip caps.
DC voltage
| Measuring range |
12 to 690 V
|
|---|---|
| Accuracy |
according to DIN EN 61243-3:2014
|
AC voltage
| Measuring range |
12 to 690 V
|
|---|---|
| Accuracy |
according to DIN EN 61243-3:2014
|
General technical data
| Operating humidity |
0 to 95 %RH
|
|---|---|
| Weight |
235 g
|
| Dimensions |
270 x 65 x 35 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61243-3; EN 61326-1; EN 61010-1
|
| Battery type |
2 AAA micro batteries
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600V; CAT III 690 V
|
| Authorizations |
TÜV; CSA; CE
|
Instrument Measurement Functions
| Continuity testing |
yes
|
|---|---|
| Display ligthing |
yes
|
| Rotating magnetic field testing |
yes
|
| Single pole phase testing |
-
|
| Measuring point illumination |
-
|
