Aircoplus
Aircoplus Pair Coil 1/4“ x 5/8” R410a 20m
$324.50 AUD (Inc GST)
/
APC145820
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
APC145820

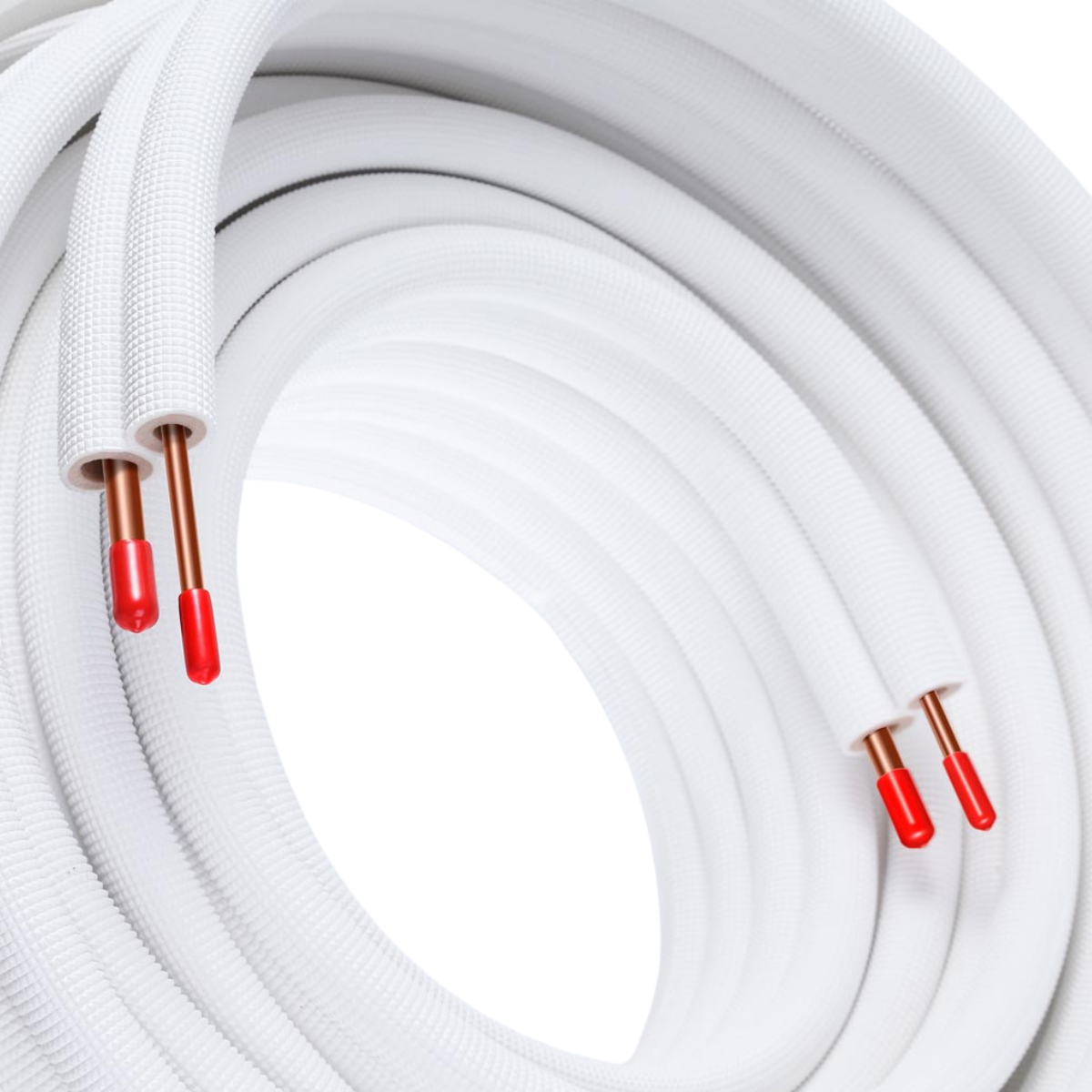

Aircoplus insulated copper pipe is designed to save time and ease works during installation. It is an ideal product for split system air conditioning and refrigeration installations.
Features
- Top Grade Annealed Seamless Copper Tube Manufactured to AS/NZS 1571
- 20 years product warranty on copper
- High heat resistant to 120°C to enhance the thermal conductivity performance
- Tough and durable 3 layered insulation
- UV stabilized
- Special designed insulation make it easy to feed through the wall cavity
- Suitable for all refrigerants including R32 and R410A, etc
Specifications
| Copper Tube O.D. (in) | 1/4″ x 5/8″ |
| Copper Tube O.D. x Wall Thickness (mm) | 6.35 x 0.81 – 15.88 x 1.02 |
| Length (m) | 20 |
| Insulation Thickness (mm) | 10 x 10 |
| R Value | 0.41 – 0.43 |
Properties
| Copper Tube | |
| Temper | O |
| Copper Content | 99.90% min. |
| Phosphprus Content | 0.015% ~ 0.040% |
Insulation
| Thermal Conductivity | < 0.04 W/(m*K) at 40°C |
| Permanent Deformation | 2.60% |
| Thermal Contraction | 5.80% |
| Water Absorption | Wp < 0.04 kg/㎡ |
| Vapour Diffusion | 4200μ |
| Emission of VOC | 0.00% |
