WIPCOOL

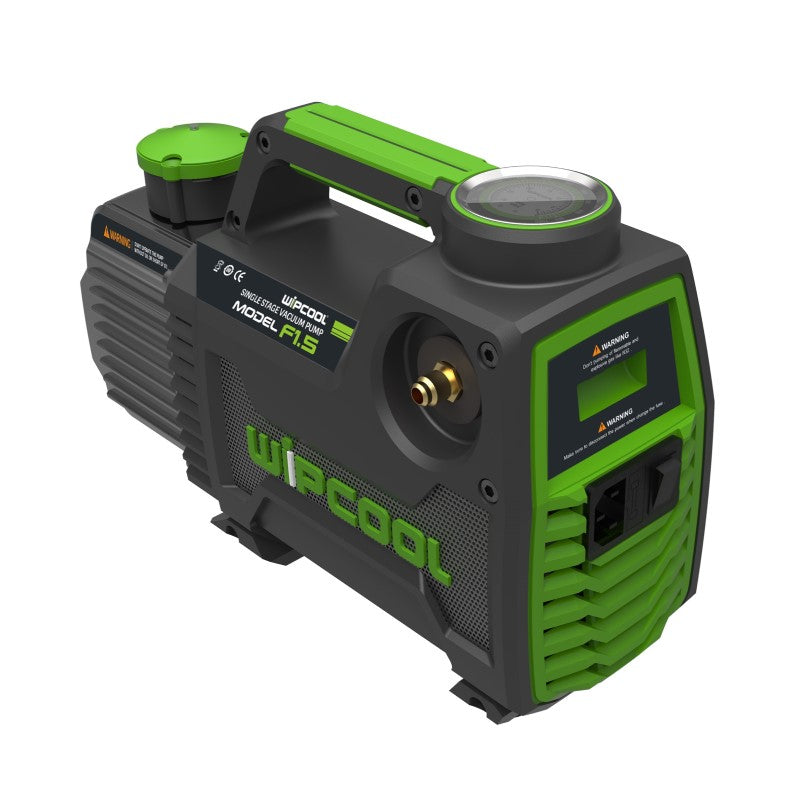

WIPCOOL F Series, 85 L/min 3CFM Single Stage Vacuum Pump - R410A Compliant

$283.50 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
JAVF15
$283.50 AUD (Inc GST)

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

WIPCOOL F Series, 85 L/min 3CFM Single Stage Vacuum Pump - R410A Compliant

JAVF15

Features:

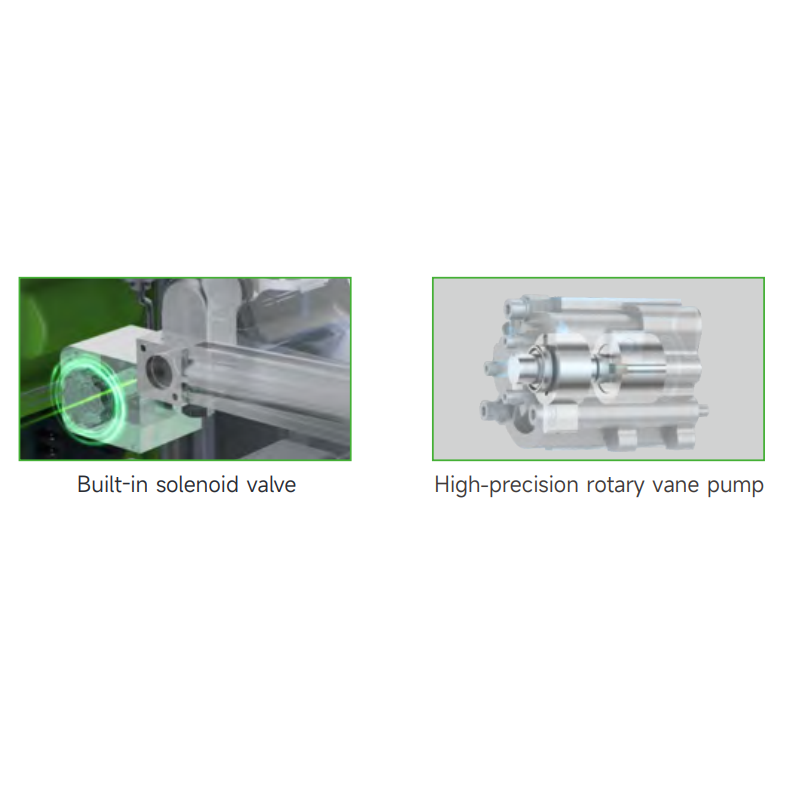

  • Equipped with build-in solenoid valve to prevent oil backflow to system.

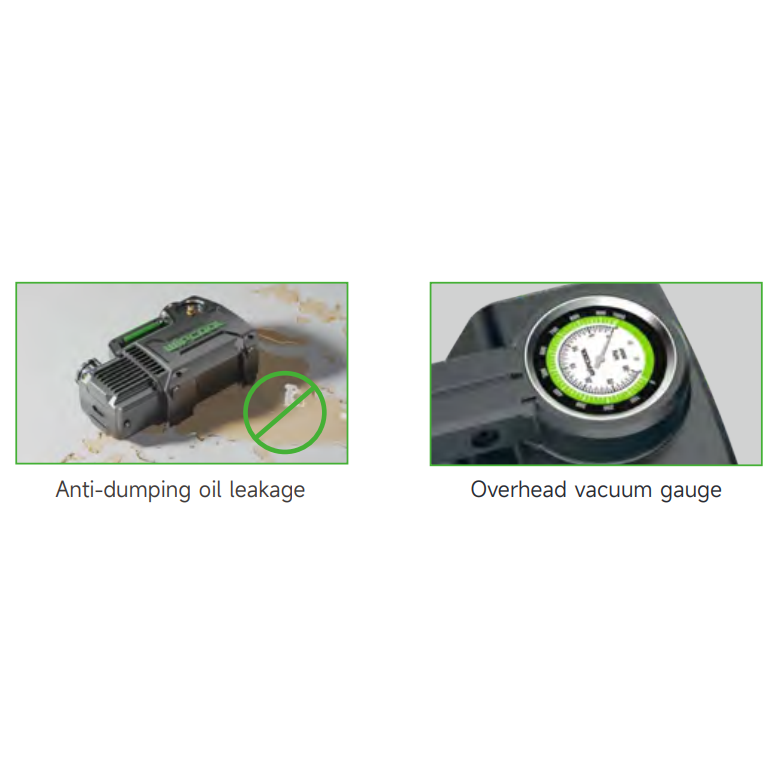

  • Built-in overhead vacuum meter for compact and easier operation.
  • Reinforced aluminum alloy oil tank for effective heat dissipation and resistance to chemical corrosion.
  • Oil colour and level are easy to see with the oversized sight glass.
  • Patented anti-dumping structure to avoid oil leakage.
  • Integral cylinder structure to guarantee reliability.
  • No oil injection and less oil mist, prolonging oil service life.
  • New motor technology and easy startup.
  • Ideal use for R12, R22, R134a and R410a

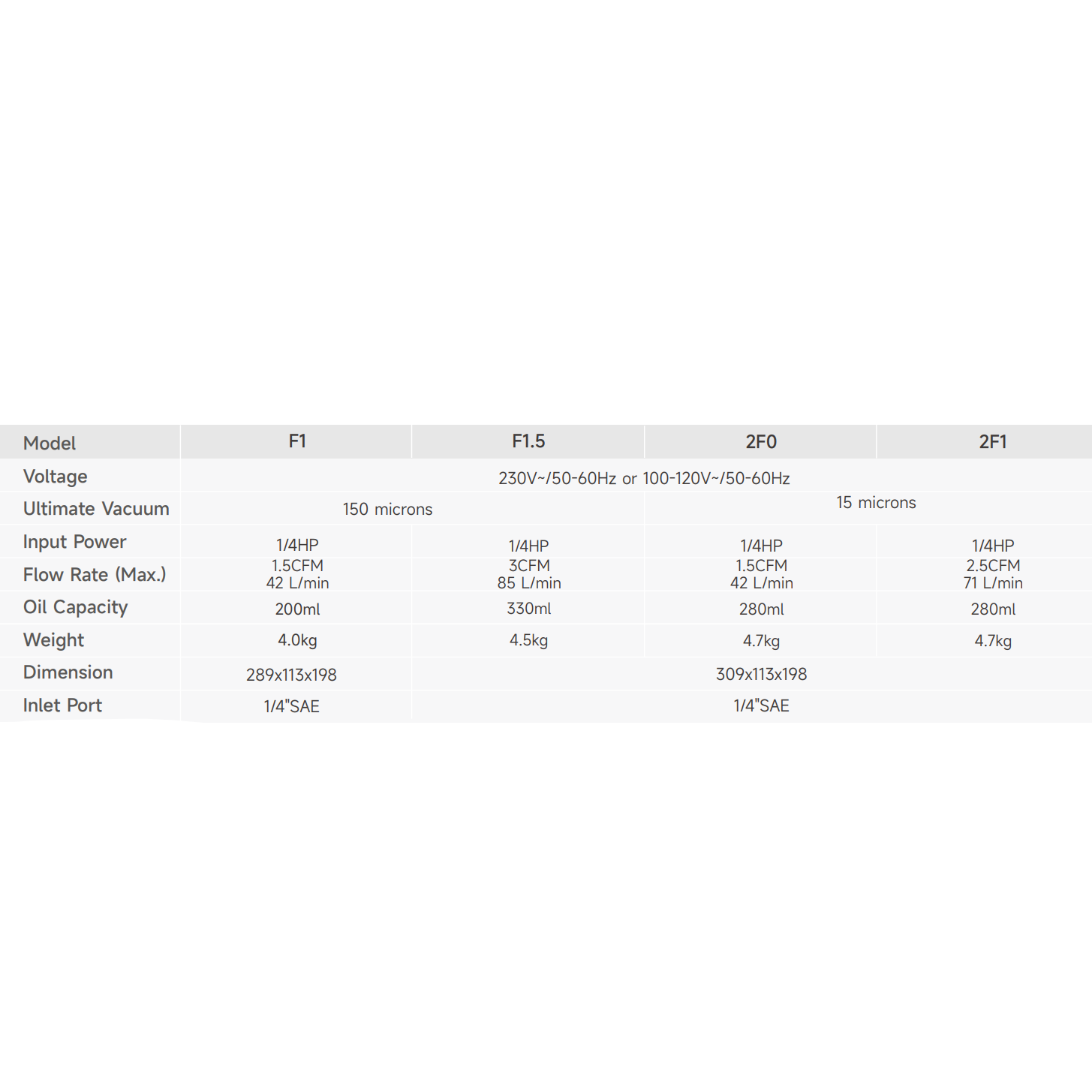

Specifications:

  • Voltage: 230V 50-60Hz
  • Input power: 1/4 HP
  • Flow rate (Max.) 3CFM or 85 L/min
  • Oil capacity: 330ml
  • Weight: 4.5kg
  • Dimensions: 309 *  113 *  198
  • Inlet port: 1/4" SAE

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
