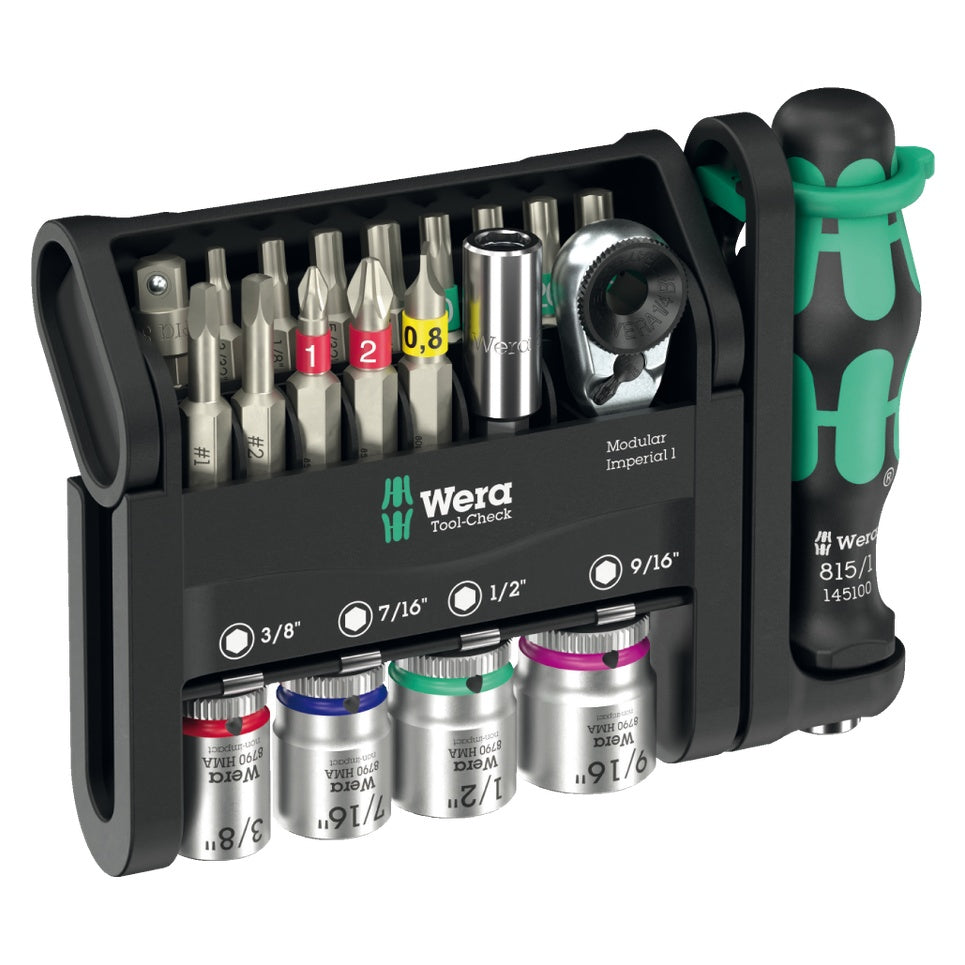

Wera Tool-Check Modular Imperial 1, 21 Piece 049001

Overview

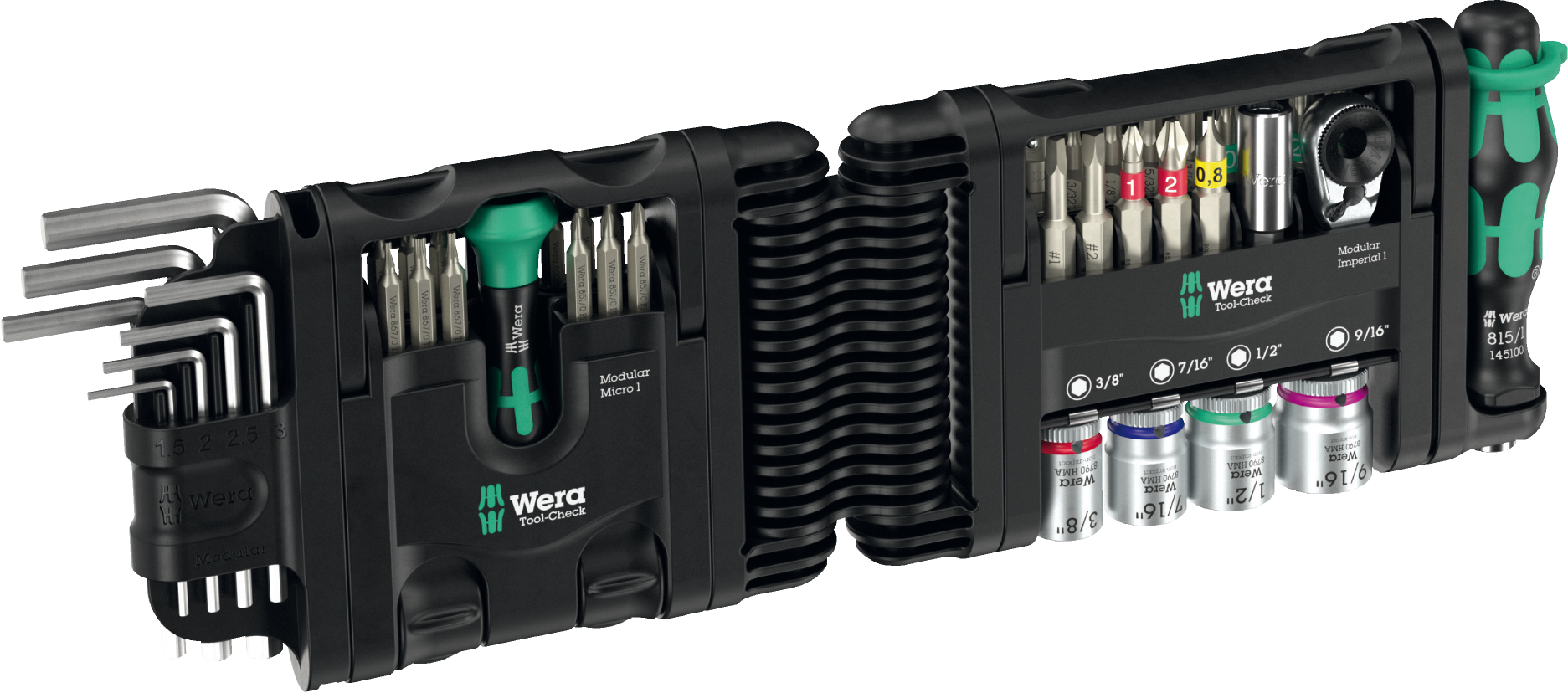

Very compact 21-piece tool set. One Kraftform 815/1 handle, suitable for mounting bits with 1/4" external hexagon drive, one 8011 Zyklop Mini 4 bit ratchet (1/4"), also suitable for 1/4" sockets using the included 870/1 adapter (1/4" external hexagon to 1/4" external square head), one magnetic 899/4/1 bit holder for screwdriver machines, 9 BiTorsion bits (BTZ) with 1/4" external hexagon drive for Phillips-head screws, TORX®, slotted and square head, 4 tough bits (Z) for hexagonal socket (imperial sizes), 4 Zyklop 8790 HMA sockets (imperial sizes), 1/4". In the compact Tool-Check Modular 1. Tools can be connected to other components of the Tool-Check Modular system using the rigid Tool-Check Modular adapter 9549 or the flexible Tool-Check Modular hinge 9550.

Features

• Tool-Check Modular: individual combination of different Tool-Check Modular components

• Very compact 21-piece tool set for manual and machine-operated screwdriving

• Perfect for a wide variety of screw connections with ¼" ratchet, hand or machine

• Multi-component Kraftform handle with mounting for 1/4" hex drive bits

• 1/4" 8011 Zyklop Mini 4 bit ratchet for handles with 1/4" bit mounting

• Magnetic 899/4/1 K bit holder for 1/4" hex drive bits; and machine use

• 9 BiTorsion bits (BTZ) for Phillips, TORX®, slotted and square head, 4 tough bits (Z) for hexagonal socket screws; 25 mm and 50 mm length

• 4x 8790 HMA sockets, 1/4", imperial sizes; one adapter 1/4" external hexagon to 1/4" external square head

Contents

• 815/1 Bitholding Screwdriver: 1/4" x 78mm

• 8011 Zyklop Mini 4 Bit Ratchet: 1/4" x 50mm

• 870/1 Adaptor: 1/4" x 25mm (with friction ball, for manual nut spinner sockets)

• 899/4/1 Universal Bit Holder: 1/4" x 50mm

• 851/4 BTZ Phillips Bits (50mm): PH1, PH2

• 867/1 BTZ Torx Bits (25mm): TX10, TX15, TX20, TX25

• 800/4 BTZ Slotted Bits (50mm): 0.8 x 5.5mm

• 840/1 Z Hex Bits (25mm): 3/32", 1/8", 5/32", 3/16"

• 868/4 BTZ Square-Plus Bits (50mm): #1, #2

• 8790 HMA Zyklop 1/4" Socket (23mm): 3/8", 7/16", 1/2", 9/16"
