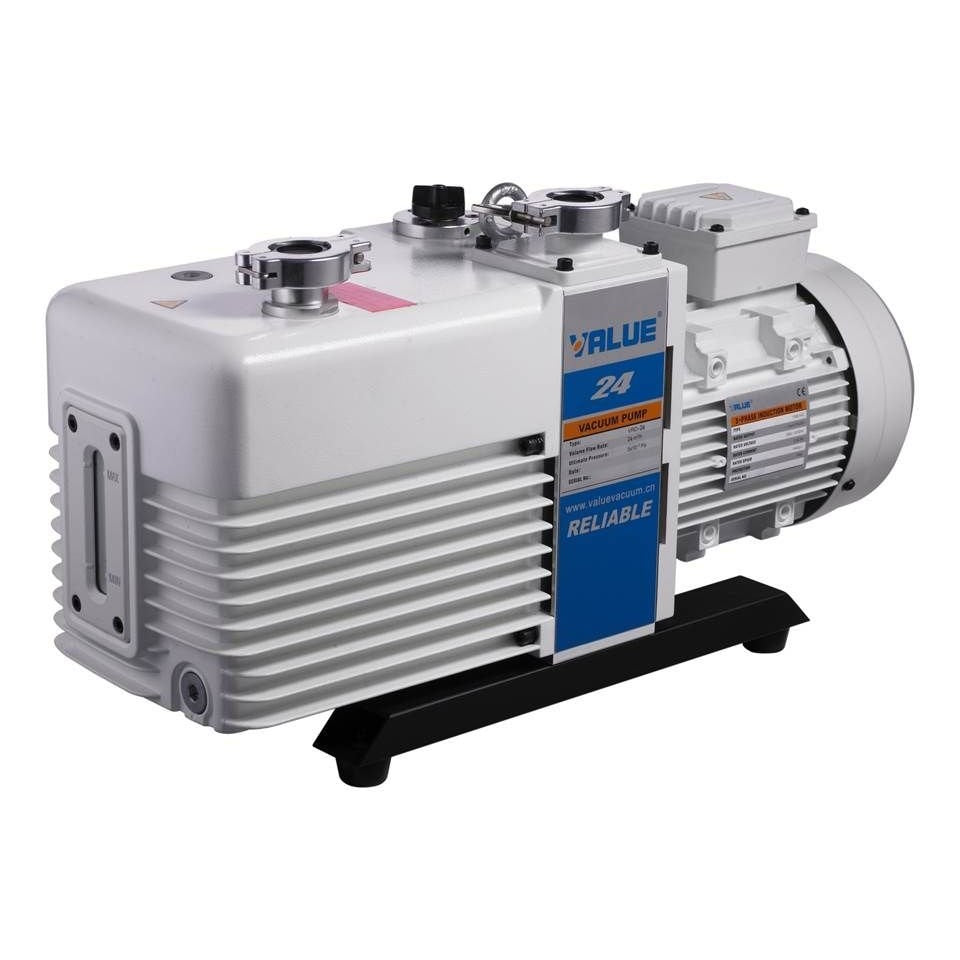

VALUE VRD Series Vacuum Pump - 24 m³/h

VRD24



This VALUE VRD24, VRD Series Vacuum Pump - 24 m³/h - 400 L/min has been purposefully built for heavy industrial use as well as laboratory use. Combining technology and aesthetics, the VRD series provides a quality solution for many applications. Please contact a HVAC Direct staff member if you require a corrosion resistant pump from this series (e.g. VRD-M or VRD-C).



  • Integrated cylinder structure and innovative oil circulation system results in super stability

  • Auto anti-sucking back valve and two shifts gas ballast makes best reliability

  • Tow-Shift adjustable gas ballast valve satisfies different requirements of condensable vapour (such as water vapour) to be exhausted out of pump in different processes

  • Dual-protection of oil anti-sucking back ensures vacuum from oil pollution when pump stops running and needs to be easily restarted

  • Forced oil pump and constant pressure oil supply mechanism ensures stable running of the pump

  • Less components are used, easy to maintain and repair

Specifications:

  • Displacement speed: 24 m3/h - 400 L/min

  • Ultimate partial pressure gas ballast close: 4 x 10-2 Pa

  • Ultimate total pressure gas ballast close: 4 x 10-1 Pa

  • Ultimate total pressure gas ballast open: 8 x 10-1 Pa

  • Power supply: 230 V / 400 V

  • Power: 1.10 hp / 0.75 kW

  • Intake and exhaust DN: KF25/40

  • Oil capacity: 1.3 - 2 L

  • Motor speed: 1440 obr/min

  • Ambient temperature: 5 - 40 ⁰C

  • Noise level: ≤58 dB

  • Weight: 36 kg


WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
