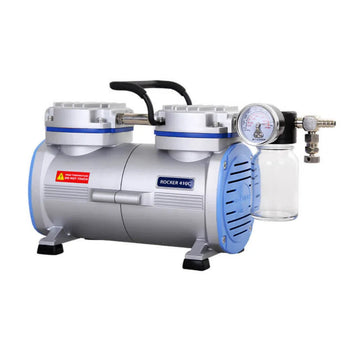

ROCKER 410C PTFE Coated Chemical Resistant Vacuum Pump 23 L/min

ROCKER 410 Vacuum Pump - 23 L/min

R41022C

This ROCKER R41022C, ROCKER 410C PTFE Coated Vacuum Pump is an economical chemical-resistant diaphragm pump with PTFE coatings. With its chamber coated with PTFE, ROCKER C pumps are resistant to moderate corrosive gases and more cost effective when compared with traditional acid-resistant pumps.

Features:

• Moderate chemical resistance
  The diaphragm chamber of Rocker 410C vacuum pump coated with PTFE can offer good resistance to a wide range of corrosive gases except strong acid and alkali.
• No air pollution, maintenance free
  Rocker 410C vacuum pump is driven by diaphragm, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
• Quiet and low vibration
  The mechanism technique and quality vibration-proof assembles make pumps run at the lowest noise with stable.
• Thermal protection device
  Every motor of Rocker 410C series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

• For aggressive solvents and solutions, please refer to Chemker pumps

Specifications:

•  Rocker 410C 220V, 50Hz
• Max. power: 80W
• Max. current: 0.4A
• Max. vacuum: 25 mbar abs.
• Max. flow rate: 23 L/min
• Motor rotation speed: 1750 RPM
• Horse power: 1/6 HP
• Noise level: 52 dB
• Hose barb: ID8 (5/16 inch)
• Net weight: 5.7 Kg
• Dimension (LxWxH): 31 x 13.5 x 20.4 cm
• Vacuum regulator: Yes
• Thermal protection: Yes
• 189410-22

International Certificates:

• CE certification
• IP 30 protection
• RoHS certification

Applications:

• Solvent purification
• Solid-Phase Extraction
• Vacuum filtration
