HVACDIRECT Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set & Leak Detector)

$426.20 AUD (Inc GST)
Tax included. Shipping calculated at checkout.

Usually ready in 24 hours

HVACDIRECT Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set & Leak Detector)



This HVACDIRECT KIT16, Refrigeration & HVAC Split System Install Kit (Pump, Manifold Set & Leak Detector) is a high quality tool kit that is ideal for general refrigeration and split system service. Included in this kit are some of HVAC Direct's best selling products.

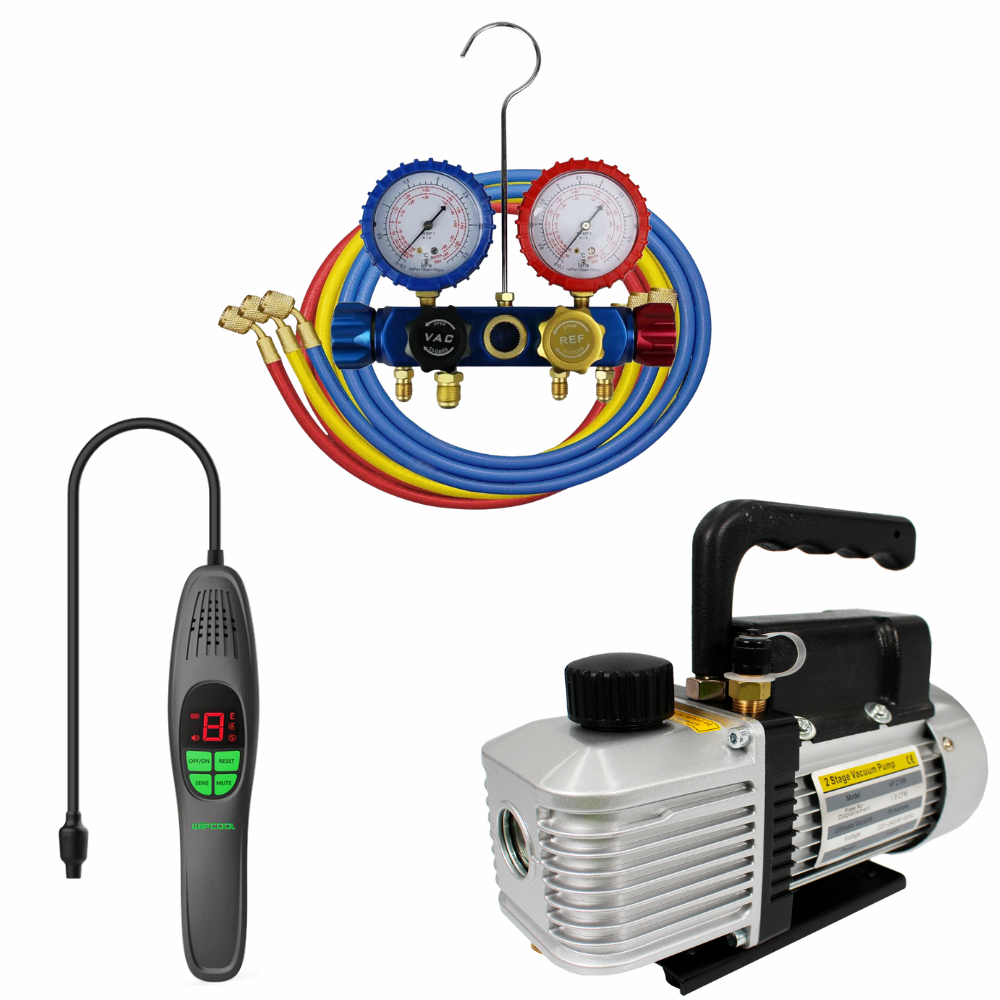

Kit contains:

#1. Refrigeration Vacuum Pump (VP215N)

Ideal for general refrigeration service, our top selling 45L/min Vacuum Pump is a quality, 2-stage oil rotary vane pump with 15 micron ultimate vacuum.


  • Bottle shops and convenient stores

  • Restaurants, cafes and catering facilities

  • General refrigeration

  • Household or residential including split systems

  • Commercial

Key Benefits:

  • Manufactured to high quality JAVAC standards

  • Great value for money

  • Anti-oil demister to prevent oil spillage

  • Fitted with 1/4" SAE connector


R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R402A, R404A, R407A, R407B, R410A & R507


#2. HVACDIRECT 4-Valve Refrigeration Manifold Set - R410a Compliant



This HVACDIRECT HMG4R410AII, 4-Valve Refrigeration Manifold Set is a high quality manifold and gauge set that allows you to diagnose and recharge any A/C system with ease and safety.



  • High pressure and low pressure dual colour-coded gauges
  • Large and clear dials
  • Built-in sight glass
  • Quick-disconnect valves
  • Three 91.4 cm (36") charging hoses


  • Anodised aluminium block body

  • One full-turn open/close valve

  • 1/4" SAE intakes

  • 2x 1/4" M SAE and 5/16" F SAE adapters included

  • 4 easy-to-grip knobs


  • R134a, R22, R404a, R407C and R410a

Three hoses:

  • Colours: Yellow, red and blue

  • Length: 91.4 cm (36")

  • Connections: 1/4" SAE flare

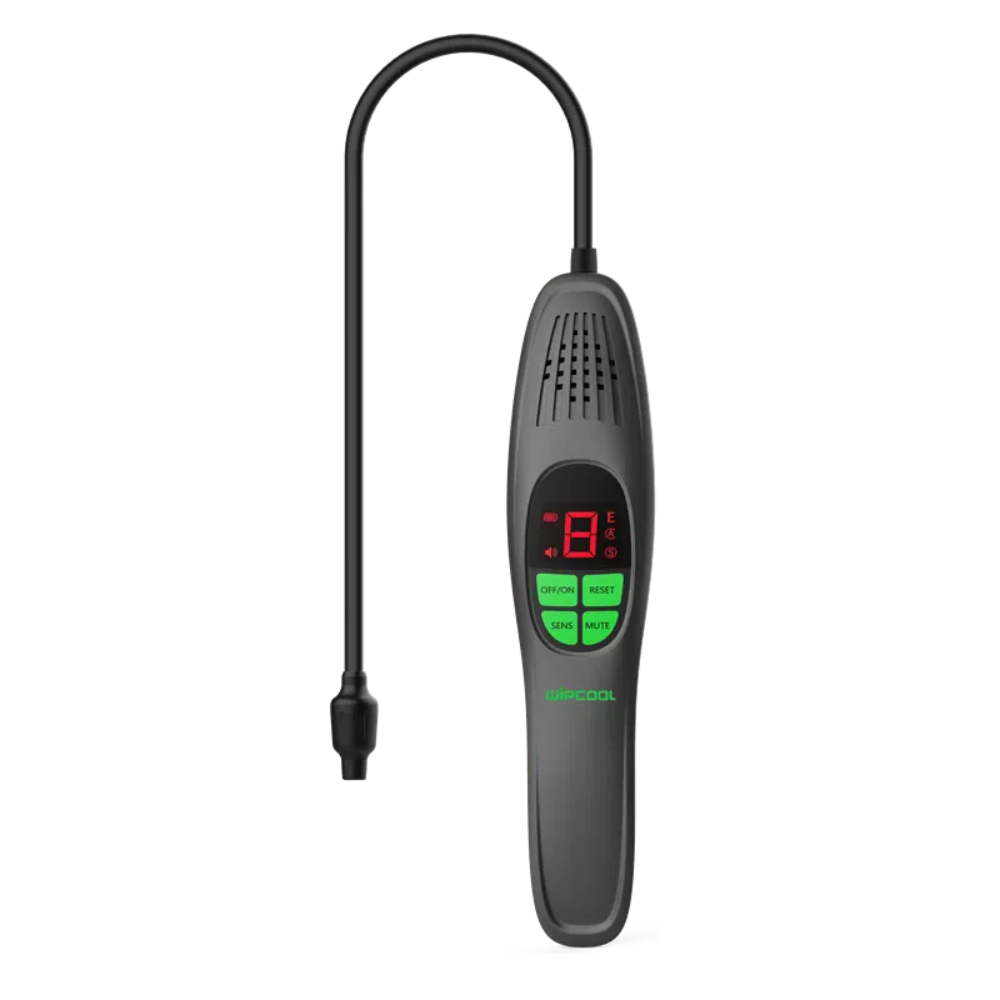

#3. HVACDIRECT Refrigerant Leak Detector (Halogen)



This HVACDIRECT HLD100, Refrigerant Leak Detector is a device that features high performance, powerful function, extreme sensitivity and is very easy to operate.



  • Detects all kinds of halogenated refrigerants

  • Single colour LED display with 6-level leak alarm

  • Tricolour display of battery voltage

  • Reset time sensitivity adjustment

  • Real time sensitivity adjustment

  • Adopts quality sensors that can detect slightly leaked halogen gases

  • 355 mm flexible stainless steel probe


  • Halogenated refrigerants (with Chlorine and Fluorine included) including, but not limited to:

    • CFCs R12, R11, R500, R503, etc

    • HCFCs R22, R123, R124, R502, etc

    • HFCs R34a, R404a, R125, etc

  • Ethylene oxide gas leaks in hospital sterilising equipment (it will detect the halogenated carrier gas)

  • SF-6 in high voltage circuit breakers
  • Most gases that contain Chlorine, Fluorine, and Bromine (halogen gases)

  • Cleaning agents used in dry cleaning applications such as chloroethylene

  • Halogen gases in fire-extinguishing system.


  • Max sensitivity to halogenated refrigerants: 3 g/y

  • Working temperature: 0~–50 °C

  • Working mode: Continuous and no limit

  • Reaction time: Instant

  • Resetting time: 2 seconds

  • Warm-up time: about 6 seconds

  • Probe length: 355 mm

12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
