KYORITSU

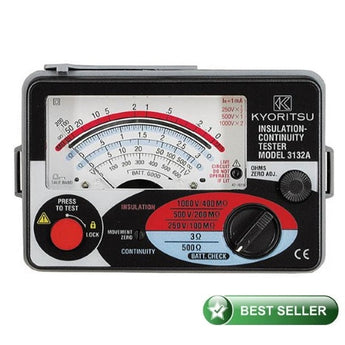

KYORITSU - 3132A - Compact Insulation & Continuity Tester 1kV

3132A
$508.20 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
3132A

Usually ready in 24 hours

KYORITSU - 3132A - Compact Insulation & Continuity Tester 1kV

SKU: 3132A

The Kyoritsu 3132A is an analogue insulation tester with three ranges for insulation resistance measurement and two continuity testing (resistance tests) ranges.

The KYORITSU 3132A is designed to safety standards: IEC 61557-1 (General requirements for measuring equipment for low voltage distribution systems) IEC 61557-2 (Equipment for insulation resistance measurement for low voltage distribution systems) IEC 61557-4 (Equipment for resistance tests for low voltage distribution systems) Dust and drip proof construction to IP54

  • The Kyoritsu 3132A has always been a popular choice because of its price and simplicity for insulation testing.
  • Test Voltage: 250V / 500V / 1000V
  • Measuring Range: 100MΩ, 200MΩ, 400MΩ
  • Voltage Measuring Range – 0~600V AC
  • Resistance Range: 3Ω / 500Ω (1.5Ω / 20Ω Midrange)
  • Easy to read scale means no confusing digital readings.
  • Zero out your trailing lead resistance so you don’t need to subtract the resistance of your trailing earth lead every time you test.
  • •1mA rated test current at the maximum resistance.
  • 200mA short circuit current on continuity testing.
  • Automatic discharge of circuit capacitance. (any charge stored in the circuit under test will be automatically discharged after testing.)
  • Live circuit warning buzzer and neon lamp.
  • Small and lightweight. Shock resistant new case material.
  • AC voltmeter with linear, easy-to-read scale.
  • CAT III 600V
  • Runs on 6 x AA batteries

KYORITSU 3132A Specifications:

Insulation Resistance

TEST VOLTAGE 250V/500V/1000V
MEASURING RANGES
(MID-SCALE VALUE)
100MΩ/200MΩ/400MΩ
(1MΩ) (2MΩ) (4MΩ)
OUTPUT VOLTAGE ON OPEN CIRCUIT Rated test voltage+20%, -0%
NOMINAL CURRENT 1mA DC min.
OUTPUT SHORT CIRCUIT CURRENT 1 – 2mA DC
ACCURACY 0.1 – 10MΩ/0.2 – 20MΩ/0.4 – 40MΩ
(Accuracy Guaranteed Ranges) ±5% of indicated value

Continuity

MEASURING RANGES
(MID-SCALE VALUE)
3Ω/500Ω
(1.5Ω) / (20Ω)
OUTPUT VOLTAGE ON OPEN CIRCUIT 4.1V DC approx.
MEASURING CURRENT 210mA DC min.
ACCURACY ±1.5% of scale length

AC Voltage

AC VOLTAGE 0 – 600V AC
ACCURACY ±5% of scale length

General

SAFETY STANDARD IEC 61010-1 CAT III 600V Pollution Degree 2
IEC 61010-2-031
IEC 61557-1/2/4
IP RATING IEC 60529-IP54
EMC STANDARD IEC 61326-1
POWER SOURCE R6 (AA) (1.5V) × 6
DIMENSIONS 106(L) × 160(W) × 72(D)mm
WEIGHT 560g approx.
INCLUDED ACCESSORIES 7122B (Test leads) Pouch for test leads
8923 (F500mA/600V fuse) × 2
R6 (AA) × 6
9121 (Shoulder Strap)
Instruction Manual

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
