HVACDIRECT Refrigeration Recovery Kit (Pump, Manifold Set, Recovery Unit & Leak Detector)

EBAYKIT27
$2,672.68 AUD (Inc GST) Sold out
Tax included. Shipping calculated at checkout.
EBAYKIT27

Pickup currently unavailable at 36 Enterprise Drive

HVACDIRECT Refrigeration Recovery Kit (Pump, Manifold Set, Recovery Unit & Leak Detector)

KIT27



This HVACDIRECT KIT27, Refrigeration Recovery Kit (Pump, Manifold Set, Recovery Unit & Leak Detector) is a high quality tool kit that is ideal for those looking to do quality work in the refrigeration industry. Included in this kit are some of HVAC Direct's best selling products.



Kit contains:


#1. JAVAC BULLDOG, 160 L/min, 2-stage Vacuum Pump - R32 Compliant

VBD1622



This JAVAC VBD1622, BULLDOG is a quality 2-stage, oil rotary vane pump with a 160 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

  • Bottle shops, convenient stores, restaurants and catering facilities

  • General Refrigeration

  • Residential or Industrial

  • Split system installation or servicing

Features/Benefits:

  • Comes with a free starter bottle of oil
  • R32 and 1234yf compliant
  • Manufactured to JAVAC's high quality standards
  • 160 L/min flow rate
  • 15 micron ultimate vacuum
  • Ballast valve
  • Automatic solenoid valve
  • Anti-oil demister to prevent oil spillage
  • Fitted with a tri-connector: 1/4", 3/8" & 1/2" ACME
  • 450ml oil capacity
  • Dimensions (mm): 338x212x238
  • Weight (kg): 12.5kg



#2. JAVAC XTR PRO Recovery Machine - Non-Sparking - R32, R410 & R134a Compliant

XTRC2



This JAVAC XTRC2, XTR PRO is a quality recovery machine, that provides reliability, accuracy, and an all-Australian design.



Features:

  • Recovers: R12, R134a, R22, R32, R401, R404, R406, R408, R410A, R411, R412, R500, R502, R509, 1234yf, and most CFC’s, HCFC’s and HFC’s
  • Built-in manifold analyser

  • Optimum fail-safe performance

  • Purges and self-cleans ‘on the fly’ with no need to shut down

  • A high torque AC motor provides up to 50% noise reduction

  • Increased vapour speed ensures the residual vapour moves quicker

  • You can flush, push/pull, and sub-cool by using the advanced facility

Specifications:

  • Liquid recovery rate (kg/min): 1.8

  • Vapour recovery rate (kg/min): 0.25

  • Push/pull (kg/min): 5.5

  • Connections: 1/4" SAE

  • HP Cut Out: 550 psi

  • Operating Temp: -5 °C to 60 °C

  • Noise Level: 72 dba

  • Weight (kg): 16kg

  • Dimensions (mm): 420x290x420

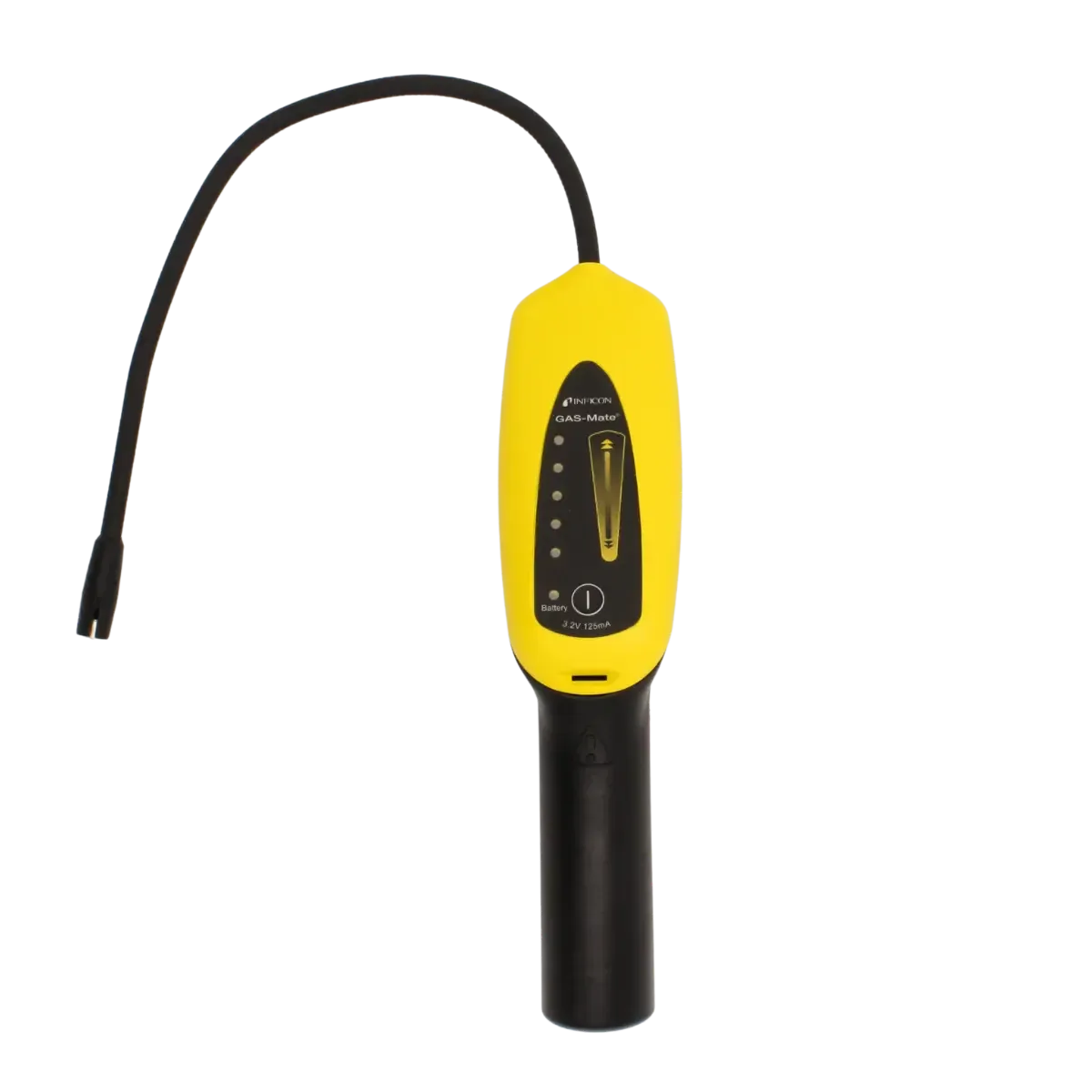

#3. INFICON Gas-Mate Leak Detector

706600G1



This INFICON 706600G1, Gas-Mate Leak Detector raises the bar on combustible gas detectors, providing the ideal tool for locating leaks in forming gas, flammable refrigerant, or combustible heating and appliance applications.



Applications:

  • Residential

  • Light commercial

  • Industrial

  • Automotive A/C

Key Benefits:

  • Sensitivity to 5 ppm methane

  • Detects natural gas, forming gas, propane, butane, cyclopentane, ethane, ethanol, isobutane and ammonia

  • Simple and easy to use. Just turn on the unit, allow it to warm up for a few seconds and it's ready to detect any gases quickly

  • Auto zeroing for ignoring background gas levels in leak test area

  • Small sensor and probe tip allows to check leaks in tight areas

  • No calibration required for the GAS-Mate or its field-replaceable sensor

  • Certified intrinsically safe to EC, EN and UL standards. Also ATEX approved

  • Durable with an industry leading 3 year warranty

Specifications:

  • Power source: Two D-size (1.5V) alkaline batteries (included)

  • Controls: Power button and sensitivity touch pad

  • Sensitivity: 5 ppm methane

  • Weight with batteries: 700 g

  • Battery life: 25 hours

  • Alarm indicators: Multiple LEDs and variable intensity audio



#4. JAVAC 4-Valve Refrigeration Manifold Set - R32 & R410a Compliant

MB4E86C



This JAVAC MB4E86C, 4-Valve Refrigeration Manifold Set has evolved from over 50 years of industry knowledge. It provides for a simple yet exemplary manifold/gauge set.



Features:

  • Suitable for R32 & R410a refrigerants
  • 1/4 turn ball valves
  • Gauge impact protection covers
  • Adjustable gauge calibration
  • Solid alloy body
  • 3/8" SAE vacuum connection

Specifications:

  • 800 psi max recommended working pressure
  • Burst pressure 4,000 psi
  • Red, blue & yellow hoses: 72", 5/16" SAE connections
  • Included: 4-Valve Refrigeration Manifold, 4-piece hose set, hanging manifold hook & carry case

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
