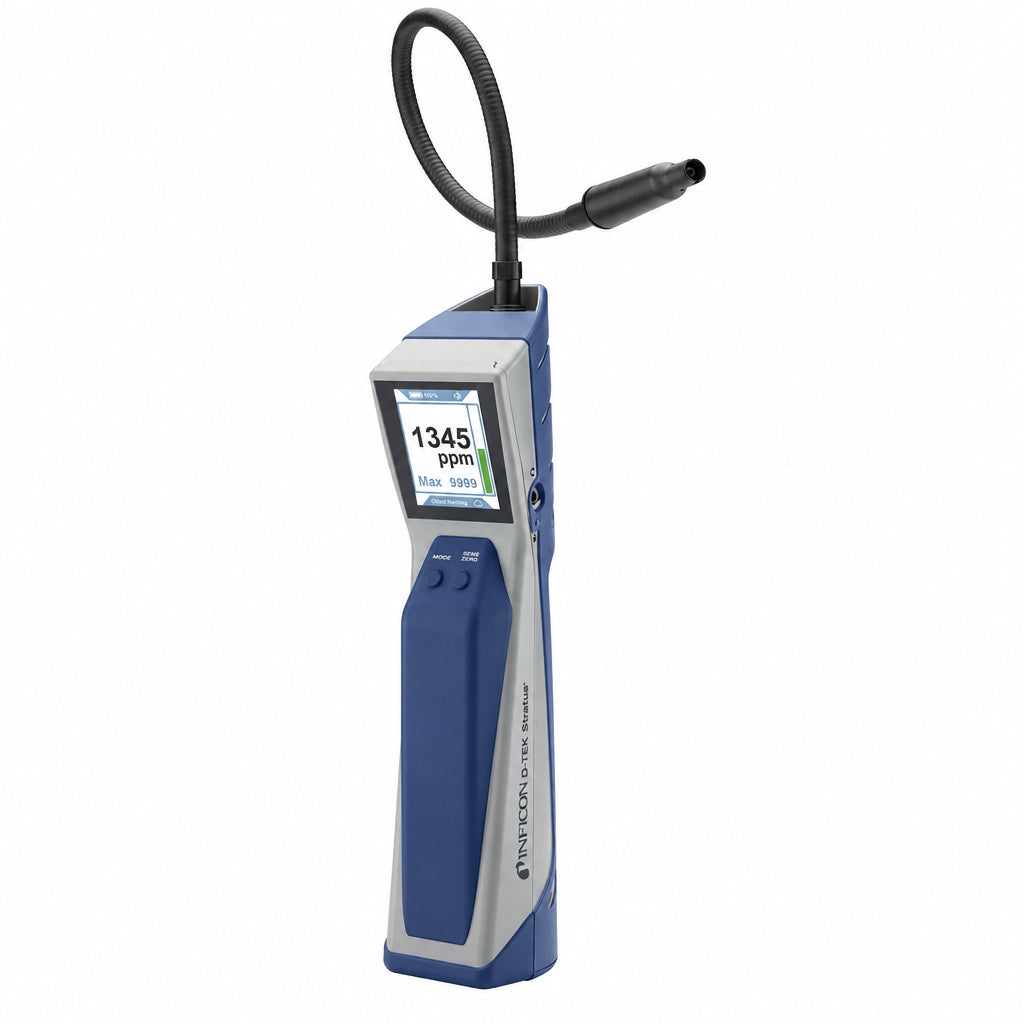

INFICON D-Tek Stratus Leak Detector With CO2 Sensor Only

The INFICON 724-204-G1 D-TEK Stratus Leak Detector with CO2 Sensor combines the superior leak detection of INFICON D-TEK leak detectors with the cloud hunting capability of a portable monitor, all in one hand-held unit. This version comes fitted with the CO2 (R744) infrared sensor, making it ideal for technicians working on CO2 refrigeration and heat pump systems. Use cloud hunting mode to find the area with the highest concentration on the large, easy-to-read LCD display, then switch to pinpoint mode to locate the leak, all with one instrument. D-TEK Stratus is the next big thing in leak detection.

Advantages:

• Detects carbon dioxide CO2 (R744) with the included CO2 sensor

• Innovative cloud hunter mode with ppm readout helps locate leaks faster than ever

• Cloud hunter and pinpoint modes are like having two leak detectors in one

• All new, redesigned infrared sensor with the longest sensor life in the industry

• Easy field replacement of sensors

• Interchangeable sensors: optional refrigerant (724-701-G1) and flammable refrigerant (724-701-G3) sensors available

• New lithium ion battery with quick charge capability

• Designed for ergonomic comfort

Features:

• Automatic and manual zero modes

• Rugged carrying case included

• Detects CO2 (R744) refrigerant

Typical Applications:

• CO2 (R744) commercial and industrial refrigeration systems

• CO2 heat pumps and hot water systems

Specifications:

• Sensor: Infrared CO2 sensor (724-701-G2)

• Compatible refrigerant: CO2 (R744)

• Minimum sensitivity (R744): 2 g/yr (0.07 oz/yr)

• Power source: Lithium ion battery (rechargeable), USB (can operate while charging)

• Battery life: Cloud Hunting mode: ~8 hours, Pinpoint mode: ~10 hours

Includes:

• D-TEK Stratus, CO2 sensor, Lithium ion battery, Spare filters, AC wall charger, DC car charger, Extra-long probe, Carrying case, Earbuds
