HVACDIRECT New R32 Refrigeration & HVAC Split System Install Kit (Pump, Leak Detector & Manifold Set)

EBAYKIT37
$576.30 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
EBAYKIT37

Usually ready in 24 hours

HVACDIRECT New Refrigeration & HVAC Split System Install Kit (Pump, Leak Detector & Manifold Set)

KIT37



This HVACDIRECT KIT37, New Refrigeration & HVAC Split System Install Kit (Pump, Leak Detector & Manifold Set) is a high quality tool kit that is ideal for general refrigeration and split system service. Included in this kit are some of HVAC Direct's best selling products.

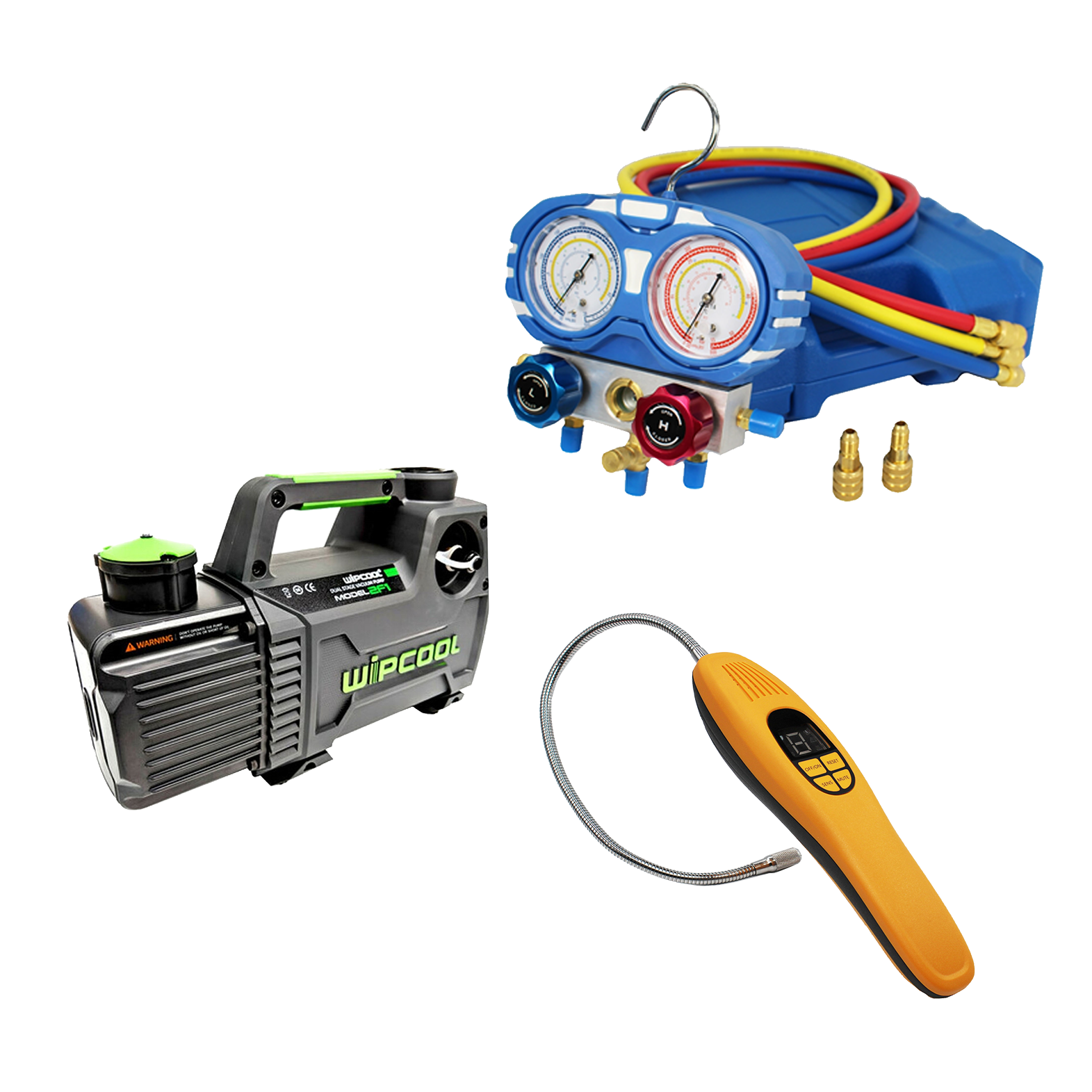

Kit contains:


#1. WIPCOOL 240V Series, 45 L/min, 2-stage Vacuum Pump - R32 Compliant

JAV2F0R



This WIPCOOL 240V Series JAV2F0R is a quality 2-stage, oil rotary vane pump with a 45 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

  • Bottle shops, convenient stores, restaurants and catering facilities

  • General Refrigeration

  • Residential or Industrial

  • Split system installation or servicing

Features/Benefits:

  • Comes with a free starter bottle of oil
  • R32 and 1234yf compliant
  • Manufactured to WIPCOOL's high quality standards
  • 45 L/min flow rate
  • 15 micron ultimate vacuum
  • Built-in vacuum gauge
  • Automatic solenoid valve
  • Anti-oil demister to prevent oil spillage
  • Fitted with a 1/4" SAE connection (+3/8" SAE adapter)
  • 300ml oil capacity
  • Dimensions (mm): 309x113x198
  • Weight (kg): 4.2kg



#2. HVACDIRECT 2-Valve Refrigeration Manifold Set - R32 & R410a Compliant

HMG2R32II



This HVACDIRECT HMG2R32II, Refrigeration Manifold & Hose Set is a high quality manifold set option that provides an ease of use as well as accurate results.



Features:

  • Temperature in Celsius for R32, R410a

  • Class 1.6 gauges - Ideal when purchasing a quality manifold

  • Large 70 mm diameter easy-to-read dual gauges

  • Manifold incorporates built-in sight glass

  • High pressure or low pressure is selectable

  • Piston valves for more positive seal and less wear

  • Extra large easy to read colour-coded dials

  • Full rubber gauge housing for added protection

  • Durable metal casing

  • Aluminium alloy testing manifold body

  • High impact pop-in lexan lens

  • A heavy duty hook for hanging the gauges

  • No-flutter gauge design

  • 1/4" SAE brass connections

  • 5/16" SAE adaptors to allow switching between different systems

Specifications:

  • 3 x 0.9 m 1/4" SAE charging hoses: Red, yellow & blue

  • Working pressure: 800 psi

  • Burst pressure: 4000 psi

  • Designed to meet 1/4" SAE refrigerant permutation requirement



#3. HVACDIRECT Refrigerant Leak Detector (Heated Diode)

LD100



This HVACDIRECT LD100, Refrigerant Leak Detector is a highly sensitive, quick responding & easy to use entry level leak detector.



Features:

  • Product modelling unique, accord with human body function

  • LED display

  • Sensitivity Level 7

  • Conform to the CE test standard

  • SAEJ1627 standard

  • The probe can be replaced

  • Has the battery indicator, low battery alarm function

Specifications:

  • Power types: 5 dry cell

  • Refrigerant detection range: R12, R22, R502, R134A, R404A, R407C, R410A, R600A & HFC/HCFC series of refrigerants

  • Sensitivity rating: Sensitivity Level 7

  • Detection precision: For R134a, static: 3 g/yr & dynamic: 5 g/yr

  • Operating environment: 0 °C〜40 °C; relative humidity (50%~85% rh)

  • Probe type: Semiconductor sensor

  • Warm-up time: 30 seconds

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
