HIKMICRO B20SML Macro Lens for B20S Thermal Camera

B20SML

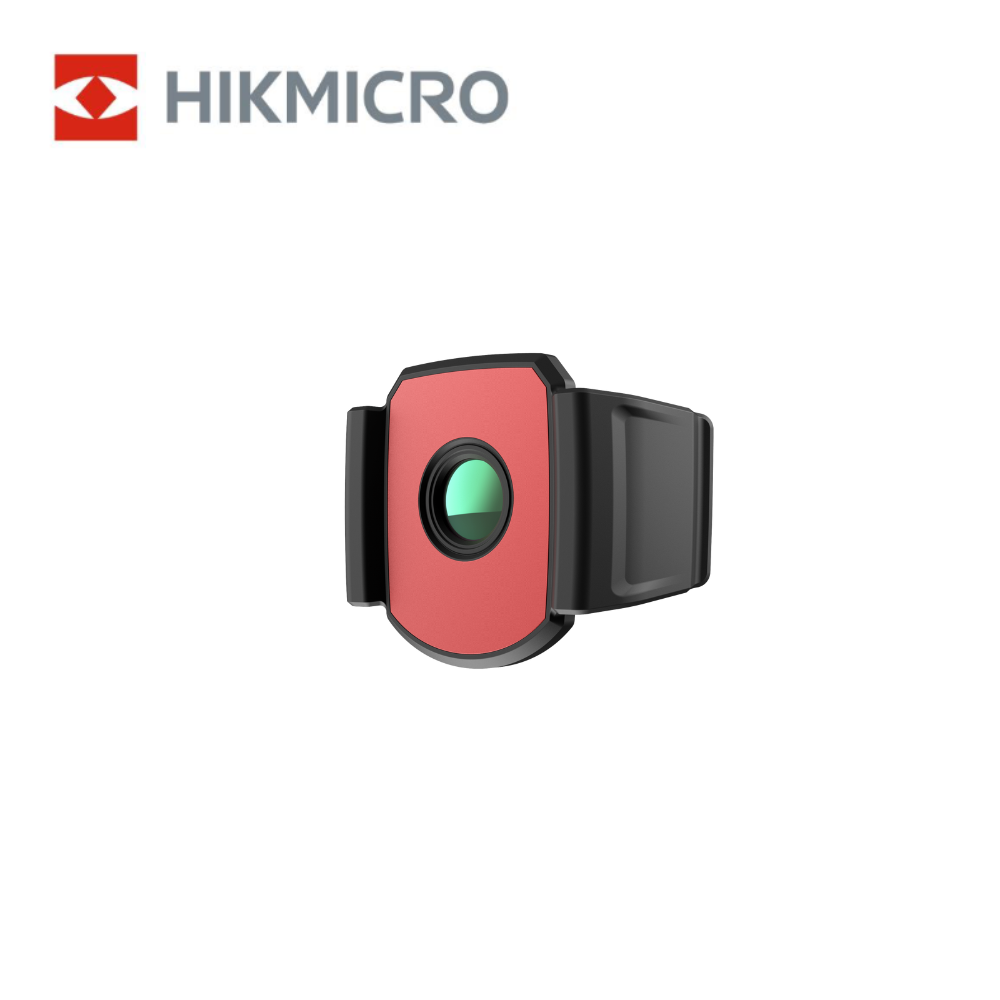

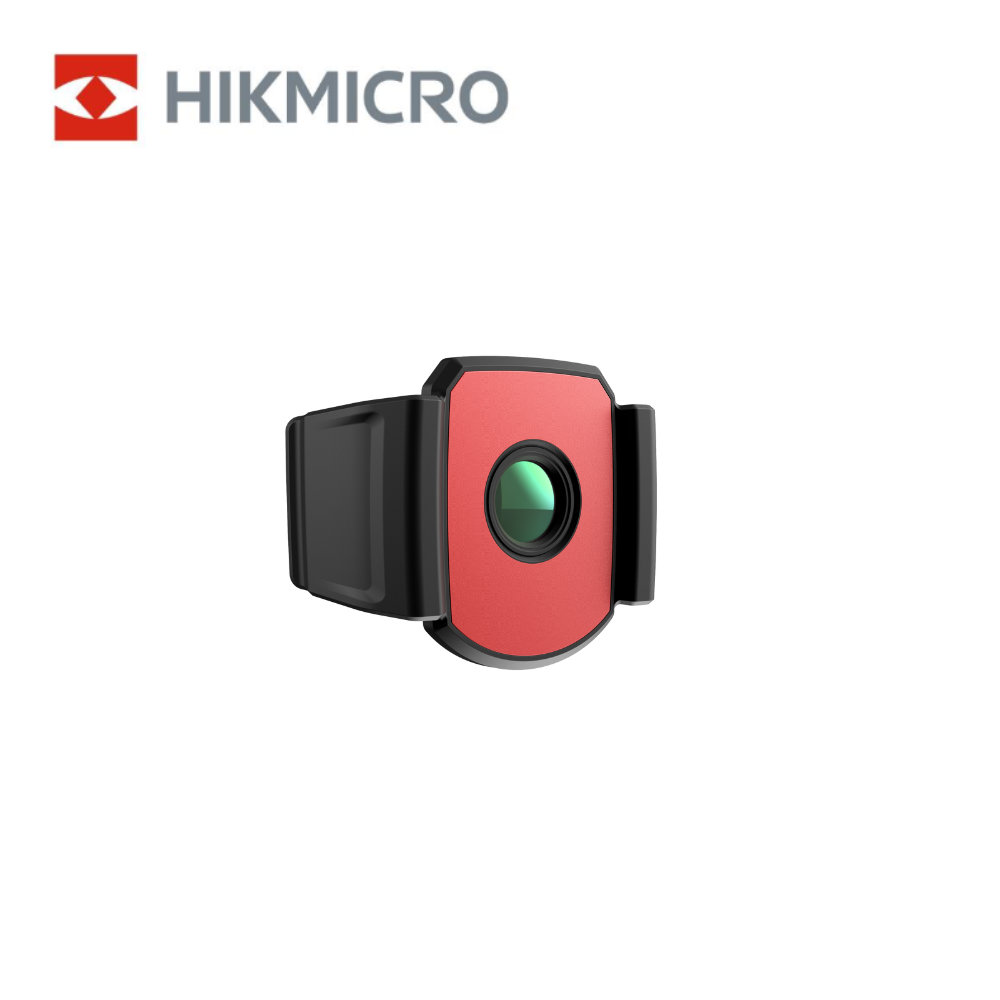

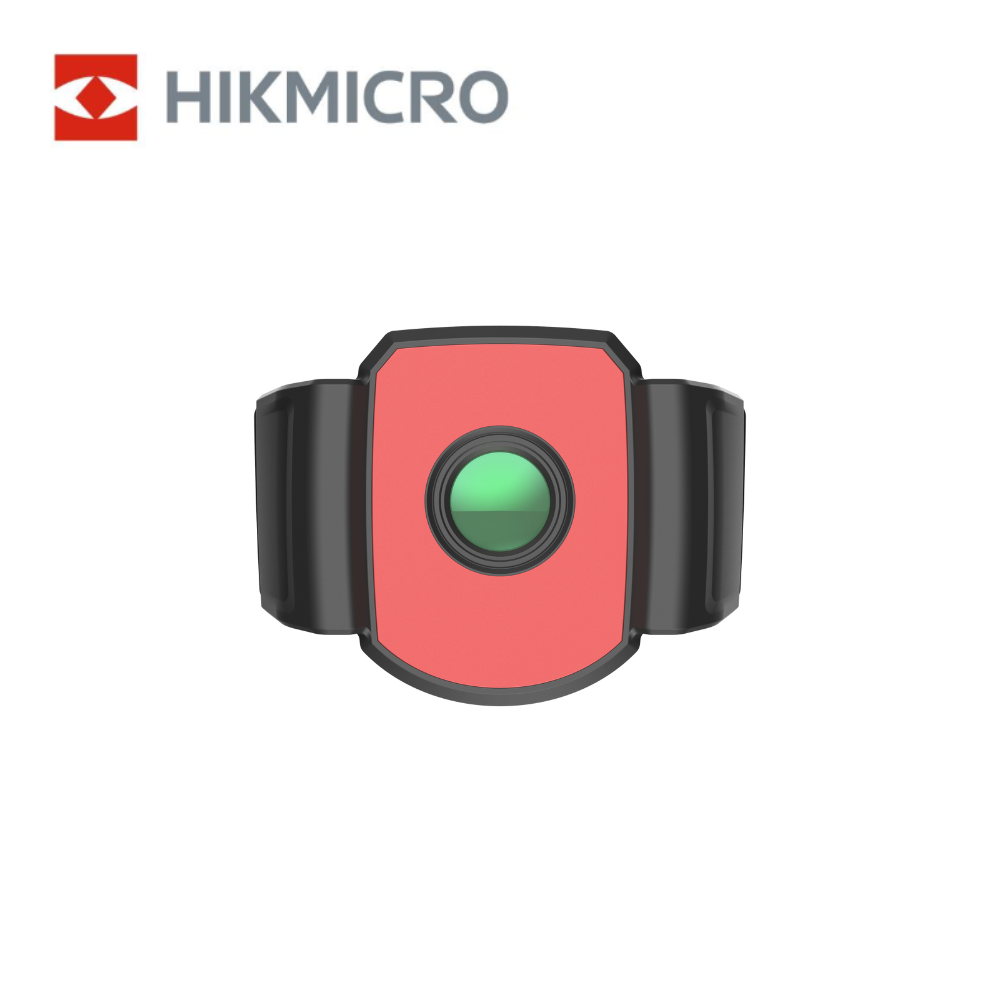

The HIKMICRO B20SML Macro Lens is designed for use with compatible HIKMICRO B Series thermal imaging cameras, including the B20S. This clip-on macro lens allows technicians and inspectors to focus extremely close to small targets, making it ideal for detailed thermal inspection of electronics, PCB boards, small components and precision equipment.

With a 30mm ±1mm focus distance, the macro lens helps small objects appear larger in the thermal image compared with the standard camera lens. It allows detailed viewing of thermal build-up, hot spots and temperature differences on compact components where standard thermal inspection may not provide enough close-up detail.

The HM-B201-MACRO is a lightweight 14g accessory with a minimum target size for imaging of 100μm × 100μm and a minimum temperature target of 500μm × 500μm. It is a practical accessory for electronic inspection, R&D work, component testing, mobile phone repair and fault finding on small electrical assemblies.

Key Features

• Genuine HIKMICRO macro lens accessory for B Series thermal cameras

• Suitable for use with the HIKMICRO B20S thermal camera

• Official model HM-B201-MACRO

• Clip-on design for quick attachment and removal

• Allows close-up thermal inspection of small objects and components

• 30mm ±1mm focus distance for macro thermal imaging

• Minimum target size for imaging of 100μm × 100μm

• Minimum temperature target of 500μm × 500μm

• Object temperature range from -20°C to 150°C

• Accuracy of ±3°C / ±3% under specified conditions

• 4.6mm focal length

• 36° × 28° field of view

• 2.55mrad spatial resolution / IFOV

• Lightweight 14g design for easy storage and transport

• Useful for PCB inspection, electronics diagnostics and component-level fault finding

Specifications

• Brand: HIKMICRO

• SKU: B20SML

• Model: HM-B201-MACRO

• Product Name: HIKMICRO Macro Lens for B20S Thermal Camera

• Tool Type: Thermal Camera Macro Lens / B Series Accessory

• Compatible Series: HIKMICRO B Series

• Compatible Camera: HIKMICRO B20S

• Focal Length: 4.6mm

• Field of View: 36° horizontal × 28° vertical

• Spatial Resolution / IFOV: 2.55mrad

• Focus Distance: 30mm ±1mm / 1.18" ±0.04"

• Minimum Target Size for Imaging: 100μm × 100μm

• Minimum Temperature Target: 500μm × 500μm

• Object Temperature Range: -20°C to 150°C / -4°F to 302°F

• Accuracy: Max. ±3°C / ±3%

• Working Temperature Range: -20°C to 50°C / -4°F to 122°F

• Weight: 14g

• Dimensions: 51.4 × 65 × 25mm

• Application: PCB inspection, electronic component testing, R&D work, mobile phone repair, thermal hot spot identification and close-up thermal inspection

Ideal For

• Electronics technicians

• PCB inspection

• Electronic design verification

• Research and development work

• Mobile phone repair

• Component-level fault finding

• Small electrical assemblies

• Thermal hot spot detection on small components

• Inspecting thermal build-up and heat dissipation

• Close-up thermal inspection using a HIKMICRO B20S camera

Macro Lens for HIKMICRO B20S Close-Up Thermal Inspection

The HIKMICRO B20SML Macro Lens gives B20S thermal camera users a close-up inspection accessory for small components, PCB boards and precision electronic work. With a 30mm ±1mm focus distance and the ability to image targets as small as 100μm × 100μm, it helps technicians identify thermal detail that may be missed with a standard thermal camera lens.

For electronics repair, R&D, component testing and detailed thermal fault finding, this HIKMICRO macro lens is a practical add-on for users who need close-range thermal inspection from their B Series thermal camera.
