HIKMICRO - M11 Thermal Camera

HIKMICRO M11 Thermal Camera

Model: M11

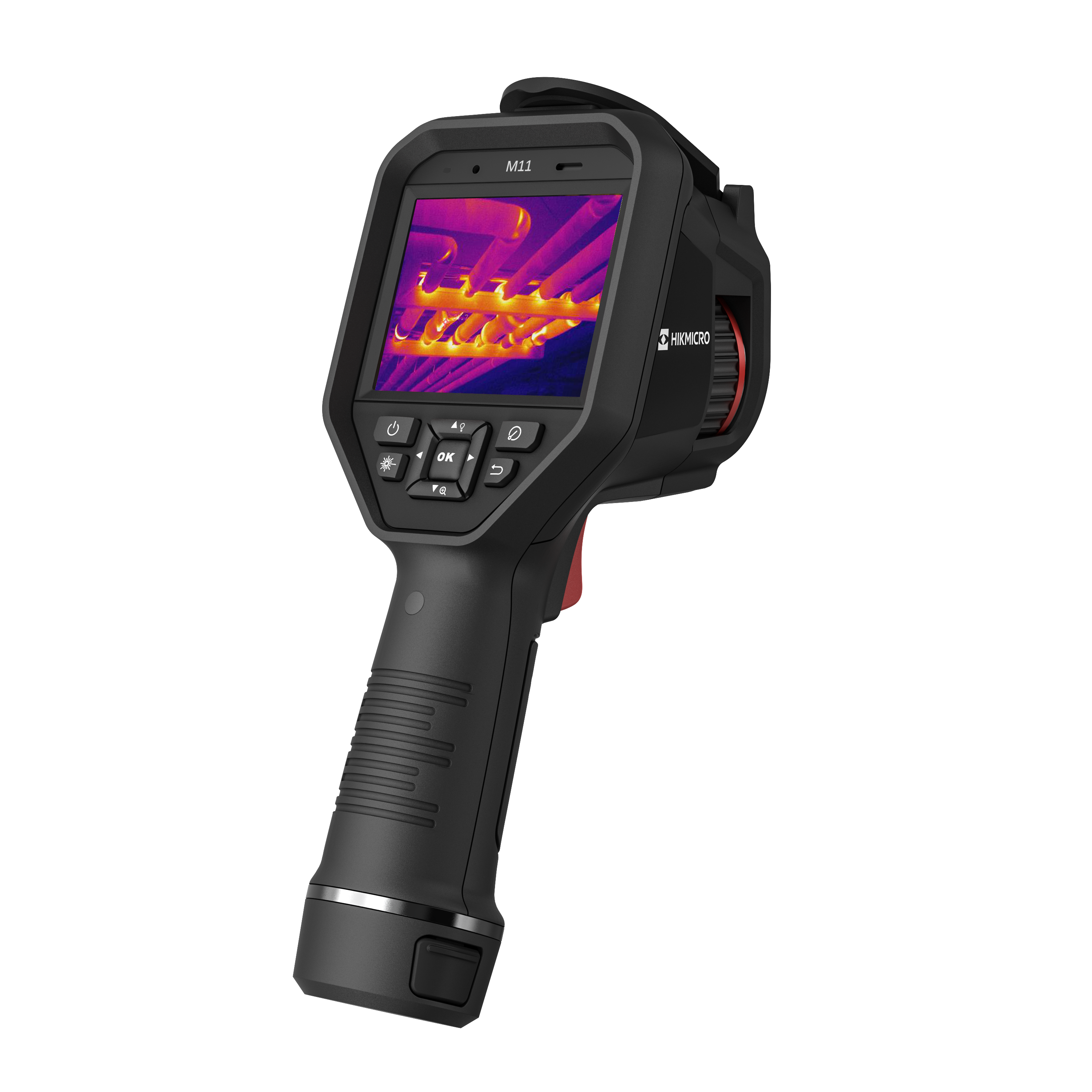

The HIKMICRO M11 handheld thermal camera is designed for professional inspection applications where greater spatial detail and close-range precision are required. It features a 192 × 144 resolution thermal detector combined with an 8 MP visual camera, providing clear thermal and optical images for accurate identification of small faults and components.

A 3.5-inch 640 × 480 LCD touchscreen delivers sharp image display and intuitive operation in the field. Multiple imaging modes—including thermal, visual, picture-in-picture, and bi-spectrum fusion—enable efficient fault detection, analysis, and documentation.

The M11 supports a wide temperature measurement range of −20°C to 550°C, with high measurement accuracy, making it well suited to electrical inspections, mechanical diagnostics, HVAC servicing, and building maintenance. Its manual focus optical system and narrower field of view allow users to precisely inspect smaller targets at closer distances. Integrated laser targeting, LED illumination, and wireless connectivity further enhance inspection efficiency and reporting.

Key Features

• 192 × 144 thermal resolution high-sensitivity detector

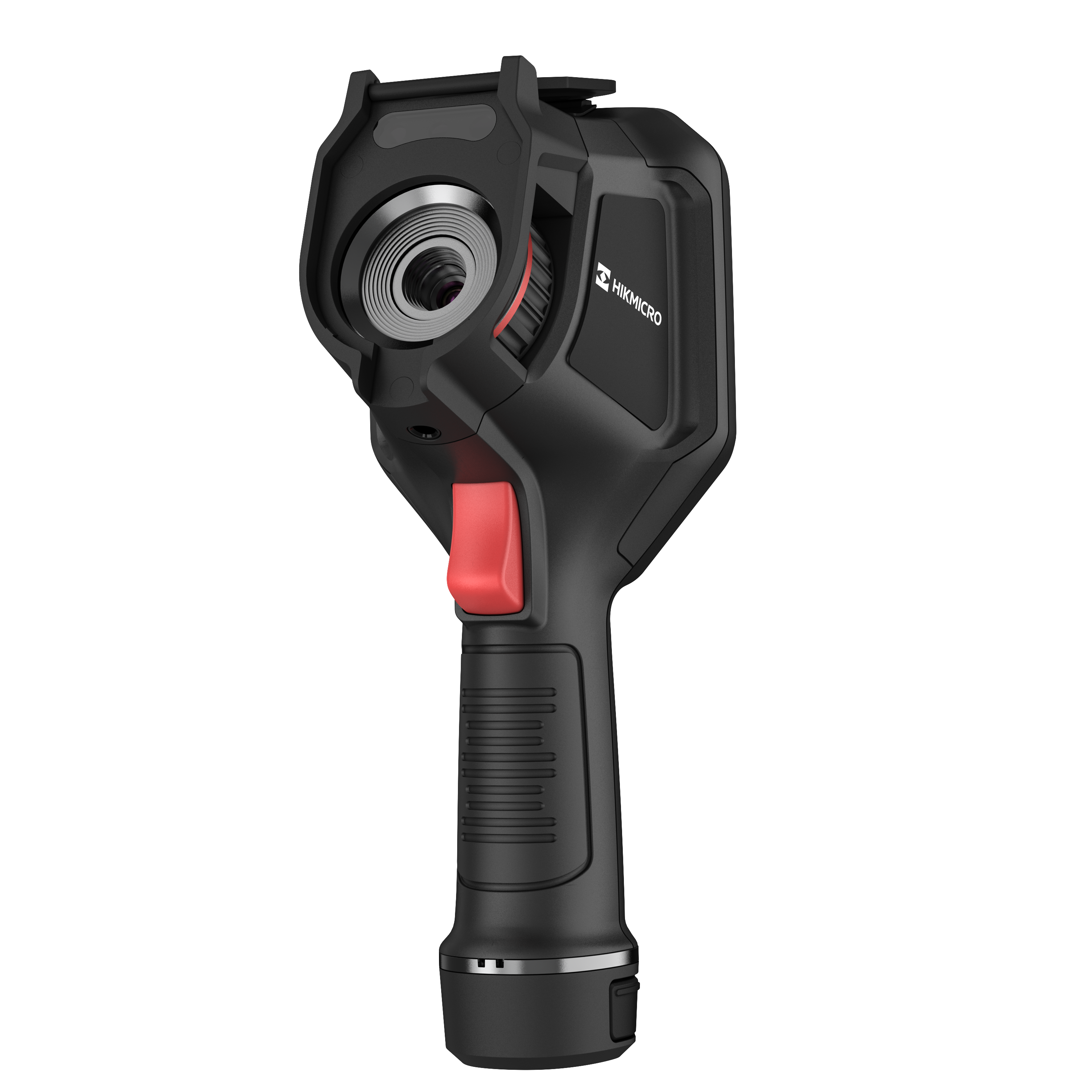

• Manual focus lens for precise close-range and detailed inspections

• Narrower field of view for improved spatial resolution on small targets

• Multiple colour palettes for enhanced thermal analysis

• 8 MP optical camera for clear visual reference images

• Bi-spectrum image fusion and picture-in-picture viewing

• Temperature measurement range: −20°C to 550°C

• Measurement accuracy: ±2°C or ±2% (15°C to 35°C ambient, object >0°C)

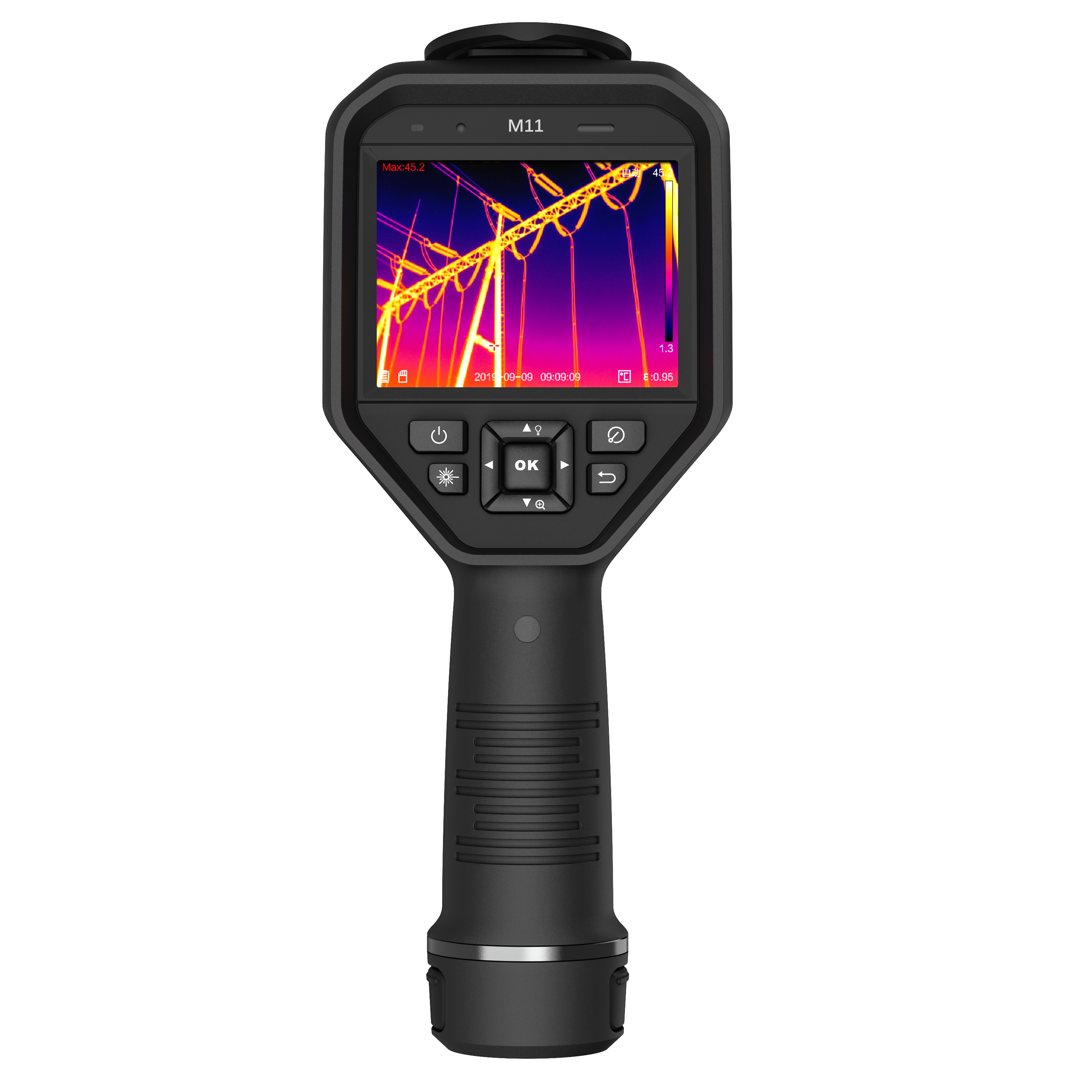

• 3.5″ 640 × 480 LCD touchscreen for clear viewing and easy navigation

• Laser pointer for accurate target identification

• Integrated LED light for low-light inspection environments

• 1.0× to 8.0× continuous digital zoom

• Wireless connectivity supporting remote album access, image download, and quick reporting via mobile app

HIKMICRO M11 vs M11W — Key Differences

 Optics & Field of View

• M11W (Wide-angle optics)

  • Uses a 3.6 mm wide-angle lens with broader view: ~37.2° × 27.8°

  • Good for capturing large areas in one frame.

  • IFOV: ~3.33 mrad → larger pixel projection, more scene but less fine detail at distance.

• M11 (Standard optics)

  • Uses a 6.9 mm lens with narrower view: ~18.8° × 14.1°

  • More telephoto-like perspective.

  • IFOV: ~1.74 mrad → finer detail per pixel, better for focused inspection of small targets.
