HIKMICRO - G41H Thermal Camera

$13,099.00 AUD (Inc GST)

G41H

Product variants

Quantity

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

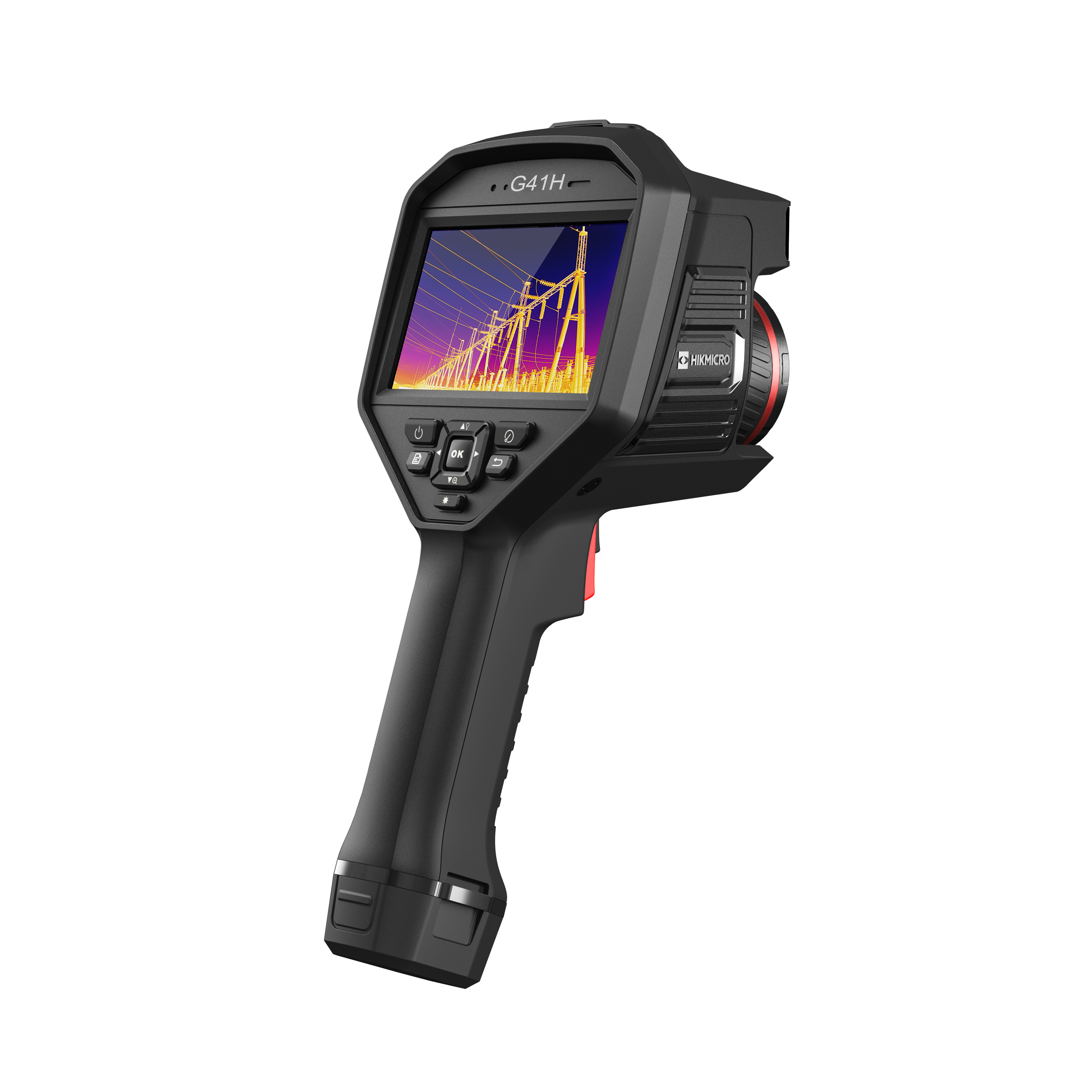

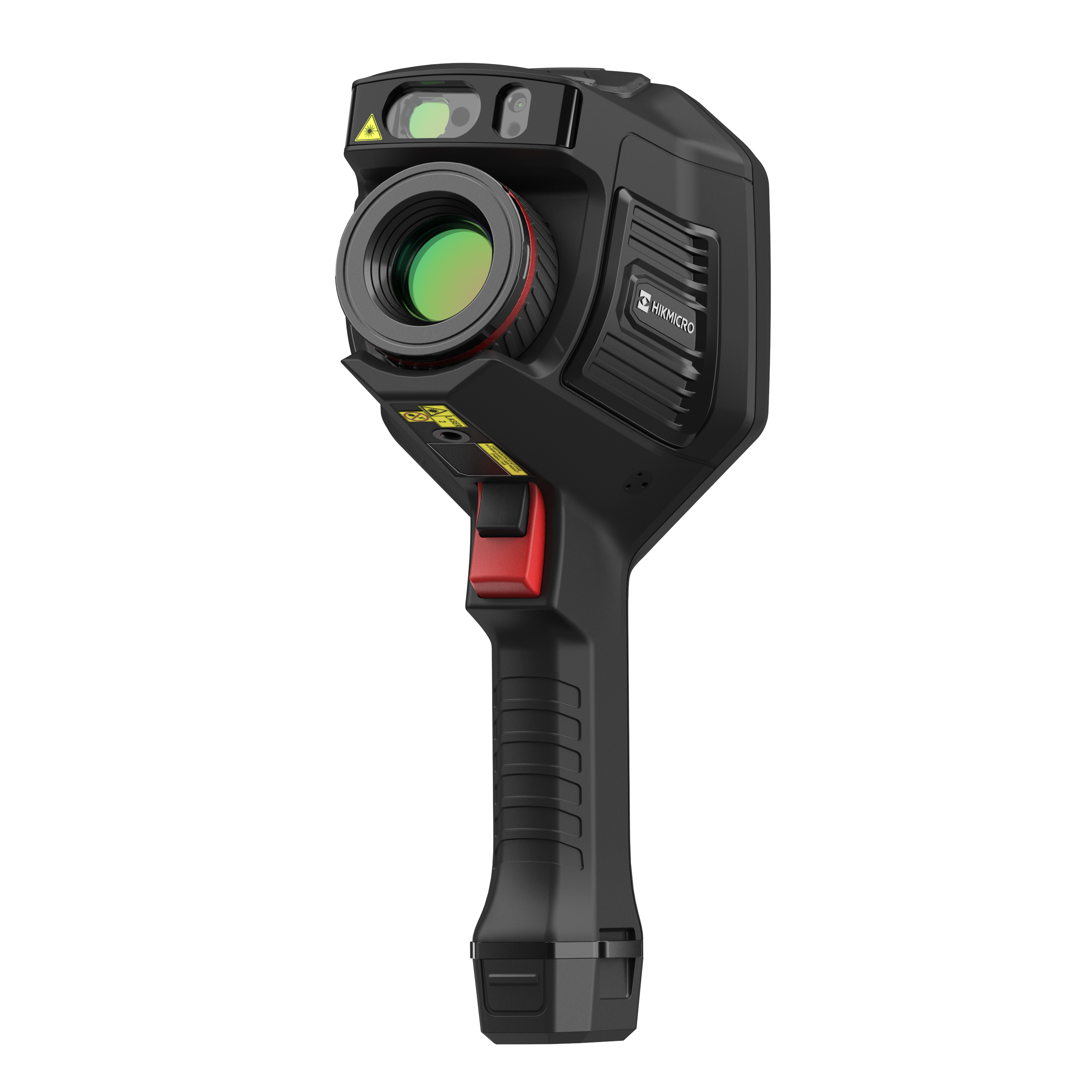

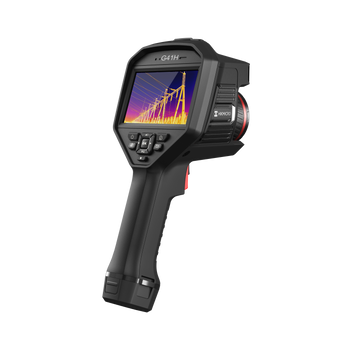

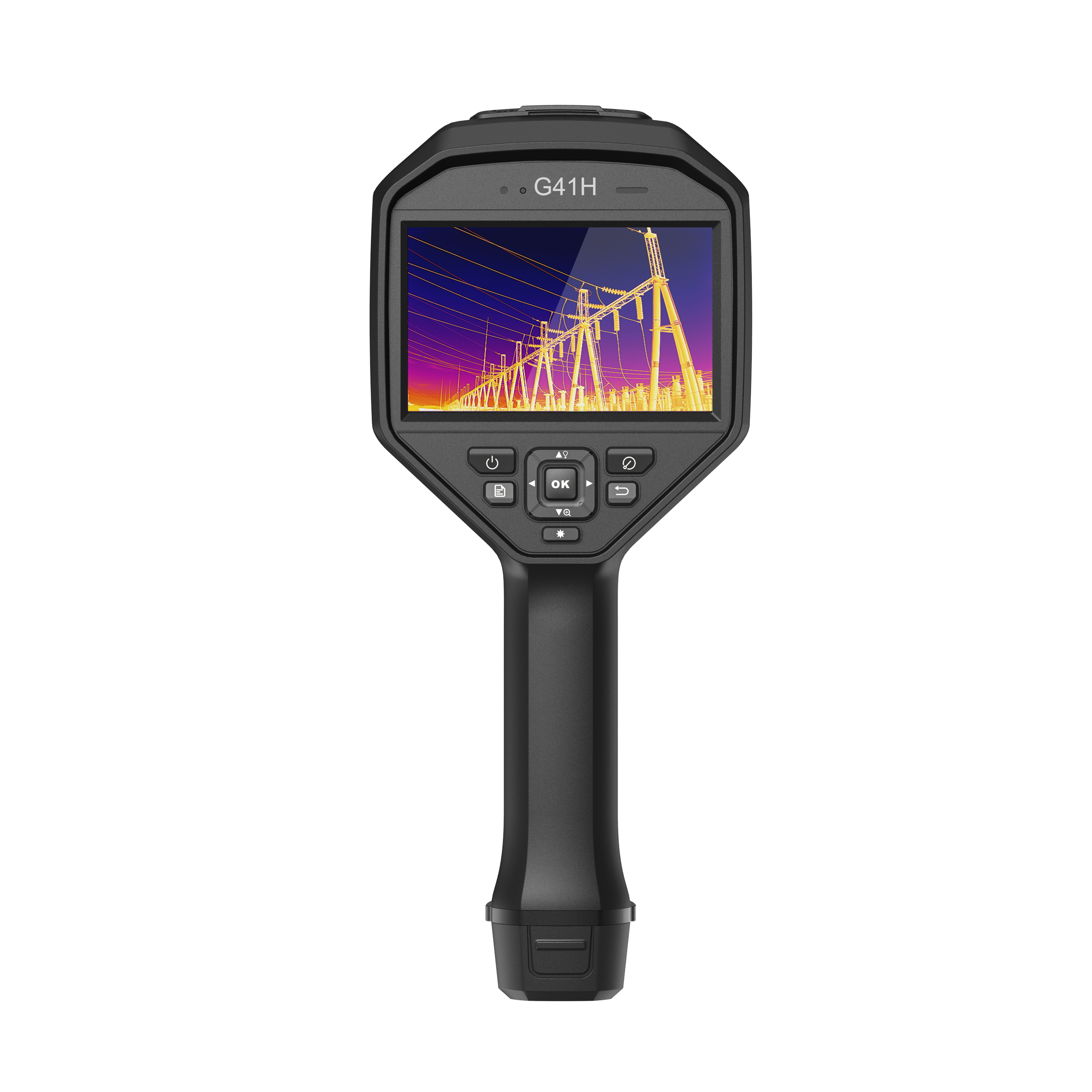

HIKMICRO G41H Handheld Thermal Camera

Model: G41H

The HIKMICRO G41H Handheld Thermal Camera is purpose-built for high-temperature industrial thermography, advanced diagnostics, and demanding predictive maintenance applications. Designed for heavy industry, manufacturing, metal processing, kiln and furnace monitoring, and high-heat environments, the G41H enables professionals to safely measure and analyse extreme temperatures with precision and reliability.

The G41H incorporates a 480 × 360 high-sensitivity thermal detector delivering sharp thermal imaging and stable temperature analysis, even in challenging industrial conditions. Its extended high-temperature capability (up to 2000°C in supported range) makes it ideal for applications such as foundries, refractory inspection, power generation, and process control.

Combined with an integrated 8 MP visual camera, the G41H provides clear thermal and visual context to improve fault confirmation, documentation, and reporting accuracy.

Designed for field efficiency, the G41H features a bright 4.3” 800 × 480 LCD touchscreen, advanced autofocus options including laser-assisted AF and touch AF, and multiple imaging modes including thermal, visual, fusion, PIP, and blending. With smooth 50 Hz real-time imaging, inspections remain fluid and responsive—even when monitoring dynamic high-temperature processes.

Built to withstand demanding industrial job sites, the G41H features IP54-rated protection, 2-metre drop resistance, and an interchangeable Li-ion battery system—making it a dependable tool for daily professional and heavy-industry use.

Key Features

480 × 360 high-sensitivity thermal detector
NETD < 35 mK for precise temperature differentiation
50 Hz image frequency for smooth live inspections
Extended high-temperature measurement capability (up to 2000°C in supported range)
8 MP visual camera for clear reference imaging
Thermal / Visual / Fusion / PIP / Blending imaging modes
Multiple temperature ranges including high-temperature industrial applications
High accuracy: ±2°C or ±2% (range dependent)
4.3” 800 × 480 LCD touchscreen display
Laser Assisted AF / Continuous AF / Touch AF / Manual Focus
1× to 8× continuous digital zoom
Built-in laser pointer and LED work light
Wi-Fi (2.4 & 5 GHz) and Bluetooth 4.2 connectivity
Rugged IP54 housing with 2 m drop protection
Interchangeable rechargeable Li-ion battery

Specifications

Specification	Details
IR Resolution	480 × 360 (172,800 pixels)
NETD	< 35 mK (@ 30°C, F#=1.0)
Image Frequency	50 Hz
Detector Pitch	17 μm
Spectral Range	7.5 to 14 μm
Focal Length	25 mm (Optional lenses available – see respective spec sheets)
F-number	F1.0
Field of View (FOV)	18.7° × 14° (Varies with optional lenses)
Spatial Resolution (IFOV)	0.68 mrad (Varies with optional lenses)
Focus Modes	Laser Assisted AF / Continuous AF / AF / Manual Focus / Touch AF
Startup Time	Approx. 2 seconds
SuperIR	Yes (Captured images)
Minimum Focus Distance	0.25 m (0.82 ft)
Visual Camera	3264 × 2448 (8 MP)
Display	800 × 480 Resolution, 4.3" LCD Touch Screen
Screen Brightness	Manual / Auto
Digital Zoom	1× to 8× Continuous
Image Modes	Infrared / Visual / Fusion / PIP / Blending
Color Palettes	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Color Alarm	Above / Below / Interval
Advanced Alarm	Above / Below / Interval / Insulation / Condensation
Temperature Range 1	-20°C to 150°C (-4°F to 302°F)
Temperature Range 2	0°C to 650°C (32°F to 1202°F)
Temperature Range 3	300°C to 2000°C (572°F to 3632°F)
Accuracy (-20°C to 150°C)	-20 to 0°C: ±2°C0 to 100°C: ±1°C100 to 150°C: ±1%
Accuracy (0°C to 650°C)	0 to 100°C: ±2°C100 to 650°C: ±2%
Accuracy (300°C to 2000°C)	±2%
Measurement Tools	Center Spot, Hot Spot, Cold Spot
Custom Measurement	Delta T, 10 Spots, 1 Line, 5 Rectangles, 5 Circles
Level & Span	Auto / Manual / 1-Tap Touch Screen
Radiometric Capture	Yes
Image Storage Capacity	Approx. 60,000 Images
Video Storage Capacity	Approx. 54 Hours
Video Format	MP4 & Radiometric Video
Image Format	Radiometric JPEG
Data Transfer	UVC / Wi-Fi
Storage Media	Extendable 128 GB SD Card
Wi-Fi	802.11 b/g/n (2.4 GHz & 5 GHz)
Bluetooth	Bluetooth 4.2
USB Interface	USB Type-C
Wi-Fi Transmission Distance	Indoor: 50 m (164 ft); Outdoor: 10 m (33 ft)
LED Light	Yes
Laser	Yes – Class II, 635 nm, <1 mW
Audio	Yes
Battery Type	Interchangeable Rechargeable Li-ion
Battery Operating Time	Approx. 4 Hours
Charging Time	Approx. 4 Hours (Fully Charged)
Power Saving Mode	Yes
Protection Level	IP54 (IEC 60529)
Drop Test Height	2 m (IEC 60068-2-31)
Safety	IEC 61010-1
EMC	EN 301 489-1; EN 301 489-17; EN IEC 61000-6-2; EN IEC 61000-6-3; EN IEC 61326-1; EN IEC 61326-2-2
Vibration	2 g (IEC 60068-2-6)
Shock	25 g (IEC 60068-2-27)
Working Temperature	-20°C to 50°C (-4°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	< 95% Non-condensing
Weight	Approx. 1058 g (2.33 lb)
Dimensions	284.7 × 120.6 × 124.5 mm (11.21 × 4.75 × 4.9 in)
Tripod Mount	UNC ¼”-20
Warranty	3 Years (Product), 10 Years (Detector), 2 Years (Battery)

What’s Included – G41H

G41H Handheld Thermal Camera
Interchangeable Rechargeable Li-ion Battery
Battery Charger
USB Type-C Cable
Power Adapter
64 GB SD Card
Wrist Strap
Protective Carrying Case
Quick Start Guide / User Manual
Calibration Certificate (High-Temperature Model)

Which Model Should You Choose?

Choose the G41 if you need:
• Predictive maintenance inspections
• Electrical & switchboard diagnostics
• HVAC and mechanical fault detection
• Building envelope and insulation analysis
• Standard industrial temperature measurements up to 650°C

Choose the G41H if you need:
• Furnace, kiln or refractory inspection
• Foundry, metal forging or casting applications
• Glass manufacturing or high-heat processing
• Industrial process monitoring above 650°C
• Safe measurement of extreme temperatures up to 2000°C
