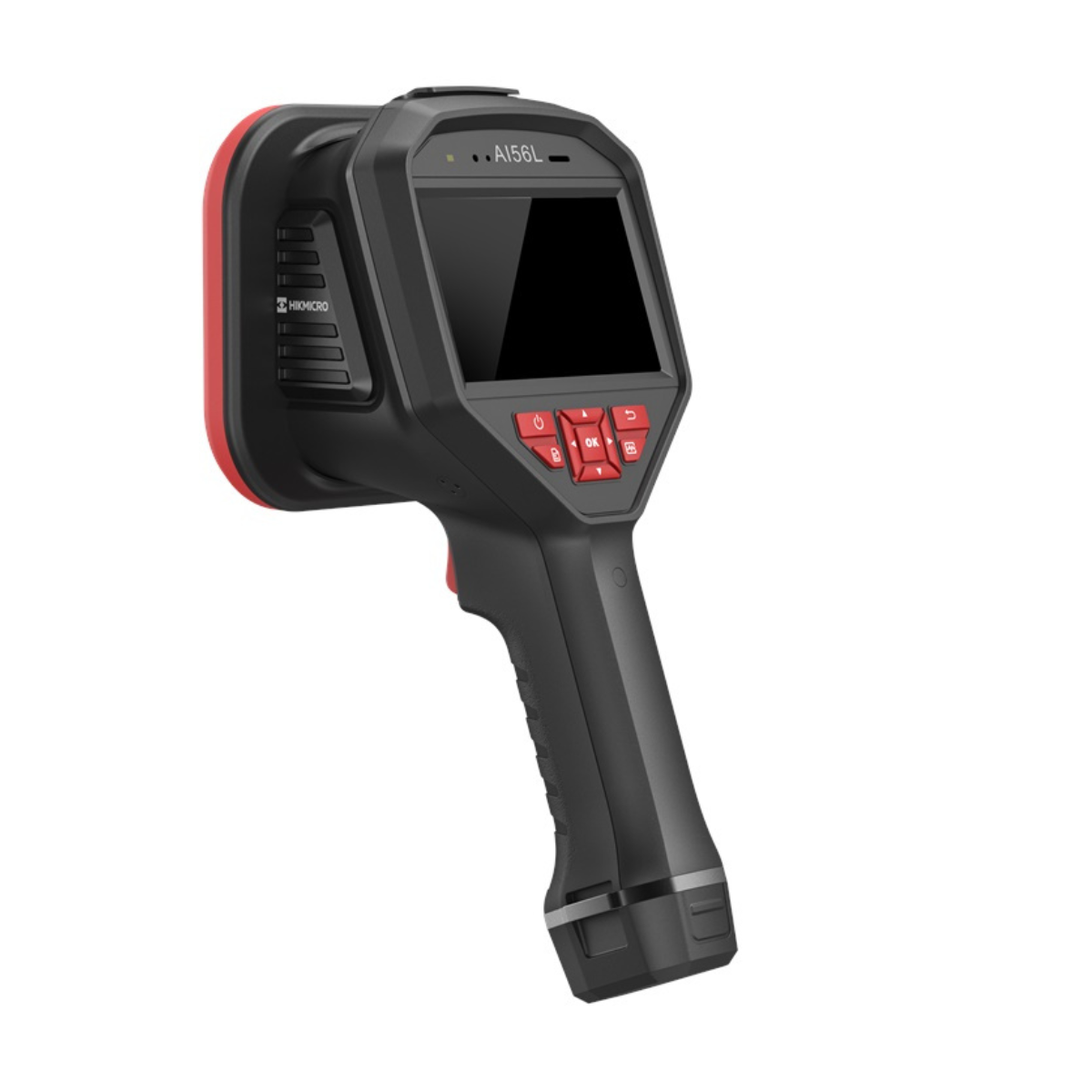

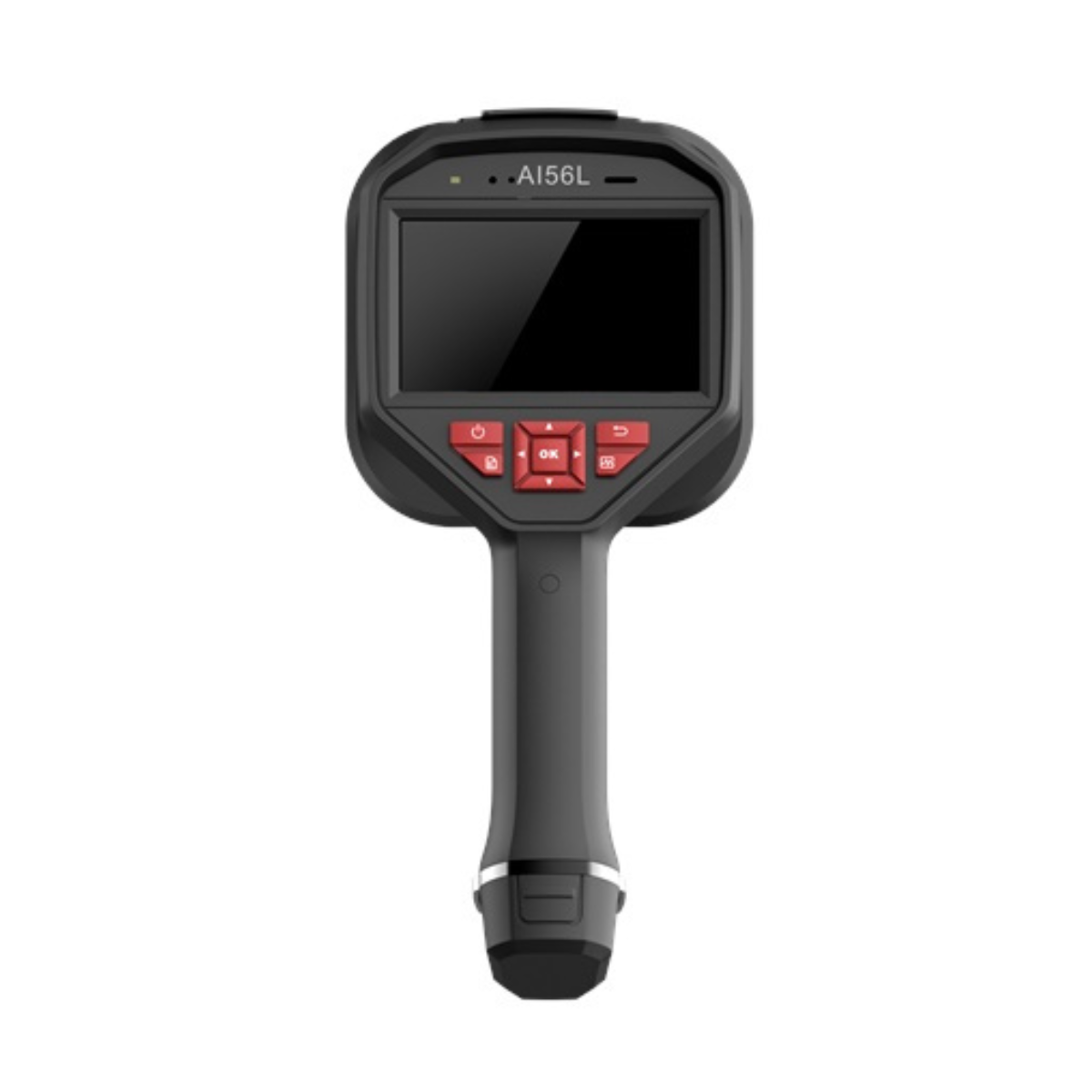

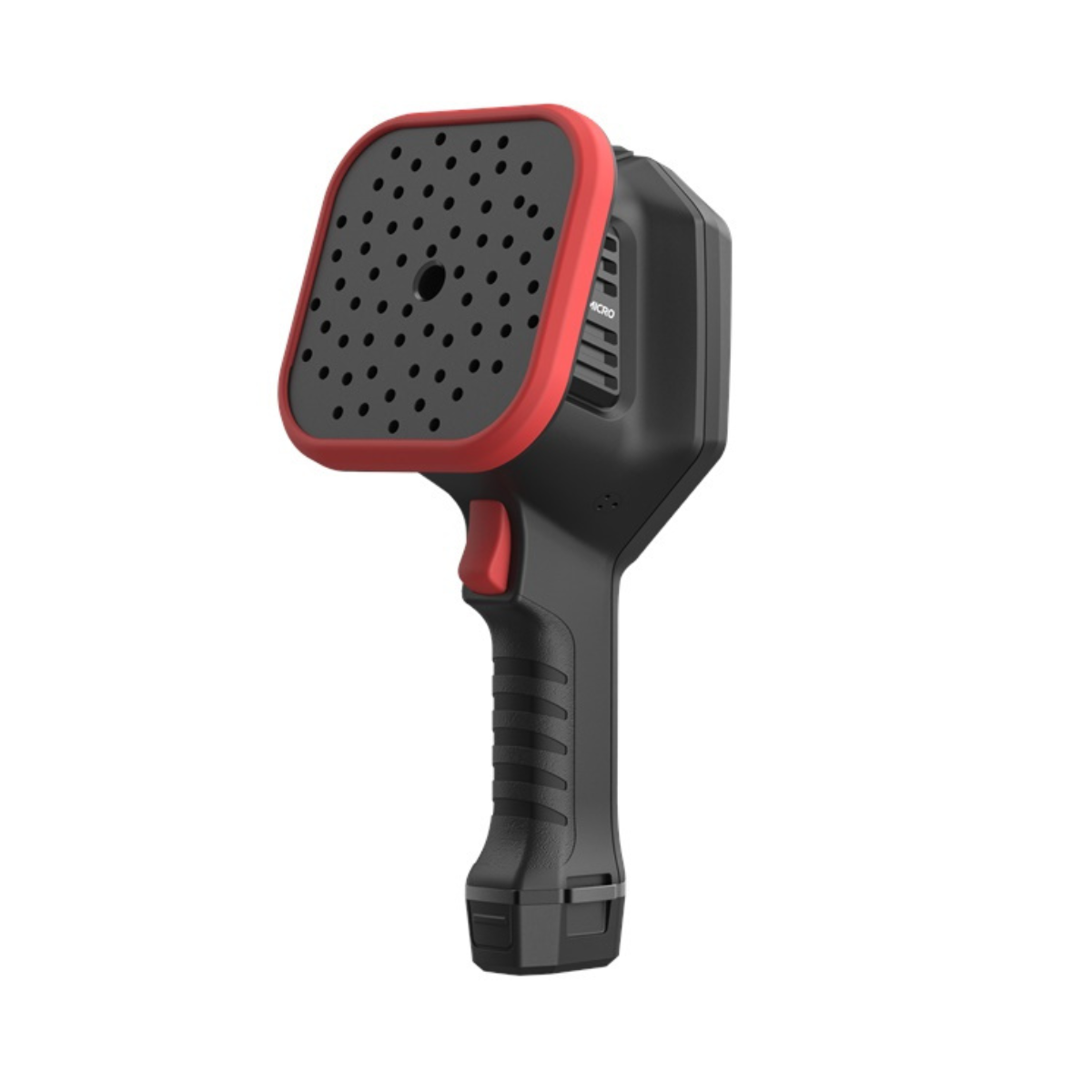

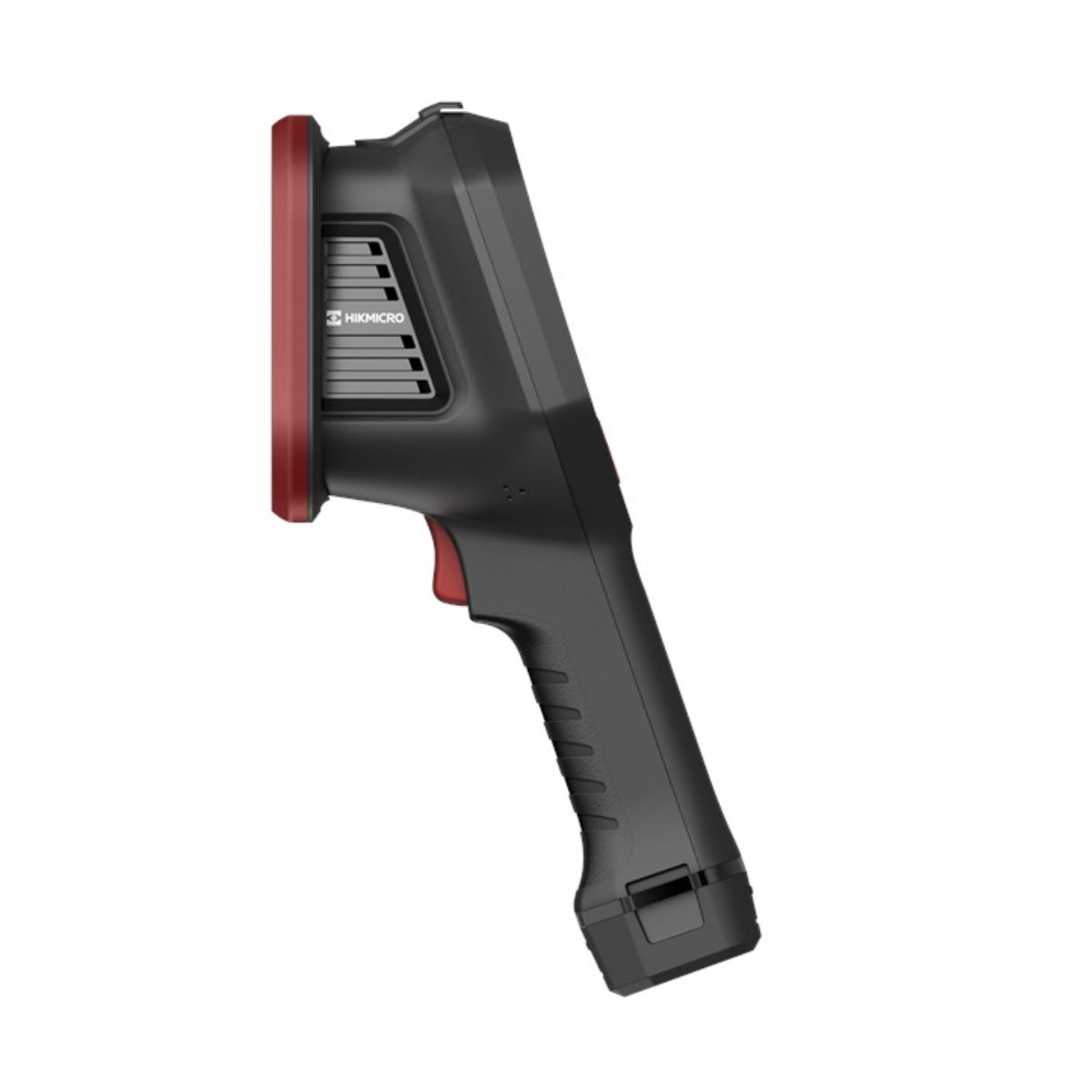

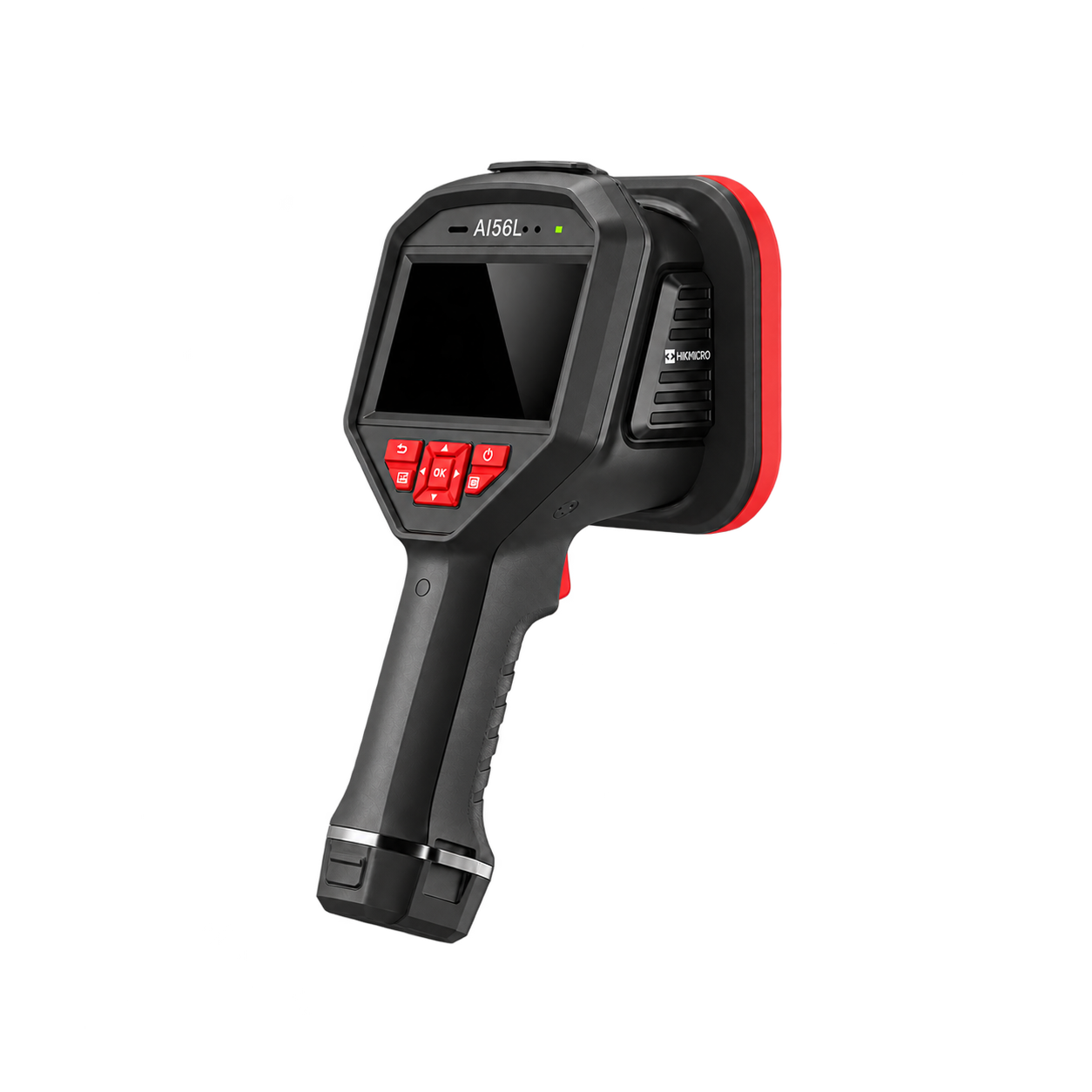

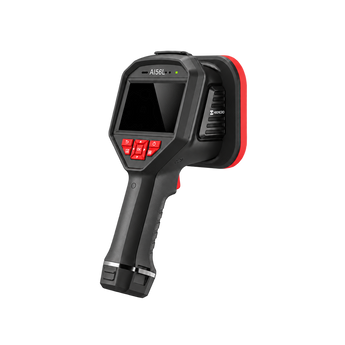

HIKMICRO - AI56L Acoustic Imaging Camera

$9,999.00 AUD (Inc GST)
AI56L

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

The HIKMICRO AI56L acoustic imaging camera is a professional product for gas leak detection. With 64 Low-noise MEMS microphones and an adjustable bandwidth range from 0 kHz to 96 kHz, AI56L provides an easy and effective way to locate pressurized air leaks in industrial environments.  By adopting this lightweight and easy-to-use tool, you can discover potential safety risks, minimize troubleshooting, and save extra costs for equipment failures and downtime.

Features

  • 64 Low-noise MEMS Microphones, real-time sound source localization
  • Real-time estimated leak rate, leak cost, and leak level for gas leak detection
  • Analyzer acoustic software for analyzing images and export reports
  • 800 × 480 Resolution, 4.3’LCD Touch Screen
  • Supports 8 acoustic palettes



Acoustic
Number of Microphones 64
Acoustic Image Resolution 800  ×  480
Bandwidth 0 kHz to 96 kHz, adjustable range MEMS sampling frequency: 192 kHz
Distance 0.3 m ~150 m
Acoustic Image Palette White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, Blue Red
Camera FOV 50.2°×  35.4°
Sound Intensity Display Peak Point
Acoustic Image Frame Rate 25 fps
Dynamic Range Low Limit: <-15dB
High Limit: >120dB
Leak Rate >0.008 l/min @ 6 bar from 0.5 m (1.64 ft)
>0.013 l/min @ 5 bar from 1 m (3.28 ft)
Discharge Detection Automatic detection 50 / 60 Hz
Image Display
Display 800  ×  480 Resolution, 4.3’LCD Touch Screen
Screen Brightness Manual /Auto
Digital Zoom 1.0x to 16.0x continuous
Visual Camera 2688 x 1944 (5 MP)
Data Storage and Communication
Image Storage Capacity 20,000 images
Annotations Voice note: max. 60 seconds;
Text note: max. 255 characters
Video Storage Capacity 60 hours
Video File Format MP4
Extendable Memory Card Extendable 128 GB SD Card
General
Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz)
USB Interface USB Type-C
HDMI Interface HDMI-D
Battery Operating Time Approx. 3.5 hours x3 for a total for a total of 10.5 hours
Battery Type Interchangeable and Rechargeable Li-ion Battery
Battery Charging Time 5 hours to full charge
Protection level IP 54
Power Supply 5V DC/2A (Charging via USB)
Drop Test Height 1.2 m (3.94 ft)
Safety IEC 61010-1
EMC EN 301 489-1,EN 301 489-17,EN IEC 61000-6-2,EN IEC 61000-6-3,EN 61326-1
Working Temperature Range -20  °C to 50  °C (-4  °F to 122  °F)
Storage Temperature Range -20  °C to 60  °C (-4  °F to 140  °F)
Relative Humidity ＜95 % non-condensing
Weight Approx. 940 g (2.07 lb)
Dimension 292.2  ×  127  ×  110.7 mm (11.50  ×  5.00  ×  4.36 in)




Battery

2 years of coverage for the rechargeable battery.

Full Product

3 years components and labor coverage for the full product.

Detector

10 years of coverage for the detector - the most important part of the whole product
