Fluke 114 True RMS Electrical Multimeter – 600V CAT III with AutoVolt & Backlight

The Fluke 114 True RMS Electrical Multimeter is designed for electricians, HVAC technicians and maintenance professionals who need a reliable, compact meter for everyday go/no-go electrical testing. Built for simple one-handed operation, the Fluke 114 is ideal for quick voltage checks, continuity testing, resistance measurement and general electrical troubleshooting.

The AutoVolt function automatically selects AC or DC voltage depending on the signal present, helping make voltage testing faster and easier. The LoZ low-impedance function helps reduce false readings caused by ghost voltage, making the Fluke 114 a practical choice for professional electrical fault finding.

With a large white LED backlit display, 6000-count resolution, Min/Max/Average recording and CAT III 600V safety rating, the Fluke 114 is built for dependable daily trade use in residential, commercial and maintenance environments.

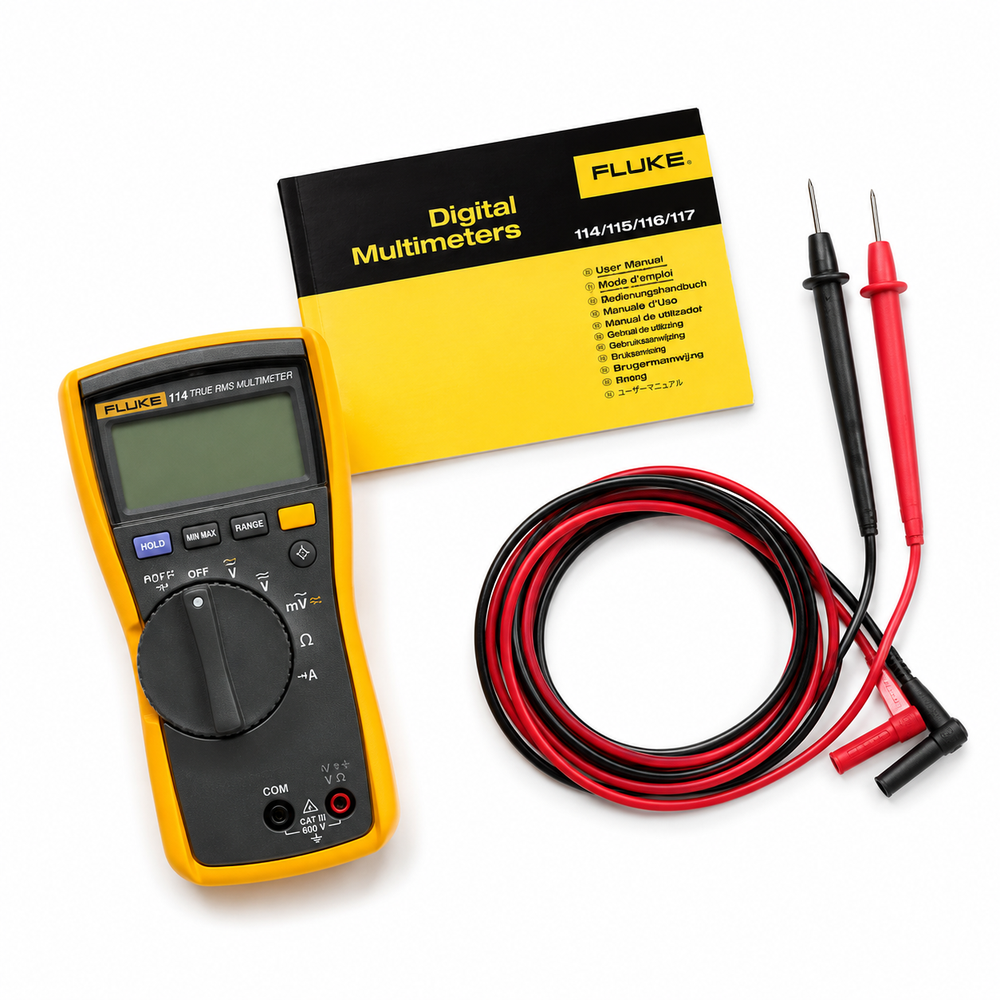

Set Includes

• 1 x Fluke 114 True RMS Electrical Multimeter

• 1 x Test lead set

• 1 x Holster with probe holders

• 1 x Installed 9V battery

• 1 x Quick reference guide / user manual

Key Features

• Compact True RMS digital multimeter for electrical troubleshooting

• Ideal for go/no-go electrical testing

• Measures AC and DC voltage up to 600V

• AutoVolt function automatically selects AC or DC voltage

• LoZ low-impedance mode helps prevent false readings caused by ghost voltage

• Measures resistance and continuity

• Continuity beeper for fast circuit checks

• Min/Max/Average function records signal fluctuations

• Large white LED backlit display for poorly lit work areas

• 6000-count digital display for clear readings

• 33-segment analogue bar graph for fast signal response

• Manual and automatic ranging for flexible testing

• Compact ergonomic design for easy one-handed operation

• Holster includes probe holders for convenient test lead storage

• Fits optional Fluke ToolPak™ magnetic hanger for hands-free operation

• CAT III 600V safety rating

• 3-year warranty

Specifications

• Brand: Fluke

• Product Number: FLU114

• Model: Fluke 114

• Fluke Part Number: 2538783

• Product Name: Fluke 114 Electrical Multimeter

• Tool Type: True RMS Digital Multimeter

• Maximum Voltage Between Any Terminal and Earth Ground: 600V

• DC Voltage Range: Up to 600V

• AC Voltage Range: Up to 600V True RMS

• DC Millivolts Range: 600.0mV

• AC Millivolts Range: 600.0mV True RMS

• AutoVolt Range: 600.0V

• Resistance Range: Up to 40MΩ

• Continuity: Beeper on below 20Ω and off above 250Ω

• Display: 6000-count digital display with white LED backlight

• Bar Graph: 33-segment analogue bar graph

• Measurement Functions: AutoVolt, LoZ, resistance, continuity and Min/Max/Average

• Safety Rating: CAT III 600V

• Safety Standard: IEC 61010-1 Pollution Degree 2 and IEC 61010-2-033 CAT III 600V

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -40°C to 60°C

• Battery Type: 9V alkaline battery, IEC 6LR61

• Battery Life: 400 hours typical without backlight

• Dimensions: 167 x 84 x 46mm

• Weight: 550g

• Warranty: 3 years

• UPC / Barcode: 095969324175

• Unit of Measure: Each

• Application: Electrical testing, voltage checks, resistance measurement, continuity testing and general troubleshooting

Ideal For

• Professional electricians

• HVAC technicians

• Electrical maintenance workers

• Service technicians

• Commercial and residential electrical work

• Go/no-go electrical testing

• Voltage checks and continuity testing

• Identifying ghost voltage with LoZ mode

• Switchboard, panel and service work

• Trade tool kits, service bags and maintenance vehicles

Professional 600V Electrical Multimeter for Everyday Troubleshooting

The Fluke 114 True RMS Electrical Multimeter is built for tradespeople who need a simple, reliable and accurate meter for everyday electrical testing. With AutoVolt AC/DC selection, LoZ ghost voltage reduction, resistance, continuity, Min/Max/Average and a backlit display, it provides the essential functions needed for fast fault finding.

For electricians, HVAC technicians and maintenance teams, the Fluke 114 delivers trusted Fluke quality, compact one-handed operation and CAT III 600V safety protection for dependable testing across service, installation and maintenance applications.
