FIELDPIECE Wireless Charge & Test Probe Kit

FIELDPIECE Wireless Charge & Test Probe Kit

JL3KH4

This FIELDPIECE JL3KH4, Wireless Charge & Test Probe Kit allows you to take a full system snapshot quickly + easily with superior distance within a 300 m connectivity! That means you can see what your Evaporator is doing while you are at the condensing unit.

Logging is now activated..

Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system. To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure Probe..... the Saturation Temperatures will show for your readings. Meld the table cells from your JL3PC Pipe Clamp Probe Log... either Suction or Liquid line & your superheat or subcooling values will be presented.

Use the JL3PC to test your delta T. across the filter drier.... Temperature differences over 1.0 degrees C need to be monitored for loss of system efficiency.

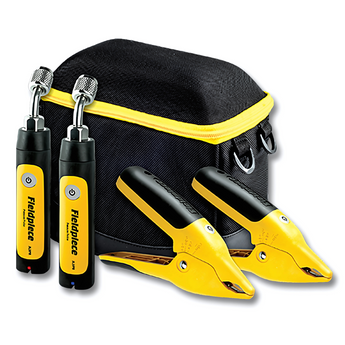

The Kit consists of:

• 2 x Pressure probes for discharge & suction pressure

• 2 x Pipe clamps for liquid line sub-cooling & suction line superheat


• Contained in a quick access padded case.

• All measurements can be sent, with the Job Link™ app, up to 300 m away directly to your mobile device.

The Tools are also:

• Designed for agility and speed

• The pressure probes fit into tight spaces

• The pipe clamps use the new Rapid Rail™ sensor delivering accuracy, speed, and agility—even on the most awkward pipe configurations


Login Activation:

• Simply connect your probe to the Job Link app & follow the update procedure

• Log multiple parameters at one time to get the right analysis of your system

• To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure Probe—the Saturation Temperatures will show for your readings

• Meld the table cells from your JL3PC Pipe Clamp Probe Log, presented will be either Suction or Liquid line & your Superheat or sub-cooling values

• Use the JL3PC to test your Delta-T across the filter drier … temperature differences over 1 °C need to be monitored for loss of system efficiency

Specifications:

• Wireless range: +300 metres

• Wireless frequency: 2.4 gHz

• Battery: 2 x AAA (included)

• Battery life: 150 hours typical alkaline

• Auto power off (APO): 2 hours (can be disabled)

• Minimum device requirement: BLE 4.0 devices running iOS® 7.0 or Android™ 5.0

• Weight: 2.5 kg

• Dimensions (mm): 300 x 200 x 300

Job Link™ Pressure Probe—JL3PR:

• Connector type: 45° Standard 1/4” NPT female flare

• Best accuracy: ±1 psig (±7 kPa)

• Measurement range: 0 to 580 psig (0 to 4000 kPa)

• Maximum overload: 800 psig (5500 kPa)

• Water resistant: Designed to IP55

Job Link™ Premium Pipe Clamp Probe—JL3PR:

• Pipe compatibility: Electrically conductive 6.4 to 34.9mm Dia (1/4” to 1+3/8”)

• Accuracy: ±0.6 °C

• Measurement range: -46 to 125 °C

• Stabilisation time: 3 seconds typical

• Measurement feedback: Beeper and LED

• Water resistant: Designed to IP55

• Patent: Pending
