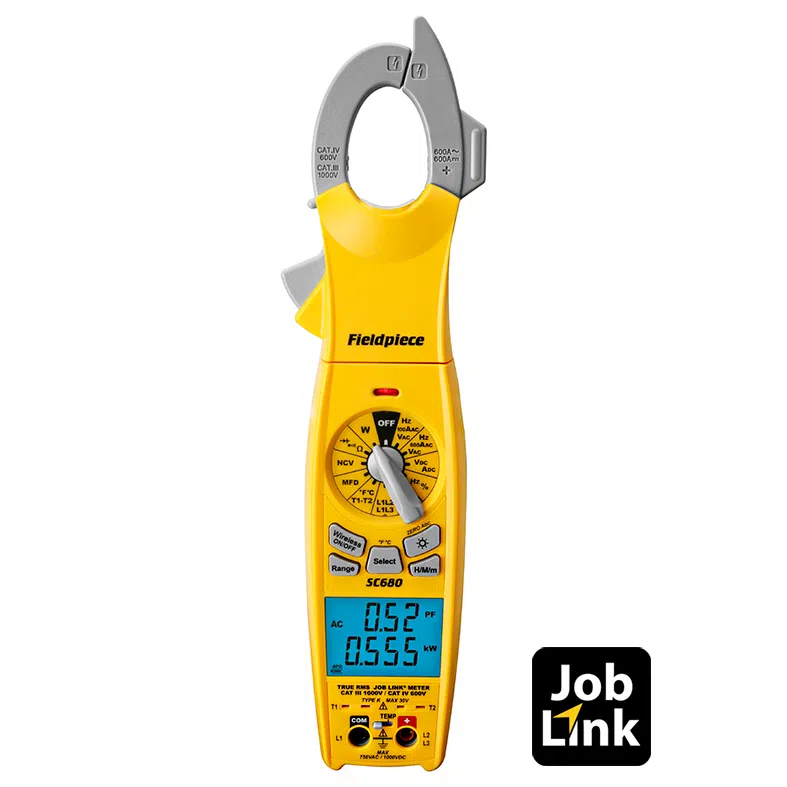

FIELDPIECE CAT1V True RMS Clamp Meter

SC680INT
$799.49 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
SC680INT

FIELDPIECE CAT1V True RMS Clamp Meter

SC680INT



Whether you’re working on small circuitry in mini-splits or on large commercial units, the new FIELDPIECE SC680 is built with packed with everything you need to install, service or troubleshoot any HVACR system.

As Top-of-the-line of HVACR meters, not only does the SC680INT communicate with Job Link, but you can also measure the kW power consumption to determine system efficiency with it.

Details:

  • Verify 3-phase rotation with just two leads

  • Take more accurate VAC and AAC readings with True RMS

  • Filter out noise to get true voltage and frequency with low pass filter

  • Measures kW power for system efficiency

  • Has True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings

  • Measures start/run capacitors

  • Molex tips reach into power connectors

  • DC Amps with this meter

  • Magnet for mounting meter during use
  • Safety-rated CAT IV-600 V/CAT III-1000 V

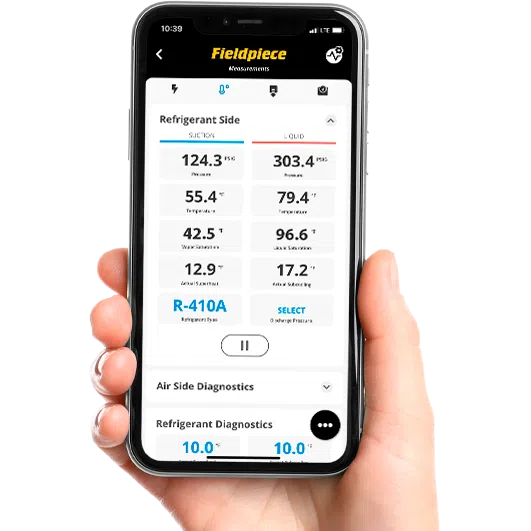

  • Job Link® system mobile capability: Send and save electrical measurements to Job Link® system mobile app plus, calculate kW power and system efficiency for in depth understanding of system performance in real world conditions

  • Electrical testing for HVACR: True RMS readings through the clamp or leads. Inrush current mode to capture starting Amps

  • Test 3-phase power test: Conveniently test phase rotation without carrying an extra meter or lead

  • Rugged dual display: Broad temperature range tolerance allows for testing in freezers and on rooftops

        Specifications:

        • Display: 10000 count dual display

        • Backlight: 5 minute duration with auto-off, blue colour

        • Over range: “OL” or “-OL” is displayed

        • Measurement rate: 3.3 times per second, nominal
        • Zero: Automatic

        • Operating environment: 0 to 50 °C at <70% RH

        • Storage temperature: -20 to 60 °C, 0 to 80% RH (with battery removed)

        • Accuracy: Stated accuracy @ 23 °C ±5 °C, <75% RH

        • Temperature coefficient: 0.1 x (specified accuracy) per °C [0 to 19 °C, 28 to 50 °C]

        • APO (Auto Power Off): approx 30 minutes

        • Power: Single standard 9-Volt battery, NEDA 1604, JIS 006P, IEC 6F22

        • Battery life: 100 hours typical alkaline (No wireless, no backlight)

        • Low battery indication: Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level

        • Dimensions (mm): 301.5 x 79.5 x 50
        • Weight: approx 480 g including battery

        • Altitude: Up to 2000 m

        • Overload protection: 1000 VDC or 750 VAC rms unless otherwise stated

        • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600 V or above. Included test leads are gold-plated and have removable safety caps.

        What's included:
        • SC680INT Bluetooth clamp meter

        • ADLS2 deluxe silicone lead set with gold plated tips and removable sheath

        • 2 ATB1 wrap tab type K thermocouple

        • ASA2 short leads with alligator clips
        • 9 V battery (not installed)

        • ANC7 padded case

        • Operator's manual

        • 2 Velcro straps
