FIELDPIECE True RMS Clamp Meter with Swivel AAC Clamp Head

SC640
$580.90 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
SC640

Usually ready in 24 hours

FIELDPIECE True RMS Clamp Meter with Swivel AAC Clamp Head

SC640



The SC640 Swivel Clamp Meter comes packed with HVAC-R measurement abilities needed for day to day testing, including a host of safety features like a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder with detachable leads, and alligator probe tips for easy one-handed testing.

Having temperature, capacitance, and microamps DC for flame diode tests, it is also fast reacting, easy-to-use, and rugged, with extended temperature tolerances that allow for testing in freezers and on hot rooftops. Designed specifically for HVACR field service, the SC640 is a dedicated digital multi-meter that offers specific features and benefits to help HVACR professionals do more, everyday.

Details:

  • Lead storage

  • Swivel-head clamp

  • Magnetic strap

  • Dual display

  • Frequency via leads and clamp

        Specifications:

        • Display: 5000 count dual display

        • Backlight: 60 seconds duration with auto-off, blue colour

        • Over range: (OL) or (-OL) is displayed

        • Measurement rate: 3.3 times per second, nominal
        • Zero: Automatic

        • Operating environment: 0 to 50 °C at <70% RH

        • Storage temperature: -20 to 60 °C, 0 to 80% RH (with battery removed)

        • Accuracy: Stated accuracy @ 23 °C ±5 °C, <75% RH

        • Temperature coefficient: 0.1 x (specified accuracy) per °C [0 to 19 °C, 28 to 50 °C]

        • APO (Auto Power Off): approx 30 minutes

        • Power: Single standard 9-Volt battery, NEDA 1604, JIS 006P, IEC 6F22

        • Battery life: 100 hours typical alkaline

        • Low battery indication: Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level

        • Dimensions (mm): 287.5 x 79.5 x 50.0
        • Weight: approx 450 g including battery

        • Altitude: Up to 2000 m

        • Overload protection: 600 VDC or 600 VAC rms unless otherwise stated

        • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600 V or above. Included test leads are gold-plated and have removable safety caps

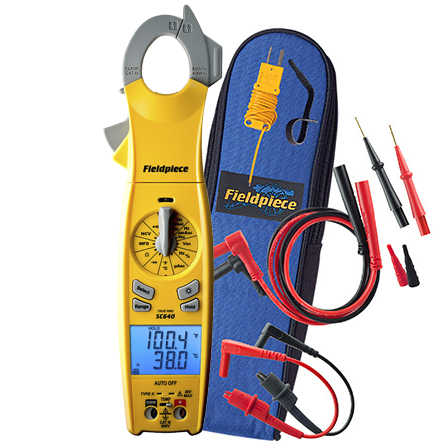

            What's included:

            • SC640 meter

            • ADLS2 deluxe silicone lead set with gold plated tips and removable sheath

            • ATB1 wrap tab type K thermocouple

            • ASA2 short alligator lead extensions
            • 9 V battery

            • ANC7 padded case

            • Velcro strap

            WARRANTY:
            12 months from date of purchase.
            *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
