FIELDPIECE

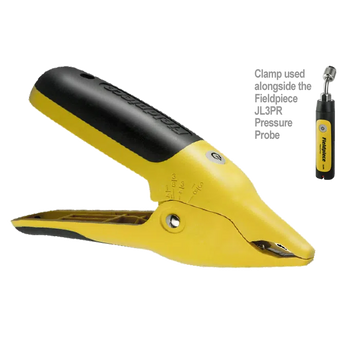

FIELDPIECE Wireless Temperature Pipe Clamp Probe

JL3PC
$275.36 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
JL3PC

Usually ready in 24 hours

FIELDPIECE Wireless Temperature Pipe Clamp Probe

JL3PC



Take a full system snapshot with this Fieldpiece Temperature Probe Pipe Clampdesigned for agility and speed and to work with the JL3PR Pressure Probe.

Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system. To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR Pressure Probe … saturation temperatures will show for your readings. Meld the table cells from your JL3PC Pipe Clamp Probe Log … either Suction or Liquid line & your superheat or subcooling values will be presented. Save the results in your service or commisioning PDF report. Free to download for the base user.

Use the JL3PC to test your delta T. across the filter drier … temperature differences over 1.0 °C need to be monitored for loss of system efficiency.

Details:

  • Pipe size: 6.4 to 34.9 mm OD

  • Temp range: -46 to 125 °C. Accuracy: ±0.6 °C

  • Wireless range: 300 m line of sight, IP55 rated

  • Powerful enough to go through most walk-in coolers and freezers

  • Directly transmits to your mobile device

  • Rapid Rail™ Sensor uses pipe to complete circuit so ambient conditions don’t affect the measurement

  • Stabilises in under 5 seconds

  • Beeper and LED indicate accurate connection
        • The clamp's narrow jaw connects in tight spaces and on irregular pipe shapes

        Specifications:

        • Wireless range: +300 m

        • Wireless frequency: 2.4 GHz

        • Battery: 2 AAA (included)

        • Battery life 150 h typical alkaline
        • Auto power off (APO): 2 h (can be disabled)

        • Minimum device requirement: BLE 4.0 devices running iOS® 7.0 or Android 5.0

        • Pipe compatibility: Electrically conductive 6.4 to 34.9 mm dia

        • Accuracy: ±0.6 °C

        • Measurement range: -46 to 125 °C

        • Stabilisation time: 3 seconds typical

        • Measurement feedback: Beeper and LED

        • Water resistant: Designed to IP55

        WARRANTY:
        12 months from date of purchase.
        *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
