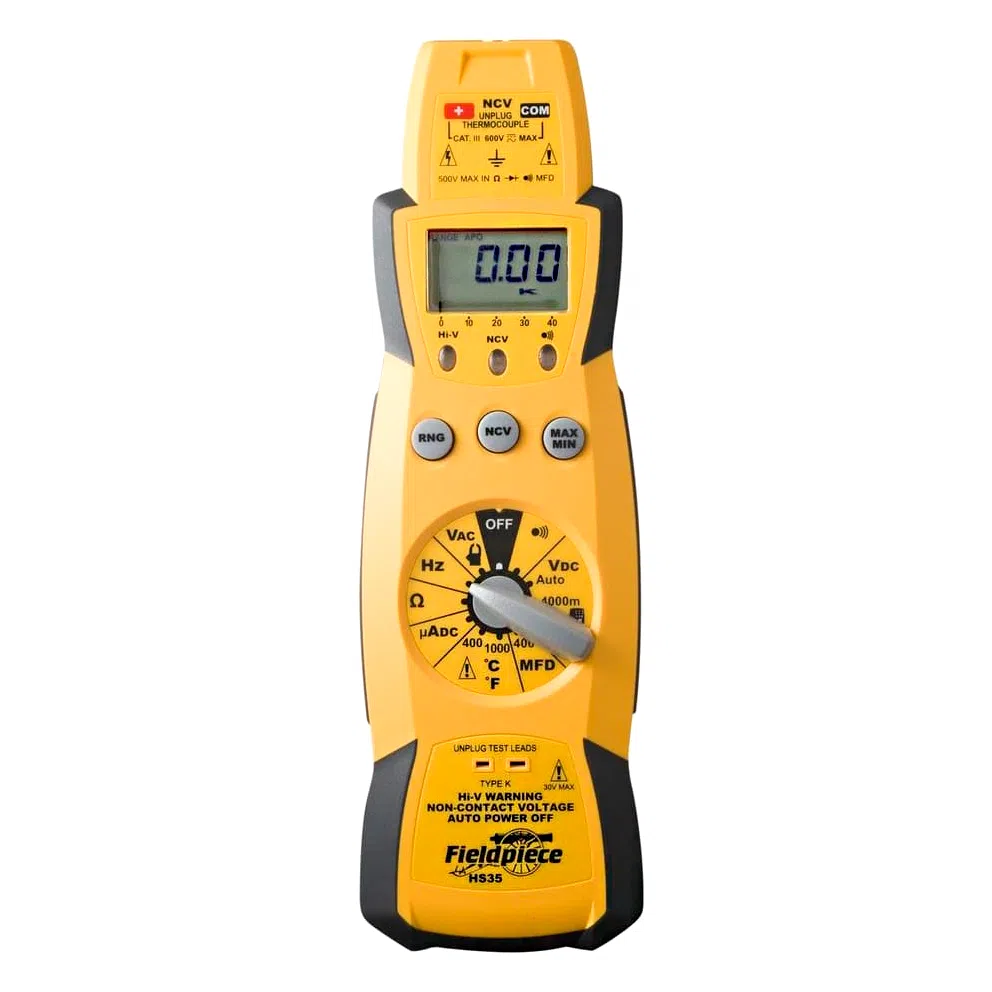

FIELDPIECE Expandable Digital Auto & Manual Ranging Stick Multimeter Kit

HS35
$570.90 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
HS35

Usually ready in 24 hours

FIELDPIECE Expandable Digital Auto & Manual Ranging Stick Multimeter Kit

HS35



A perfect fit for HVACR, the HS35 manual and auto ranging multimeter (with all of its accessory heads) provides the tests you use everyday. It comes equipped with a magnetic hanger, detachable silicone test leads and alligator clip probe tips for remote and easy one-handed testing, as well as the full set of built-in safety features. Built-in temperature with excellent compensation and capacitance ranges are a big plus.

The removable tip test leads and alligator probe extensions make safe one-handed testing a snap. The k-type thermocouple port on the front of the meter allows you to test a number of HVAC parameters right from your multimeter.

Features and capabilities:

  • Works with any accessory head

  • Non-contact voltage—Built-In Volt Stick

  • Microamps DC for flame diodes

  • 400 A AC with included Clamp Accessory

  • Temperature up to 535 °C

  • MIN/MAX Temperature

  • Convenient lead storage

  • Ergonomic shape fits naturally for safe one-handed testing

  • High Voltage and Continuity Indicators

  • Built-in magnetic hanger allows you to test with one hand or no-hands

  • Rugged ABS case with rubberised bumpers

  • Auto power-off (APO) to conserve battery life

  • Microamps

  • Capacitance

Specifications:
  • Display: 3¾ digit liquid crystal display (LCD) with a maximum reading of 3999

  • Analog bar graph: 41 segments with measurements 20 times per second

  • Range (RNG): Manual ranging mode

  • Overrange: "OL" mark indication

  • Auto power off: 30 minutes

  • ​​Operating environment: 0 to 50 °C at <70% RH

  • Storage temperature: -20 to 60 °C, 0 to 80% RH with battery removed

Accuracy:
  • Specifications good in ambient conditions of 22.7 °C ±-12.7 °C, <75% relative humidity

  • Temperature coefficient: 0.1×(specified accuracy) per °C. (0 to 17 °C, 27 °C to 50 °C)

  • Power: Single standard 9-Volt battery, NEDA 1604, JIS 006P, IEC 6F22

  • Battery life: 300 hours typical with alkaline

  • Accessories: One pair test leads, one pair alligator clips, k-type thermocouple, 9 V battery (installed), and operating instructions

  • Safety: UL, CE, Cat III 600V, UL3111, IEC1010-1

  • Temperature Range: -34.4 °C ~ 537.7 °C

  • Resolution: 0.1 °C

  • Accuracy: ±(1 °C) 0 ~ 48.8 °C, ±(1% + -17 °C) -15.5 ~398.8 °C, ±(2% + -15.5 °C) -34.4 ~ -20 °C, ±(2% + -15.5 °C) 398.8 ~ 537.7 °C

  • Sensor type: K-type thermocouple

  • Overload protection: 30 VAC rms

  • Continuity Audible indication: Less than 40 Ω

  • Response time: 500 ms Green LED will be on continuously

  • Overload protection: 500 VAC rms

AC volts (50–500 Hz) Ranges: 400 mV, 4 V, 40 V, 400 V, 600 V
  • Conversion: True RMS (HS36), average

  • Resolution: 0.1 mV Accuracy: ±(1.2% rdg + 5 dgts) 50 ~ 60 Hz on 400 mV range ±(1.5% rdg + 5 dgts) ±(2% rdg + 5 dgts) on 600 V range

  • Input impedance: 560 kΩ

  • Overload protection: 600 VAC rms

  • Transient protection: 6 kV for 10 µ sec

Resistance Ranges: 40 0Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ
  • Resolution: 0.1 Ω Accuracy: ±(1.0% rdg + 4 dgts) on 400 Ω to 400 kΩ ranges ±(1.5% rdg + 4 dgts) on 4 MΩ range ±(3.0% rdg + 5 dgts) on 40 MΩ range

  • Open circuit Volts: -0.18 VAC typical, (-18.4 VDC on 400 Ω range)

  • Overload protection: 500 VAC rms

Capacitance Range: 400 µF Resolution: 0.1 µF
  • Accuracy: ±(3% rdg + 5 dgts)

  • Input protection: 250 mA/600 V (6.3×32 mm fast blow ceramic fuse), part number RFM66

Frequency Ranges: 4k, 40k, 400 k, 4 M, 40 MHz
  • Resolution: 1Hz Accuracy: ±(0.1% rdg + 3 dgts)

  • Sensitivity: 10 Hz ~ 4 MHz: > 1 Vrms, 4 ~ 40 MHz: > 2 Vrms, < 5 Vrms

  • Minimum pulse width: > 25 ns Duty cycle limits: > 30% and < 70%

  • Overload protection: 500 VAC rms

    Warranty:

    • 1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Cases, etc)

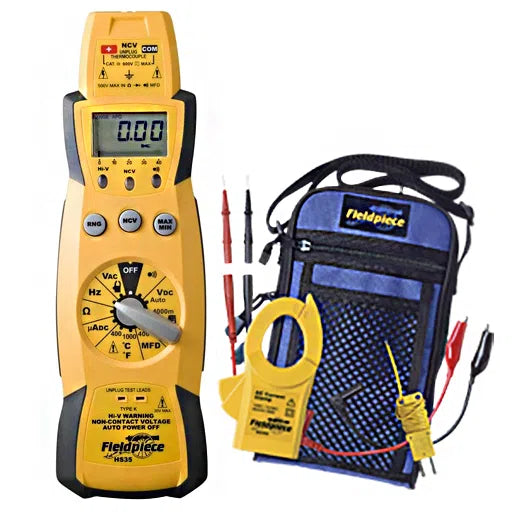

      What's included:

      • The Expandable Auto Ranging Stick Multimeter

      • 400 Amp AC Clamp Accessory—ACH4

      • Deluxe Silicone Test Leads—ADLS2

      • Short Alligator Lead Extensions—ASA2
      • Deluxe Meter Case—ANC1

      • 9-Volt Battery (installed)

      • Operator’s Manual

      WARRANTY:
      12 months from date of purchase.
      *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
