FIELDPIECE Dual Temperature Meter

ST4
$298.82 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
ST4

Usually ready in 24 hours

FIELDPIECE Dual Temperature Meter

ST4

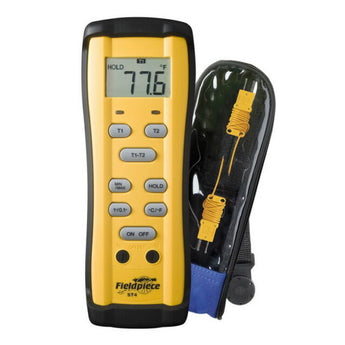

The Fieldpiece ST4 Dual-Temperature Meter measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples. The technology inside the ST4 provides superior temperature compensation in rapidly changing environments commonly found while performing field service.

Use the ST4 to find Delta T and just about any temperature split you want to measure. Displays T1, T2 and T1-T2 in big numbers on the LCD screen. Features two front face calibration pots and comes in our clear front case with magnetic hanger model ANC6. Use with our optional ATWB1 wet bulb thermocouple to help you find target superheat or with our pipe clamp T/Cs to check for blocked dryer filters.

Details:

  • Two K-type thermocouples included

  • Accepts any K-type thermocouple

  • Resolution of 0.1 °C

  • Separate MIN/MAX and HOLD buttons

  • Easy field calibration

        Specifications:

        • Specifications good in ambient conditions of 23 °C ±5 °C, <75% relative humidity

        • Display: 3.5 digit LCD, 2000 count

        • Over range: "OL" or "-OL" is displayed

        • Range: -50 to 1300 °C
        • Resolution: 0.1° Accuracy: ±2°C @ -50 to 0 °C ±0.3 % rdg +1°C @ 0 to 600 °C ±(0.5 % rdg +1 °C @ 600 to 1300 °C

        • Accuracy after field calibration: ±-17 °C @ -1 to 48.8 °C, ±-14 °C @ 0 to 10 °C

        • Temperature coefficient: 0.1 x (specified accuracy) per °C (0 to 18 °C, 28 to 50 °C)

        • Measurement rate: 2.5 readings/second Battery type: 9 V, NEDA 1604, JIS 006P, IEC 6F22

        • Battery life: 200 hours typical alkaline is displayed when the battery needs to be replaced

        • Operating environment: 0 to 50 °C at <75% RH

        • Storage temperature: -20 to 60 °C, 0 to 80% RH (with battery removed)

        What's included:

        • Dual-temperature meter - ST4

        • (2) k-type wrap tab bead thermocouples - ATB1

        • (2) velcro tie wraps

        • Clear front nylon bag with magnetic hanger - ANC6
        • 9-volt battery

        • Operator’s manual

        WARRANTY:
        12 months from date of purchase.
        *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
