FIELDPIECE Combination Mini True RMS Clamp Meter

$345.92 AUD (Inc GST)
Tax included. Shipping calculated at checkout.

Usually ready in 24 hours

FIELDPIECE Combination Mini True RMS Clamp Meter

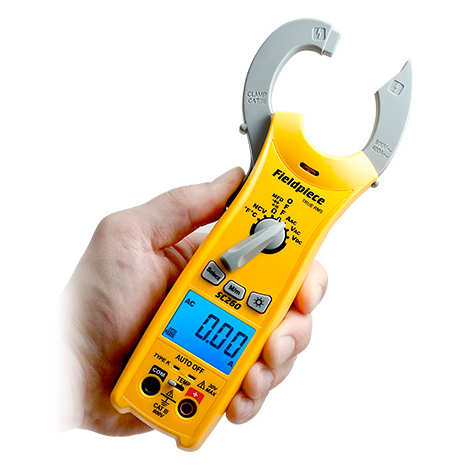

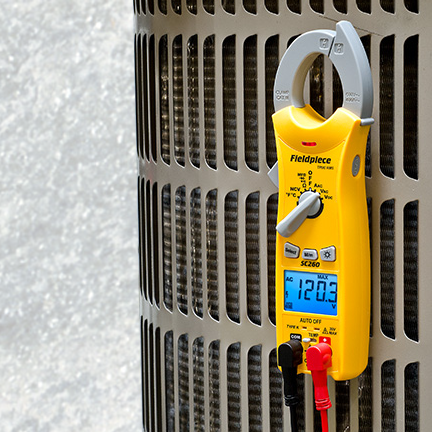

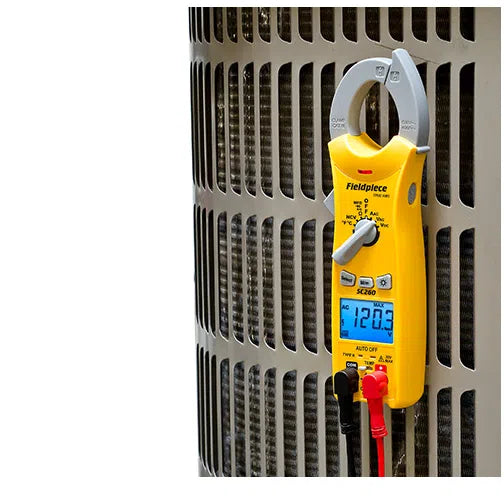

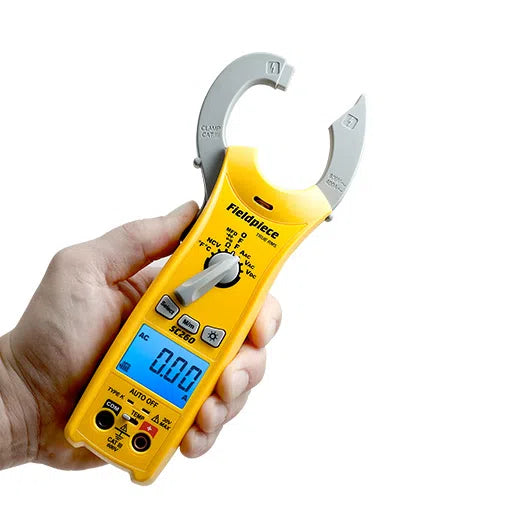

The SC260 Compact Clamp Meter is great for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. It also features a backlight display for viewing in poorly-lit situations and a sturdy swivel magnet for hands-free measurements.

Helping you save time with the new Auto Select mode, simply by setting the dial and connecting your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.

Features and capabilities:

  • 400 amps AC

  • True RMS

  • Temperature: °C

  • Capacitance
  • Non-contact voltage

  • 40 megaOhm with 0.01 resolution

  • Continuity

  • Diode test

  • Max/min/hold

  • LCD Backlight

  • Low Battery Indicator

  • High-Voltage Warning


          • Display: 4000 count dual display

          • Backlight: 5 minute duration with auto-off, blue colour

          • Overrange: (OL) or (-OL) is displayed

          • Measurement rate: 3 times per second, nominal
          • Zero: Automatic

          • Operating environment: 0 to 50 °C at <70% RH

          • Storage temperature: -20 to 60 °C, 0 to 80% RH (with battery removed)

          • Accuracy: Stated accuracy @ 23 °C ±5 °C, <75% RH

          • Temperature coefficient: 0.1 x (specified accuracy) per °C [0 to 19 °C, 28 to 50 °C]

          • APO (Auto Power Off): approx 30 minutes

          • Power: Single standard 9-Volt battery, NEDA 1604, JIS 006P, IEC 6F22

          • Battery life: 150 hours typical alkaline

          • Low battery indication: Battery icon blinks and "" is displayed when the battery voltage drops below the operating level

          • Dimensions (mm): 205.5 x 67.4 x 45.1
          • Weight: approx 265 g including battery

          • Altitude: Up to 2000 m

          • Overload protection: 600 VDC or 600 VAC rms unless otherwise stated

          • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600 V or above. Included test leads are gold-plated and have removable safety caps.

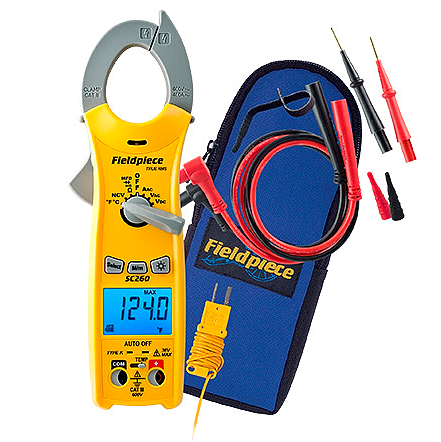

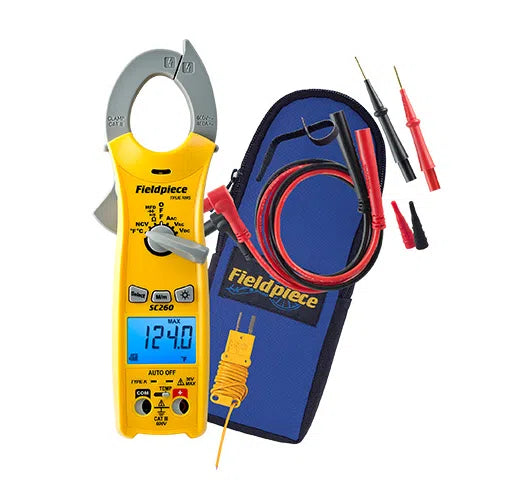

          What's included:

          • SC260 meter

          • ADLS2 deluxe silicone lead set with gold plated tips and removable sheath

          • ATB1 wrap tab type K thermocouple

          • ASA2 short alligator lead extensions
          • 9 V battery

          • ANC4 padded case

          • Velcro strap

          12 months from date of purchase.
          *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*

          All products listed with the "PRE-ORDER ONLY' badge are currently awaiting more stock. Please be sure to speak to a staff member regarding the wait time involved with a particular PRE-ORDER product before ordering.
