HVACDIRECT

HVACDIRECT Basic RTA Permit Pack (Pump, Recovery Unit & Leak Detector)

EBAYKIT9
$1,596.60 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
EBAYKIT9

Usually ready in 24 hours

HVACDIRECT Basic RTA Permit Pack (Pump, Recovery Unit & Leak Detector)

KIT9

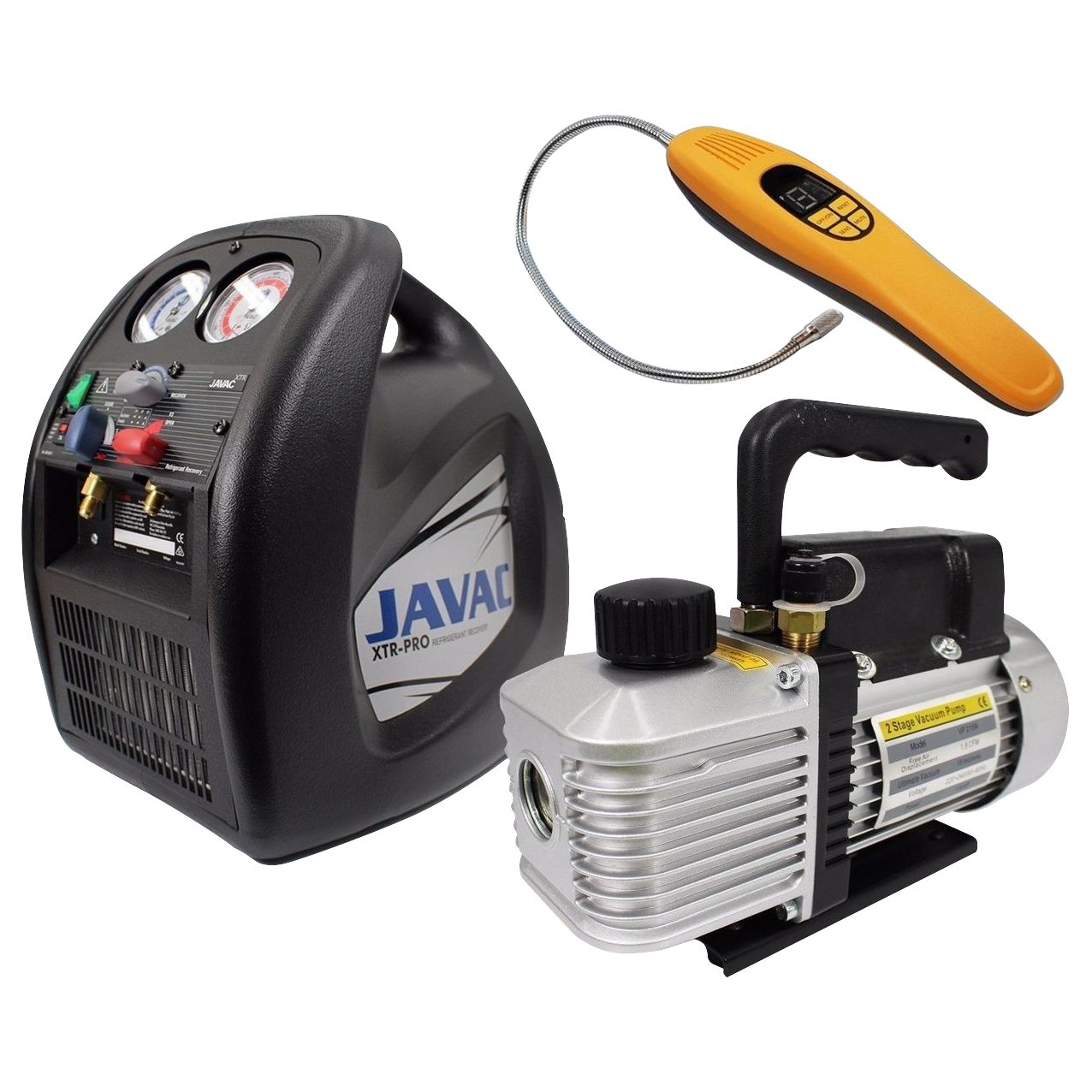

This HVACDIRECT KIT9, Basic RTA Permit Pack (Pump, Recovery Unit & Leak Detector) is a high quality tool kit that is ideal for those looking to get their RTA Permit. Included in this kit are some of HVAC Direct's best selling products.



Kit contains:


#1. HVACDIRECT 130 L/min, 2-Stage Refrigeration Vacuum Pump

VP250N



This HVACDIRECT VP250N, Refrigeration Vacuum Pump is a quality 2 stage, oil rotary vane pump with a 130 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

  • General refrigeration

  • Bottle shops and convenient stores

  • Restaurants, cafes and catering facilities

  • Household or residential jobs including split systems

  • Commercial work

Features/Benefits:

  • Comes with a free starter bottle of oil

  • Great value for money

  • Anti-oil demister to prevent oil spillage

  • Fitted with 1/4" & 3/8" SAE connections

  • 130 L/min flow rate

  • 15 micron ultimate vacuum

  • 350ml oil capacity

  • Dimensions (mm): 320x132x245

  • Weight (kg): 8.6kg

Refrigerants:

R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R402A, R404A, R407A, R407B, R410A & R507



#2. JAVAC XTR PRO Recovery Machine - Non-Sparking - R32, R410 & R134a Compliant

XTRC2



This JAVAC XTRC2, XTR PRO is a quality recovery machine, that provides reliability, accuracy, and an all-Australian design.



Features:

  • Recovers: R12, R134a, R22, R32, R401, R404, R406, R408, R410A, R411, R412, R500, R502, R509, 1234yf, and most CFC’s, HCFC’s and HFC’s
  • Built-in manifold analyser

  • Optimum fail-safe performance

  • Purges and self-cleans ‘on the fly’ with no need to shut down

  • A high torque AC motor provides up to 50% noise reduction

  • Increased vapour speed ensures the residual vapour moves quicker

  • You can flush, push/pull, and sub-cool by using the advanced facility

Specifications:

  • Liquid recovery rate (kg/min): 1.8

  • Vapour recovery rate (kg/min): 0.25

  • Push/pull (kg/min): 5.5

  • Connections: 1/4" SAE

  • HP Cut Out: 550 psi

  • Operating Temp: -5 °C to 60 °C

  • Noise Level: 72 dba

  • Weight (kg): 16kg

  • Dimensions (mm): 420x290x420



#3. HVACDIRECT Refrigerant Leak Detector (Heated Diode)

LD100



This HVACDIRECT LD100, Refrigerant Leak Detector is a highly sensitive, quick responding & easy to use entry level leak detector.



Features:

  • Product modelling unique, accord with human body function

  • LED display

  • Sensitivity Level 7

  • Conform to the CE test standard

  • SAEJ1627 standard

  • The probe can be replaced

  • Has the battery indicator, low battery alarm function

Specifications:

  • Power types: 5 dry cell

  • Refrigerant detection range: R12, R22, R502, R134A, R404A, R407C, R410A, R600A & HFC/HCFC series of refrigerants

  • Sensitivity rating: Sensitivity Level 7

  • Detection precision: For R134a, static: 3 g/yr & dynamic: 5 g/yr

  • Operating environment: 0 °C〜40 °C; relative humidity (50%~85% rh)

  • Probe type: Semiconductor sensor

  • Warm-up time: 30 seconds

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
