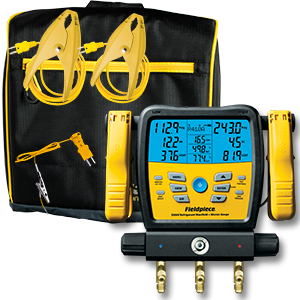

FIELDPIECE SMAN 2-Valve Wireless Refrigerant Manifold

SM380VINT

This FIELDPIECE SM380VINT, SMAN Wireless Refrigerant Manifold (2-Valve) is featuring an extremely rugged casing, reinforced hook, and hermetically sealed sight glass, wireless capabilities, data logging, and tightness test, all so you can do your job easier, faster and better.

Details:

• Stores up to 9 jobs internally

• Easy download via USB port

• Displays % free storage space before logging begins

• Logs up to 7 days (168 continuous hours)

• Receives Wireless Measurements on SMAN and/or in Job Link App

• Monitor and record refrigerant weight

• Direct 100 m wireless range (no transmitter needed)

Tightness test built-in feature:

• Check for leaks after repairs or installations

• View pressure differential over time

• Timer tracks duration of test

• Temperature compensated with SL temp to avoid false positives

Customisable menu:

• Adjust auto power-off duration

• Adjust back light duration

• Set high and low vacuum alarms

• Select each unit of measurement individually

Specifications:

• Display: LCD (5 inches diagonal)
• Backlight: Blue (adjustable duration)
• Low Battery Indication: is displayed when the battery voltage drops below the operating level.
• Auto Power Off: 30 minutes of inactivity (adjustable)
• Maximum Manifold Pressure: 800 Psig (5500 kPa)
• Battery Type: 6 x AA alkaline
• Battery Life: 350 hours typical (without vacuum, backlight, and wireless)
• Radio Frequency: 2.4 GHz
• Wireless Range: 1000 feet (305 meters) line of sight
• Distance decreases through obstructions
• Data Port: Micro USB (for extracting data logs or updating firmware)
• Operating Environment: 0 to 50°C at <75% RH
• Storage Environment: -20°C to 60°C at <80% RH (with battery removed)
• Temperature Coefficient: 0.1 x (specified accuracy) per °C (0°C to18°C, 28°C to 50°C)
• Weight: 1.83 kg
• Water Resistant: Designed to IP54
