FIELDPIECE

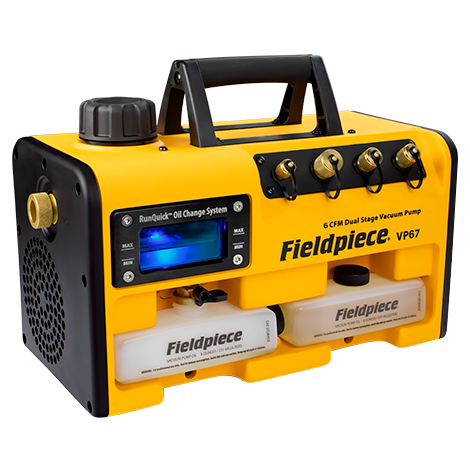

FIELDPIECE 170 L/min Refrigeration Vacuum Pump
VP67FIELDPIECE 170 L/min Refrigeration Vacuum Pump
VP67
This FIELDPIECE VP67, 170 L/min Refrigeration Vacuum Pump allows you to clearly view your pump oil through the huge oil reservoir window to see its condition. And when it's time for an oil change, it's way quicker with the RunQuick™ Oil Change System. Plus the extra wide base helps stability, preventing tipping and spilling.
Features:
- Flow rate: 6 cfm [170 L/m]
- Oil capacity: 237 mL
- Oil backlight: Blue LED
- Oil drain: Ball valve
- Port sizes: 1/4”, 3/8”, 1/2”
- Compressor: Rotary vane, two stage
- Motor: 1/2 HP AC
- RPM: 3440
- Power source: 240 VAC @ 50 Hz 1 phase
- Nominal current draw: 5.0 AAC
- Ultimate vacuum at input ports: 15 microns
- Dimensions (mm): 201 x 296 x 406
- Weight: 13.2 kg
- Operating environment: -1.1°C to 50°C
WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
