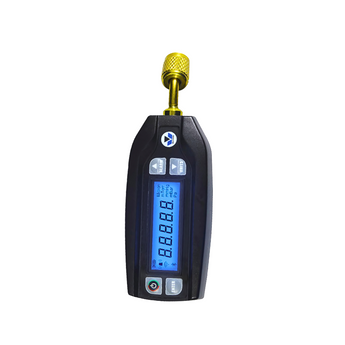

Mastercool - 98063-BT - Digital vacuum gauge

Mastercool - 98063-BT - Digital Vacuum Gauge

98063-BT

Wireless Vacuum Gauge is built to make your work easier. It helps eliminate misleading measurements by allowing you to connect it at the system port - even those awkward, hard-to-reach spots. It’s also housed in a rugged impact and weather-resistant case.

FEATURES:

• Durable sintered bronze inlet filter protects the sensor from contaminants

• Bright 5-digit LCD display with high-contrast blue backlight for enhanced readability

• Chemically resistant sensor allows for easy cleaning and long-term reliability

• Low battery indicator clearly displayed on the screen when replacement is needed

• On-site calibration capability—no need to return to the shop

• Audible and visual alarm alerts when vacuum drops below the user-defined threshold

• Integrated Bluetooth® wireless technology enables connection to smart devices via the Mastercool Connect app

SPECIFICATIONS:

• Sensor: Glass bead thermistor with temperature compensation

• Connection Fitting: 1/4" SAE F-FL with stem depressor

• Operating Temperature Range: 32°F to 120°F (0°C to 45°C)

• Vacuum Units: Micron, Torr, mTorr, mmHg, mBar, Pa

• Measurement Range: 20,000 to 1 micron

• Accuracy: ±10% of reading (from 10,000 to 100 microns)

• Proof Pressure: 450 psi

• Auto-Off Function: Unit powers down after 10 minutes of inactivity; backlight turns off after 3 minutes

• Power Supply: 2 AA batteries (included)

• Battery Life: Over 100 continuous hours (varies with backlight usage)

• Weight: 0.3 lb (0.13 kg) without batteries / 0.5 lb (0.23 kg) with batteries

• Dimensions: 1.9" x 6.3" x 1.4" (50 mm x 160 mm x 36 mm)

Bluetooth® Specifications:

• Maximum range: 260 ft (80 m) line-of-sight

• Supports Bluetooth® versions 4.2 and 5
