AITCOOL

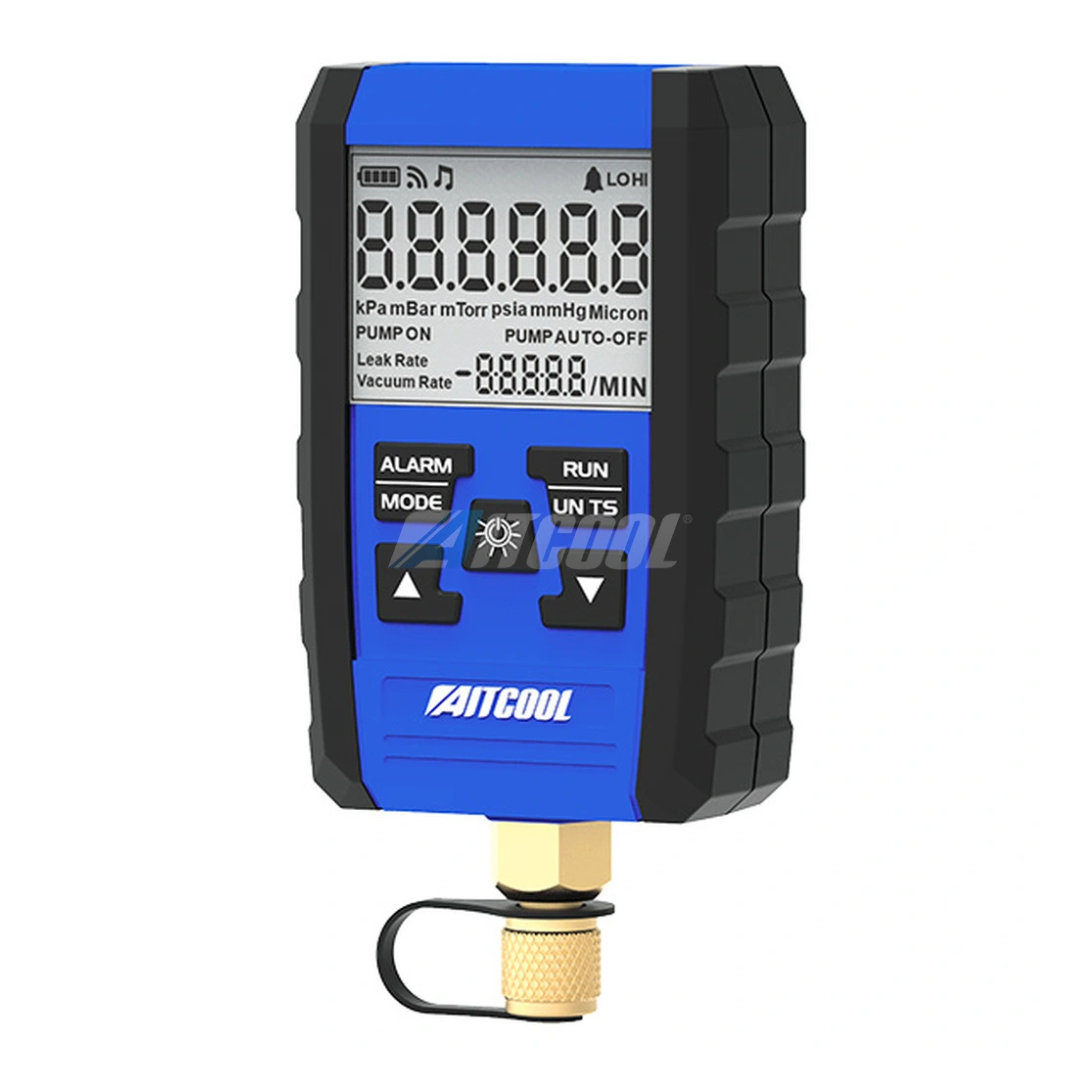

AITCOOL Vacuum Gauge with Pirani Sensor

$384.46 AUD (Inc GST)
AVG2

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

AVG2

Model AVG2
Maximum Overload Pressure 500PSI
Range 0-10000pa,0-100.00mbar,0-75.000mmHg,
0-20000microns
Resolution 1 micron (50 to 2000 microns), 100 microns
(2001 to 10,000 microns)
Refresh Rate 0.5 seconds
Accuracy ± (5% of reading + 5 microns) within the reading of
50 to 1000 microns
Operating temperature: 32°F (0°C) to 122°F (50°C)
at<75%RH Storage temperature: -4°F to 140°F
(-20°C to 60°C), 0 to 80% RH (with battery removed)
Temperature coefficient: 0.1 x (specified accuracy)/°
C (<18°C or >28°C)
Operating Temperature 32℉（0℃） to 122℉（50℃） at ＜75%RH
Unit micron,inHg,psia,mTorr,Torr,mbar,bar,pa,kPa
Sensor Pirani sensor
Screen Size 1.2"x1.59"
Power 3 * AA alkaline battery
Battery Life ≥40 hours
Dimensions(mm) 136.6x65.6x38.5
Weight 0.225kg
WARRANTY

12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
