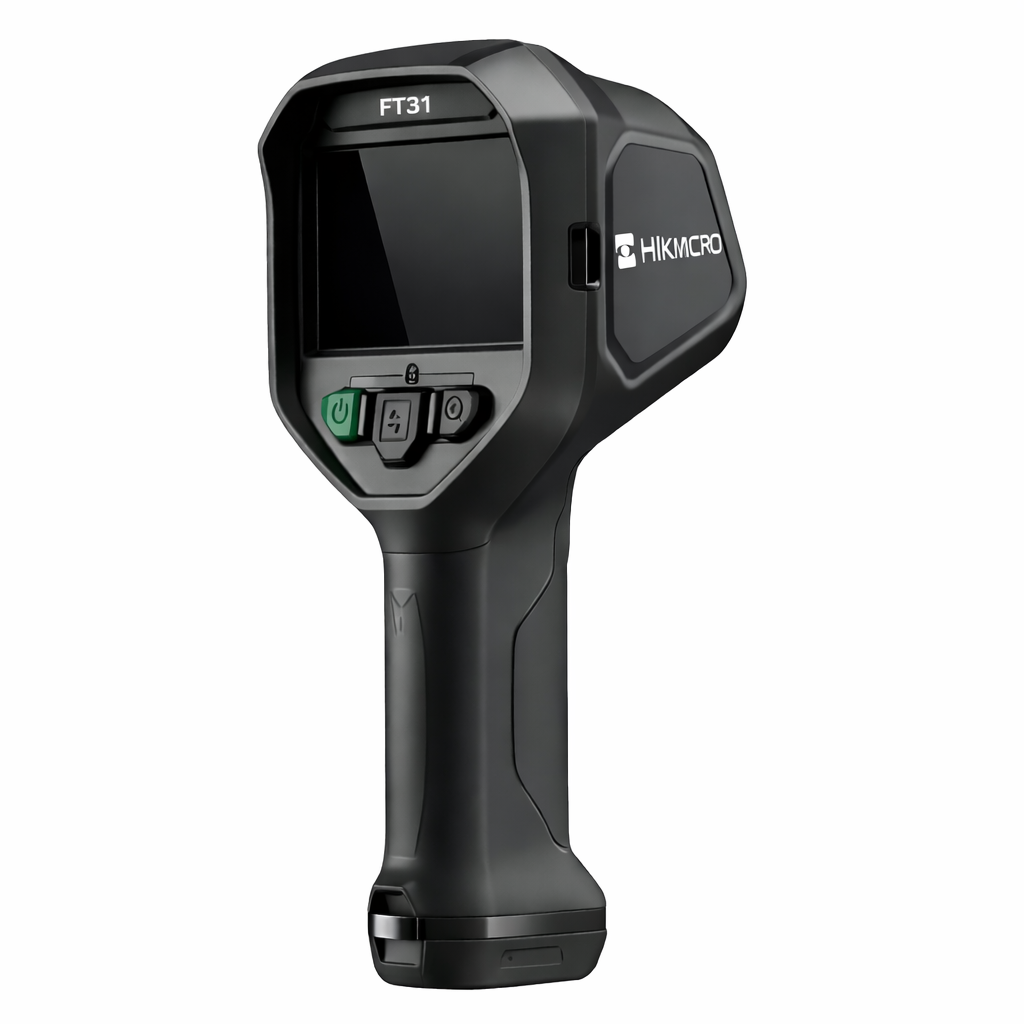

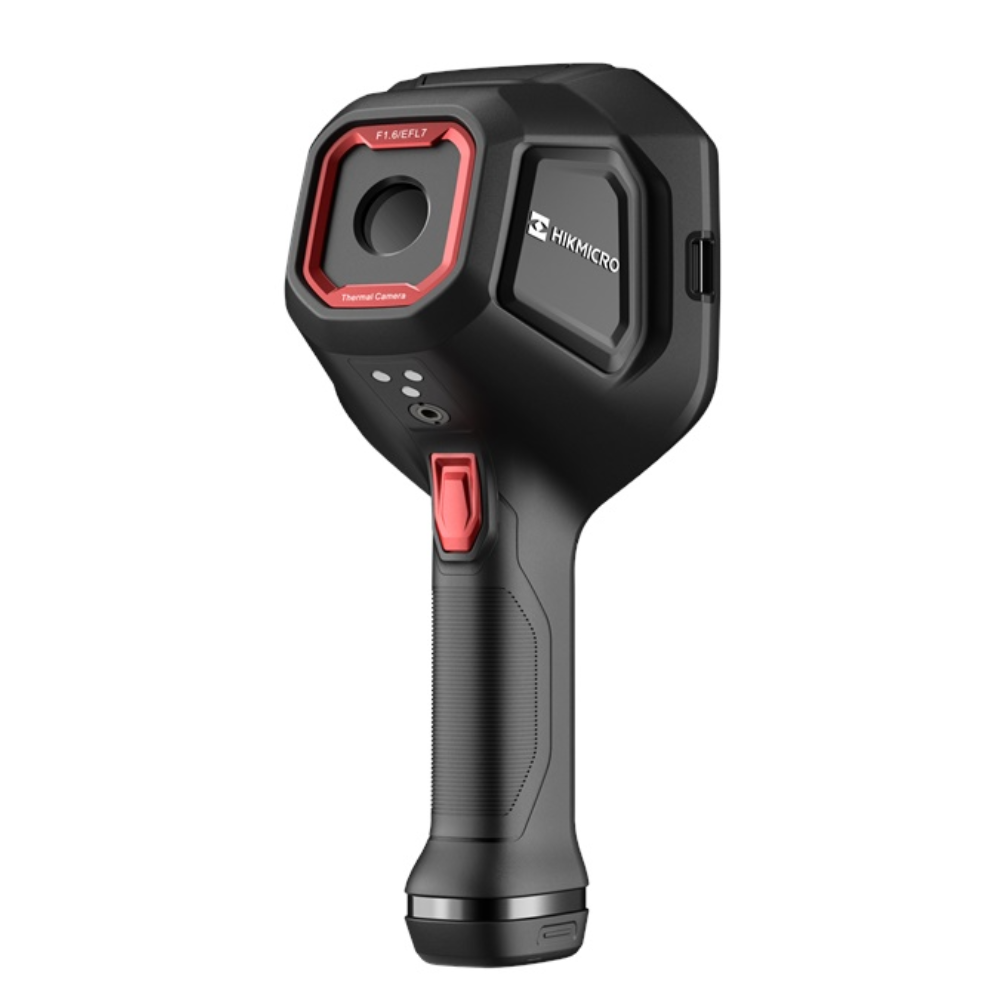

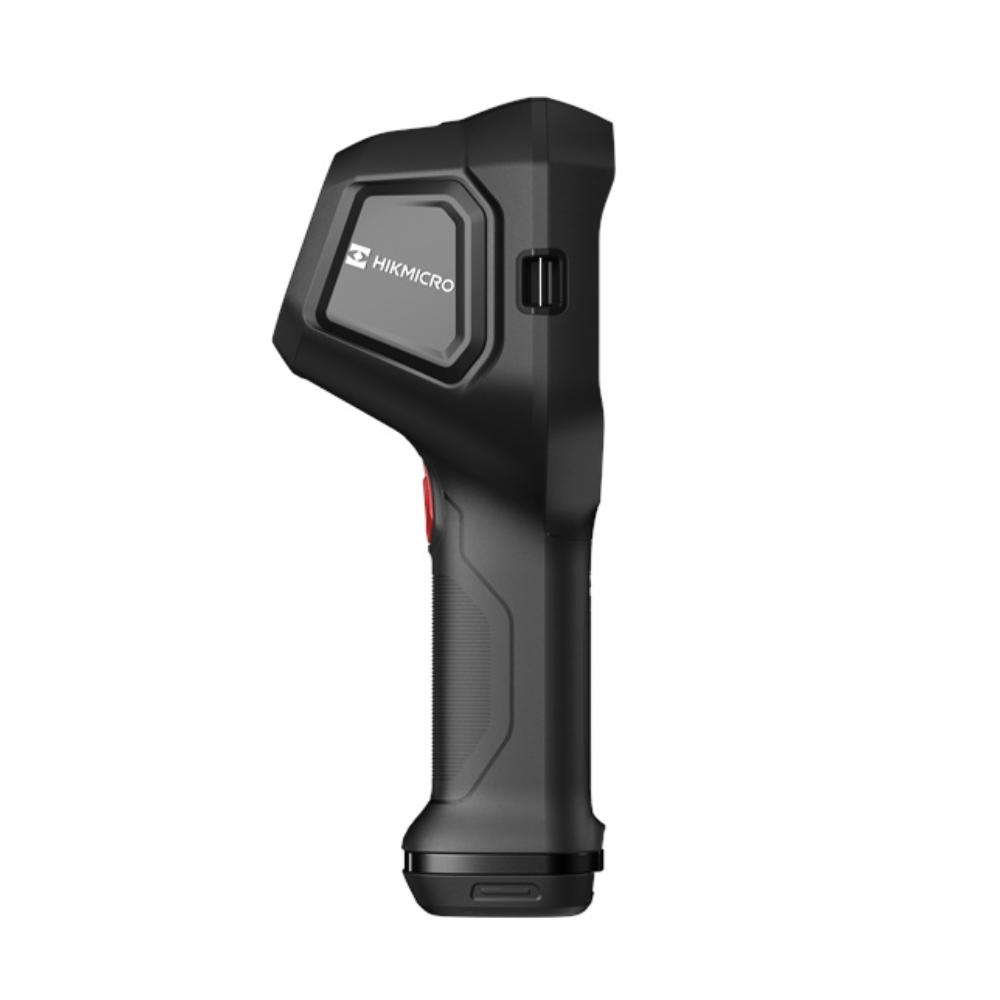

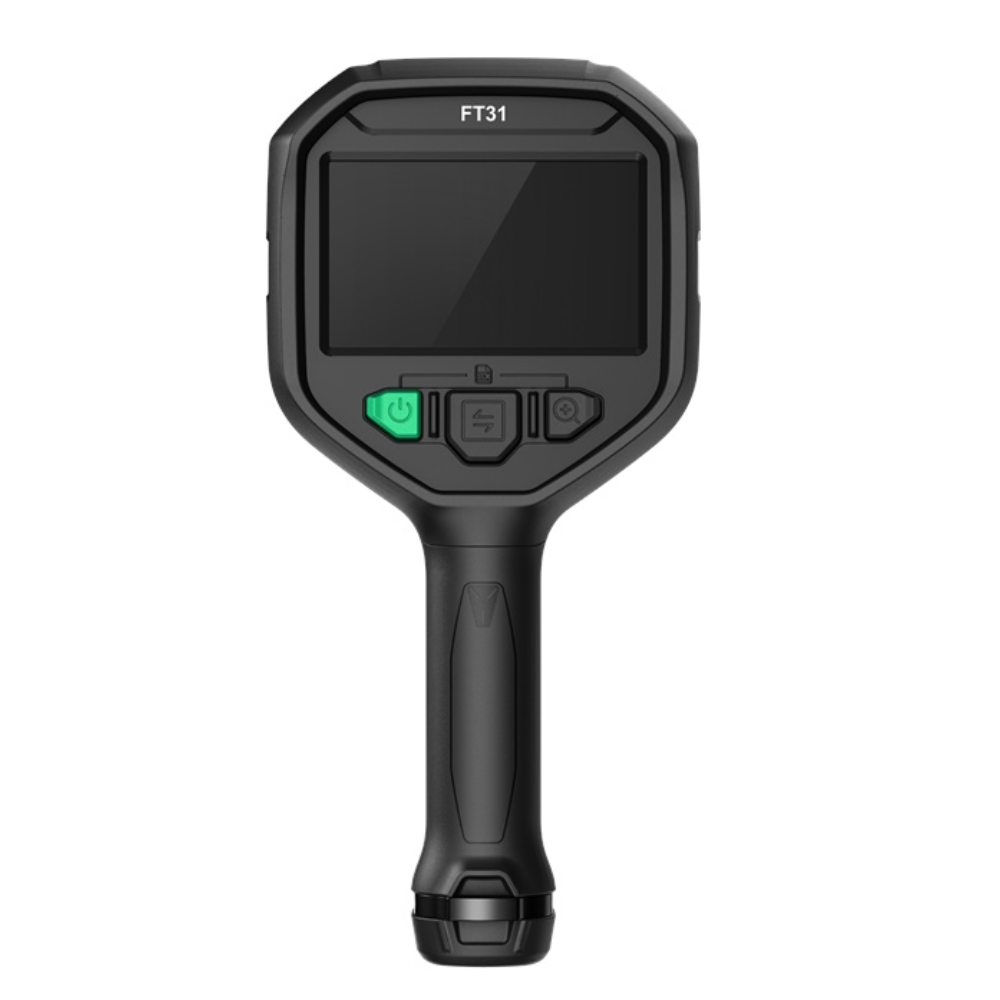

HIKMICRO FT31 Firefighting Thermal Camera – 384 × 288 IR Resolution

FT31

The HIKMICRO FT31 Firefighting Thermal Camera is a high-performance handheld thermal imaging camera designed for firefighters, emergency response teams and industrial safety personnel working in demanding environments. With 384 × 288 IR resolution, 60Hz image frequency and high thermal sensitivity, it helps users observe heat patterns, hot spots and temperature differences in total darkness, smoke and low-visibility conditions.

The FT31 measures temperatures up to 1200°C, making it suitable for firefighting, search and rescue support, hotspot detection, overhaul, industrial inspection, high-temperature equipment checks and emergency response applications. The large 4.3" LCD screen provides a clear display in the field, while the thermal image mode and firefighting colour palettes help users quickly interpret heat information.

Built for harsh field conditions, the FT31 features IP67 protection, a 2m drop test rating, high-temperature tolerance, USB-C connectivity, 128GB built-in memory and interchangeable rechargeable Li-ion batteries. Supplied with a charging base, hard carrying case and multiple accessories, the FT31 is a professional thermal imaging solution for frontline firefighting and industrial safety use.

Set Includes

• 1 x HIKMICRO FT31 firefighting thermal camera

• 1 x Calibration certificate

• 1 x Printed quick start guide

• 1 x Hard carrying case

• 1 x Charging base with adapter and plugs

• 2 x Interchangeable rechargeable batteries

• 1 x Lanyard

• 1 x Neck strap

• 1 x Retractable lanyard

Key Features

• High-performance firefighting thermal camera for professional response work

• Designed to assist observation in total darkness and smoke

• 384 × 288 IR resolution with 110,592 thermal pixels

• High-sensitivity VOx detector with NETD < 30mK

• 60Hz image frequency for smooth thermal viewing

• Object temperature measurement range up to 1200°C

• Accuracy of ±2°C / ±2% under specified conditions

• Large 4.3" LCD screen with 800 × 480 resolution

• Focus-free thermal imaging for fast field use

• Germanium protective lens cover

• Firefighting-focused colour palettes including Fire Detection, Rescue, Hot Area, Cold Area and Building

• Digital zoom options of 1x, 2x and 4x

• Temperature measurement tools include centre spot, hot spot and cold spot

• Built-in 128GB flash memory for large image and video storage capacity

• USB Type-C interface for charging and data transfer

• Interchangeable rechargeable Li-ion battery system

• Approx. 6 hours battery operating time

• IP67 protection rating for demanding field environments

• 2m drop test rating for rugged use

• High-temperature tolerance for firefighting and emergency response applications

• UNC 1/4"-20 tripod mounting thread

Specifications

• Brand: HIKMICRO

• Model: FT31

• Product Name: HIKMICRO FT31 Firefighting Thermal Camera

• Tool Type: Firefighting Thermal Imaging Camera / Handheld Thermography Camera

• IR Resolution: 384 × 288 pixels / 110,592 pixels

• Thermal Sensitivity / NETD: < 30mK at 25°C, F# = 1.0

• Image Frequency: 60Hz

• Detector Pitch: 17μm

• Spectral Range: 7.5 to 14μm

• Focal Length: 7mm

• F-Number: F1.6

• Field of View: 54.1° × 40.2°

• Spatial Resolution / IFOV: 2.42mrad

• Focus Mode: Focus free

• Minimum Focus Distance: 1m / 3.28ft

• Detector Type: VOx uncooled focal plane arrays

• Lens Protection: Germanium protective lens cover

• Display: 4.3" LCD screen, 800 × 480 resolution

• Digital Zoom: 1x, 2x and 4x

• Image Mode: Thermal

• Colour Palettes: Basic, Black Hot, White Hot, Fire Detection, Rescue, Hot Area, Cold Area and Building

• Object Temperature Range: -20°C to 250°C and 200°C to 1200°C

• Overall Measurement Range: -20°C to 1200°C

• Accuracy: Max. ±2°C / ±2% under specified conditions

• Temperature Measurement Tools: Centre spot, hot spot and cold spot

• Storage Media: Built-in 128GB flash memory

• Image Storage Capacity: Approx. 281,600 images

• Video Storage Capacity: Approx. 15.6 hours

• USB Interface: USB Type-C

• Battery Type: Interchangeable rechargeable Li-ion battery

• Battery Operating Time: Approx. 6 hours

• Battery Charging Time: Approx. 3 hours fully charged

• Protection Rating: IP67, IEC 60529

• Drop Test Height: 2m / 6.56ft, IEC 60068-2-31

• Safety Standard: IEC 61010-1

• Vibration Rating: 2g, IEC 60068-2-6

• Shock Rating: 25g, IEC 60068-2-27

• Working Temperature Range: -20°C to 85°C

• High Temperature Tolerance: 150°C for 15 minutes and 260°C for 5 minutes

• Storage Temperature Range: -20°C to 60°C

• Relative Humidity: <95% non-condensing

• Weight: Approx. 1022g

• Dimensions: 132.7 × 276.3 × 114.6mm

• Tripod Mounting: UNC 1/4"-20

• Application: Firefighting, search and rescue support, hotspot detection, overhaul, industrial inspection, high-temperature equipment checks and emergency response applications

Ideal For

• Firefighters

• Emergency response teams

• Search and rescue support applications

• Industrial safety teams

• Observing heat patterns in smoke and darkness

• Identifying hot spots and heat sources

• Overhaul and post-fire inspection work

• High-temperature inspection applications

• Industrial inspection and thermal troubleshooting

• Emergency service vehicles, safety kits and inspection tool kits

High-Performance Firefighting Thermal Camera for Smoke and Darkness

The HIKMICRO FT31 Firefighting Thermal Camera gives firefighters and emergency response users a high-performance thermal imaging tool for identifying heat patterns, hot spots and temperature differences in challenging visibility conditions. With 384 × 288 IR resolution, 60Hz image frequency, firefighting-focused colour palettes and an IP67 rugged design, it is built for professional field use.

For firefighting, search and rescue support, industrial safety and high-temperature inspection work, the FT31 is a professional thermal camera for observation, thermal troubleshooting and emergency response applications where reliable handheld thermal imaging is required.
