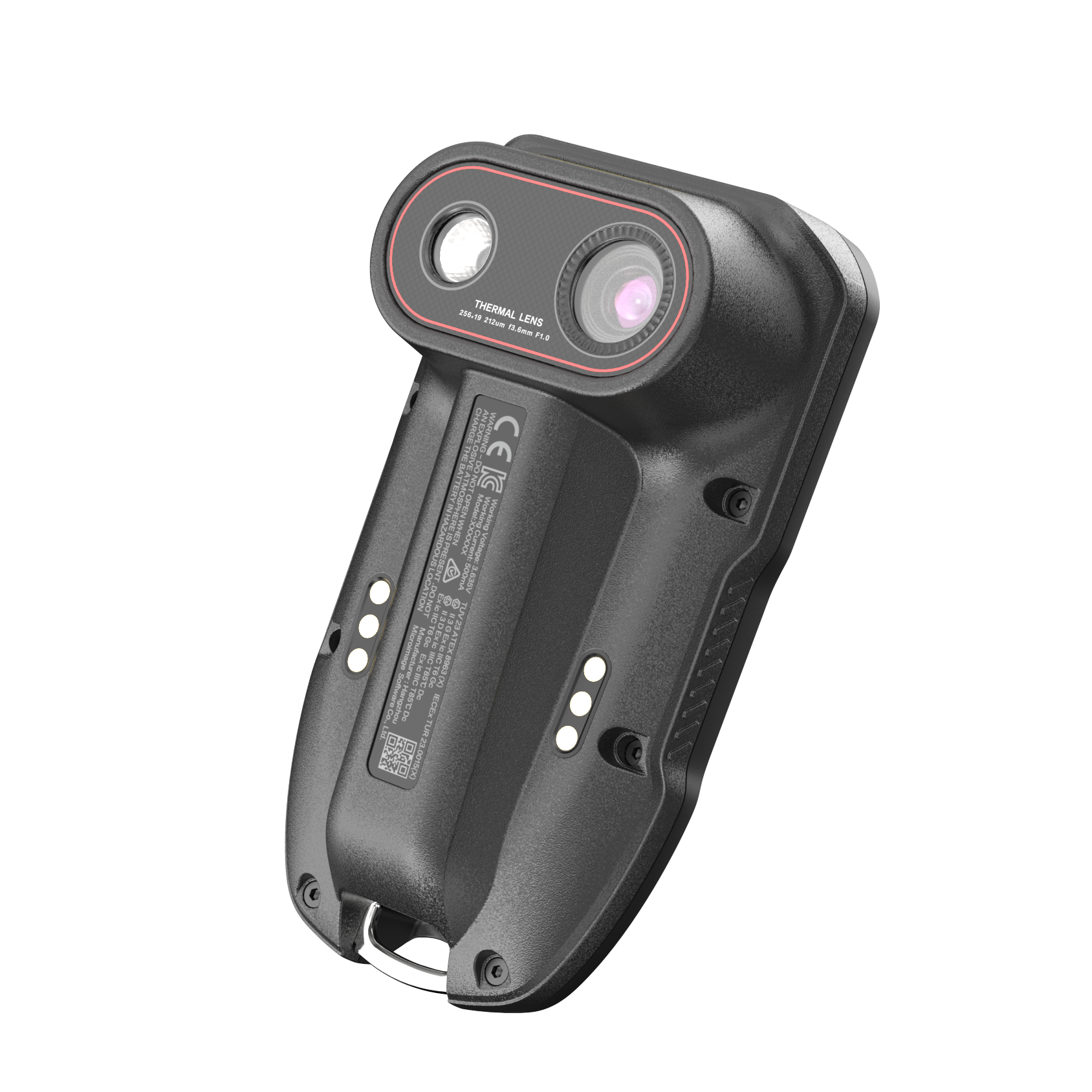

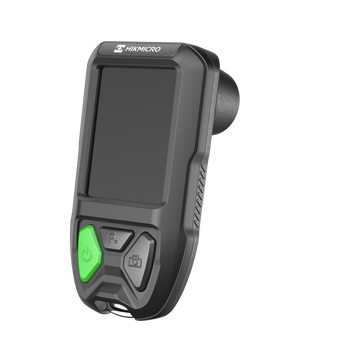

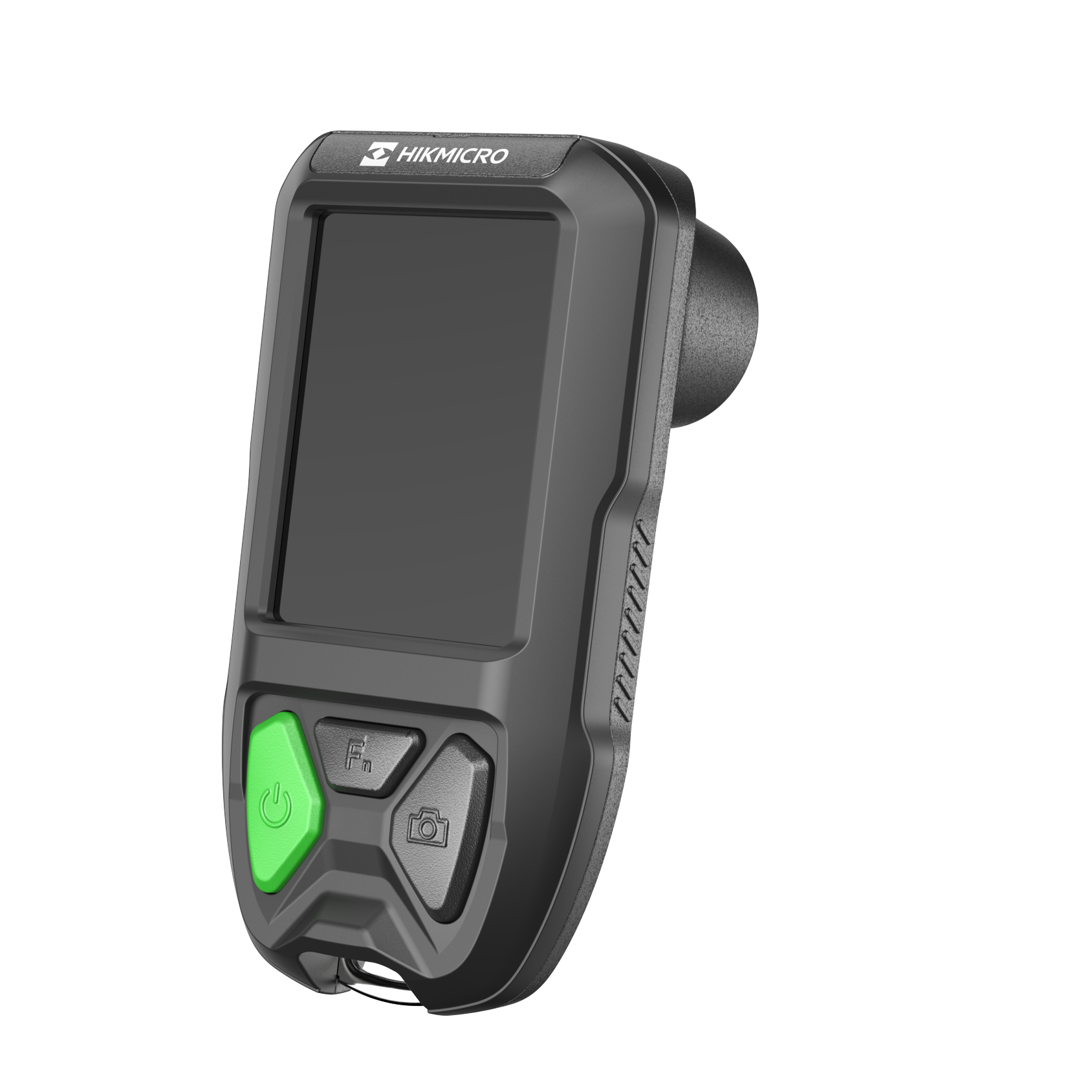

HIKMICRO FP21 Firefighting Thermal Camera – 256 × 192 IR Resolution

FP21

The HIKMICRO FP21 Firefighting Thermal Camera is a compact handheld thermal imaging camera designed for firefighters, emergency response teams, industrial safety personnel and inspection teams working in demanding environments. With 256 × 192 IR resolution, SuperIR image enhancement and firefighting-focused colour palettes, it helps users identify heat sources, hot spots and temperature differences in smoke, darkness and low-visibility conditions.

The FP21 measures temperatures across two ranges, from -20°C to 150°C and 0°C to 550°C, making it suitable for firefighting, search and rescue support, hotspot detection, overhaul, industrial inspection, pipeline leak detection, forest fire prevention and night search applications. The 25Hz image frequency provides smooth thermal viewing, while the 3.2" 640 × 480 LCD screen gives users a clear display in field conditions.

Built for harsh environments, the FP21 features IP67 protection, a 2m drop test rating, ATEX / IECEx hazardous-location certification, Wi-Fi, USB-C connectivity, built-in 4GB memory and approx. 6 hours battery operating time. Its pocket-sized design, LED light and multiple firefighting palettes make it a practical thermal camera for frontline emergency and industrial response work.

Set Includes

• 1 x HIKMICRO FP21 firefighting thermal camera

• 1 x Rechargeable Li-ion battery

• 1 x USB Type-C charging cable

• 1 x Power adapter

• 1 x Wrist strap

• 1 x Protective carrying case

• 1 x Quick start guide / user manual

Key Features

• Compact firefighting thermal imaging camera for professional response work

• Designed to assist thermal observation in smoke, darkness and harsh field conditions

• ATEX and IECEx certified for specified hazardous-location applications

• 256 × 192 IR resolution with 49,152 thermal pixels

• SuperIR image enhancement on captured images and live view

• High-sensitivity VOx detector with NETD < 30mK

• Temperature measurement ranges from -20°C to 150°C and 0°C to 550°C

• 25Hz image frequency for smooth thermal viewing

• 3.2" LCD screen with 640 × 480 resolution

• Thermal image mode with 1x, 2x and 4x digital zoom

• Firefighting-focused colour palettes including Fire Detection, Rescue, Hot Area, Cold Area and Building

• Measurement tools include centre spot, hot spot and cold spot

• Built-in 4GB flash memory for approx. 8,400 images

• MP4 video recording with approx. 26.5 hours video storage capacity

• Wi-Fi connectivity for connection to the HIKMICRO Viewer app

• USB Type-C interface for charging and data transfer

• Rechargeable Li-ion battery with approx. 6 hours operating time

• IP67 protection rating for dust and water resistance

• 2m drop test rating for demanding field use

• Heat tolerance rated to 85°C for 30 minutes, 150°C for 10 minutes and 260°C for 5 minutes

• Built-in LED light for inspection support

Specifications

• Brand: HIKMICRO

• Model: FP21

• Product Name: HIKMICRO FP21 Firefighting Thermal Camera

• Tool Type: Firefighting Thermal Imaging Camera / Handheld Thermography Camera

• IR Resolution: 256 × 192 pixels / 49,152 pixels

• SuperIR: Yes, on captured images and live view

• Thermal Sensitivity / NETD: < 30mK at 25°C, F# = 1.0

• Image Frequency: 25Hz

• Detector Pitch: 12μm

• Spectral Range: 7.5 to 14μm

• Focal Length: 3.6mm

• F-Number: F1.0

• Field of View: 50.0° × 37.2°

• Spatial Resolution / IFOV: 3.33mrad

• Focus Mode: Focus free

• Minimum Focus Distance: 0.3m / 0.98ft

• Display: 3.2" LCD screen, 640 × 480 resolution

• Digital Zoom: 1x, 2x and 4x

• Image Mode: Thermal

• Colour Palettes: Basic, Smooth, White Hot, Fire Detection, Rescue, Hot Area, Cold Area and Building

• Object Temperature Range: -20°C to 150°C and 0°C to 550°C

• Temperature Measurement Tools: Centre spot, hot spot and cold spot

• Storage Media: Built-in 4GB flash memory

• Image Storage Capacity: Approx. 8,400 images

• Video Storage Capacity: Approx. 26.5 hours

• Video File Format: MP4

• Wi-Fi: Yes

• USB Interface: USB Type-C

• Battery Type: Rechargeable Li-ion battery

• Battery Operating Time: Approx. 6 hours

• Battery Charging Time: Approx. 3 hours via USB or 4 hours with battery charger

• Protection Rating: IP67, IEC 60529

• Drop Test Height: 2m, IEC 60068-2-31

• Working Temperature Range: -10°C to 55°C under default settings

• High Temperature Tolerance: 85°C for 30 minutes, 150°C for 10 minutes and 260°C for 5 minutes

• Storage Temperature Range: -20°C to 60°C

• Relative Humidity: 95% RH, 25–40°C, 24 hours, 2 cycles

• Vibration Rating: 2g, IEC 60068-2-6

• Shock Rating: 25g, IEC 60068-2-27

• Weight: Approx. 398g

• Dimensions: 52.7 × 143 × 79mm

• LED Light: Yes

• ATEX Certificate Type: II 3 G Ex ic IIC T5 Gc, II 3 D Ex ic IIIC T100°C Dc

• IECEx Certificate Type: Ex ic IIC T5 Gc, Ex ic IIIC T100°C Dc

• Safety Standard: EN 62368

• Application: Firefighting, search and rescue support, emergency response, hotspot detection, overhaul, industrial inspection, pipeline leak detection, forest fire prevention and night search applications

Ideal For

• Firefighters

• Emergency response teams

• Search and rescue support applications

• Industrial safety teams

• Hazardous-location inspection work

• Observing heat patterns in smoke and darkness

• Identifying hot spots and heat sources

• Overhaul and post-fire inspection work

• Industrial inspection and thermal troubleshooting

• Pipeline leak detection support

• Forest fire prevention and night search applications

• Emergency service vehicles, safety kits and inspection tool kits

Firefighting Thermal Camera for Smoke, Darkness and Harsh Conditions

The HIKMICRO FP21 Firefighting Thermal Camera gives firefighters and emergency response users a compact thermal imaging tool for identifying heat patterns, hot spots and temperature differences in challenging visibility conditions. With 256 × 192 IR resolution, SuperIR image enhancement, firefighting-focused colour palettes and an IP67 rugged design, it is built for professional field use.

For firefighting, search and rescue support, industrial safety and hazardous-location inspection work, the FP21 is a practical thermal camera for observation, inspection and thermal troubleshooting where rugged, certified handheld thermal imaging equipment is required.
