HIKMICRO AI56L Acoustic Imaging Camera – 64-Microphone Gas Leak Detection

AI56L

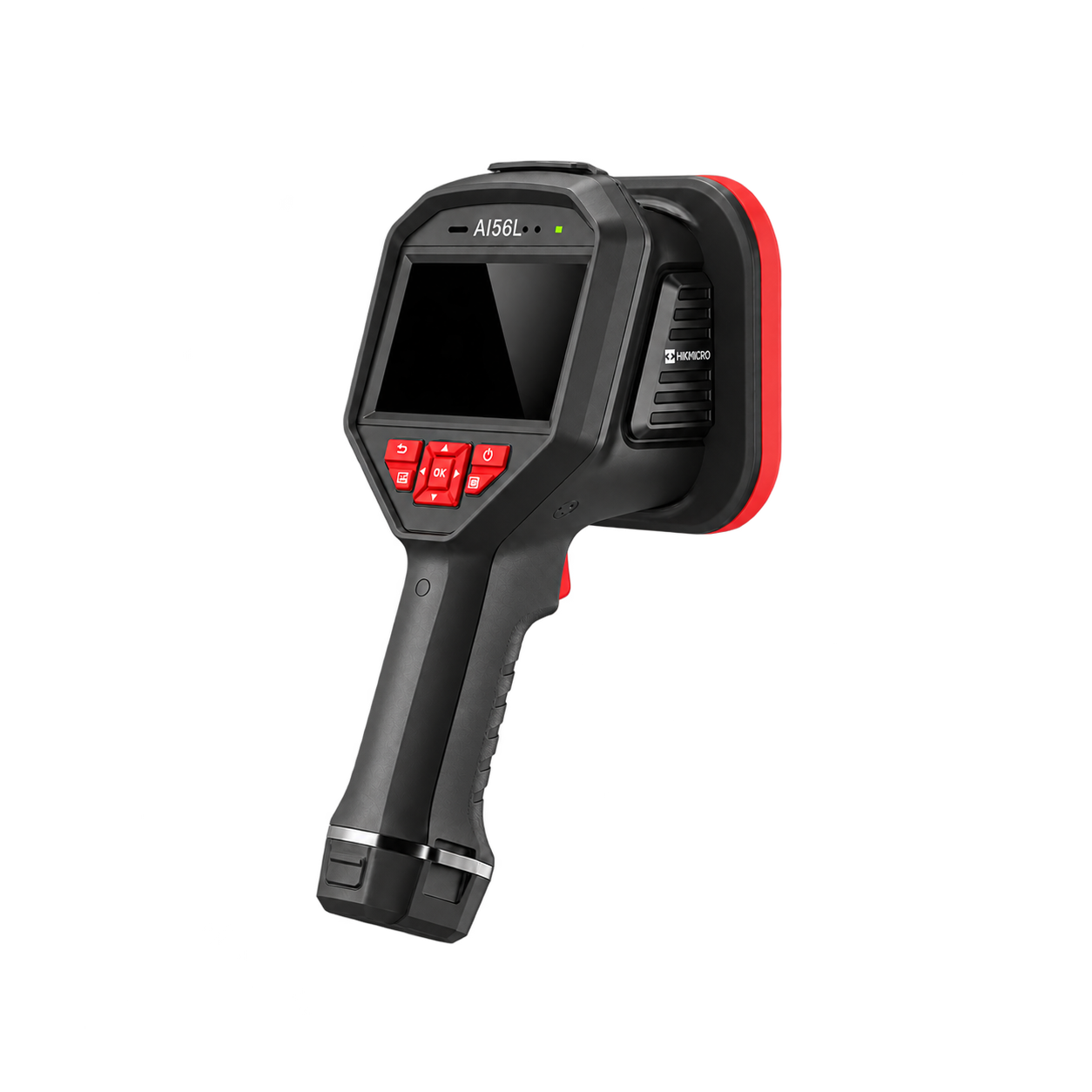

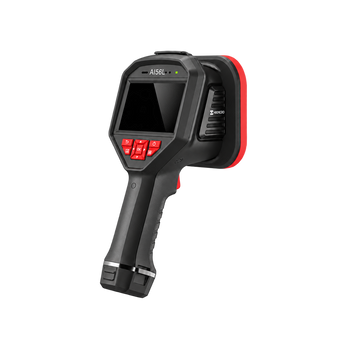

The HIKMICRO AI56L Acoustic Imaging Camera is a professional handheld acoustic camera designed for fast and effective compressed air and gas leak detection in industrial environments.

Using 64 low-noise MEMS microphones and real-time sound source localisation, the AI56L helps technicians quickly identify the source of pressurised air leaks, gas leaks, and ultrasonic sound emissions without direct contact.

With an adjustable acoustic bandwidth from 0 kHz to 96 kHz, an acoustic image resolution of 800 × 480, a 4.3" LCD touchscreen, and a detection distance from 0.3 m to 150 m, the AI56L provides a practical and efficient way to reduce energy waste, improve maintenance efficiency, and support preventative maintenance programs.

The AI56L also provides real-time estimated leak rate, leak cost, and leak level information, helping maintenance teams prioritise repairs and better understand the financial impact of compressed air and gas leaks across a site.

Designed for industrial field use, the AI56L features a rugged IP54 rated body, interchangeable rechargeable battery system, Wi-Fi, USB Type-C, HDMI connectivity, image and video storage, and support for HIKMICRO acoustic analysis software for reviewing images and exporting reports.

Key Features

• 64 low-noise MEMS microphones for real-time sound source localisation.

• Designed for compressed air and gas leak detection in industrial environments.

• Adjustable acoustic bandwidth from 0 kHz to 96 kHz.

• 192 kHz MEMS sampling frequency for acoustic detection.

• 800 × 480 acoustic image resolution for clear sound visualisation.

• Detection distance from 0.3 m to 150 m.

• 50.2° × 35.4° camera field of view for practical inspection coverage.

• 25 fps acoustic image frame rate for real-time inspection.

• Real-time estimated leak rate, leak cost, and leak level for gas leak detection.

• Detectable leak rate greater than 0.008 l/min at 6 bar from 0.5 m.

• Detectable leak rate greater than 0.013 l/min at 5 bar from 1 m.

• Peak point sound intensity display for easy source identification.

• Wide dynamic range from <-15 dB to >120 dB.

• 4.3" LCD touchscreen with 800 × 480 display resolution.

• 5 MP visual camera for visual reference and documentation.

• 1.0x to 16.0x continuous digital zoom.

• Supports 8 acoustic image palettes for different inspection preferences.

• Image and video storage for inspection documentation.

• Voice note and text note annotation support for reporting.

• Analyzer acoustic software support for image analysis and report export.

• Wi-Fi, USB Type-C, and HDMI-D connectivity.

• Extendable 128 GB SD card storage support.

• Interchangeable rechargeable lithium-ion battery system.

• Approx. 3.5 hours operating time per battery, with three batteries providing up to approx. 10.5 hours total runtime.

• IP54 protection level for demanding industrial environments.

• 1.2 m drop test rating for field durability.

Specifications

• Model: AI56L

• Product Type: Acoustic Imaging Camera

• Application: Compressed air and gas leak detection

• Number of Microphones: 64

• Microphone Type: Low-noise MEMS microphones

• Acoustic Image Resolution: 800 × 480

• Bandwidth: 0 kHz to 96 kHz adjustable range

• MEMS Sampling Frequency: 192 kHz

• Detection Distance: 0.3 m to 150 m

• Camera Field of View: 50.2° × 35.4°

• Sound Intensity Display: Peak point

• Acoustic Image Frame Rate: 25 fps

• Dynamic Range Low Limit: <-15 dB

• Dynamic Range High Limit: >120 dB

• Leak Rate: >0.008 l/min at 6 bar from 0.5 m

• Leak Rate: >0.013 l/min at 5 bar from 1 m

• Acoustic Image Palettes: White Black, Black White, Rainbow, Fusion, Ironbow, Red Black, Rain, and Blue Red

• Display: 4.3" LCD touchscreen

• Display Resolution: 800 × 480

• Screen Brightness: Manual and auto

• Digital Zoom: 1.0x to 16.0x continuous

• Visual Camera: 2688 × 1944, 5 MP

• Image Storage Capacity: Approx. 20,000 images

• Video Storage Capacity: Approx. 60 hours

• Video File Format: MP4

• Annotations: Voice note and text note

• Voice Note: Max. 60 seconds

• Text Note: Max. 255 characters

• Storage Media: Extendable 128 GB SD card

• Wi-Fi: 802.11 b/g/n, 2.4 GHz and 5 GHz

• USB Interface: USB Type-C

• HDMI Interface: HDMI-D

• Battery Type: Interchangeable rechargeable lithium-ion battery

• Battery Operating Time: Approx. 3.5 hours per battery

• Total Battery Runtime: Approx. 10.5 hours with three batteries

• Battery Charging Time: Approx. 5 hours to full charge

• Power Supply: 5 V DC / 2 A charging via USB

• Protection Level: IP54

• Drop Test Height: 1.2 m

• Safety Standard: IEC 61010-1

• Working Temperature Range: -20°C to 50°C

• Storage Temperature Range: -20°C to 60°C

• Relative Humidity: <95% non-condensing

• Weight: Approx. 940 g

• Dimensions: 292.2 × 127 × 110.7 mm

Ideal For

• Compressed air leak detection.

• Gas leak detection in industrial environments.

• Manufacturing plants and production facilities.

• Preventative maintenance programs.

• Energy loss audits and compressed air system efficiency checks.

• Maintenance teams looking to reduce air loss and operating costs.

• Industrial service technicians and reliability engineers.

• Pipework, fittings, valves, couplings, and pneumatic system leak detection.

• Large facilities where non-contact leak detection can reduce inspection time.

• Sites needing leak cost estimation and prioritised maintenance reporting.

Professional Acoustic Imaging for Compressed Air and Gas Leak Detection

The HIKMICRO AI56L Acoustic Imaging Camera gives maintenance teams a fast and practical way to locate compressed air and gas leaks using real-time acoustic imaging.

By visualising ultrasonic sound sources on the camera display, the AI56L helps users quickly identify leak locations without needing direct contact with pipework, fittings, pneumatic equipment, or machinery. This can help reduce inspection time, minimise energy waste, and support more efficient maintenance planning.

With real-time leak rate, leak cost, and leak level estimation, the AI56L provides more than simple leak location. It helps technicians understand the potential impact of leaks, prioritise repair work, and document findings using images, videos, annotations, and HIKMICRO acoustic analysis software.
