ELITECH Inframate C Infrared CO₂ (R744) Leak Detector – INFRAMATEC

INFRAMATEC

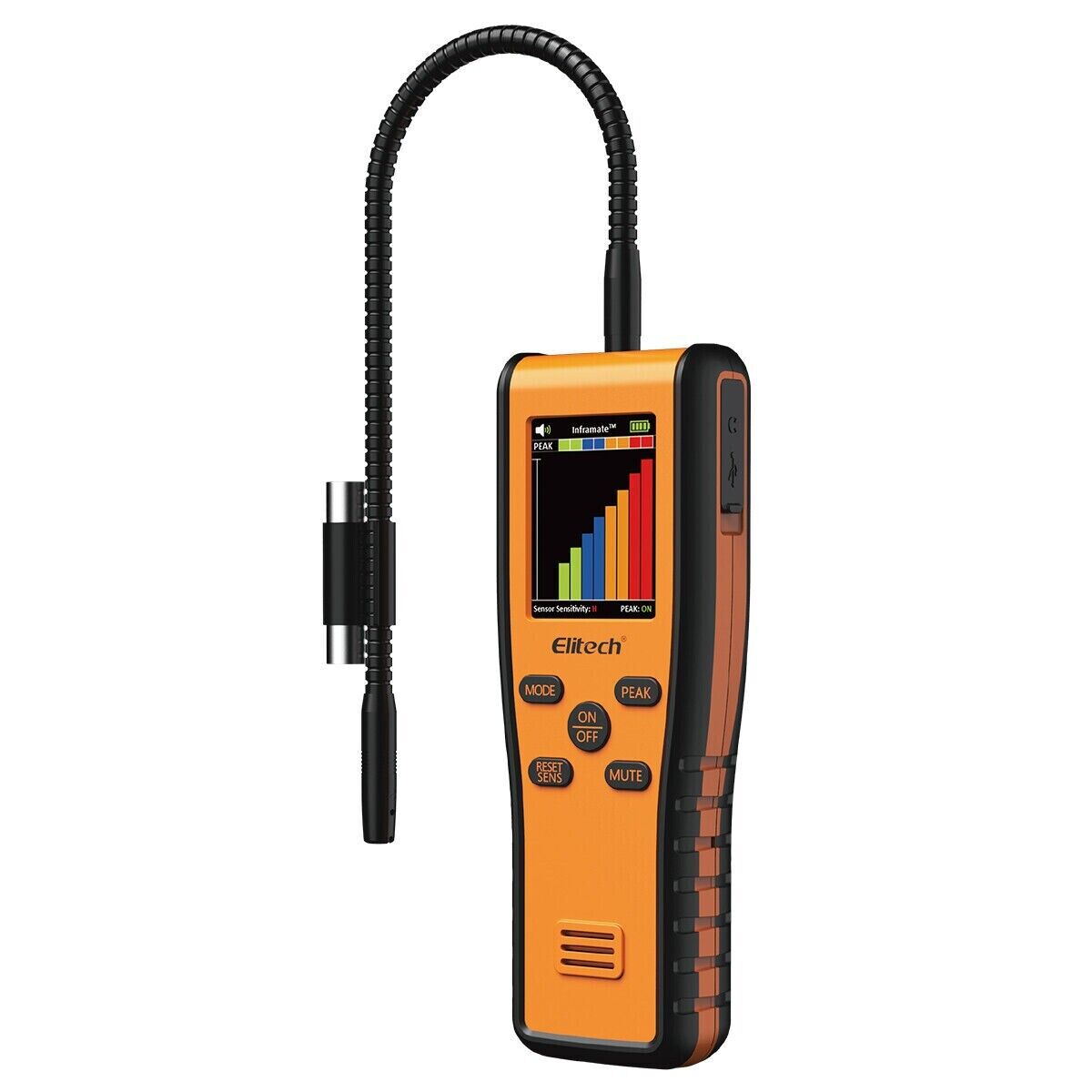

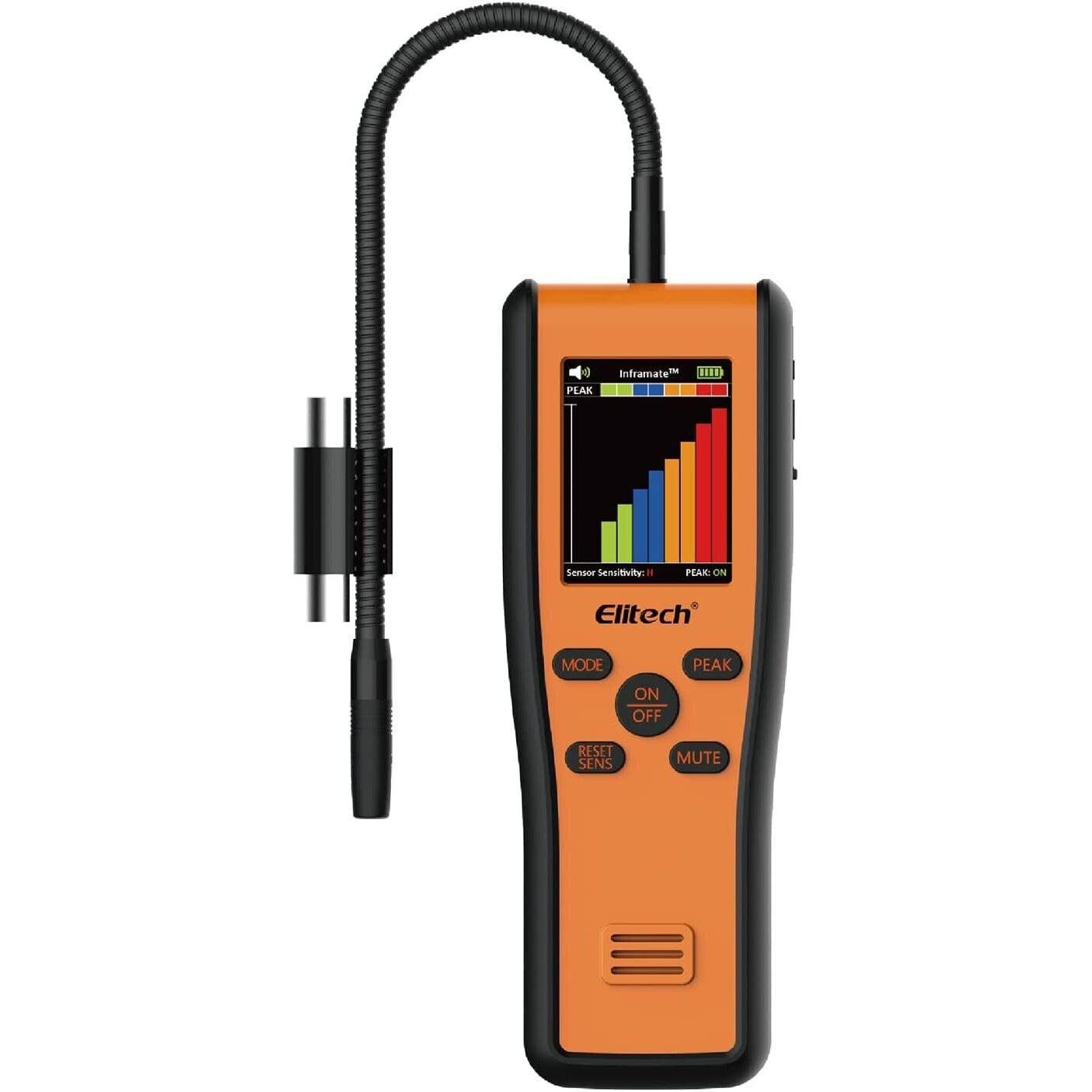

The ELITECH Inframate C is a professional infrared leak detector designed specifically for R744 (CO₂) refrigeration and HVAC systems. Using advanced infrared sensing technology, it provides fast, stable and accurate detection of carbon dioxide refrigerant leaks with a maximum sensitivity of 6 g/year.

Featuring a large TFT LCD display, three sensitivity levels and a flexible stainless steel probe, the Inframate C makes it easier to pinpoint leaks in commercial refrigeration, supermarket, cold storage and other CO₂ refrigeration applications. Its long-life infrared sensor is rated for up to 40,000 hours of operation, providing excellent reliability for technicians regularly working with R744 systems.

Key Features

• Designed specifically for R744 (CO₂) refrigerant leak detection

• Advanced infrared sensing technology for stable and accurate detection

• Maximum sensitivity of 6 g/year

• Three adjustable sensitivity levels

• Long-life infrared sensor rated for up to 40,000 hours

• Fast response time of less than 1 second

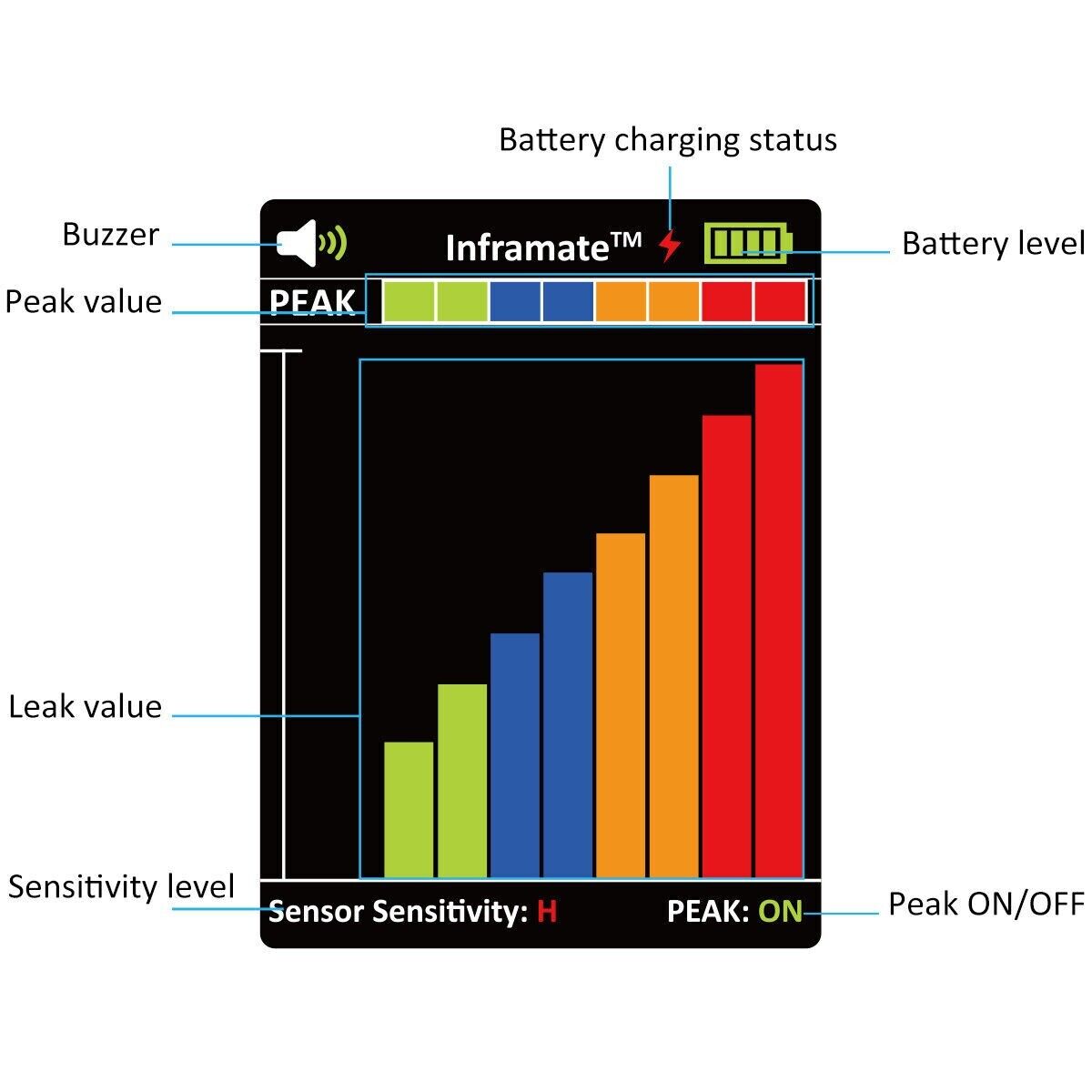

• Large TFT LCD display with clear visual leak-level indication

• Audible and visual leak alarms

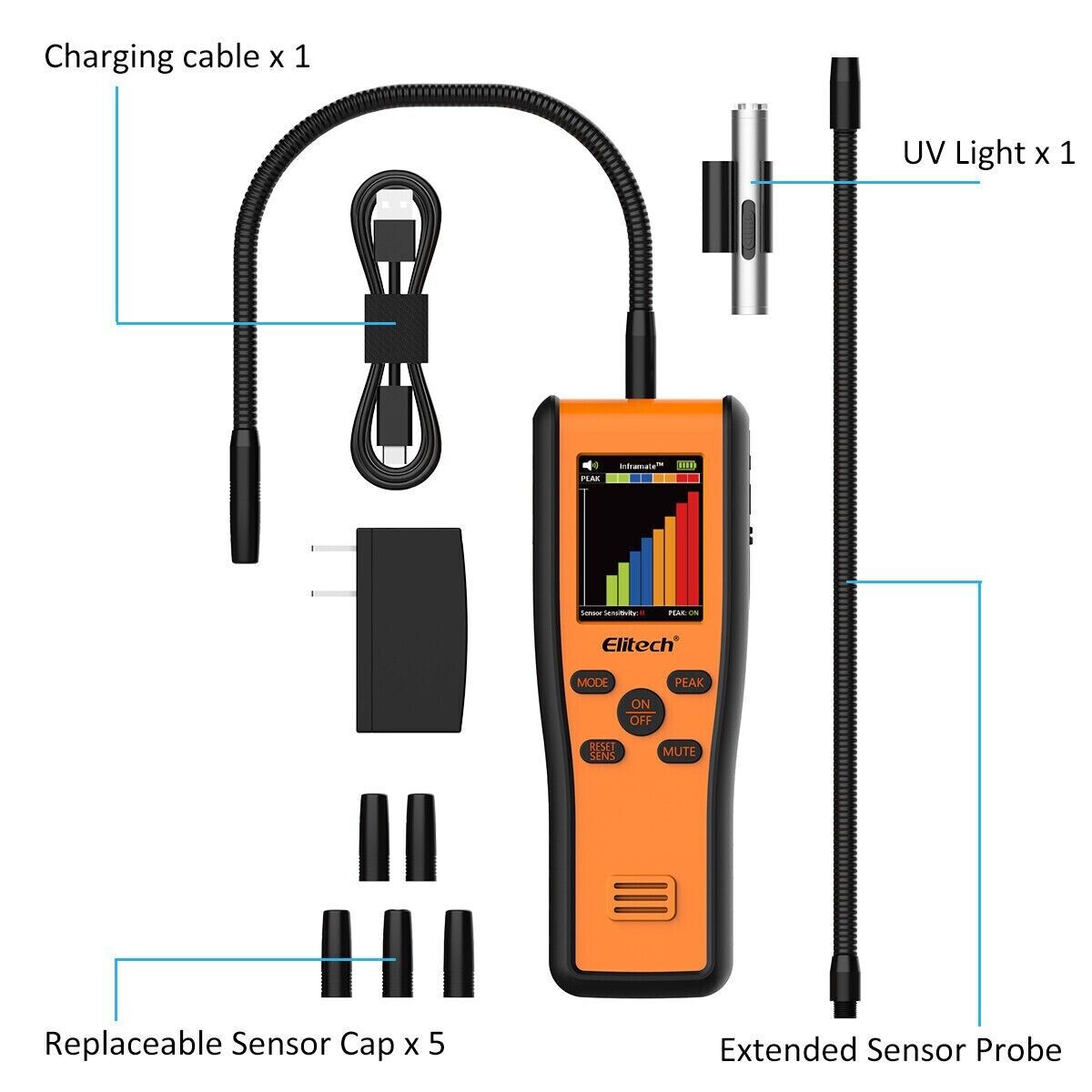

• Flexible stainless steel probe for accessing difficult-to-reach areas

• Automatic shut-off after 10 minutes of inactivity

• Approximately 8 hours battery operating time

Specifications

• Model: INFRAMATEC / Inframate C

• Refrigerant: R744 (CO₂)

• Sensor Type: Infrared

• Sensor Life: 40,000 hours

• Sensitivity Range: 3 levels

• Maximum Sensitivity: 6 g/year

• Response Time: <1 second

• Reset Time: <3 seconds

• Warm-Up Time: Approximately 30 seconds

• Alarm: Audible and visual

• Auto Power Off: After 10 minutes of inactivity

• Power Supply: 2 × 18650 lithium batteries

• Battery Life: Approximately 8 hours

• Charging Time: Approximately 4 hours

• Charging Input: DC 5 V, 1 A

• Operating Temperature: -10°C to +52°C

• Operating Humidity: Maximum 90% RH, non-condensing

• Storage Temperature: -20°C to +60°C

• Dimensions: 200 × 83.82 × 38.1 mm

• Weight: 450 g

• Compliance: RoHS, SAE J1627 and EN 14624

Ideal For

• Commercial R744 / CO₂ refrigeration systems

• Supermarket refrigeration systems

• Transcritical and subcritical CO₂ systems

• Cold rooms and cold storage facilities

• Industrial refrigeration systems

• CO₂ refrigeration service and maintenance

• HVAC/R technicians working with R744 equipment

Professional R744 CO₂ Leak Detection

The ELITECH Inframate C provides HVAC/R technicians with a dedicated solution for locating R744 refrigerant leaks quickly and accurately. Its infrared sensor technology, fast response, adjustable sensitivity and long sensor life make it well suited to demanding commercial and industrial CO₂ refrigeration applications where reliable leak detection is essential.
