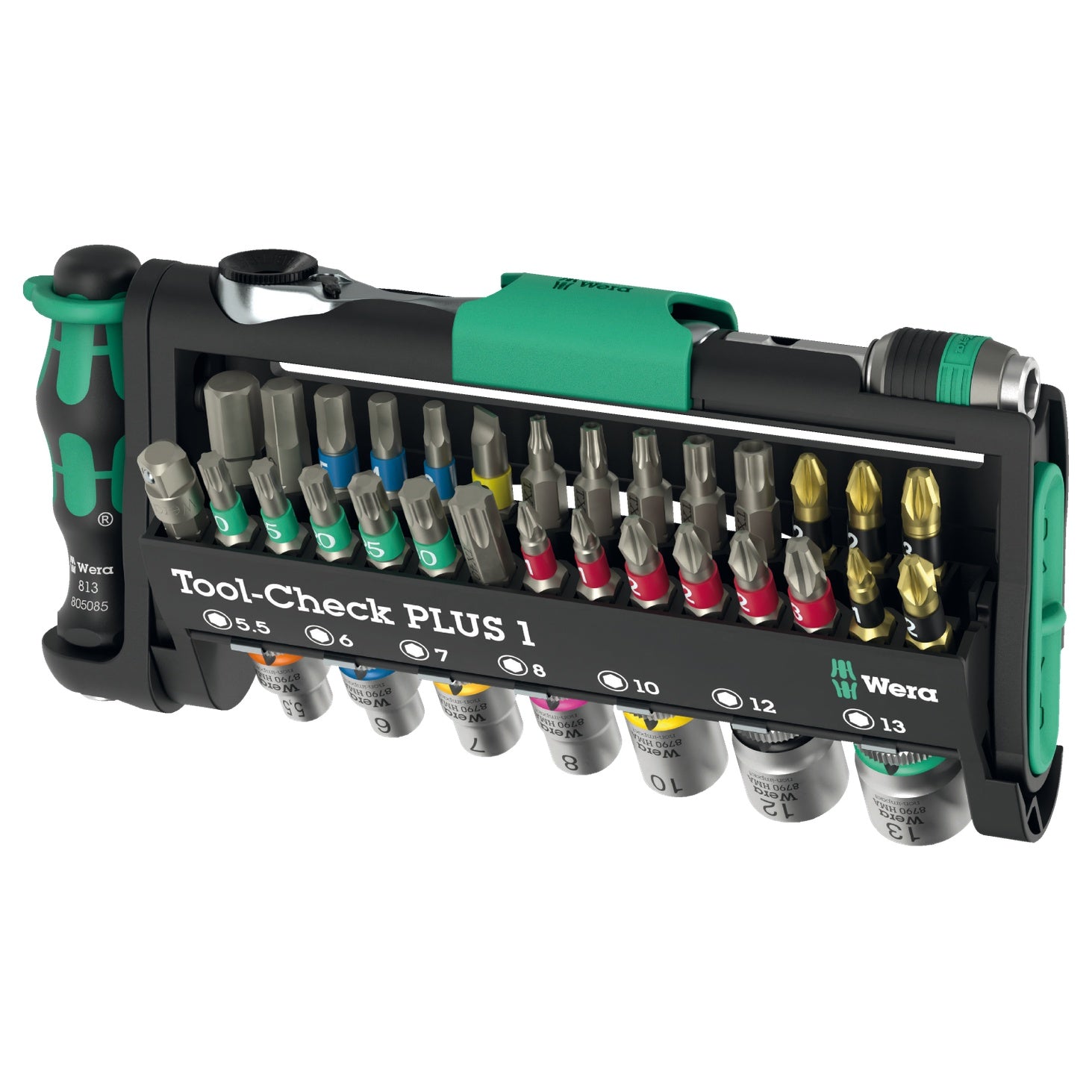

Wera Tool-Check PLUS 1 Ratchet, Socket & Bit Set, 39 Piece – 049055

049055

The Wera Tool-Check PLUS 1 is a highly compact 39-piece ratchet, socket and screwdriver bit set designed for professional manual and machine-operated fastening applications.

The set combines a 1/4-inch Zyklop Mini bit ratchet, Kraftform screwdriver handle, Rapidaptor universal bit holder, socket adaptor, 28 screwdriver bits and seven metric sockets. Its broad selection of Phillips, Pozidriv, TORX®, tamper-resistant TORX® BO, slotted and hexagonal profiles provides excellent versatility for installation, servicing and maintenance work.

All components are securely organised in Wera’s compact Tool-Check holder, with green locking elements that help prevent tools from becoming loose during storage and transportation.

Set Includes

• 1 x 8001 A Zyklop Mini bit ratchet – 1/4 inch x 87 mm

• 1 x 813 Kraftform bit-holding screwdriver – 1/4 inch x 78 mm

• 1 x 889/4/1 K Rapidaptor universal bit holder – 1/4 inch x 50 mm

• 1 x 870/1 socket adaptor with friction ball – 1/4-inch hex to 1/4-inch square x 25 mm

• 2 x Phillips BiTorsion bits – PH1 x 25 mm

• 3 x Phillips BiTorsion bits – PH2 x 25 mm

• 1 x Phillips BiTorsion bit – PH3 x 25 mm

• 1 x Pozidriv BiTorsion bit – PZ1 x 25 mm

• 3 x Pozidriv BiTorsion bits – PZ2 x 25 mm

• 1 x Pozidriv BiTorsion bit – PZ3 x 25 mm

• 1 x TORX® BiTorsion bit – TX10 x 25 mm

• 1 x TORX® BiTorsion bit – TX15 x 25 mm

• 1 x TORX® BiTorsion bit – TX20 x 25 mm

• 1 x TORX® BiTorsion bit – TX25 x 25 mm

• 1 x TORX® BiTorsion bit – TX30 x 25 mm

• 1 x TORX® BiTorsion bit – TX40 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX10 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX15 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX20 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX25 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX30 x 25 mm

• 1 x Slotted BiTorsion bit – 1.0 x 5.5 x 25 mm

• 1 x Hex-Plus BiTorsion bit – 3 mm x 25 mm

• 1 x Hex-Plus BiTorsion bit – 4 mm x 25 mm

• 1 x Hex-Plus BiTorsion bit – 5 mm x 25 mm

• 1 x Hex-Plus BiTorsion bit – 6 mm x 25 mm

• 1 x Hex-Plus tough bit – 8 mm x 25 mm

• 1 x 8790 HMA Zyklop socket – 5.5 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 6 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 7 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 8 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 10 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 12 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 13 mm x 23 mm

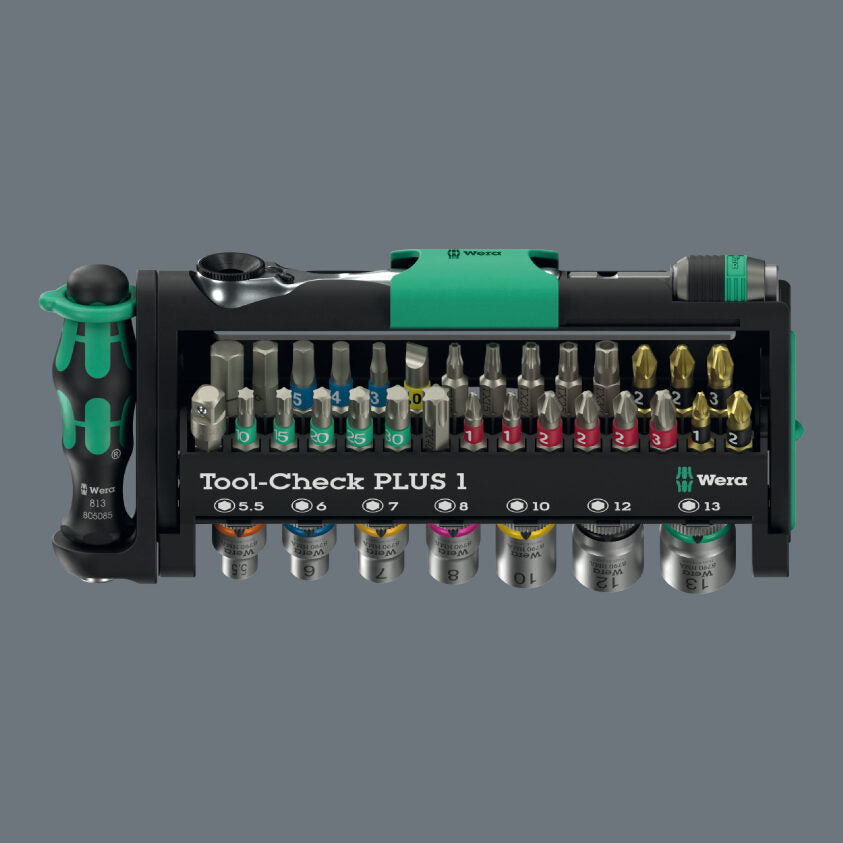

• 1 x Compact Tool-Check storage holder with green locking components

Key Features

• Highly compact 39-piece ratchet, socket and screwdriver bit set

• Suitable for manual screwdriving and use with compatible power tools

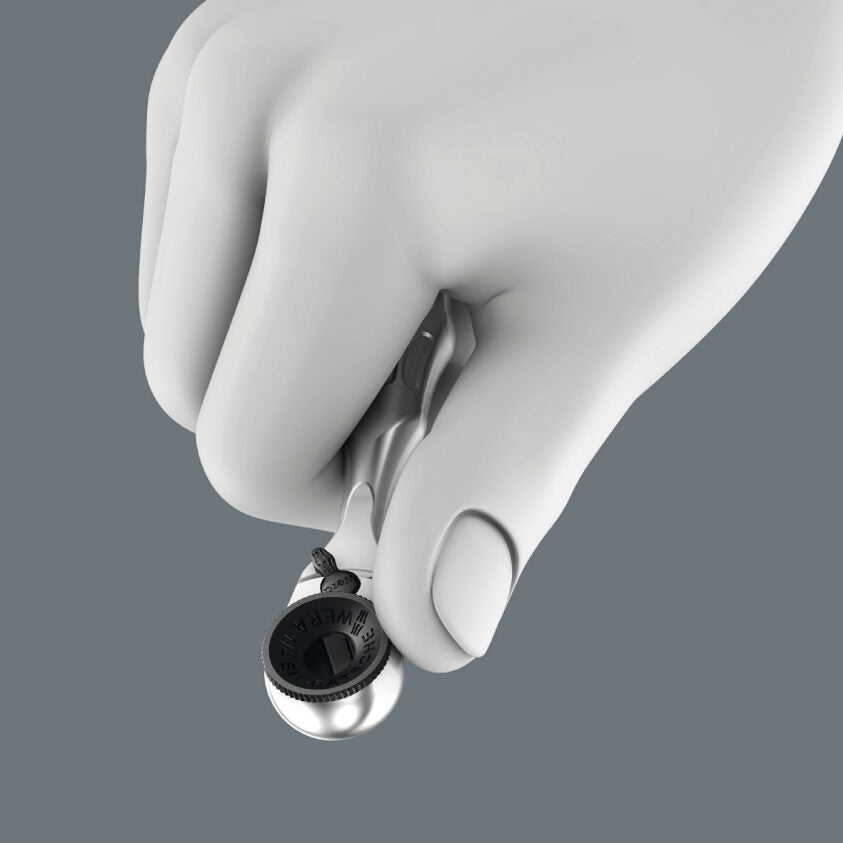

• Zyklop Mini ratchet is designed for confined and difficult-to-access working areas

• Fine 60-tooth ratchet mechanism provides a short 6-degree return angle

• Reversing lever allows convenient clockwise and counterclockwise operation

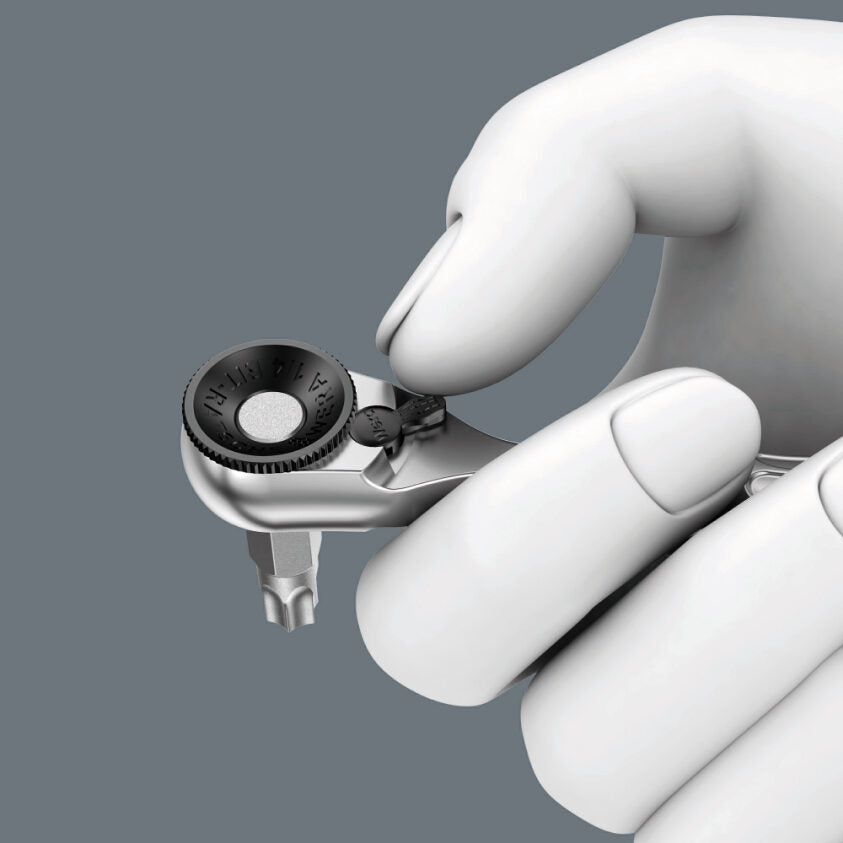

• Integrated thumb wheel supports rapid screwdriving before final tightening

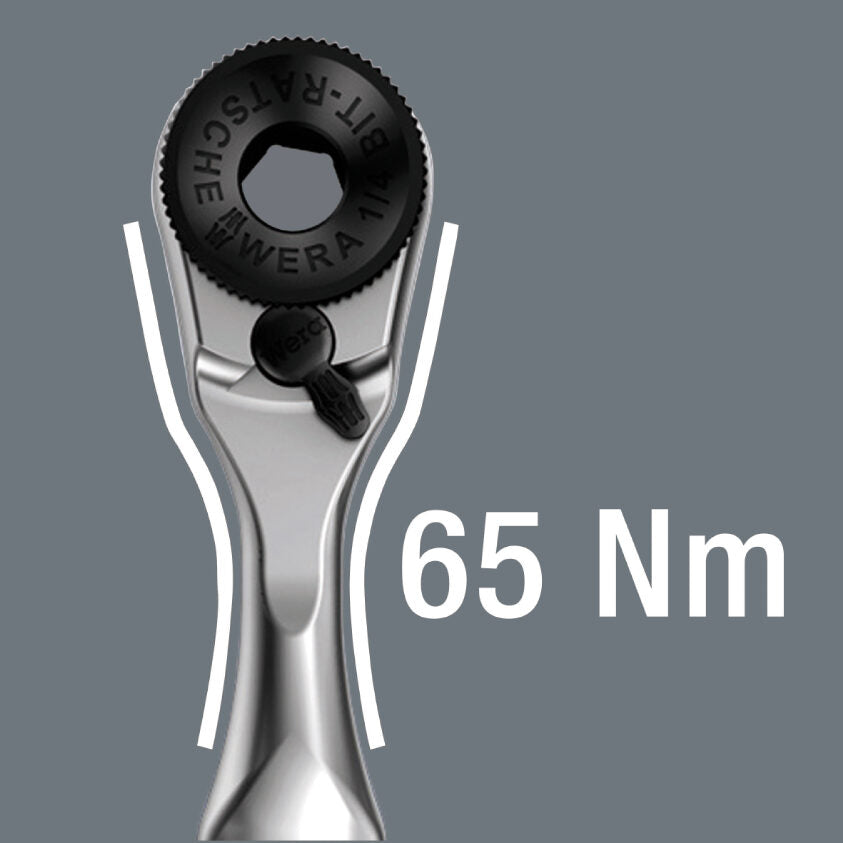

• Drop-forged solid-steel ratchet construction provides high strength and durability

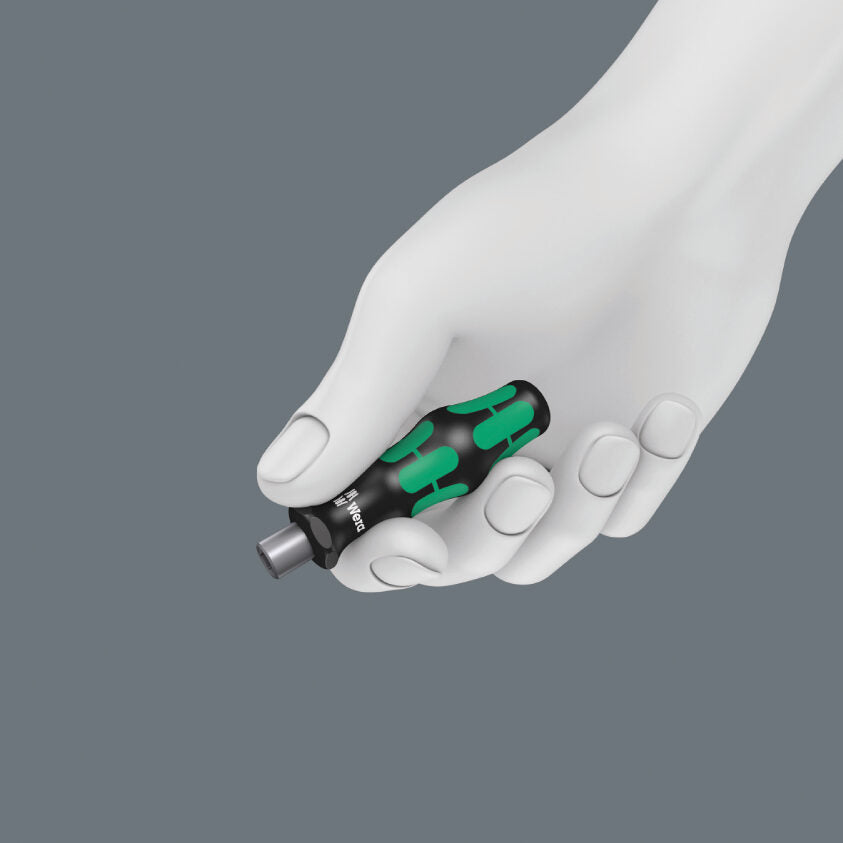

• Kraftform screwdriver handle allows comfortable conventional manual screwdriving

• Multi-component Kraftform handle provides ergonomic grip zones for fast and controlled work

• Hexagonal anti-roll protection helps prevent the screwdriver handle from rolling away

• Rapidaptor universal holder allows fast bit changes without operating the retaining sleeve

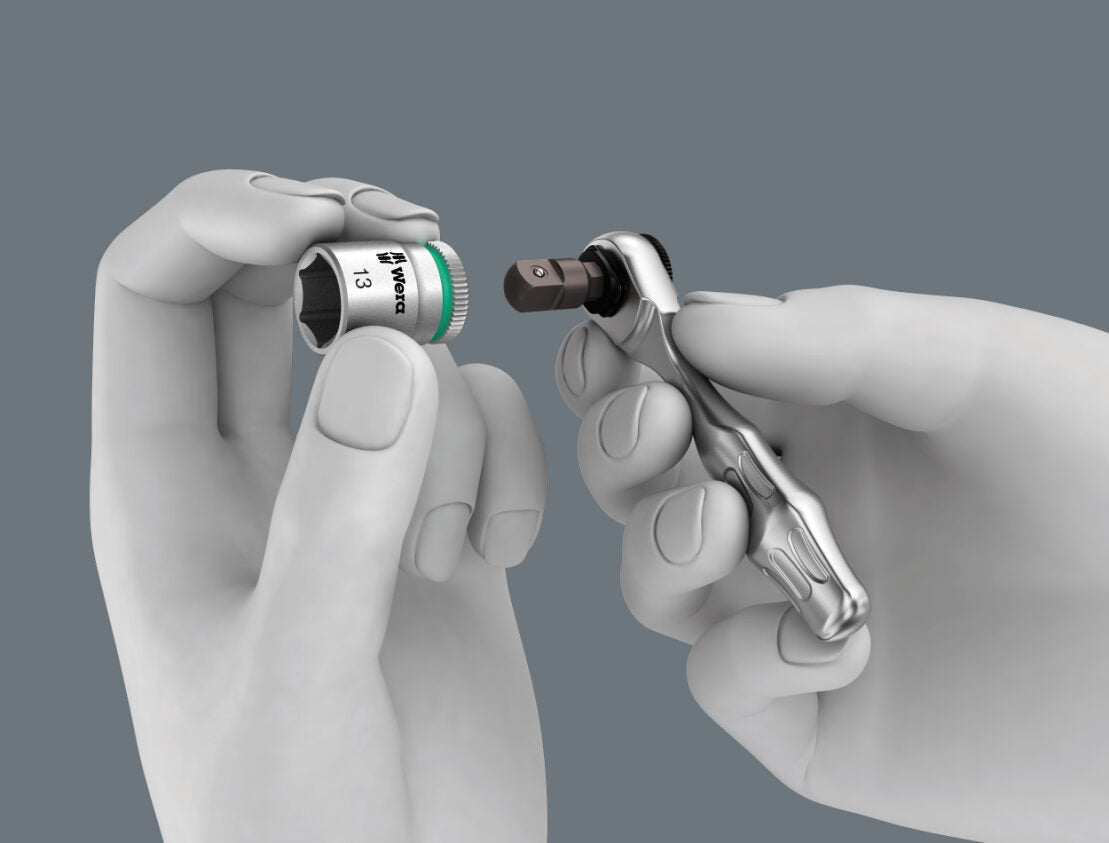

• Socket adaptor allows the bit ratchet to operate the included 1/4-inch drive sockets

• Includes 28 professional bits covering common screw profiles

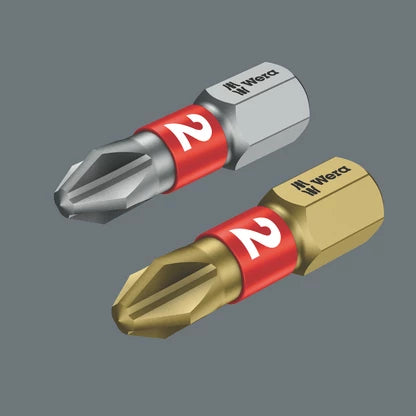

• BiTorsion zones help absorb peak loads and reduce premature bit wear

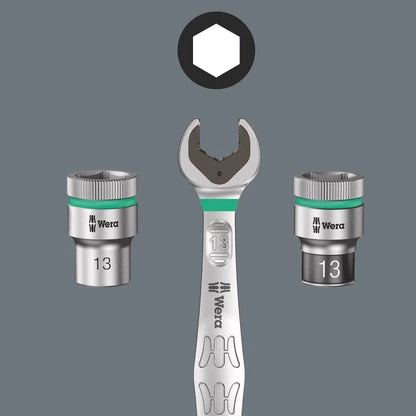

• Hex-Plus geometry provides a larger contact surface to help reduce damage to hexagonal screw heads

• Seven metric sockets cover commonly used sizes from 5.5 mm to 13 mm

• Take It Easy Tool Finder uses profile-specific colour coding and size markings for quick identification

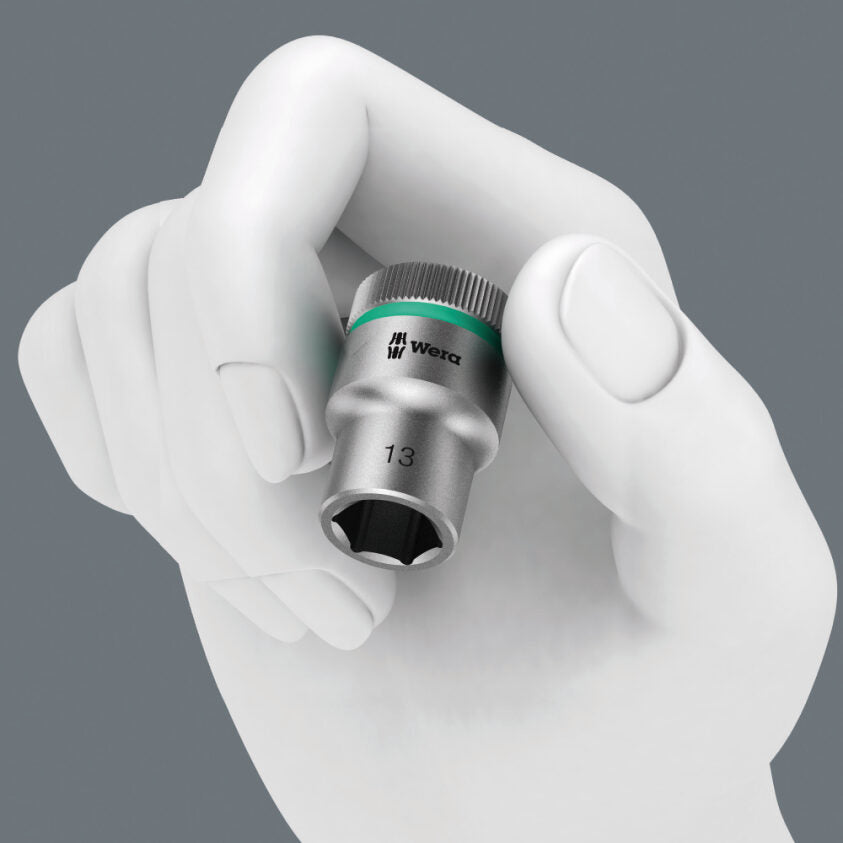

• Socket knurling provides improved grip during manual operation

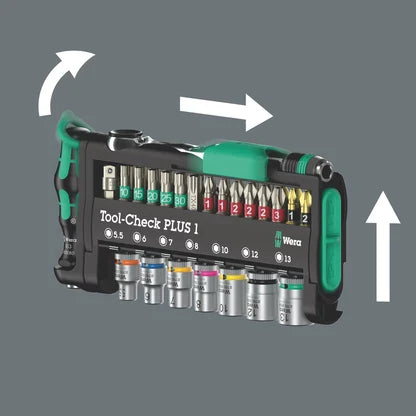

• Green locking components securely retain the tools during storage and transportation

• Compact layout provides fast tool access while occupying minimal space in a tool bag or toolbox

Specifications

• Brand: Wera

• Model: Tool-Check PLUS 1

• Supplier Code: 049055

• Wera Part Number: 05049055001

• Number of Pieces: 39

• Ratchet Type: Zyklop Mini bit ratchet

• Ratchet Drive: 1/4-inch hexagonal bit drive

• Ratchet Length: 87 mm

• Ratchet Teeth: 60

• Ratchet Return Angle: 6 degrees

• Screwdriver Handle Length: 78 mm

• Number of Screwdriver Bits: 28

• Bit Length: 25 mm

• Bit Profiles: Phillips, Pozidriv, TORX®, tamper-resistant TORX® BO, slotted and hexagonal

• Number of Metric Sockets: 7

• Metric Socket Sizes: 5.5, 6, 7, 8, 10, 12 and 13 mm

• Socket Drive: 1/4 inch

• Socket Length: 23 mm

• Rapidaptor Holder Length: 50 mm

• Socket Adaptor Length: 25 mm

• Storage: Compact Tool-Check holder

• Dimensions: 190 x 100 x 35 mm

• Weight: 498 g

• EAN: 4013288234896

• Country of Origin: Czech Republic

Ideal For

• HVAC and refrigeration technicians

• Electricians and electrical contractors

• Automotive and motorcycle maintenance

• Mechanical installation and equipment servicing

• Control cabinets and plant-room equipment

• Appliance, machinery and general maintenance

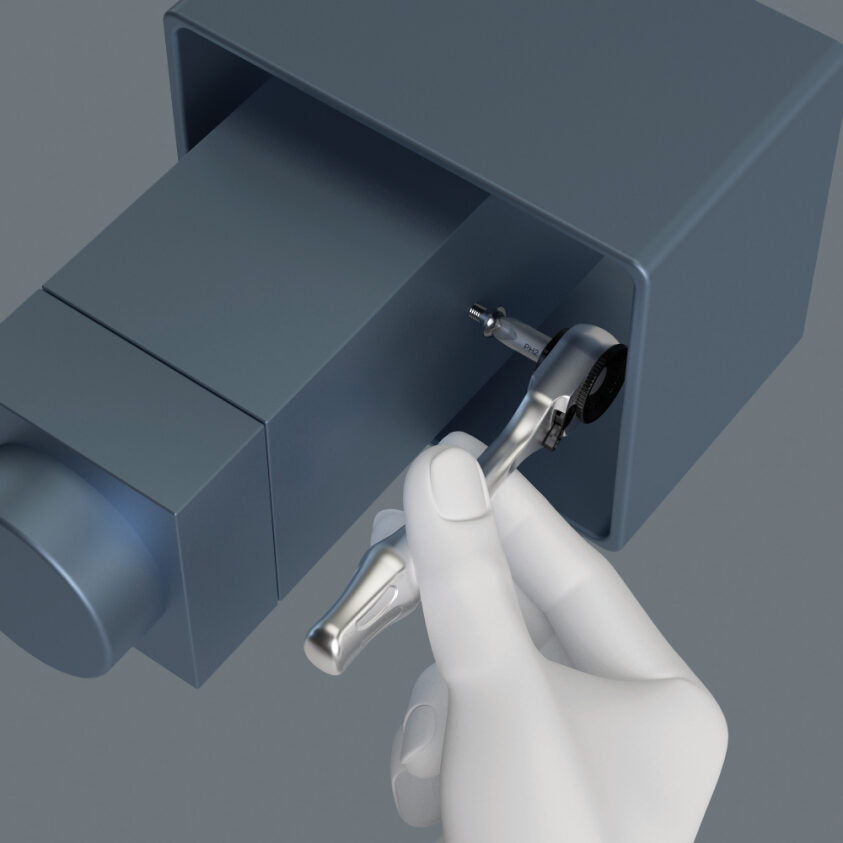

• Working with fasteners in confined and difficult-to-access areas

• Mobile technicians requiring a compact ratchet, socket and screwdriver set

• Workshop, trade and industrial maintenance applications

Compact Professional Ratchet, Socket and Screwdriver Set

The Wera Tool-Check PLUS 1 combines a powerful Zyklop Mini ratchet with a Kraftform screwdriver handle, 28 screwdriver bits, seven metric sockets and practical drive accessories in an exceptionally compact holder. Its short 6-degree return angle, broad range of fastening profiles and secure locking system make it an ideal portable tool set for HVAC technicians, refrigeration mechanics, electricians and professional maintenance personnel.
