Wera Tool-Check 1 Ratchet, Socket & Bit Set, 38 Piece – 049050

049050

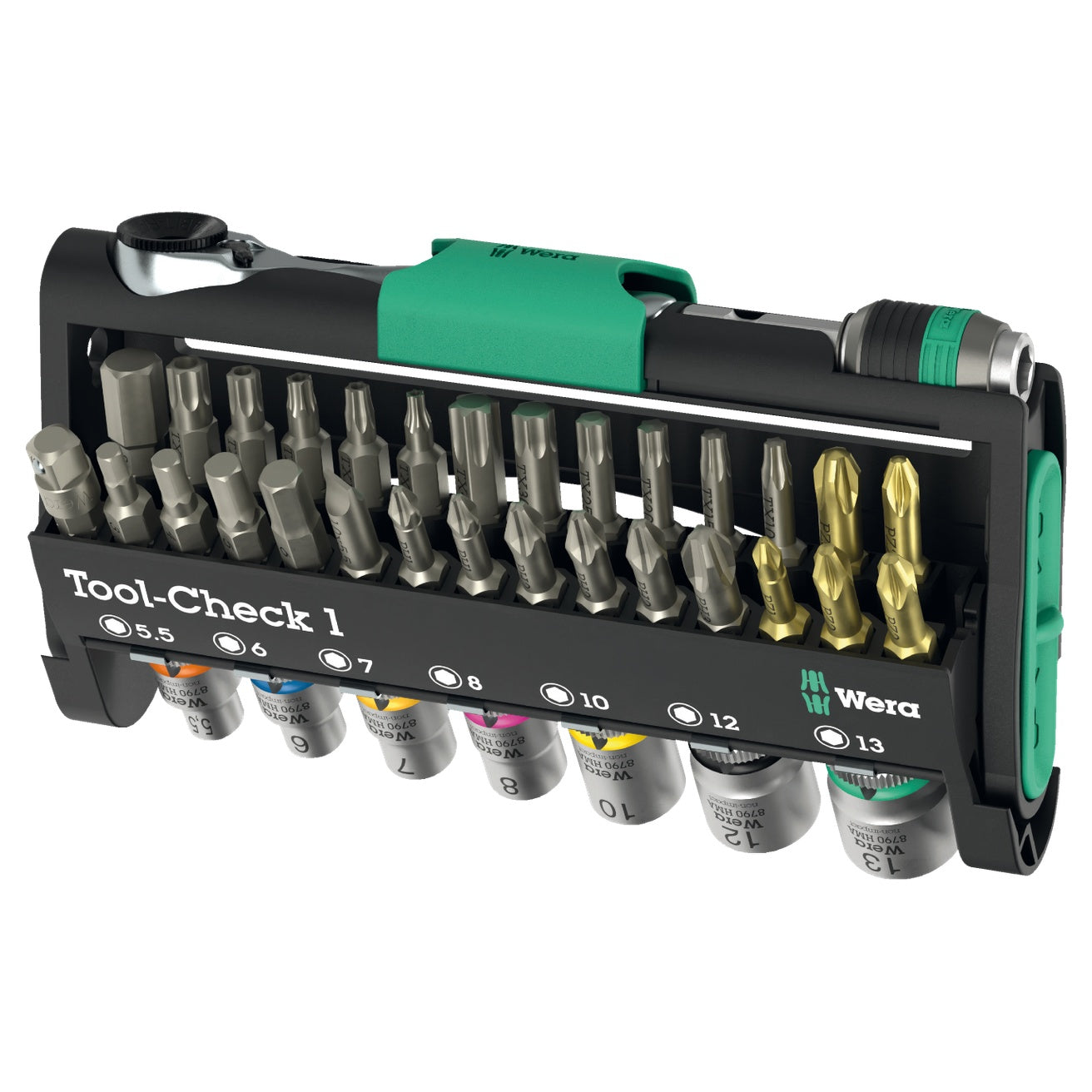

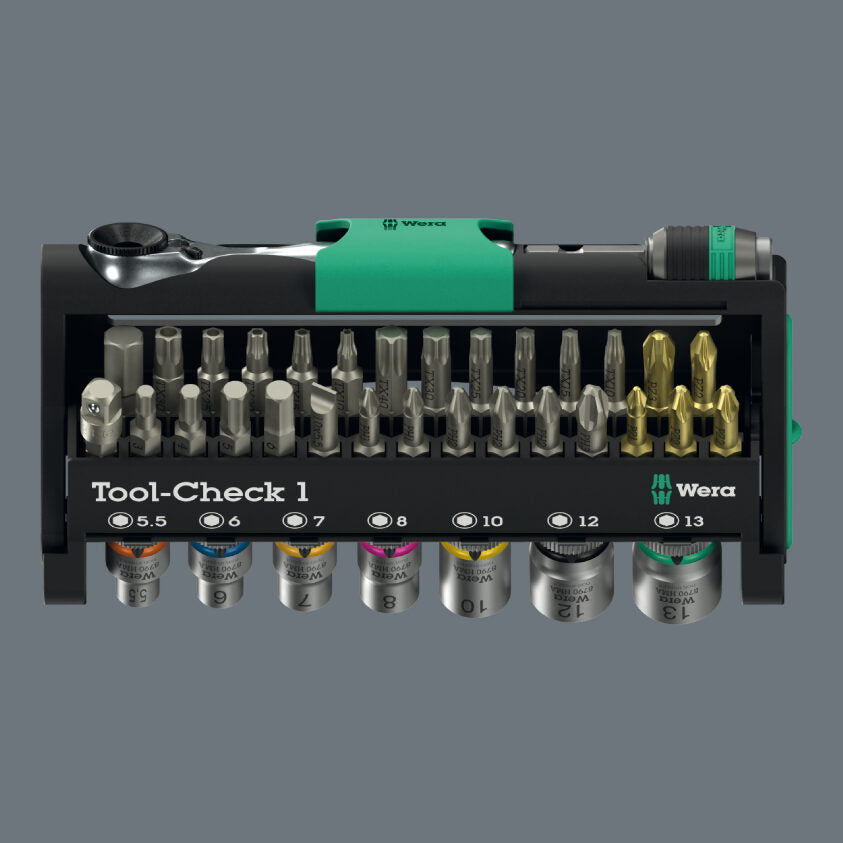

The Wera Tool-Check 1 is a highly compact 38-piece ratchet, socket and screwdriver bit set designed for professional manual and machine-operated fastening applications.

The set combines a 1/4-inch Zyklop Mini bit ratchet, Rapidaptor universal bit holder, socket adaptor, 28 screwdriver bits and seven metric sockets. Its broad selection of Phillips, Pozidriv, TORX®, tamper-resistant TORX® BO, slotted and hexagonal profiles provides excellent versatility for installation, servicing and maintenance work.

All components are securely organised in Wera’s compact Tool-Check holder, with green locking elements that help prevent tools from becoming loose during storage and transportation.

Set Includes

• 1 x 8001 A Zyklop Mini bit ratchet – 1/4 inch x 87 mm

• 1 x 889/4/1 K Rapidaptor universal bit holder – 1/4 inch x 50 mm

• 1 x 870/1 socket adaptor with friction ball – 1/4-inch hex to 1/4-inch square x 25 mm

• 2 x Phillips torsion bits – PH1 x 25 mm

• 3 x Phillips torsion bits – PH2 x 25 mm

• 1 x Phillips torsion bit – PH3 x 25 mm

• 1 x Pozidriv bit – PZ1 x 25 mm

• 3 x Pozidriv bits – PZ2 x 25 mm

• 1 x Pozidriv bit – PZ3 x 25 mm

• 1 x TORX® torsion bit – TX10 x 25 mm

• 1 x TORX® torsion bit – TX15 x 25 mm

• 1 x TORX® torsion bit – TX20 x 25 mm

• 1 x TORX® torsion bit – TX25 x 25 mm

• 1 x TORX® torsion bit – TX30 x 25 mm

• 1 x TORX® torsion bit – TX40 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX10 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX15 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX20 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX25 x 25 mm

• 1 x Tamper-resistant TORX® BO bit with bore hole – TX30 x 25 mm

• 1 x Slotted torsion bit – 1.0 x 5.5 x 25 mm

• 1 x Hexagonal bit – 3 mm x 25 mm

• 1 x Hexagonal bit – 4 mm x 25 mm

• 1 x Hexagonal bit – 5 mm x 25 mm

• 1 x Hexagonal bit – 6 mm x 25 mm

• 1 x Hexagonal bit – 8 mm x 25 mm

• 1 x 8790 HMA Zyklop socket – 5.5 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 6 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 7 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 8 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 10 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 12 mm x 23 mm

• 1 x 8790 HMA Zyklop socket – 13 mm x 23 mm

• 1 x Compact Tool-Check storage holder with green locking components

Key Features

• Highly compact 38-piece ratchet, socket and screwdriver bit set

• Suitable for both manual screwdriving and use with compatible power tools

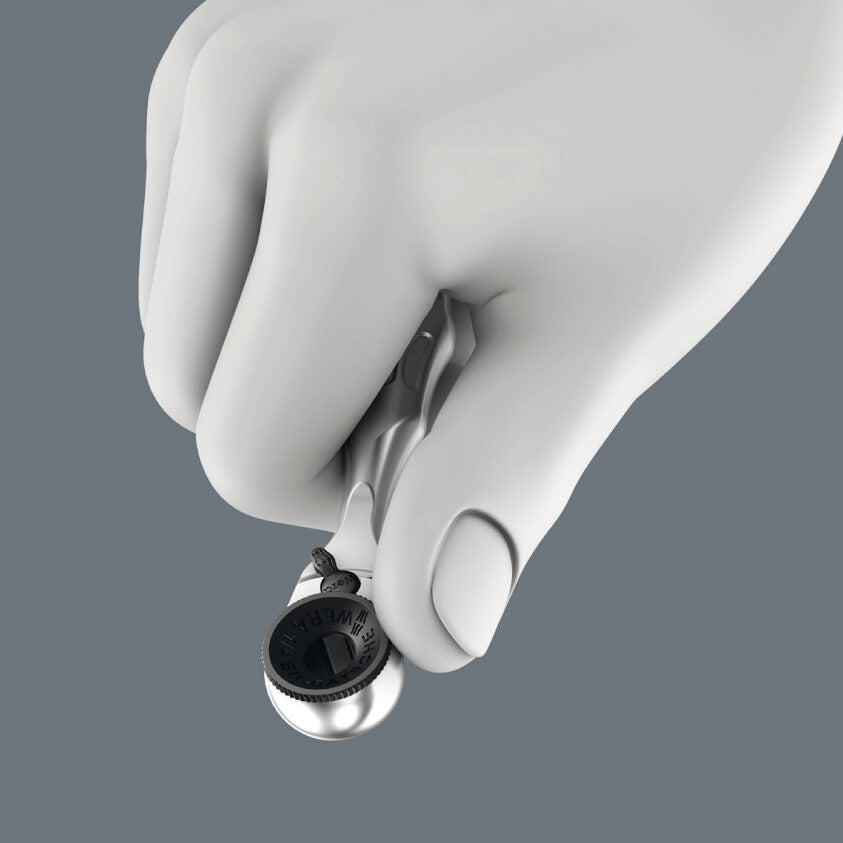

• Zyklop Mini ratchet is ideal for working in confined and difficult-to-access areas

• Fine 60-tooth ratchet mechanism provides a short 6-degree return angle

• Ergonomically positioned reversing lever allows easy clockwise and counterclockwise operation

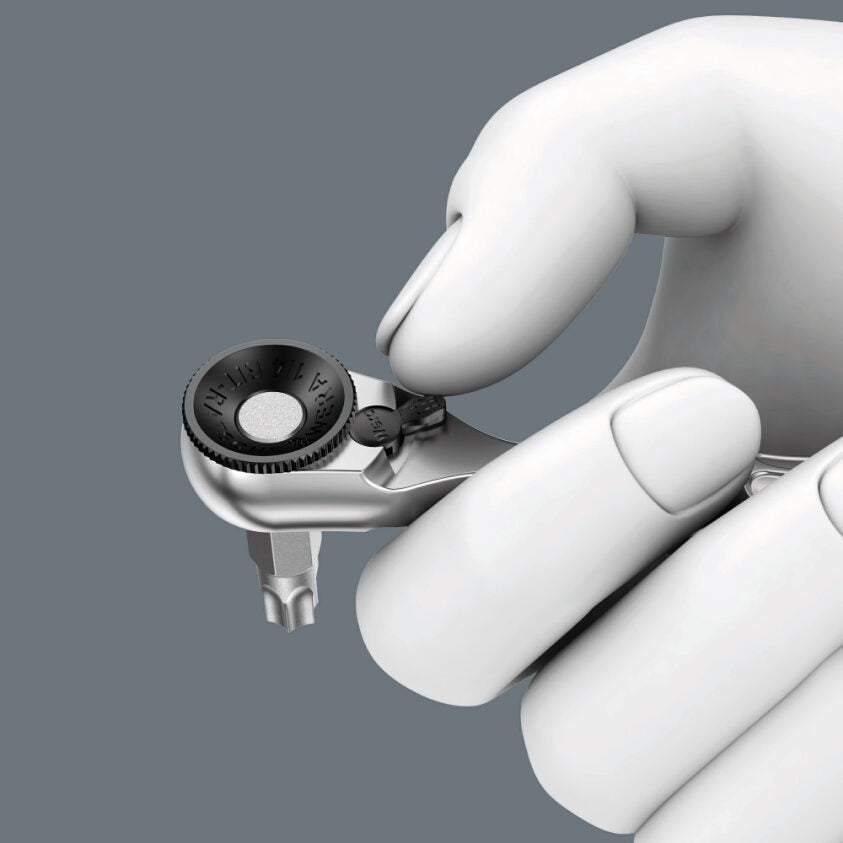

• Integrated thumb wheel supports rapid screwdriving before final tightening with the ratchet lever

• Drop-forged solid-steel ratchet design provides high strength and durability

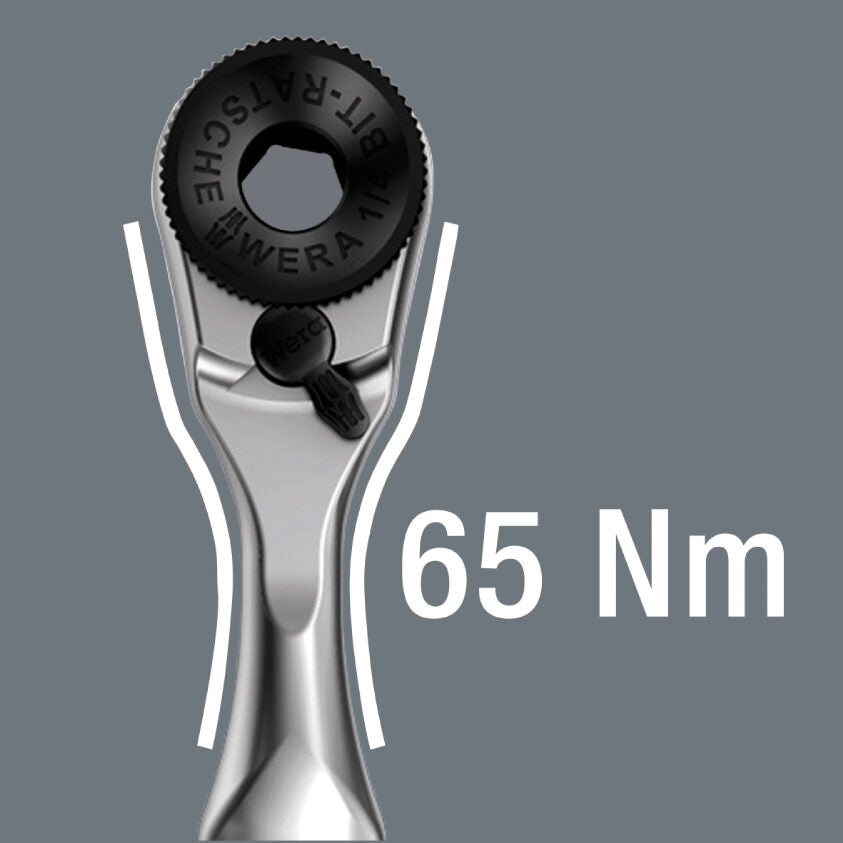

• Zyklop Mini ratchet can withstand torque loads of at least 65 Nm

• Rapidaptor universal holder allows fast bit changes without operating the retaining sleeve

• Socket adaptor allows the bit ratchet to operate the included 1/4-inch drive sockets

• Includes 28 tough and hard screwdriver bits for a wide range of fastener profiles

• Torsion-zone bits help absorb peak loads and reduce premature wear

• Hex-Plus geometry provides a larger contact surface inside hexagonal screws to help reduce damaging notch effects

• Seven metric sockets cover commonly used sizes from 5.5 mm to 13 mm

• Take It Easy Tool Finder uses colour coding and size markings for fast socket identification

• Socket knurling provides improved grip during manual operation

• Green Tool-Check locking components securely retain the tools during transportation

• Compact layout provides fast access while occupying minimal space in a tool bag or toolbox

Specifications

• Brand: Wera

• Model: Tool-Check 1

• Supplier Code: 049050

• Wera Part Number: 05049050001

• Number of Pieces: 38

• Ratchet Type: Zyklop Mini bit ratchet

• Ratchet Drive: 1/4-inch hexagonal bit drive

• Ratchet Length: 87 mm

• Ratchet Teeth: 60

• Ratchet Return Angle: 6 degrees

• Maximum Ratchet Load: At least 65 Nm

• Number of Screwdriver Bits: 28

• Bit Length: 25 mm

• Bit Profiles: Phillips, Pozidriv, TORX®, tamper-resistant TORX® BO, slotted and hexagonal

• Number of Metric Sockets: 7

• Metric Socket Sizes: 5.5, 6, 7, 8, 10, 12 and 13 mm

• Socket Drive: 1/4 inch

• Socket Length: 23 mm

• Rapidaptor Holder Length: 50 mm

• Socket Adaptor Length: 25 mm

• Storage: Compact Tool-Check holder

• Dimensions: 170 x 100 x 35 mm

• Weight: 497 g

• EAN: 4013288234889

• Country of Origin: Czech Republic

Ideal For

• HVAC and refrigeration technicians

• Electricians and electrical contractors

• Automotive and motorcycle maintenance

• Mechanical installation and equipment servicing

• Control cabinets and plant-room equipment

• Appliance, machinery and general maintenance

• Working with fasteners in confined and difficult-to-access areas

• Mobile technicians requiring a compact ratchet and bit set

• Workshop, trade and industrial maintenance applications

Compact Professional Ratchet, Socket and Bit Set

The Wera Tool-Check 1 combines a powerful Zyklop Mini ratchet with 28 screwdriver bits, seven metric sockets and practical drive accessories in an exceptionally compact holder. Its short 6-degree return angle, broad range of fastening profiles and secure locking system make it an ideal portable tool set for HVAC technicians, refrigeration mechanics, electricians and professional maintenance personnel.
