Wera Kraftform Kompakt VDE 17 Extra Slim 2 Tool Finder Ratchet Screwdriver & Pliers Set, 17 Pce – 006610

The Wera Kraftform Kompakt VDE 17 Extra Slim 2 Tool Finder is a professional 17-piece insulated screwdriver and pliers set designed for electrical installation, switchboard servicing and industrial maintenance.

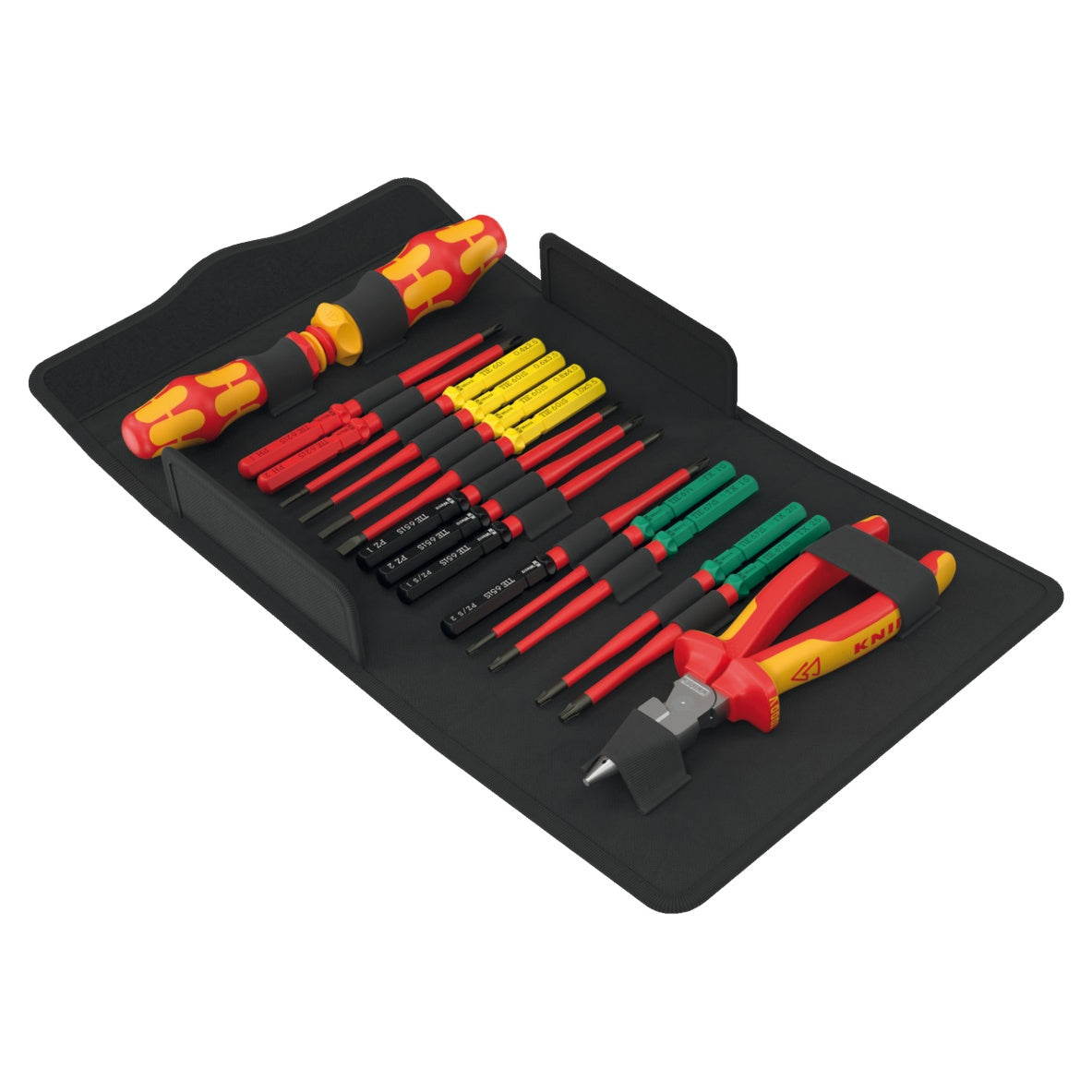

The set combines a ratcheting Kraftform VDE blade-holding handle, a standard Kraftform VDE handle, fourteen interchangeable insulated blades and a pair of KNIPEX VDE needle-nose combination pliers. Its comprehensive range of Phillips, Pozidriv, PlusMinus, TORX® and slotted profiles covers a wide variety of professional electrical fasteners.

Most of the included blades feature Wera’s reduced-diameter extra-slim design, providing improved access to recessed screws, spring elements and narrow terminal blocks. Each insulated tool is individually tested at 10,000 volts in accordance with IEC 60900 for approved working at voltages up to 1,000 volts.

Set Includes

• 1 x 837 i RA Kraftform VDE blade-holding handle with integrated ratchet – 9 x 115 mm

• 1 x 817 VDE Kraftform blade-holding handle – 9 x 98 mm

• 1 x Extra-slim Phillips VDE blade – PH1 x 157 mm

• 1 x Extra-slim Phillips VDE blade – PH2 x 157 mm

• 1 x Extra-slim Pozidriv VDE blade – PZ1 x 157 mm

• 1 x Extra-slim Pozidriv VDE blade – PZ2 x 157 mm

• 1 x Extra-slim PlusMinus Pozidriv/slotted VDE blade – PZ/S #1 x 157 mm

• 1 x Extra-slim PlusMinus Pozidriv/slotted VDE blade – PZ/S #2 x 157 mm

• 1 x TORX® VDE blade – TX10 x 157 mm

• 1 x Extra-slim TORX® VDE blade – TX15 x 157 mm

• 1 x Extra-slim TORX® VDE blade – TX20 x 157 mm

• 1 x Extra-slim TORX® VDE blade – TX25 x 157 mm

• 1 x Slotted VDE blade – 0.4 x 2.5 x 157 mm

• 1 x Extra-slim slotted VDE blade – 0.6 x 3.5 x 157 mm

• 1 x Extra-slim slotted VDE blade – 0.8 x 4.0 x 157 mm

• 1 x Extra-slim slotted VDE blade – 1.0 x 5.5 x 157 mm

• 1 x KNIPEX 08 26 185 VDE needle-nose combination pliers – 185 mm

• Robust folding textile storage pouch

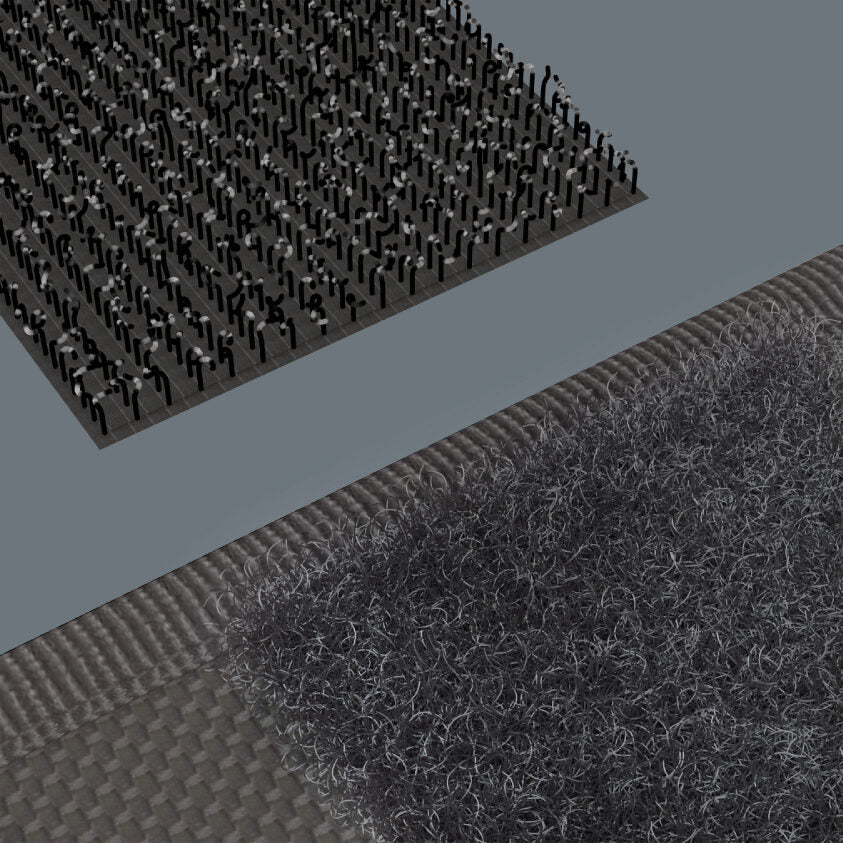

• 1 x Self-adhesive hook-and-loop fastening strip – 50 x 70 mm

Key Features

• Comprehensive 17-piece insulated set containing two VDE handles, fourteen interchangeable blades and KNIPEX VDE pliers

• 837 i RA handle features an integrated fine-tooth ratchet for faster and more efficient screwdriving

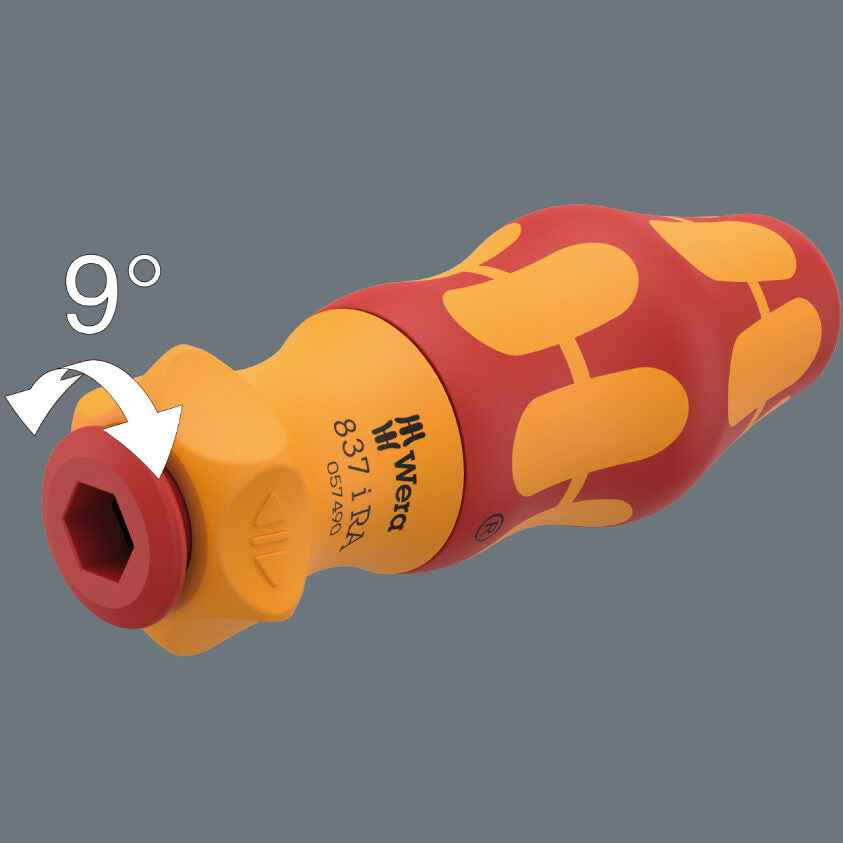

• 40-tooth ratchet mechanism provides a small 9-degree return angle for working in confined spaces

• Ratchet direction can be changed for clockwise, anti-clockwise or locked operation

• Standard 817 VDE handle provides conventional controlled screwdriving when ratchet operation is not required

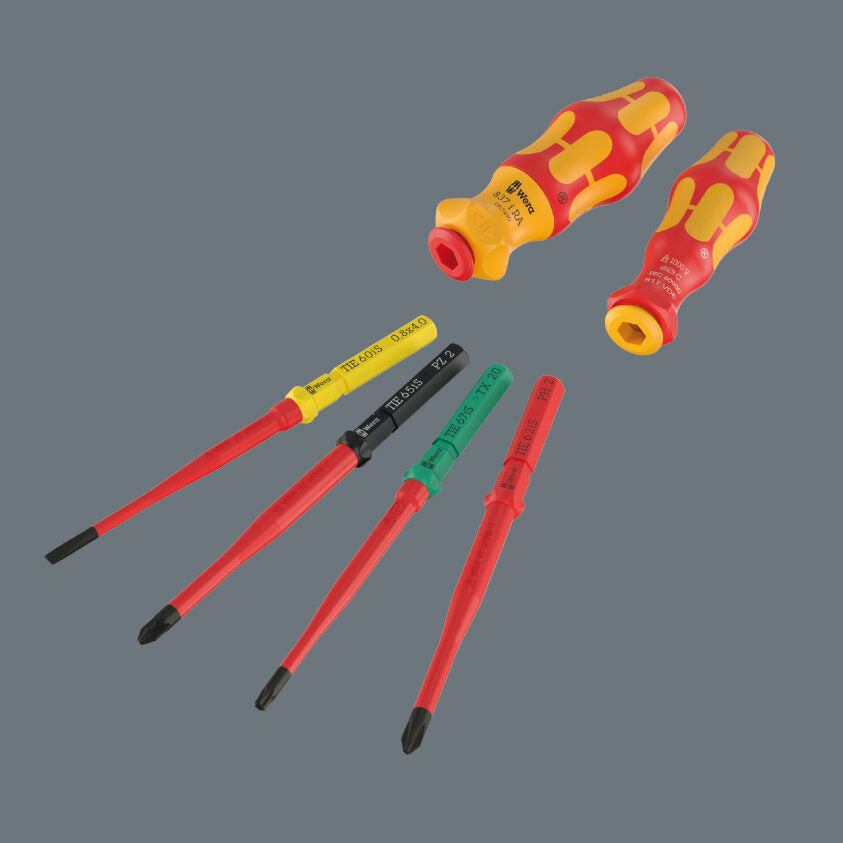

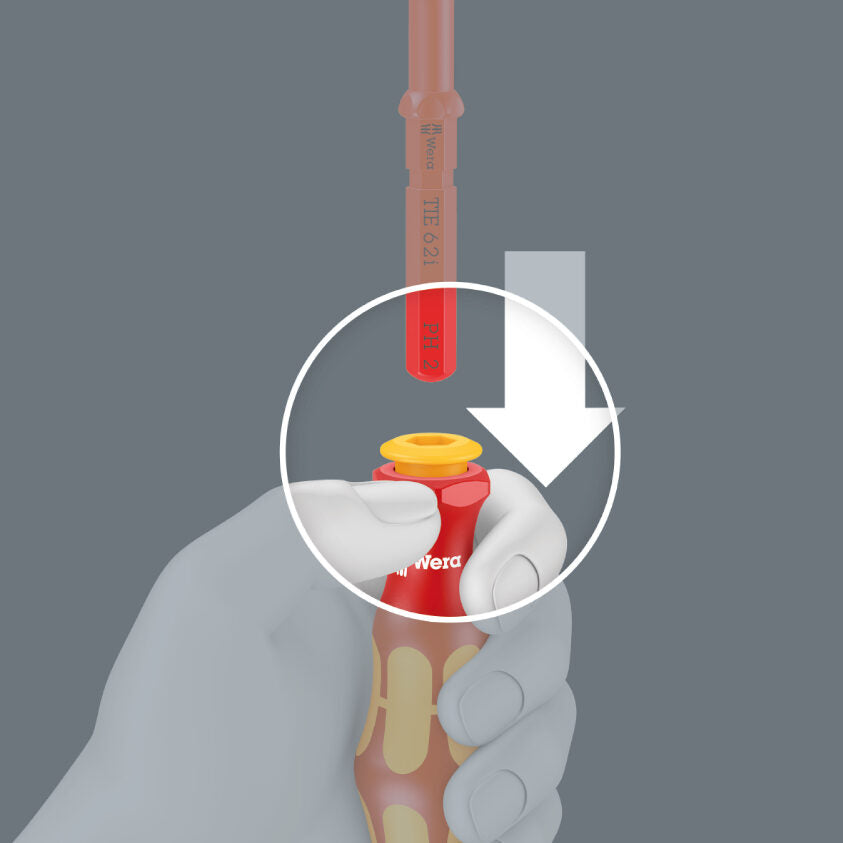

• Interchangeable handle and blade system allows blades to be changed quickly by pulling down the yellow release ring

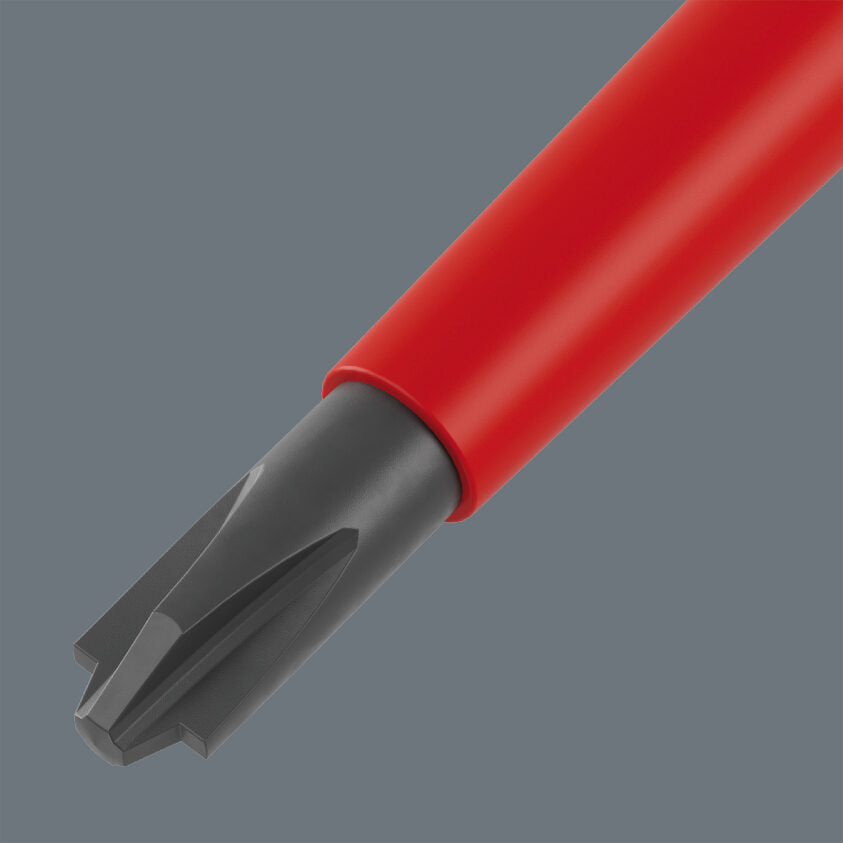

• Selected extra-slim blades feature a reduced shaft diameter with integrated protective insulation

• Extra-slim design provides improved access to recessed screws, spring elements and narrow terminal blocks

• Includes Phillips, Pozidriv, PlusMinus, TORX® and slotted profiles for a wide range of electrical applications

• PlusMinus blades are designed for combination screws used in terminal blocks, switches, relays, sockets and control cabinets

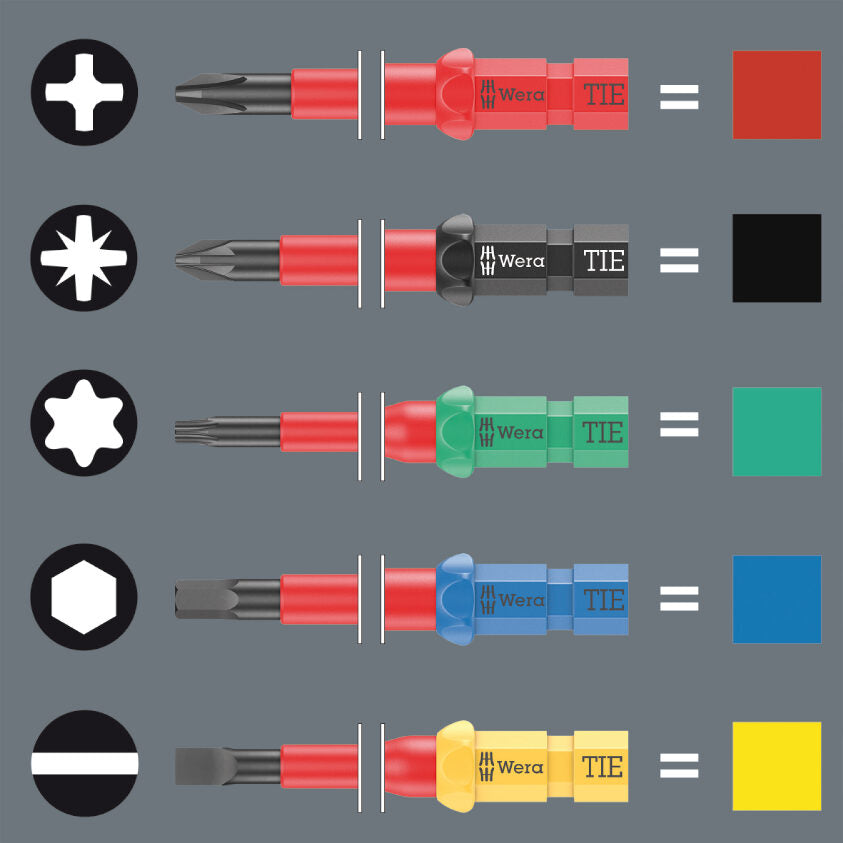

• Take It Easy Tool Finder uses profile-specific colour coding and laser-engraved size markings for quick identification

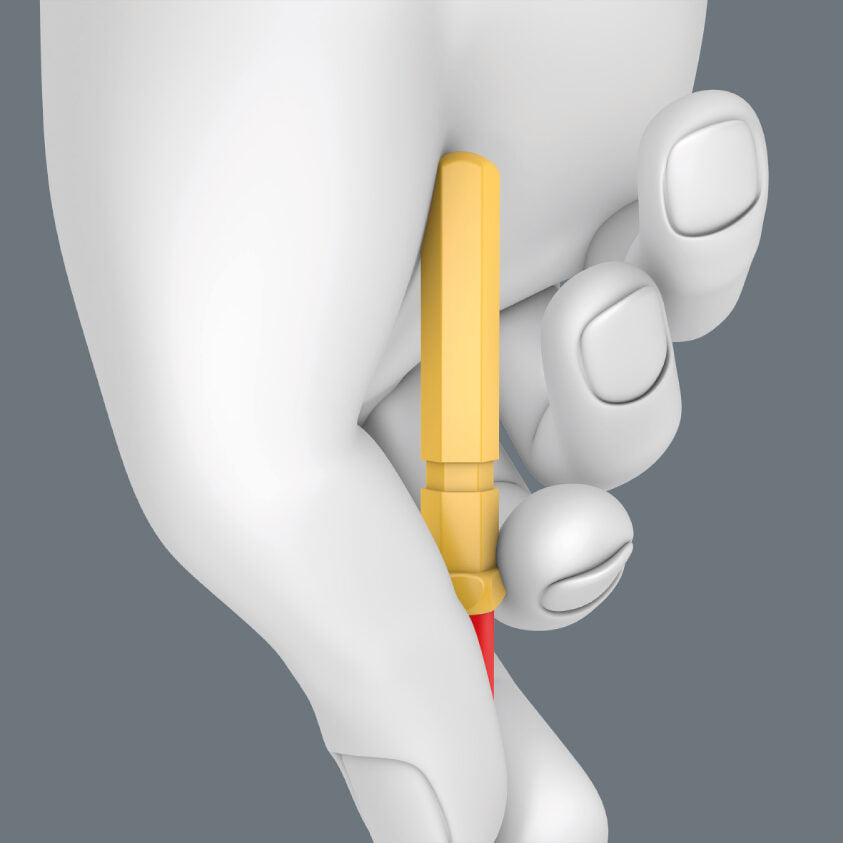

• Practical spinning zones support fast blade rotation during installation work

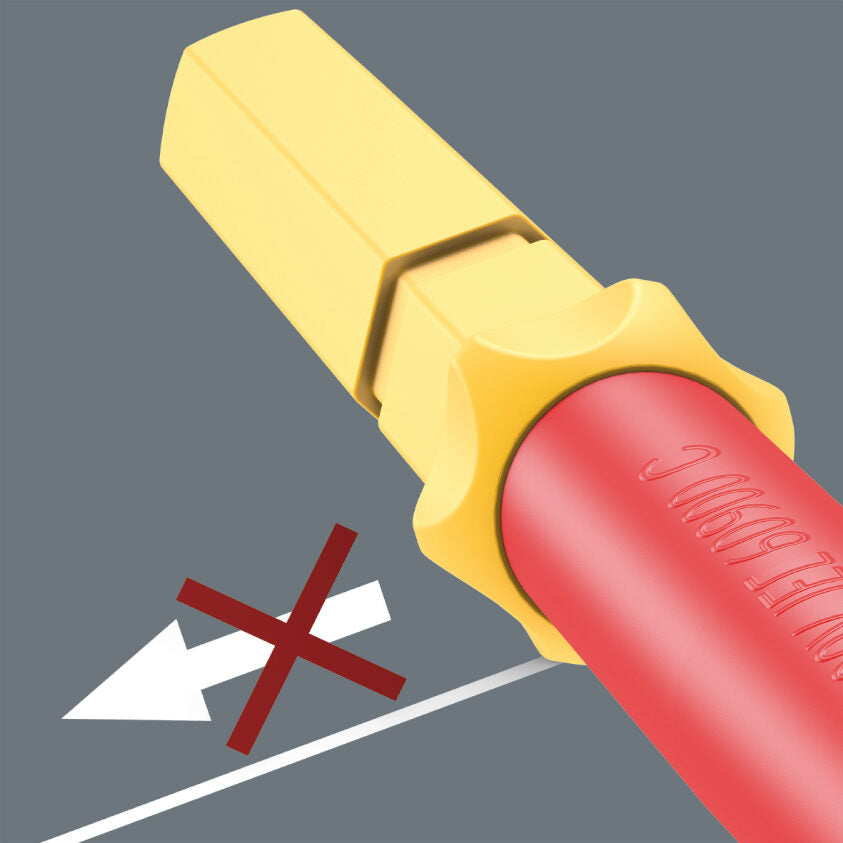

• Hexagonal anti-roll protection helps prevent loose blades from rolling away on the work surface

• Each insulated tool is individually tested at 10,000 volts in accordance with IEC 60900

• Approved for professional working at voltages up to 1,000 volts

• KNIPEX needle-nose combination pliers provide gripping, bending and cutting functions in one insulated tool

• High-leverage plier joint supports easier cutting of soft, medium-hard and hard wire

• Milled gripping groove securely holds and pulls small workpieces such as pins, nails and bolts

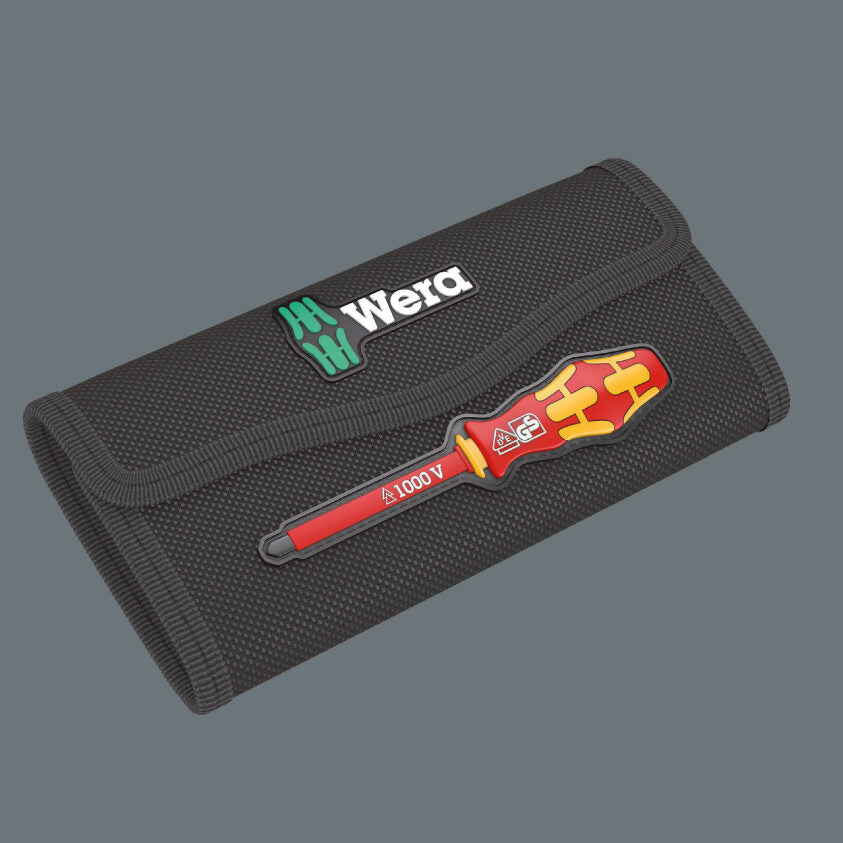

• Robust folding pouch protects the tools during storage and transportation

• Compatible with the Wera 2go tool transport system

Specifications

• Brand: Wera

• Model: Kraftform Kompakt VDE 17 Extra Slim 2 Tool Finder

• Supplier Code: 006610

• Wera Part Number: 05006610001

• Number of Pieces: 17

• Number of VDE Handles: 2

• Number of Interchangeable VDE Blades: 14

• Pliers Included: KNIPEX 08 26 185 VDE needle-nose combination pliers

• Drive Profiles: Phillips, Pozidriv, PlusMinus Pozidriv/slotted, TORX® and slotted

• Phillips Sizes: PH1 and PH2

• Pozidriv Sizes: PZ1 and PZ2

• PlusMinus Sizes: PZ/S #1 and PZ/S #2

• TORX® Sizes: TX10, TX15, TX20 and TX25

• Slotted Sizes: 0.4 x 2.5 mm, 0.6 x 3.5 mm, 0.8 x 4.0 mm and 1.0 x 5.5 mm

• Blade Length: 157 mm

• Extra-Slim Blades: PH1, PH2, PZ1, PZ2, PZ/S #1, PZ/S #2, TX15, TX20, TX25, 0.6 x 3.5 mm, 0.8 x 4.0 mm and 1.0 x 5.5 mm

• Standard-Diameter Blades: TX10 and 0.4 x 2.5 mm slotted

• Ratchet Teeth: 40

• Ratchet Return Angle: 9 degrees

• Approved Working Voltage: Up to 1,000 V

• Individual Test Voltage: 10,000 V

• Testing Standard: IEC 60900

• Storage: Robust folding textile pouch

• Dimensions: 252 x 162 x 71 mm

• Weight: 1,131 g

• EAN: 4013288234131

• Country of Origin: Czech Republic

Ideal For

• Electricians and electrical contractors

• HVAC and refrigeration technicians

• Electrical switchboard installation and servicing

• Control cabinets, terminal blocks, switches, relays and sockets

• Working with recessed screws and spring terminals

• Commercial and industrial electrical maintenance

• Plant-room and equipment servicing

• Appliance installation and repair

• Technicians requiring insulated screwdrivers and pliers in one portable set

Extra-Slim Ratcheting VDE Screwdriver and Pliers Set

The Wera Kraftform Kompakt VDE 17 Extra Slim 2 Tool Finder combines rapid ratcheting operation, extra-slim access and professional electrical protection in one comprehensive set. With fourteen interchangeable blades, two ergonomic Kraftform handles and KNIPEX VDE combination pliers, it provides electricians, refrigeration mechanics, HVAC technicians and industrial maintenance professionals with a versatile solution for installation, servicing, gripping and cutting applications.
