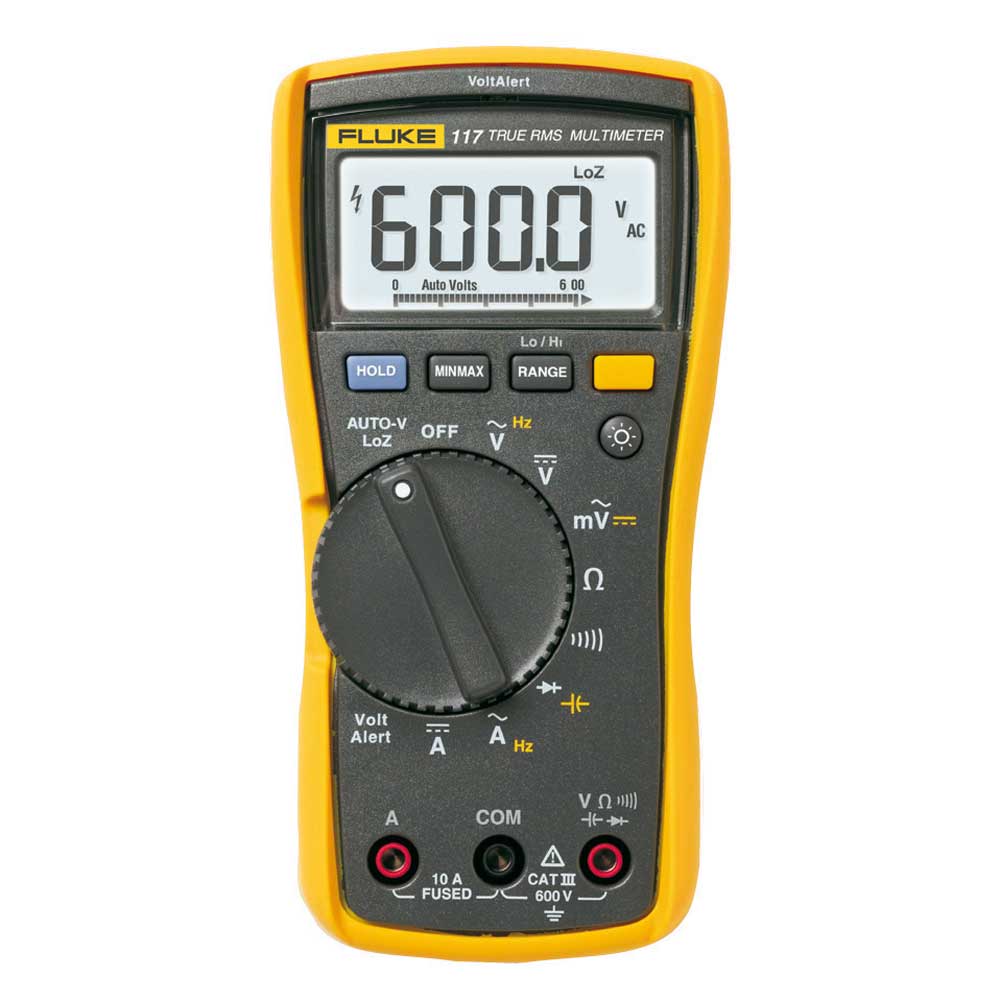

Fluke 117 True RMS Electrician’s Multimeter – 600V 10A with VoltAlert™

The Fluke 117 True RMS Electrician’s Multimeter is designed for professional electricians who need a compact, reliable and easy-to-use meter for everyday electrical testing and troubleshooting. Built with integrated VoltAlert™ non-contact voltage detection, the Fluke 117 helps users quickly check for live voltage without needing to carry a separate voltage detector.

With True RMS measurement, the Fluke 117 provides accurate readings on both linear and non-linear loads, making it suitable for commercial, industrial and general electrical service work. The AutoVolt function automatically selects AC or DC voltage, while the selectable LoZ low-impedance mode helps prevent false readings caused by ghost voltage.

The Fluke 117 measures AC/DC voltage up to 600V and AC/DC current up to 10A, with Min/Max/Average recording, resistance, continuity, frequency and capacitance functions. A bright backlit 6000-count display improves visibility in darker work areas, while the CAT III 600V safety rating supports professional use on demanding electrical jobs.

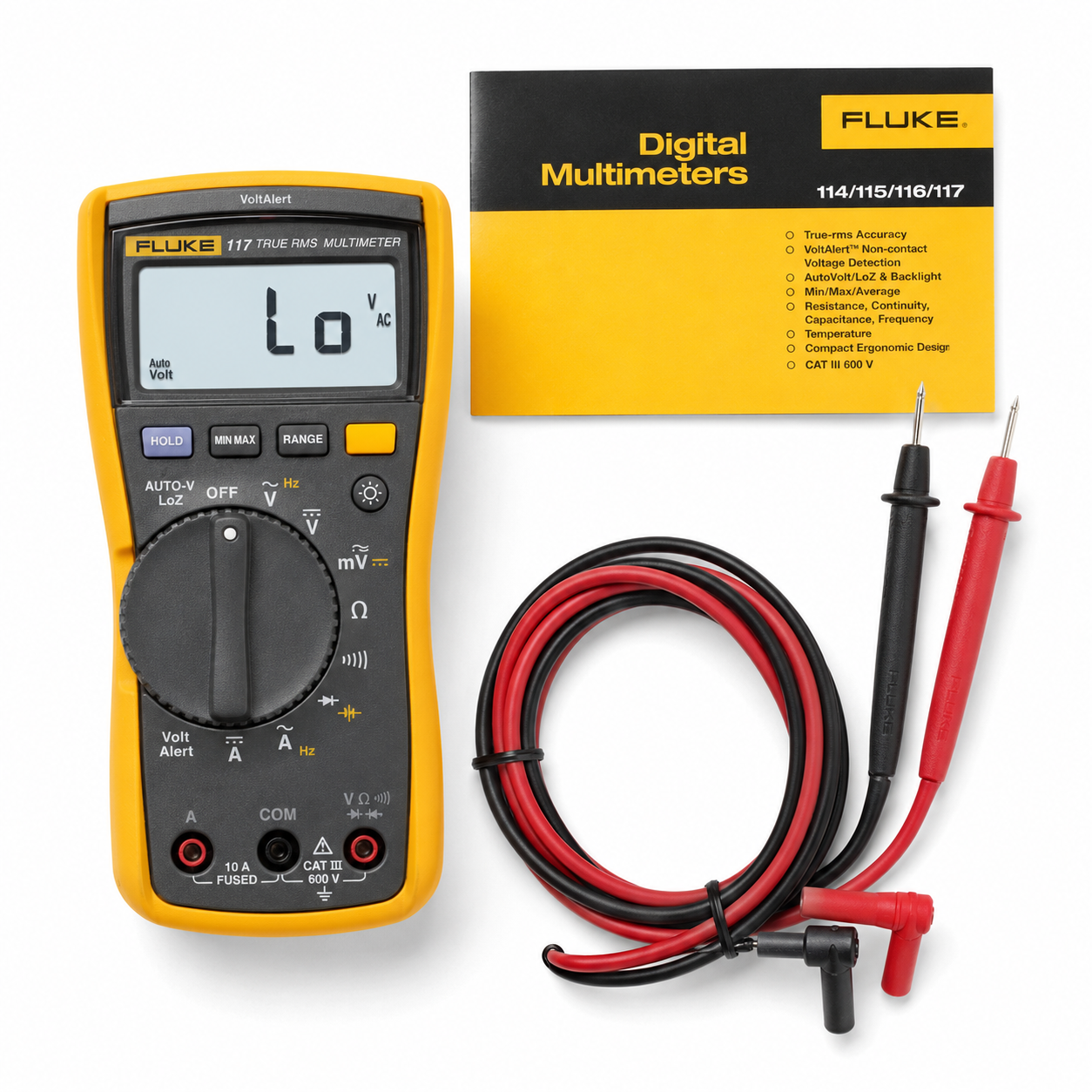

Set Includes

• 1 x Fluke 117 True RMS Electrician’s Digital Multimeter

• 1 x Fluke TL75 test lead set

• 1 x Holster

• 1 x User manual / quick reference guide

Key Features

• Compact True RMS digital multimeter designed for electricians

• Integrated VoltAlert™ non-contact voltage detection

• Measures AC and DC voltage up to 600V

• Measures AC and DC current up to 10A

• 20A overload capacity for up to 30 seconds maximum

• AutoVolt automatically selects AC or DC voltage

• Selectable LoZ low-impedance mode helps prevent false readings caused by ghost voltage

• Measures resistance, continuity, frequency and capacitance

• Min/Max/Average function records signal fluctuations

• Large 6000-count digital display for easy reading

• Backlit display improves visibility in darker work areas

• 33-segment analogue bar graph for fast signal response

• Continuity beeper for quick circuit checks

• Diode test function for electronic troubleshooting

• Supplied with TL75 test leads, holster and user manual

• CAT III 600V safety rating

• 3-year warranty

Specifications

• Brand: Fluke

• Product Number: FLU117

• Model: Fluke 117

• Product Name: Fluke 117 Electrician’s Multimeter with Non-Contact Voltage

• Tool Type: True RMS Digital Multimeter

• AC Voltage Range: Up to 600V

• DC Voltage Range: Up to 600V

• AC Current Range: Up to 10A

• DC Current Range: Up to 10A

• Overload Current Rating: 20A for 30 seconds maximum

• Resistance Range: Up to 40MΩ

• Capacitance Range: Up to 9999µF

• Frequency Range: Up to 50kHz

• Continuity: Yes, with audible beeper

• Diode Test: Yes

• Non-Contact Voltage Detection: Integrated VoltAlert™ technology

• AutoVolt: Automatic AC/DC voltage selection

• Low Impedance Mode: Selectable LoZ mode for reducing ghost voltage readings

• Min/Max/Average: Yes

• Display: 6000-count digital display with backlight

• Bar Graph: 33-segment analogue bar graph

• Safety Rating: CAT III 600V

• Safety Standard: IEC 61010-1 Pollution Degree 2 and IEC 61010-2-033 CAT III 600V

• Maximum Voltage Between Any Terminal and Earth Ground: 600V

• Fuse for A Input: 11A, 1000V FAST fuse

• Operating Temperature: -10°C to 50°C

• Storage Temperature: -40°C to 60°C

• Battery Type: 9V alkaline battery

• Battery Life: 400 hours typical without backlight

• Dimensions: 167 x 84 x 46mm

• Weight: 550g

• Warranty: 3 years

• Barcode: 195112030639

• Unit of Measure: Each

• Application: Electrical testing, voltage checks, current measurement, non-contact voltage detection, continuity testing, resistance measurement and fault finding

Ideal For

• Professional electricians

• Commercial electrical contractors

• Industrial electricians

• HVAC technicians

• Electrical maintenance workers

• Service technicians

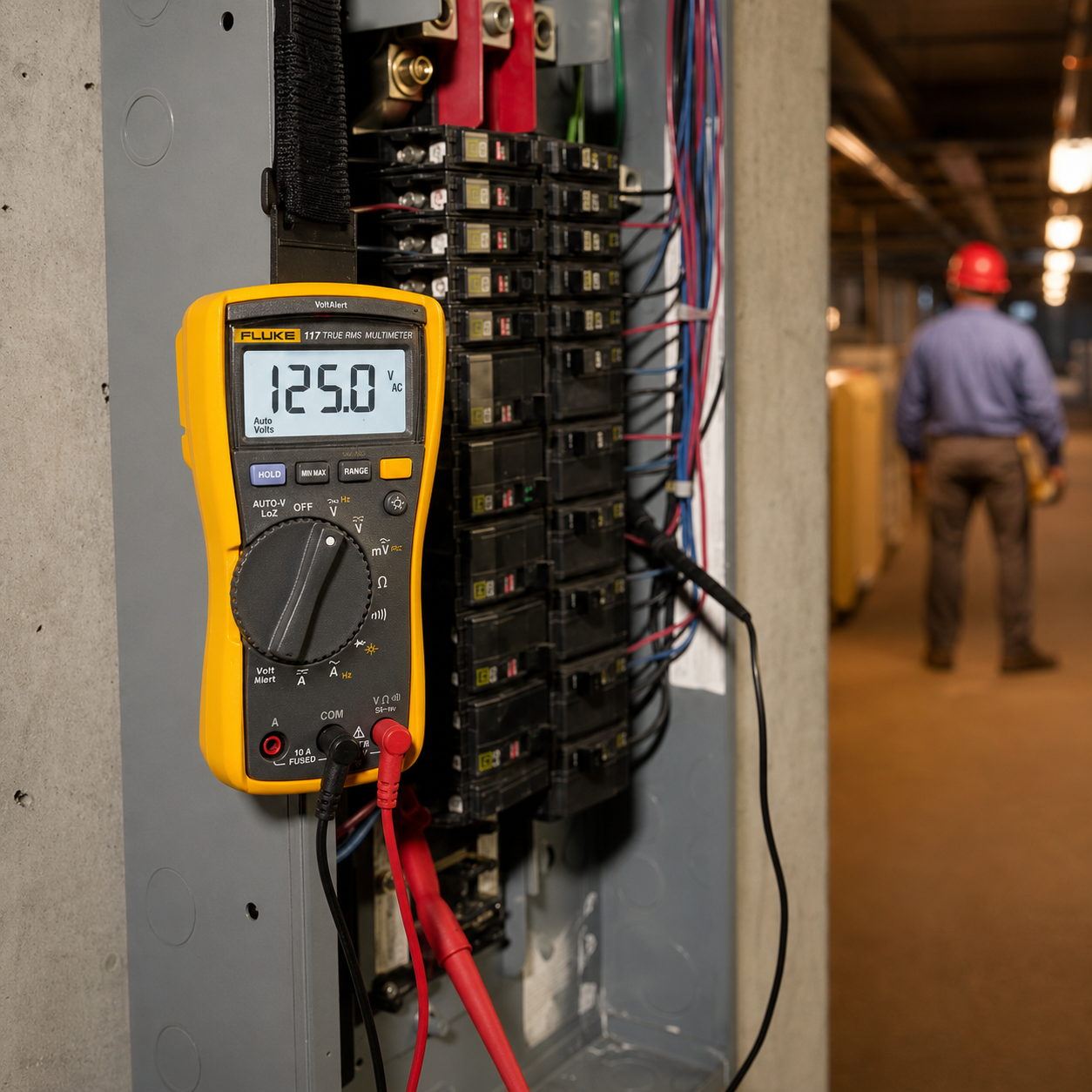

• Switchboard and control panel testing

• Live voltage checks using VoltAlert™ non-contact detection

• Voltage, current, resistance, continuity, frequency and capacitance checks

• Reducing false readings caused by ghost voltage using LoZ mode

• Commercial buildings, schools, hospitals and industrial maintenance work

• Trade tool kits, service bags and maintenance vehicles

Professional Electrician’s Multimeter with VoltAlert™ Detection

The Fluke 117 True RMS Electrician’s Multimeter is built for tradespeople who need a reliable meter for everyday electrical troubleshooting. With integrated VoltAlert™ non-contact voltage detection, AutoVolt AC/DC selection, LoZ low-impedance mode and True RMS accuracy, it helps electricians work faster and with greater confidence on site.

For commercial, industrial and service applications, the Fluke 117 delivers trusted Fluke performance, a bright backlit display, essential test functions and CAT III 600V protection in a compact professional multimeter.
