VALUE

VALUE UDi Series Vacuum Pump - 12 m³/h

$5,503.74 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
UD12i
$5,503.74 AUD (Inc GST)

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

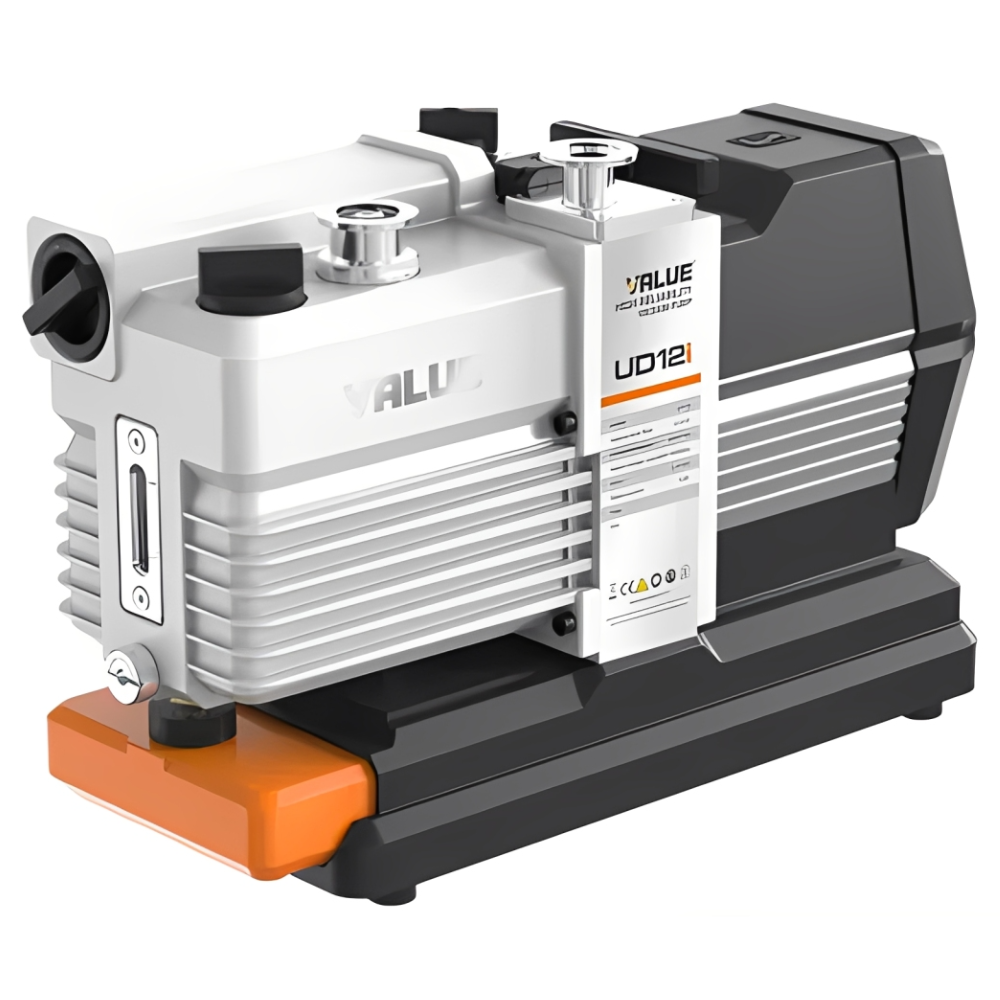

VALUE UDi Series Vacuum Pump – UD12i

The VALUE UD12i Two-Stage DC Brushless Rotary Vane Vacuum Pump has been engineered for demanding industrial, laboratory, and scientific environments where maximum performance, reliability, and resistance to harsh operating conditions are essential.

Powered by an advanced DC brushless motor, the UD12i delivers ultra-low noise operation, high efficiency, and long service life. Built for more intensive applications, it incorporates anti-corrosion treated internal components, ensuring dependable operation when handling high moisture levels, water vapour, and corrosive gases.

The UDi Series utilises magnetic drive and shielding technology to achieve true static sealing. This eliminates oil leakage issues associated with traditional dynamic sealing systems, ensuring consistent and reliable vacuum performance even in aggressive operating environments.

To maintain stable and clean operation, the UD12i is equipped with a forced lubrication gear pump, an automatic anti-oil return structure, and a high-efficiency oil mist filter, delivering a cleaner, quieter, and more controlled vacuum environment.

Key Features:

  • Advanced DC brushless motor for quiet, energy-efficient operation

  • Anti-corrosion treated components for harsh and corrosive environments

  • Magnetic drive & static sealing to eliminate oil leakage

  • Built-in oil mist filter for cleaner, environmentally friendly operation

  • Designed for high moisture and corrosive gas applications

  • Forced lubrication gear pump for stable oil circulation

  • Automatic anti-oil return system to prevent contamination

  • ECO mode operation for improved energy efficiency

Specifications

Specifications:

Specification UD12i
Pump Type Two-Stage Rotary Vane
Motor Type DC Brushless Motor
Peak Pumping Speed 12 m³/h
Approx. Flow Rate 200 L/min
Ultimate Vacuum (without gas ballast) 0.5 Pa
Ultimate Vacuum (with gas ballast) 3 Pa
Input Power Supply 200–240 V
Rated Power 0.75 kW
Input Frequency 50/60 Hz
Inlet/Exhaust Port KF25
Oil Capacity 1.0 L
Dimensions (L × W × H) 424 × 168 × 280 mm
Weight 17.5 kg
Ambient Temperature 5–40°C
Noise Level / 50 Hz ≤ 52 dB
Sealing Method Magnetic Drive (Static Sealing)
Corrosion Protection Anti-corrosion treated components
Lubrication System Forced lubrication gear pump
Anti Oil Return Automatic anti-oil return structure
Additional Features Built-in oil mist filter, ECO mode
Application Corrosive gases, high moisture, industrial & laboratory use
WARRANTY

12 months from date of purchase.*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
