VALUE UD Series Vacuum Pump - 8 m³/h

$4,256.01 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
UD8
$4,256.01 AUD (Inc GST)

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

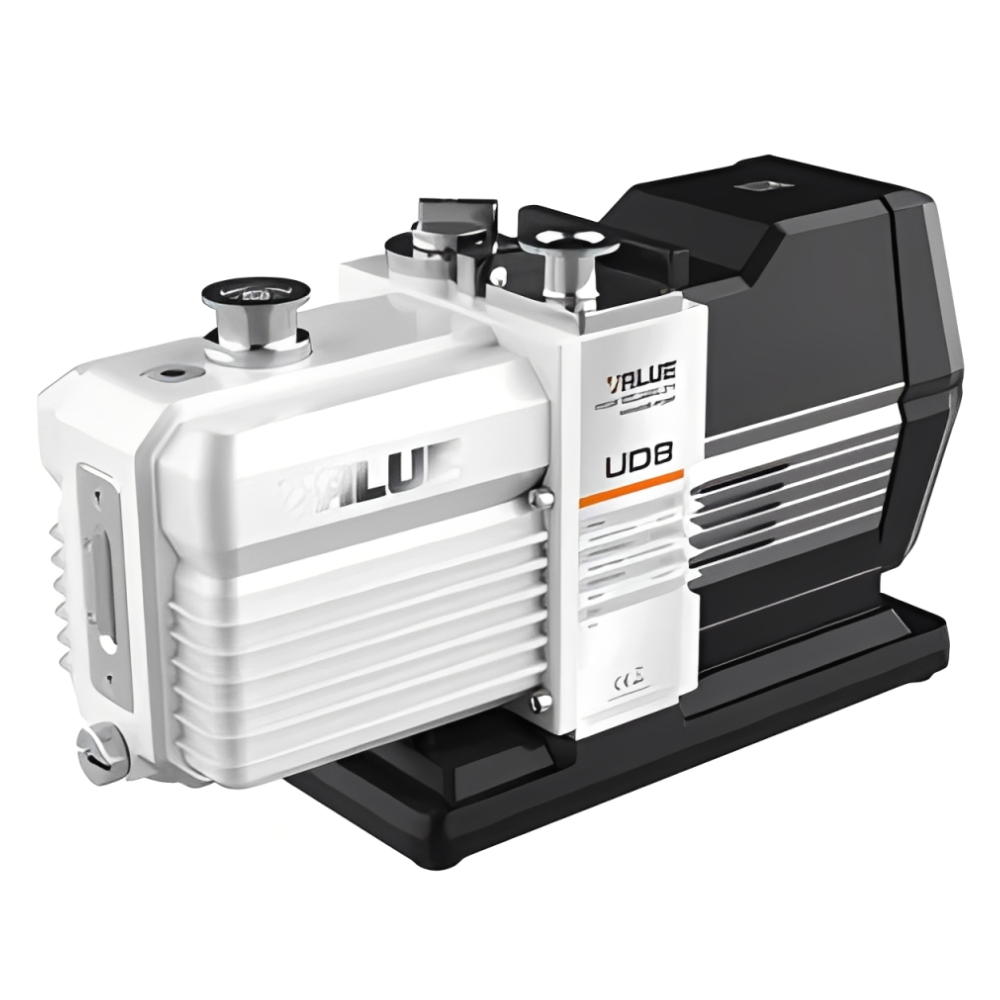

VALUE UD Series Vacuum Pump – UD8

The VALUE UD8 Two-Stage DC Brushless Rotary Vane Vacuum Pump has been engineered for demanding industrial and laboratory environments where reliability, quiet operation, and resistance to harsh conditions are essential.

Powered by an advanced DC brushless motor, the UD8 delivers ultra-low operating noise together with high efficiency and dependable long-term performance. Designed for challenging applications, it features anti-corrosion treated core components, helping protect the pump when operating in environments containing moisture, water vapour, and corrosive gases. VALUE also states the UD Series uses shielding technology and magnetic drive technology to achieve static sealing, reducing the oil leakage issues associated with traditional dynamic sealing structures.

To support stable operation, the UD8 is equipped with a gear pump with forced lubrication and an automatic anti-oil return structure, helping provide a cleaner, quieter, and more comfortable vacuum environment. VALUE also highlights fluororubber seals, stainless steel springs, and an anti-oil return valve as part of the pump’s corrosion-resistant and clean-operation design.

Key Features:

  • Advanced DC brushless motor for quiet, efficient performance

  • Anti-corrosion treated components for improved durability in harsh environments

  • Magnetic drive & static sealing to minimise oil leakage

  • Designed for use with high water vapour and corrosive gases

  • Forced lubrication gear pump for stable oil supply and smooth running

  • Automatic anti-oil return structure for cleaner vacuum operation

  • Built for reliability, low maintenance, and long service life

Specifications:

Specification UD8
Pump Type Two-Stage Rotary Vane
Motor Type DC Brushless Motor
Peak Pumping Speed 8 m³/h
Ultimate Vacuum (without gas ballast) 0.5 Pa
Ultimate Vacuum (with gas ballast) 3 Pa
Input Power Supply 200–240 V
Rated Power 0.55 kW
Input Frequency 50/60 Hz
Inlet/Exhaust Port KF25
Oil Capacity 0.75 L
Dimensions (L × W × H) 414 × 152 × 235 mm
Weight 15 kg
Ambient Temperature 5–40°C
Noise Level / 50 Hz ≤ 50 dB
Sealing Method Magnetic Drive (Static Sealing)
Corrosion Protection Anti-corrosion treated components
Lubrication System Forced lubrication gear pump
Anti Oil Return Automatic anti-oil return structure
Application Corrosive gases, high moisture, industrial & laboratory use
WARRANTY

12 months from date of purchase.*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
