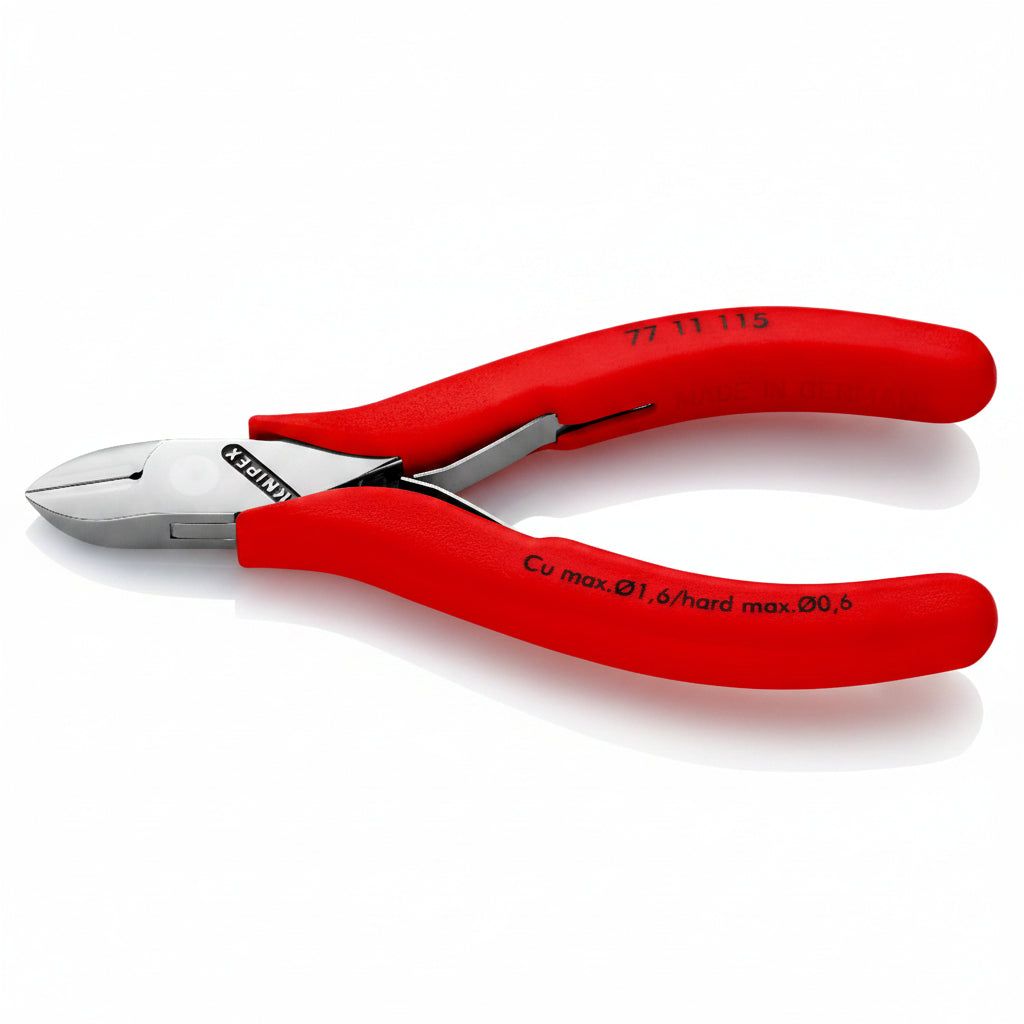

KNIPEX 77 11 115 Electronics Diagonal Cutter – 115mm with Box Joint & Lead Catcher

The KNIPEX 77 11 115 Electronics Diagonal Cutter is designed for technicians, electronics workers, instrument technicians and maintenance professionals who need a compact precision cutter for fine wires and delicate components. With a 115mm body, backlash-free box joint and round head with lead catcher, this cutter is ideal for electronics, circuit board work, control wiring and precision service tasks.

The box joint provides stable, low-play operation for precise cutting and long tool life. Its compact head and high transmission ratio help deliver strong cutting performance with less effort, while the low-friction double spring provides smooth and even opening during repeated use.

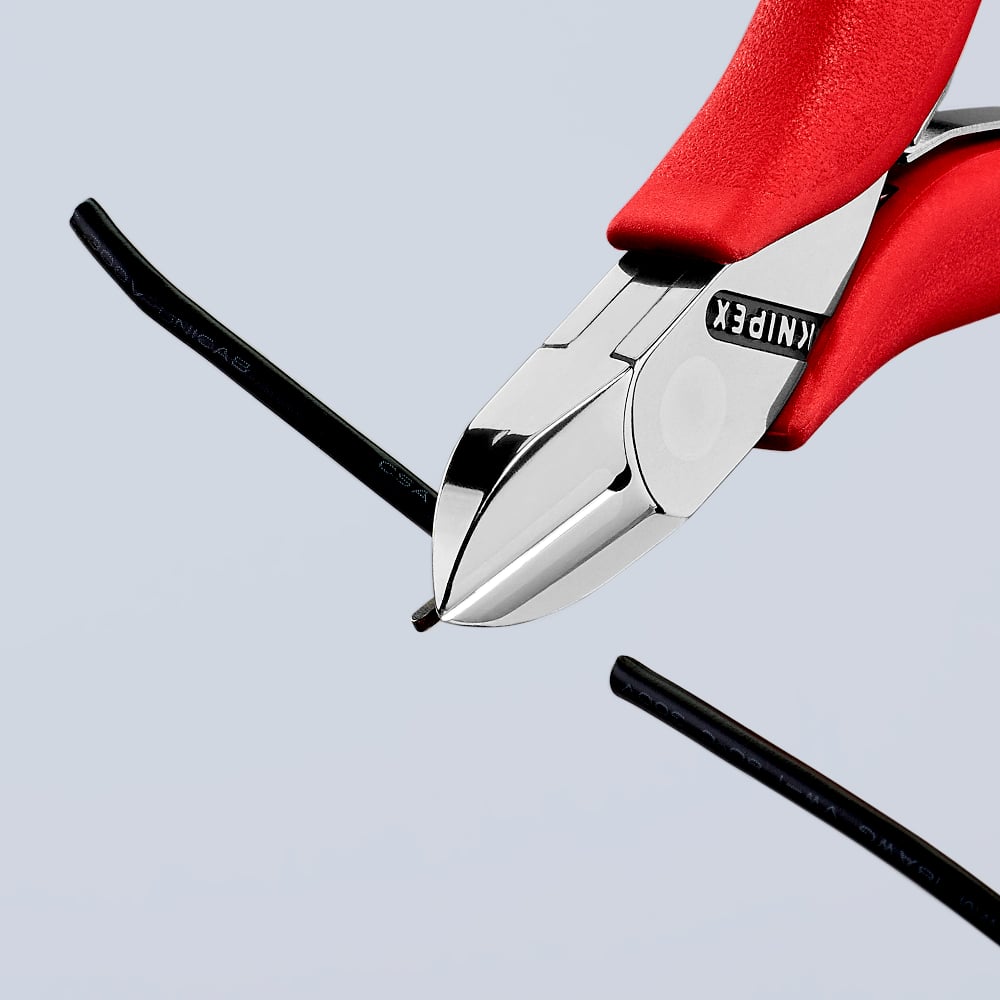

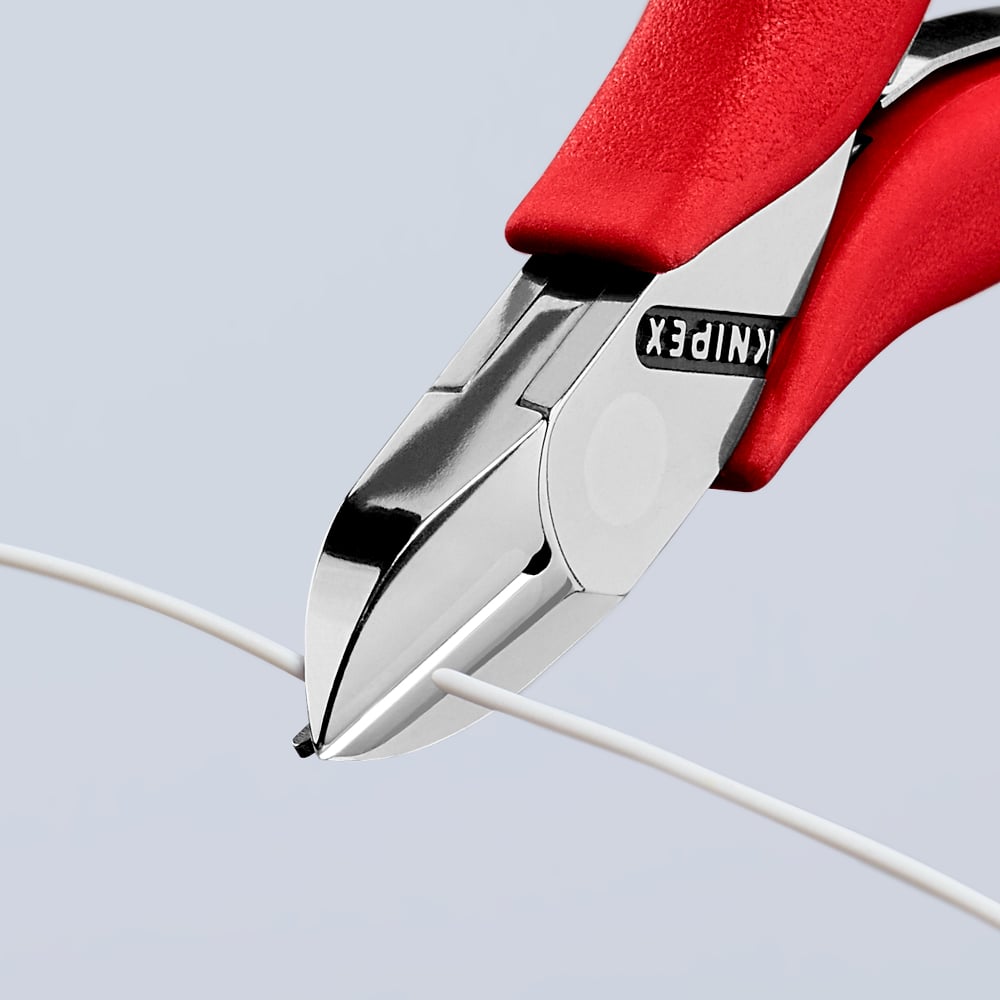

Built with induction-hardened cutting edges to at least 62 HRC, the KNIPEX 77 11 115 cuts soft wire from Ø 0.3mm to 1.6mm, medium-hard wire up to Ø 1.2mm and hard wire up to Ø 0.6mm. The mirror-polished finish with a fine oil film helps protect against rust and avoids peeling chrome, making it suitable for sensitive electronics environments.

Key Features

• Professional 115mm electronics diagonal cutter for precision cutting work

• Backlash-free box joint provides stable, accurate cutting action

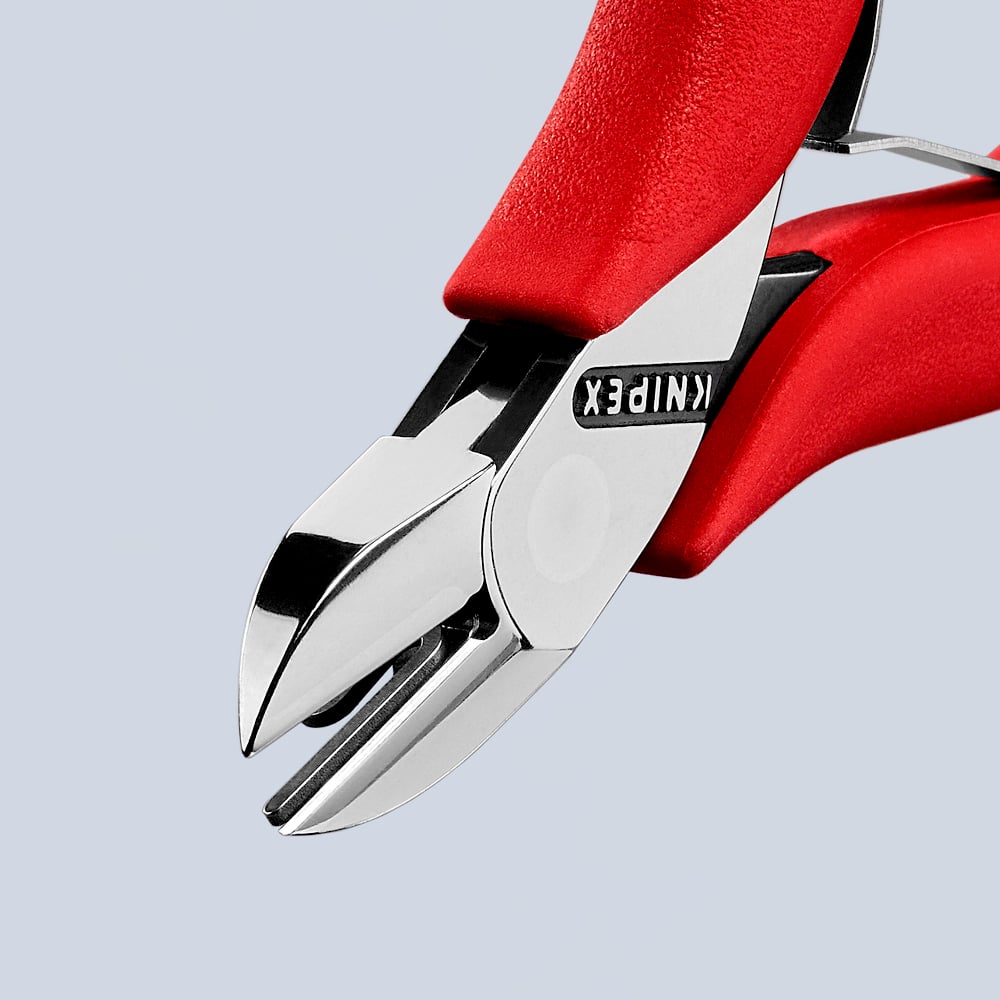

• Compact round head for fine access in electronics and precision equipment

• Small bevel supports clean controlled cutting

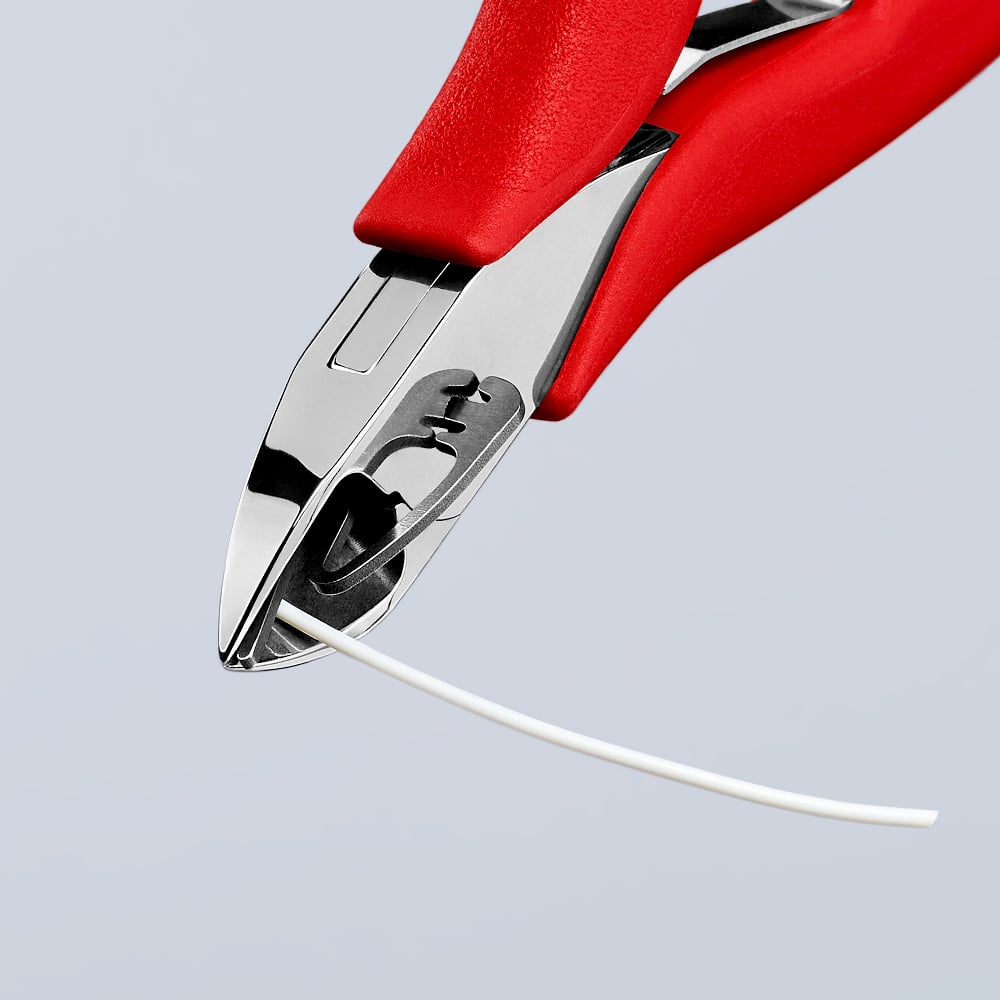

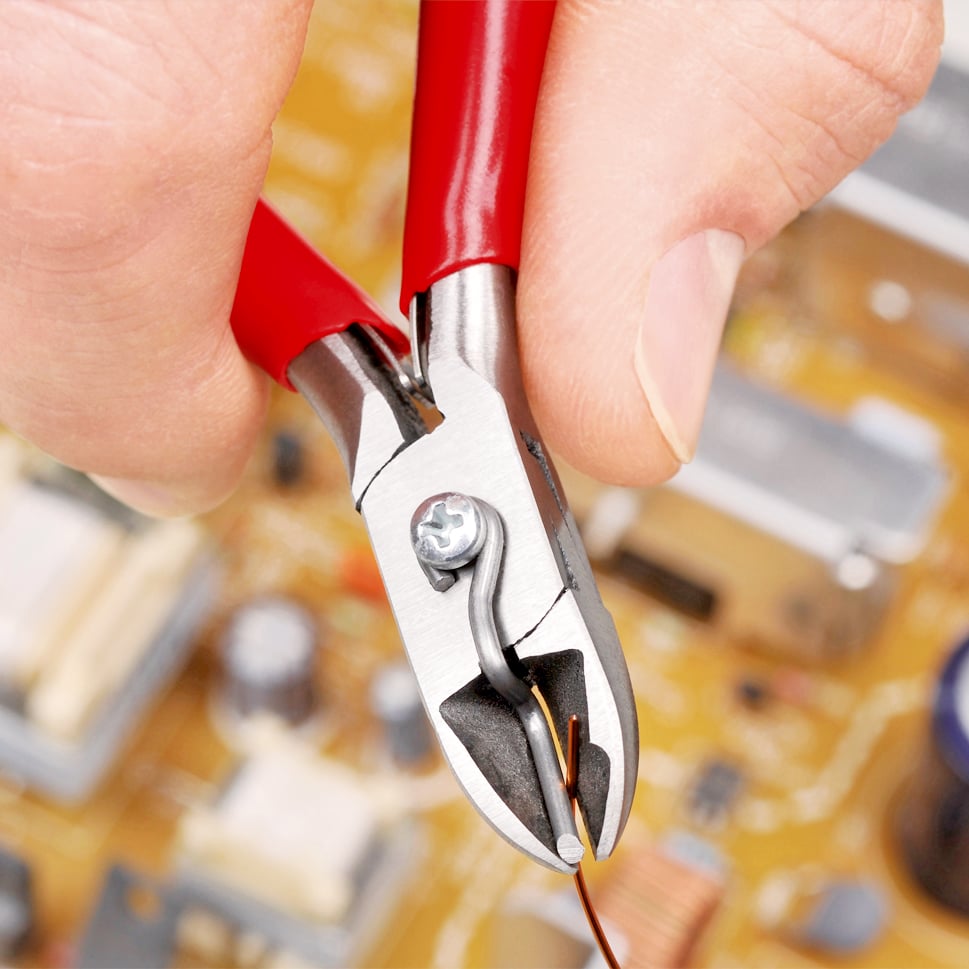

• Integrated lead catcher helps prevent uncontrolled loss of cut wire ends

• High transmission ratio reduces cutting effort

• Load-optimised design provides a direct feel when working

• Low-friction double spring provides smooth and even opening

• Cutting edges additionally laser hardened to at least 62 HRC

• Cuts soft wire from Ø 0.3mm to Ø 1.6mm

• Cuts medium-hard wire up to Ø 1.2mm

• Cuts hard wire up to Ø 0.6mm

• Mirror-polished head with fine oil film helps protect against rust

• No chrome plating to peel off, helping reduce risk in sensitive electronics work

• Non-slip plastic grips provide comfortable control

• Compact and lightweight design is ideal for fine work and confined spaces

• Suitable for PCBs, electronics, control panels, instruments and precision equipment

• Not 1000V insulated and not suitable for live electrical work

Specifications

• Brand: KNIPEX

• Product Number: 7711115

• KNIPEX Part Number: 77 11 115

• Product Name: KNIPEX Electronics Diagonal Cutter

• Tool Type: Electronics Diagonal Cutter with Box Joint

• Length: 115mm

• Head Style: Round head with small bevel and lead catcher

• Joint Type: Backlash-free box joint

• Head Finish: Mirror polished

• Handle Type: Non-slip plastic grips

• Opening Spring: Low-friction double spring

• Cutting Edge Hardness: At least 62 HRC

• Cutting Capacity, Soft Wire: Ø 0.3mm to Ø 1.6mm

• Cutting Capacity, Medium-Hard Wire: Ø 1.2mm

• Cutting Capacity, Hard Wire: Ø 0.6mm

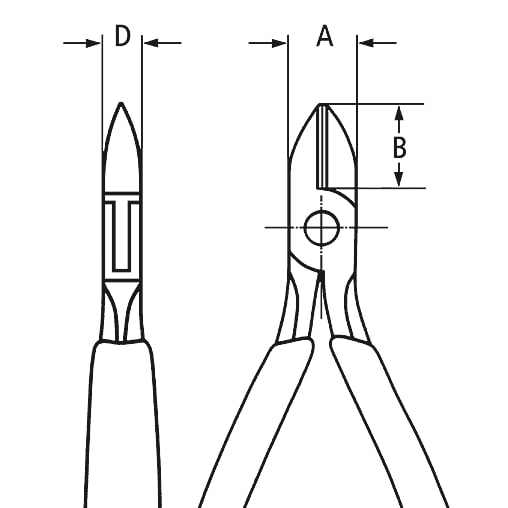

• Jaw Length: 14mm

• Jaw Thickness at Joint: 7.5mm

• Head Width: 11mm

• Standard: DIN ISO 9654

• 1000V Insulated: No

• REACH Compliance: Does not contain SVHC

• RoHS Compliance: Not applicable

• Dimensions: 115 x 68 x 11mm

• Weight: 55g

• EAN / Barcode: 4003773018629

• Application: Precision cutting of fine wire, component leads, electronics wiring, PCB work and instrument service tasks

Ideal For

• Electronics technicians

• Instrument technicians

• Electrical maintenance workers

• Control panel technicians

• HVAC and refrigeration technicians working on controls

• PCB and circuit board work

• Cutting fine soft wire and component leads

• Precision equipment repair and assembly

• Control wiring and low-voltage electronics work

• Work benches, electronics kits, service bags and maintenance vehicles

Precision Electronics Cutter with Box Joint and Lead Catcher

The KNIPEX 77 11 115 Electronics Diagonal Cutter is built for tradespeople and technicians who need controlled, accurate cutting in electronics and precision equipment. With a backlash-free box joint, compact round head, lead catcher, double spring and hardened cutters, it provides smooth handling and reliable performance for fine wire and component lead cutting.

For electronics technicians, service technicians, control specialists and maintenance teams, this KNIPEX 115mm electronics cutter delivers trusted German-made precision, compact access and professional cutting control for delicate electrical and electronic work.
