WIPCOOL

Wipcool 3PC - 45L HVAC Installer Kit - 240v (NEW)

$1,099.40 AUD (Inc GST)

Tax included. Shipping calculated at checkout.

2F0RMSK2

Product variants

Quantity

$1,099.40 AUD (Inc GST)

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

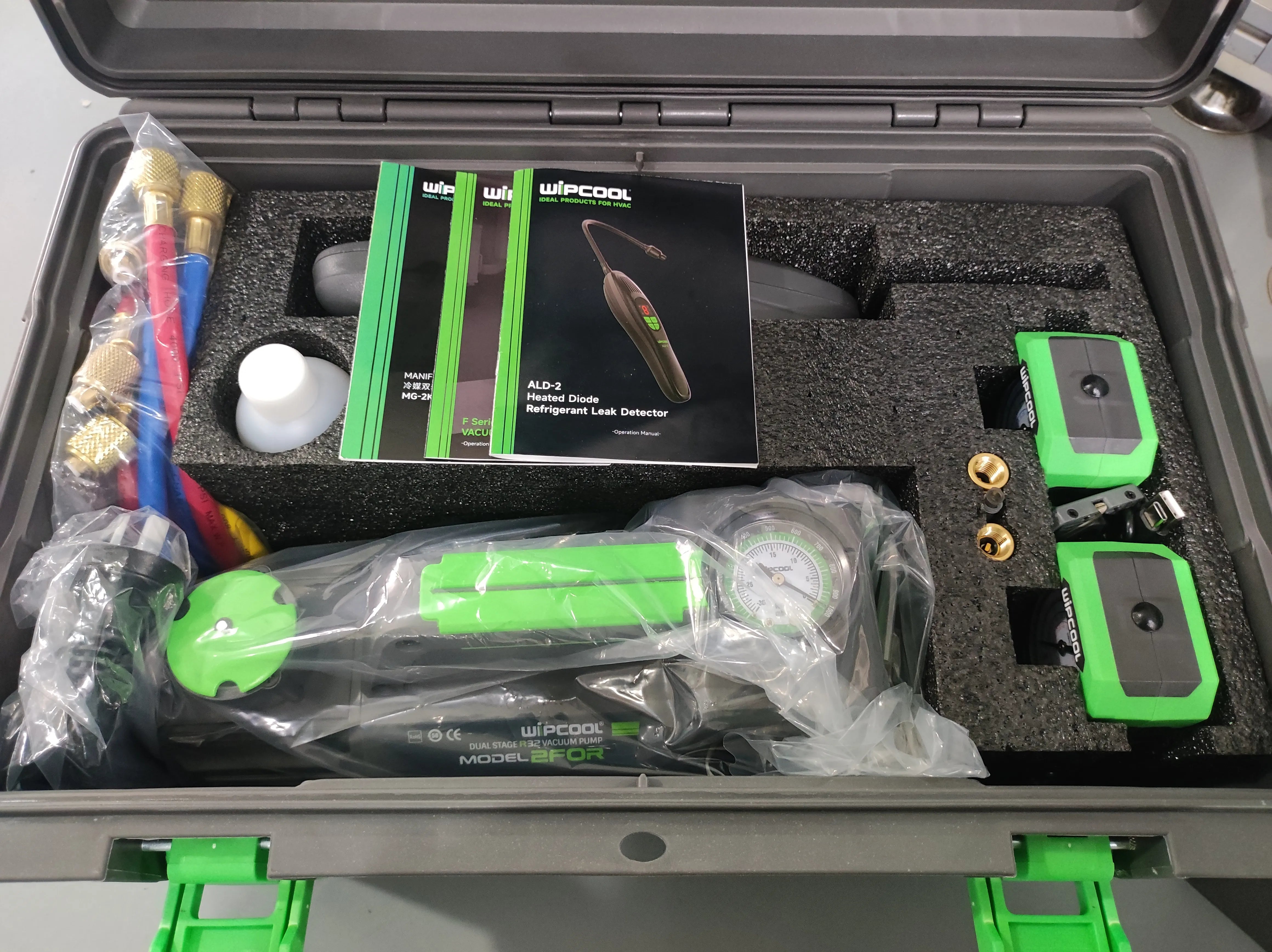

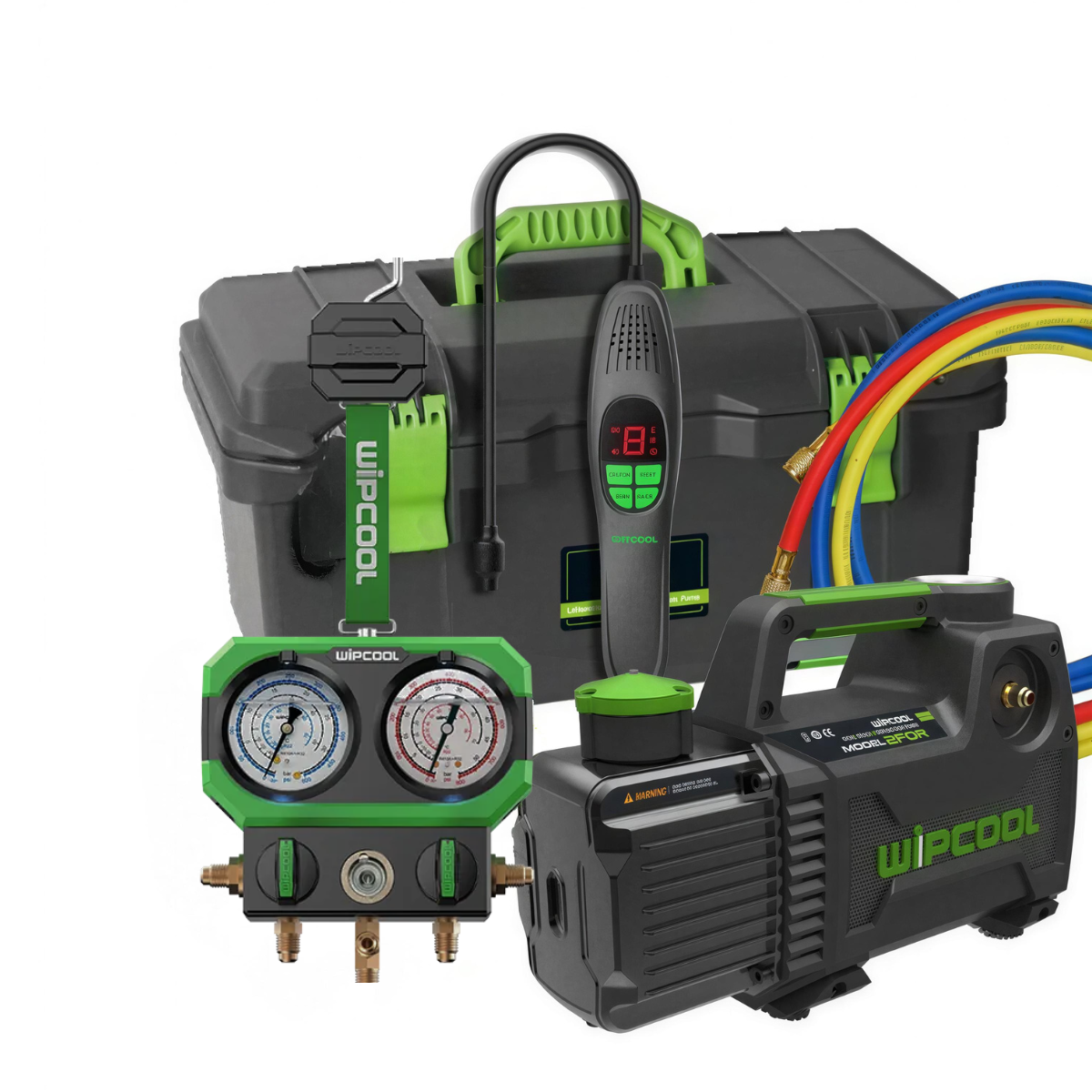

Wipcool 3PC HVAC Installer Kit - 45L 240v

Part Number: 2F0RMSK2

Efficiency, precision, and reliability are the cornerstones of any successful HVAC installation project. Understanding the demands of modern HVAC systems, we proudly introduce our all-new HVAC Installation Tool Kit, designed to elevate your service quality and streamline your workflow. This comprehensive kit is equipped with state-of-the-art tools that cater to every critical aspect of HVAC installation, ensuring optimal performance and long-term satisfaction for your clients. All packaged in a heavy-duty tough toolbox.

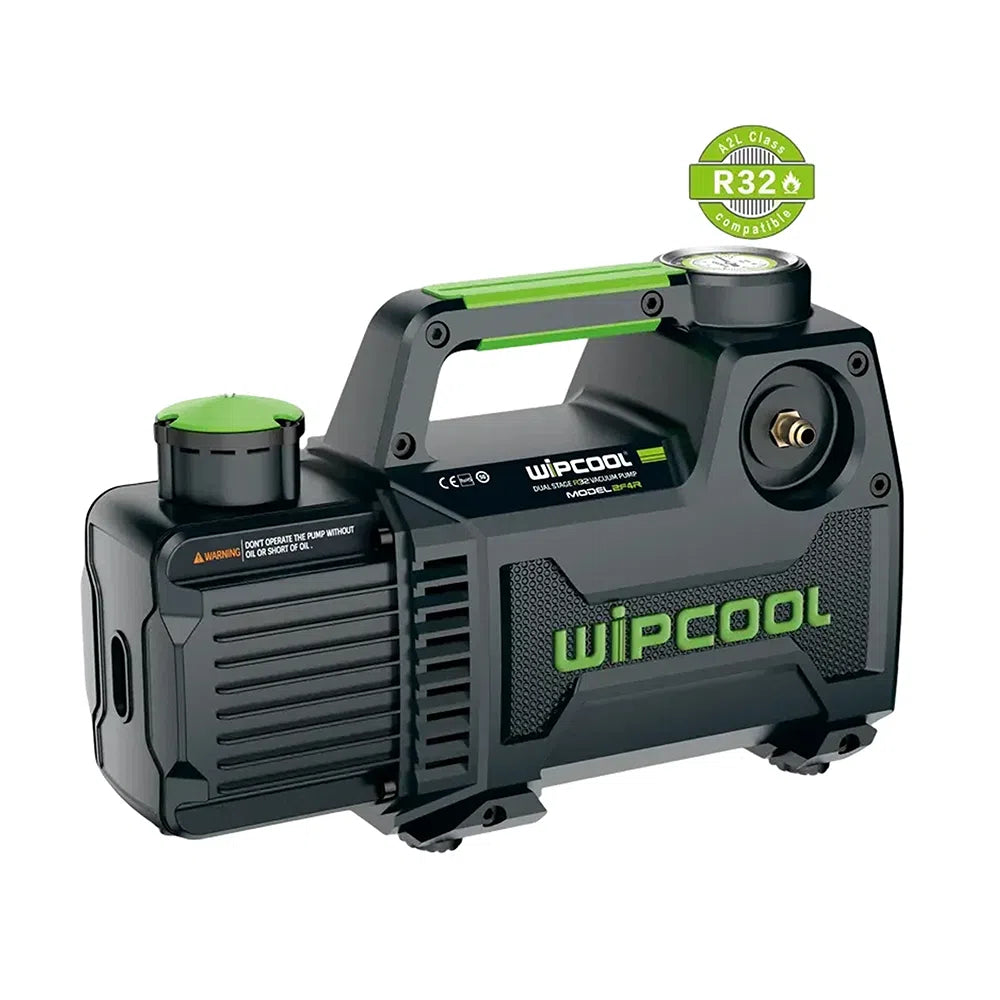

2F0R: 240V Series, 45 L/min, 2-stage Vacuum Pump - R32 Compliant

This WIPCOOL 240V Series 2F0R is a quality 2-stage, oil rotary vane pump with a 45 L/min flow rate and a 15-micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.

Applications:

• Bottle shops, convenient stores, restaurants and catering facilities

• General Refrigeration

• Residential or Industrial

• Split system installation or servicing

Features/Benefits:

• Comes with a free starter bottle of oil

• R32 and 1234yf compliant

• Manufactured to WIPCOOL's high quality standards

• 45 L/min flow rate

• 15-micron ultimate vacuum

• Built-in vacuum gauge

• Automatic solenoid valve

• Anti-oil demister to prevent oil spillage

• Fitted with a 1/4" SAE connection

• 300ml oil capacity

• Dimensions (mm): 309x113x198

• Weight (kg): 4.2kg

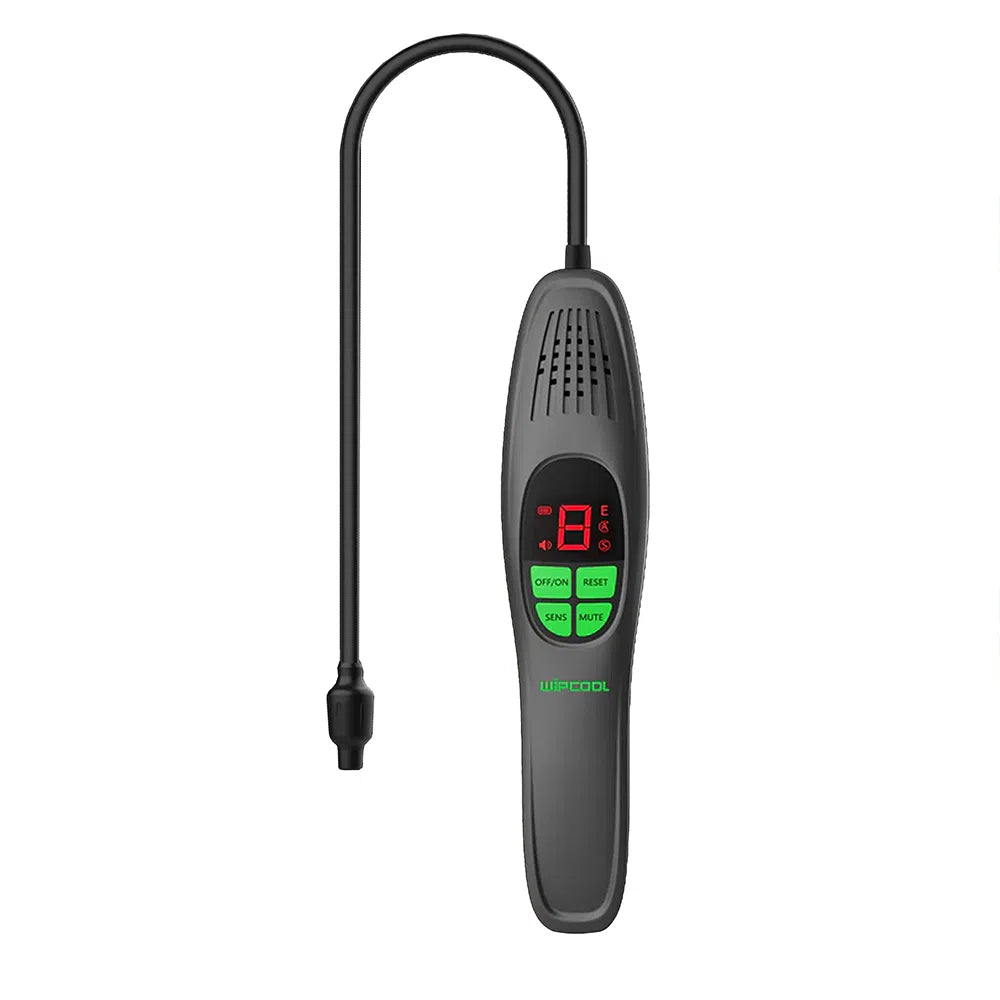

ALD2: HEATED DIODE REFRIGERANT LEAK DETECTOR

Features:

• Flexible probe

• High precision and sensitivity sensor

• LCD Display

Specifications:

• Sensor type: Heated diode gas sensor

• Minimum detectable leakage: ≤3g/year

• Reaction time: ≤ 3 seconds

• Warm-up Time: 30 seconds

• Reset Time: ≤ 10 seconds

• Operating Temperature Range: 0-50 ℃

• Operating Humidity Range: <80% RH (non-condensing)

• Applicable Refrigerant: CFCs, HCFCs, HFCs. HCs and HFOs

• Sensor lifetime: ≥ 1 year

• Reset: Automatic/ Manual

• Probe Length: 420mm (16.5 in)

• Battery: 3 x AA alkaline battery, 7 hours continuous working

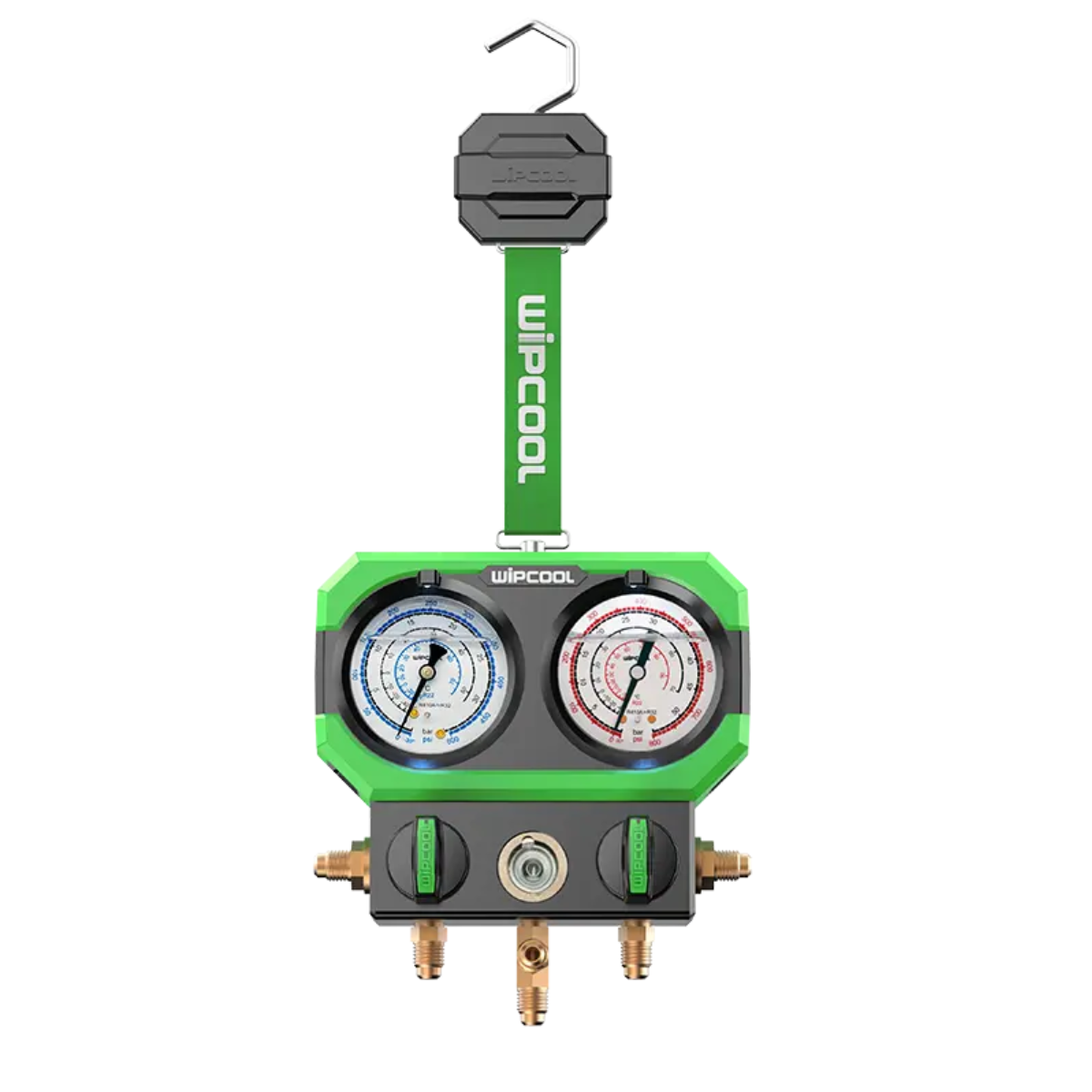

MG684K: 2 Valve Manifold Gauge & Hose Set

Led Lighting, Shockproof
LED lighting
Oil filled gauge
Type C charging port
A calibration hole at the back
Sight glass
Adapters(5/16″MFL-1/4″FFL)

WARRANTY

12 months from date of purchase.*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*

Model	MG684K
Battery	Built-in Li-ion battery (3.7V/120mAh)
Gauge Scale	R290, R32/R410A, R600a
Interface	3X1/4"SAE
Diameter	φ60
Pressure	-30inHg-500psi, -30inHg-800psi
Accessories	Set of 3 RYB refrigeration hoses,2X Adapters (5/16"-1/4")
