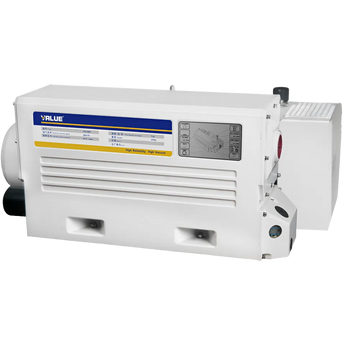

VALUE VQV Series Vacuum Pump - 300 m³/h
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
VALUE VQV Series Vacuum Pump - 300 m³/h
VQV3001
This VALUE VQV3001, VQV Series Vacuum Pump - 300 m³/h is designed for generating vacuum in closed systems. The VQV series pumps use a small amount of fresh air at the end of the vacuuming cycle, which pushes out the impurities drawn during the vacuum generation, thus preventing the risk of oil contamination.
Pump inlet is equipped with a non-return valve that prevents air from entering the system after the power is switched off as well as unwanted oil suction. In addition, the pumps are equipped with an oil mist filter, thanks to which pollutants escaping during pump operation are reduced to a minimum. The devices have been designed so that the lubrication system is in the closed mode and the deposited oil in the oil mist filter flows to the device by gravity.
With many other fantastic features, this pump provides results across a plethora of applications.
Application range:
-
Vacuum packing
-
Laboratory and analytics
-
Mechanical engineering
-
Medicine and hospitals
-
Vacuum forming
-
Motorisation and transport
-
Lifting
-
Vulcanisation
-
Printing
-
LED
-
Timber industry
-
Metallurgical industry
-
Wind, solar & electric power
Technical data:
-
Outputs: 0.75-5.5 kW
-
Capacities: 300 m3/h
-
Displacement speed: 300 m3/h
-
Ultimate pressure: ≤0.1 mbar
-
Ultimate pressure with gas ballast I: ≤0.5 mbar
-
Water vapour tolerance with gas ballast II: 15 mbar
-
Power supply: 400/50 V/Hz
-
Power rating: 5.5 kW
-
Motor speed: 1440 rpm
-
Intake and exhaust: G2"
-
Oil capacity: 7~9 L
-
Ambient temperature: 10-40 °C
-
Noise level: ≤71 dB
-
Dimensions (mm): 1035 L x 540 W x 434 H
-
Weight: 205 kg
WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
