Testo

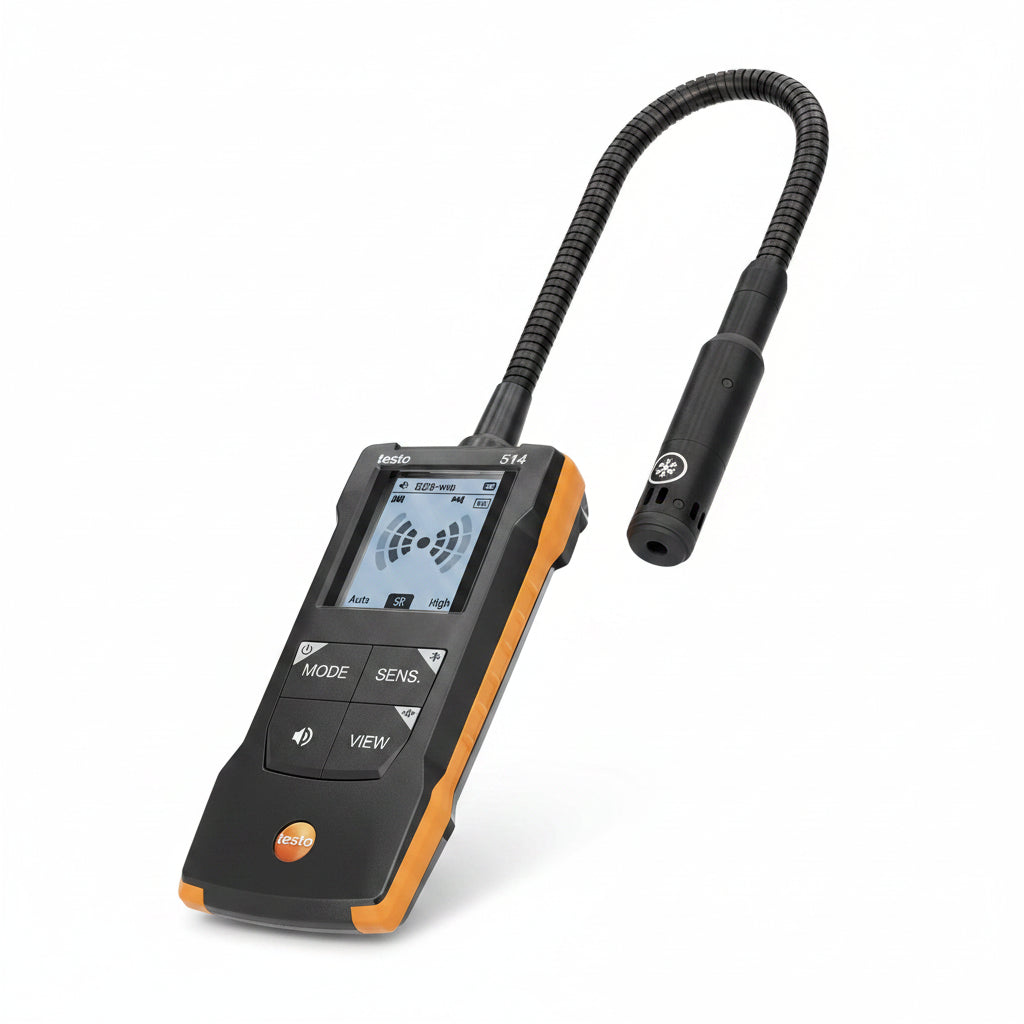

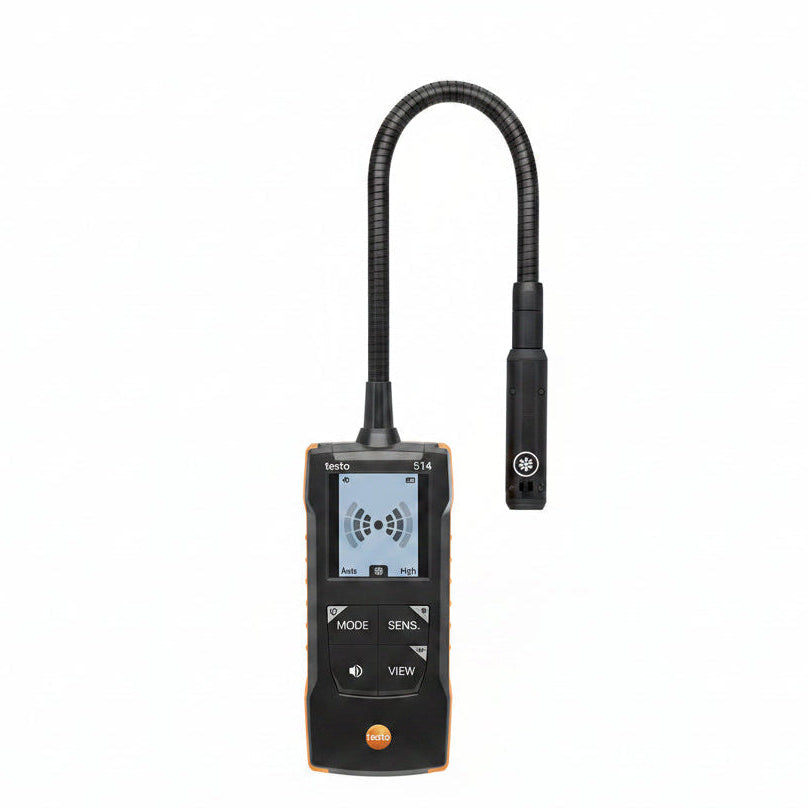

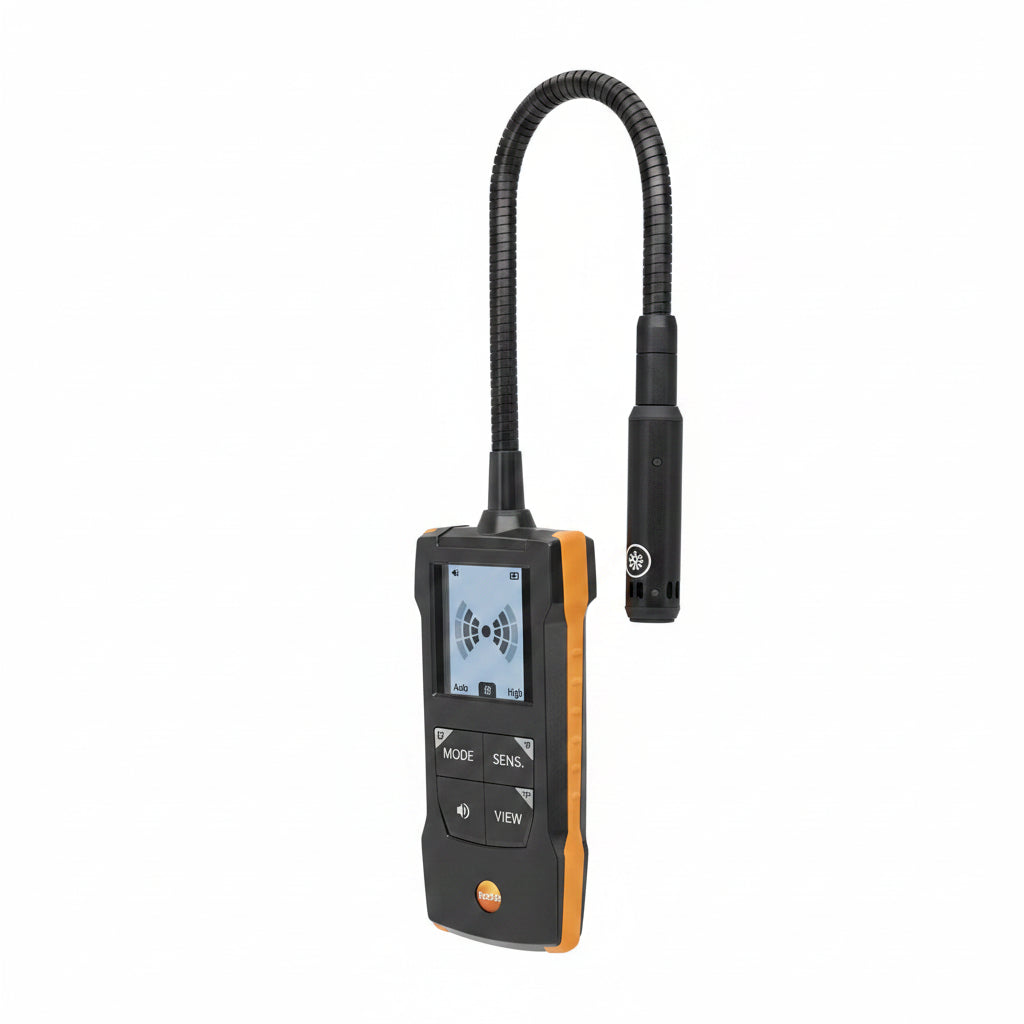

Testo 514 - Refrigerant leak detector with flexible probe

$903.00 AUD (Inc GST)
05630514

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

Pickup currently unavailable.
This product needs 2-3 business days to process.

Fast, Reliable Refrigerant Leak Detection for AC/R Systems

SKU: 0563 0514

The Testo 514 Refrigerant Leak Detector is a reliable and easy-to-use instrument designed to pinpoint even the smallest refrigerant leaks in air conditioning and refrigeration systems. With high sensitivity of 3 g/a and testing according to DIN EN 14624, it delivers precise and reliable leak detection for professional AC/R applications.

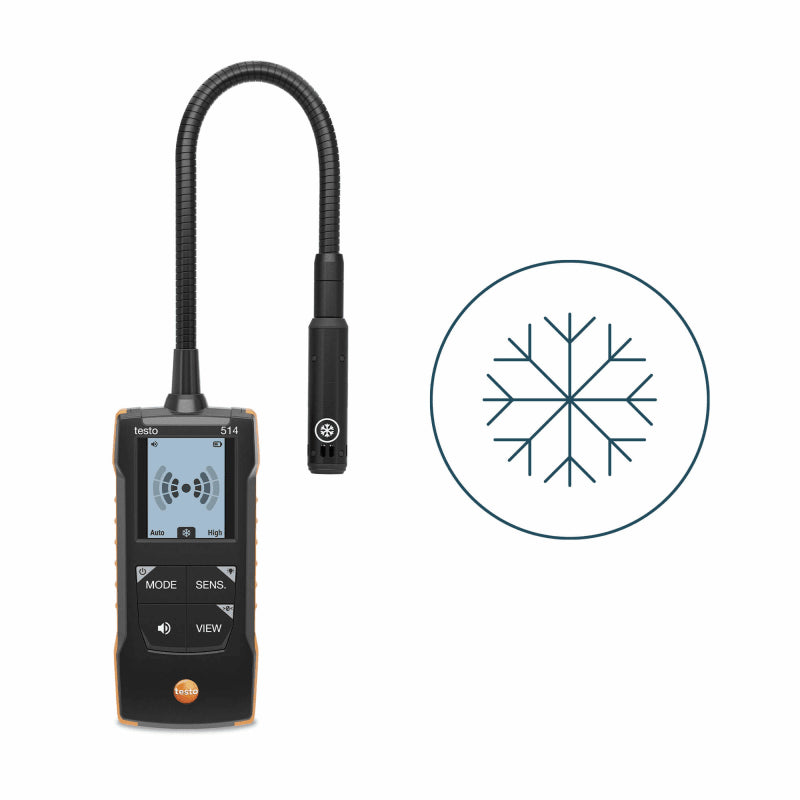

Ready to use immediately without selecting a refrigerant type, the testo 514 detects all common refrigerants, making it a practical choice for technicians working across different systems. The flexible and robust gooseneck probe provides easy access to difficult-to-reach areas, while the replaceable refrigerant sensor helps minimise downtime.

Key Features

  • Detects all common refrigerants used in AC/R systems
  • High sensitivity of 3 g/a for detecting even the smallest leaks
  • Fast response time of less than 2 seconds
  • Tested according to DIN EN 14624 for AC/R systems
  • Complies with the requirements of the EU F-Gas Regulation
  • No refrigerant type selection required before use

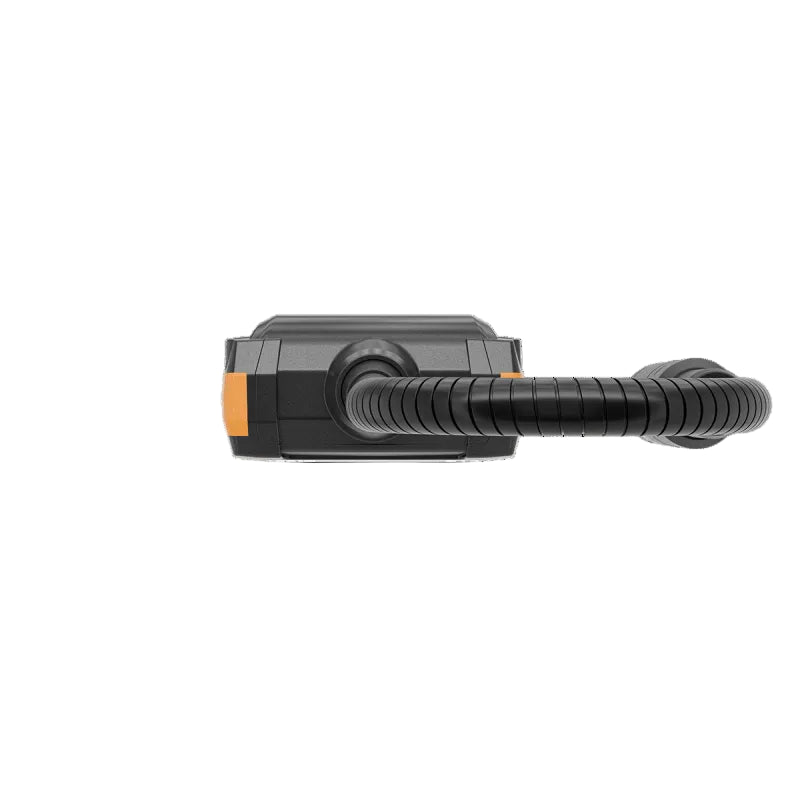

  • Flexible and robust 330 mm gooseneck probe
  • Selectable numeric and bar graph display modes
  • Replaceable refrigerant sensor to minimise downtime
  • Optical and audible leak detection

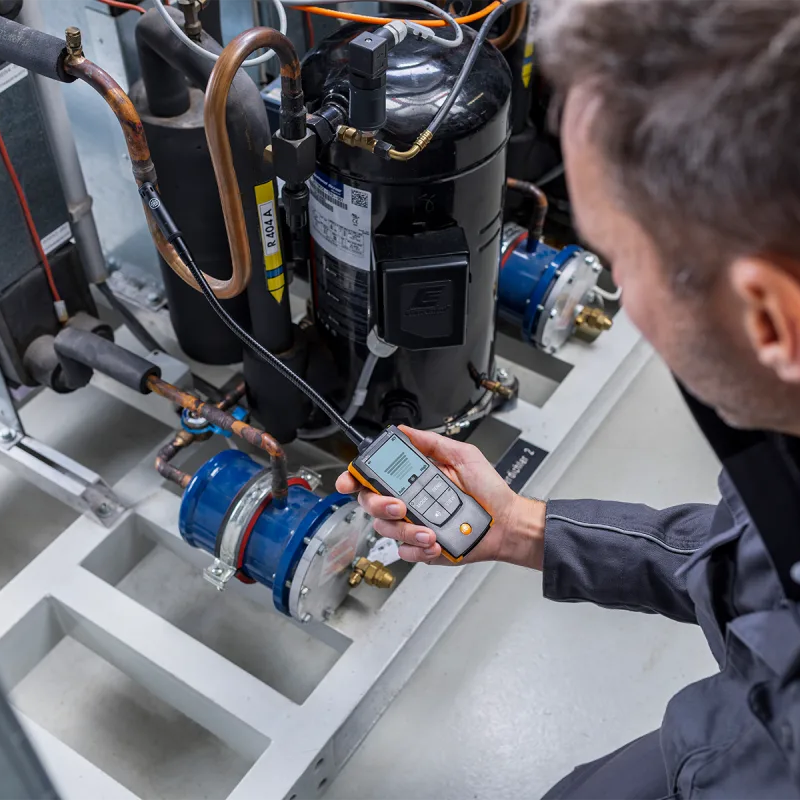

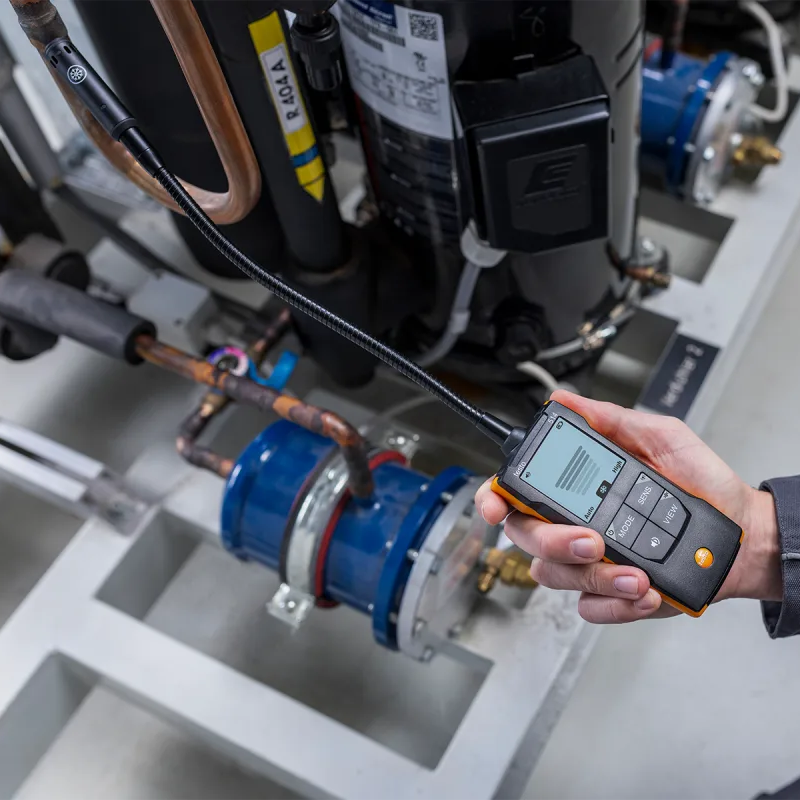

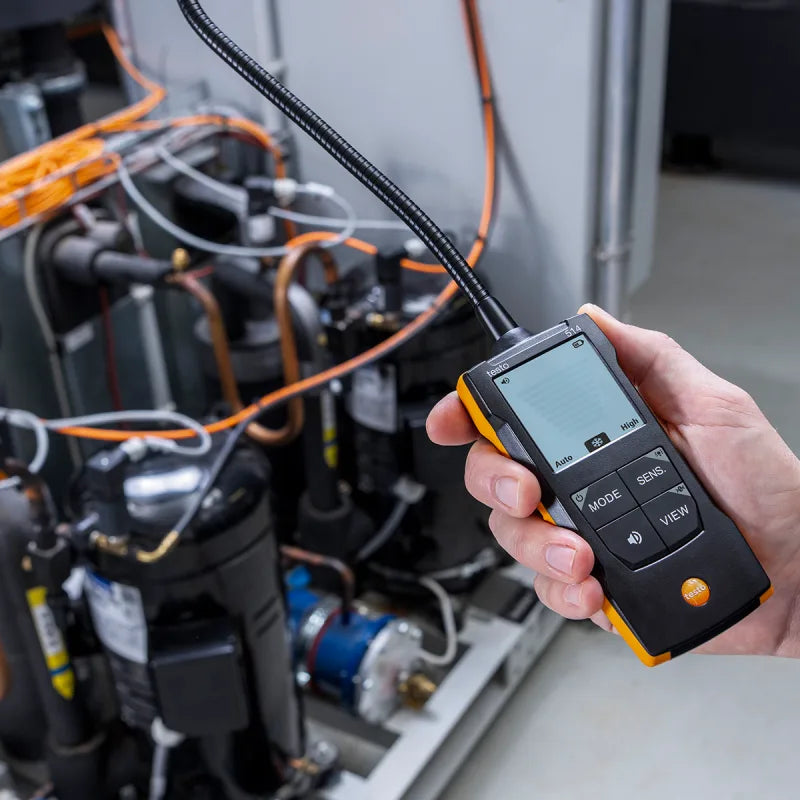

The Testo 514 provides fast and reliable refrigerant leak detection for professional air conditioning and refrigeration service work. Its high sensitivity allows technicians to locate small leaks quickly, while the flexible probe makes it easier to inspect hard-to-reach areas.

Why It Matters

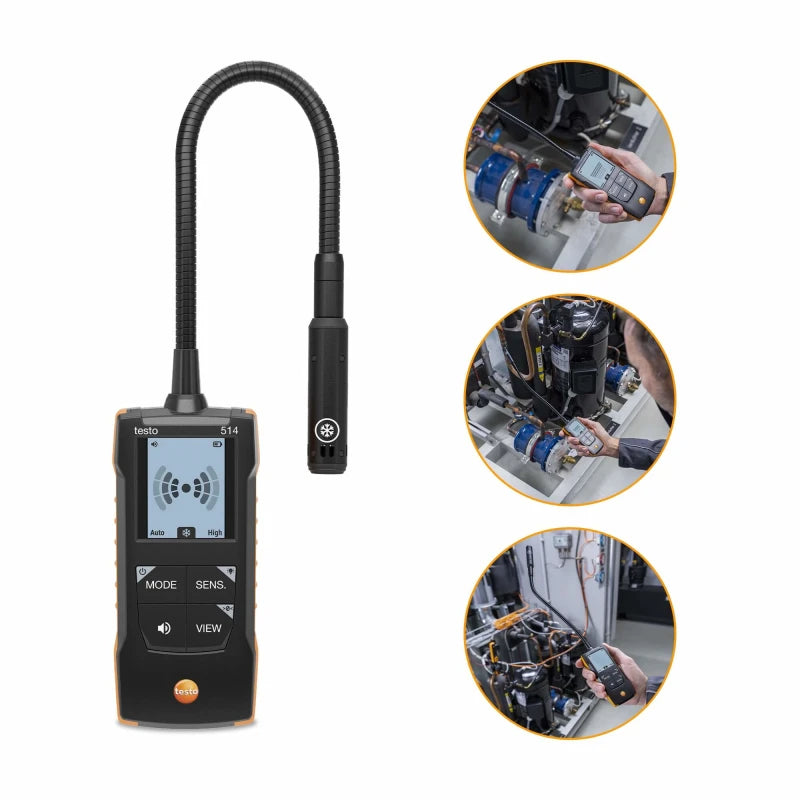

Refrigerant leaks can reduce system performance, increase operating costs, and contribute to environmental impact. Fast and accurate leak detection is essential when servicing and maintaining:

  • Air conditioning systems
  • Refrigeration systems
  • Commercial refrigeration equipment
  • Residential and commercial HVAC/R equipment
  • Refrigerant pipework and connections
  • AC/R maintenance and leak inspections

The Testo 514 helps technicians quickly identify and pinpoint refrigerant leaks, supporting efficient maintenance and compliance with applicable refrigerant handling requirements.

Specifications

Specification Details

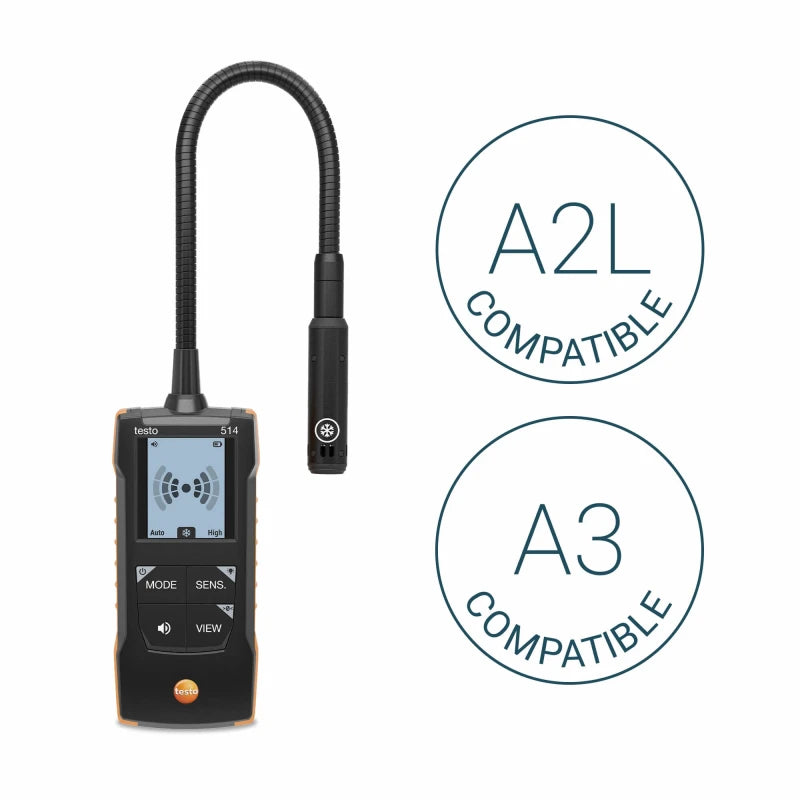

Detectable Refrigerants HCFC, HFC, HFO, HCFO, HC (R290), and blends
Detection Parameters ppm
Resolution 1 ppm
Sensitivity 14 g/a – Low; 3 g/a – High
Response Time < 2 sec
Sensor Lifetime 2 years under normal usage
Probe Shaft Length 330 mm
Operating Humidity 10 to 80 %RH
Operating Temperature -10 to +50 °C
Storage Temperature -20 to +60 °C
Weight 296 g
Dimensions 135 x 60 x 28 mm (LxWxH)
Battery Type 3 alkaline AA batteries
Battery Life Approx. 10 hours

What’s Included

  • Refrigeration sensor
  • Carry bag
  • Batteries
  • Protection cap

Applications

  • HVAC/R technicians
  • Air conditioning servicing
  • Refrigeration servicing
  • Commercial refrigeration maintenance
  • Refrigerant leak inspections
  • AC/R system maintenance

Why Buy From HVAC Direct

  • Australian supplier with fast dispatch
  • Professional-grade tools you can rely on
  • Local support and industry expertise

Detect Leaks Faster. Locate Precisely. Work Efficiently.

The Testo 514 combines high sensitivity, fast response, and a flexible probe to provide reliable refrigerant leak detection for AC/R professionals. With no refrigerant selection required and a replaceable sensor, it is designed for efficient everyday servicing with minimal downtime.

Downloads
Warranty
1 Year Warranty

12 months from date of purchase.

*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
