HVACDIRECT Entry HVAC Kit (Pump, Recovery Unit & Leak Detector)

EBAYKIT8
$1,456.75 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
EBAYKIT8

Usually ready in 24 hours

HVACDIRECT Entry HVAC Kit (Pump, Recovery Unit & Leak Detector)

KIT8

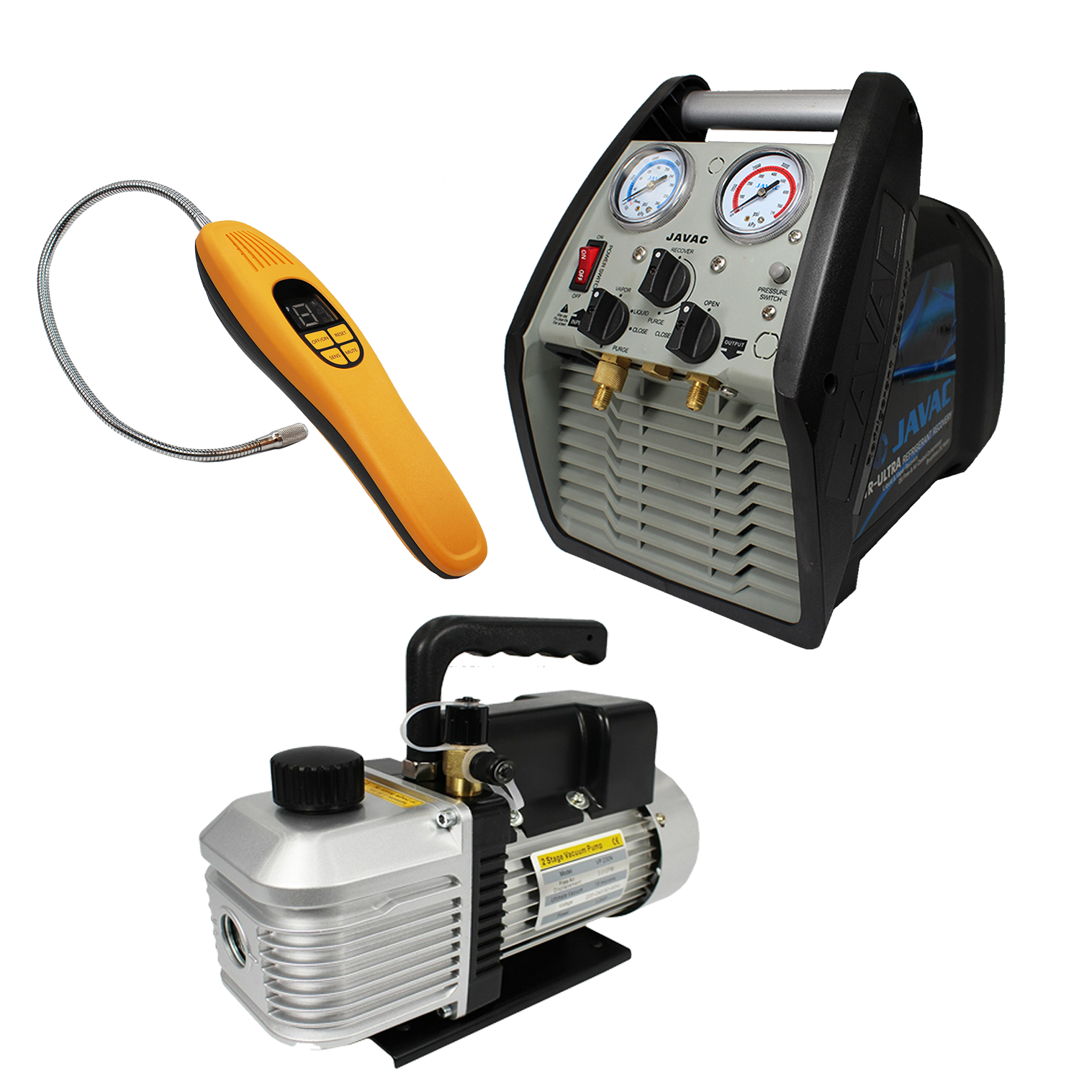

This HVACDIRECT KIT8, Entry HVAC Kit (Pump, Recovery Unit & Leak Detector) is a high quality tool kit that is ideal for basic HVAC requirements. Included in this kit are some of HVAC Direct's best selling products.



Kit contains:



#1. HVACDIRECT 70 L/min, 2-Stage Refrigeration Vacuum Pump

VP230N



This HVACDIRECT VP230N, Refrigeration Vacuum Pump is a quality 2 stage, oil rotary vane pump with a 70 L/min flow rate and a 15 micron ultimate vacuum.

This pump is ideal for general refrigeration service, and is packed with the features below.



Applications:

  • General refrigeration

  • Bottle shops and convenient stores

  • Restaurants, cafes and catering facilities

  • Household or residential jobs including split systems

  • Commercial work

Features/Benefits:

  • Comes with a free starter bottle of oil

  • Great value for money

  • Anti-oil demister to prevent oil spillage

  • Fitted with 1/4" & 3/8" SAE connections

  • 70 L/min flow rate

  • 15 micron ultimate vacuum

  • 300ml oil capacity

  • Dimensions (mm): 280x115x230

  • Weight (kg): 7.8kg

Refrigerants:

R12, R134a, R401C, R406A, R500, R22, R401A, R401B, R402B, R407C, R407D, R408A, R409A, R411A, R411B, R412A, R502, R509, R402A, R404A, R407A, R407B, R410A & R507



#2. JAVAC XTR ULTRA Recovery Machine - Non-Sparking - R32, R410, R134a Compliant

XTULT21



This JAVAC XTULT21, XTR ULTRA is a quality recovery machine, that provides reliability, accuracy, and an extremely durable design.



Features:

  • Recovers: R12, R134a, R22, R32, R401, R404, R406, R408, R410A, R411, R412, R500, R502, R509, 1234yf, and most CFC’s, HCFC’s and HFC’s
  • 3/4 hp oil free, brushless DC compressor
  • Compact and lightweight design, weighs only 8.5 kg
  • Integrated purge function without the need to change hoses
  • Integrated multi pass condenser for faster recovery times
  • High-speed fan provides exceptional cooling
  • Three valve manifold for superior control of liquid and vapour recovery
  • Weight balanced heavy duty case for easy handling
  • 2 metre power cord

Specifications:

  • Liquid recovery rate (kg/min): 2

  • Vapour recovery rate (kg/min): 0.31

  • Push/pull (kg/min): 7

  • Connections: 1/4" SAE

  • HP Cut Out: 550 psi

  • Operating Temp: 0–45 °C

  • Noise Level: 75 dba

  • Weight: 8.5 kg

  • Dimensions (mm): 320x220x260



#3. HVACDIRECT Refrigerant Leak Detector (Heated Diode)

LD100



This HVACDIRECT LD100, Refrigerant Leak Detector is a highly sensitive, quick responding & easy to use entry level leak detector.



Features:

  • Product modelling unique, accord with human body function

  • LED display

  • Sensitivity Level 7

  • Conform to the CE test standard

  • SAEJ1627 standard

  • The probe can be replaced

  • Has the battery indicator, low battery alarm function

Specifications:

  • Power types: 5 dry cell

  • Refrigerant detection range: R12, R22, R502, R134A, R404A, R407C, R410A, R600A & HFC/HCFC series of refrigerants

  • Sensitivity rating: Sensitivity Level 7

  • Detection precision: For R134a, static: 3 g/yr & dynamic: 5 g/yr

  • Operating environment: 0 °C〜40 °C; relative humidity (50%~85% rh)

  • Probe type: Semiconductor sensor

  • Warm-up time: 30 seconds

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*

PRE-ORDERS:
All products listed with the "PRE-ORDER ONLY' badge are currently awaiting more stock. Please be sure to speak to a staff member regarding the wait time involved with a particular PRE-ORDER product before ordering.
