HIKMICRO - G61H Thermal Camera

$17,159.00 AUD (Inc GST)

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

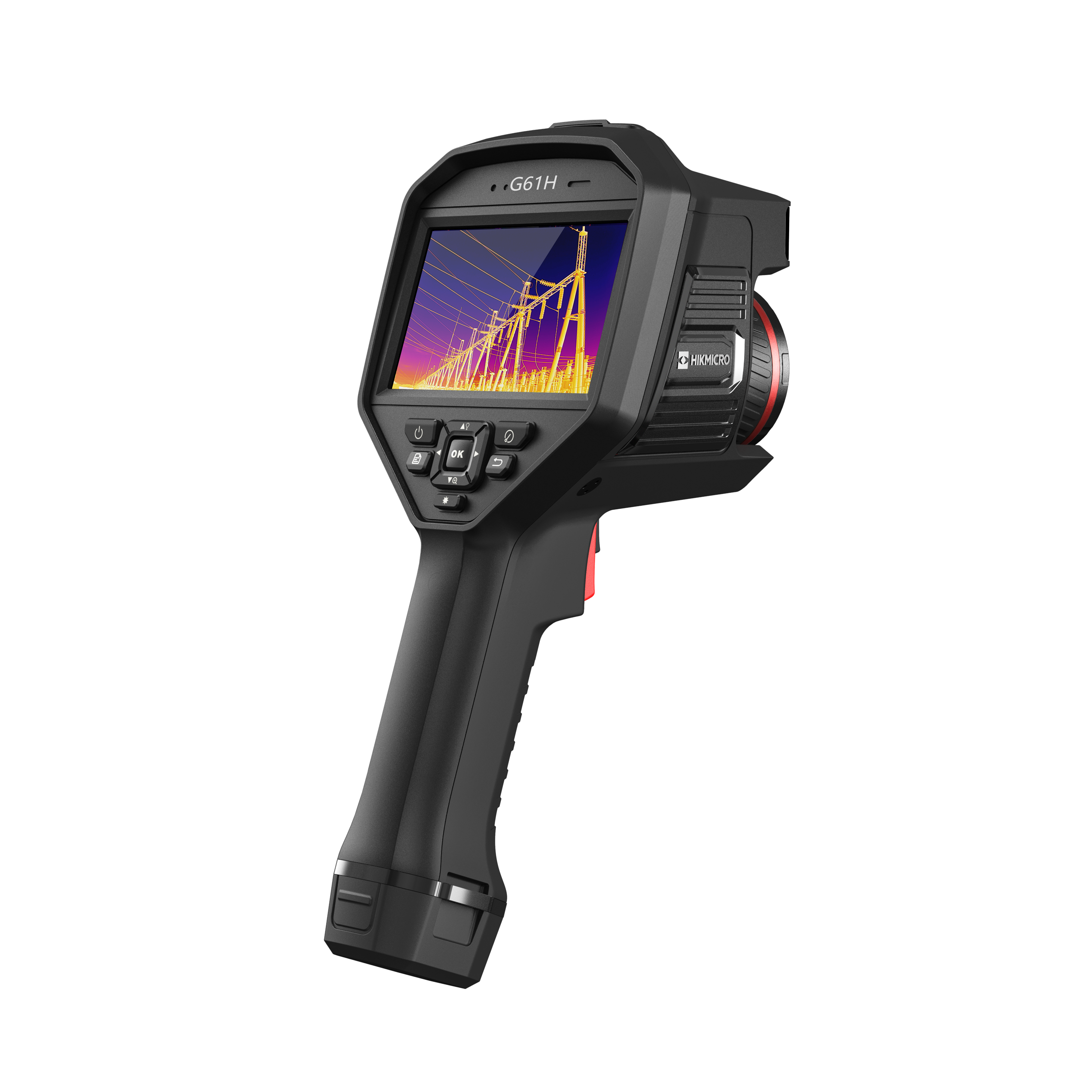

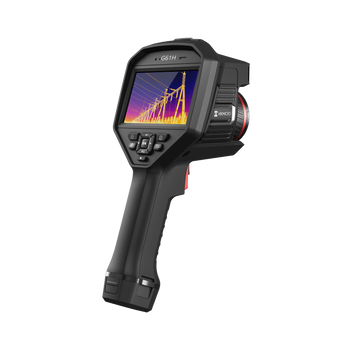

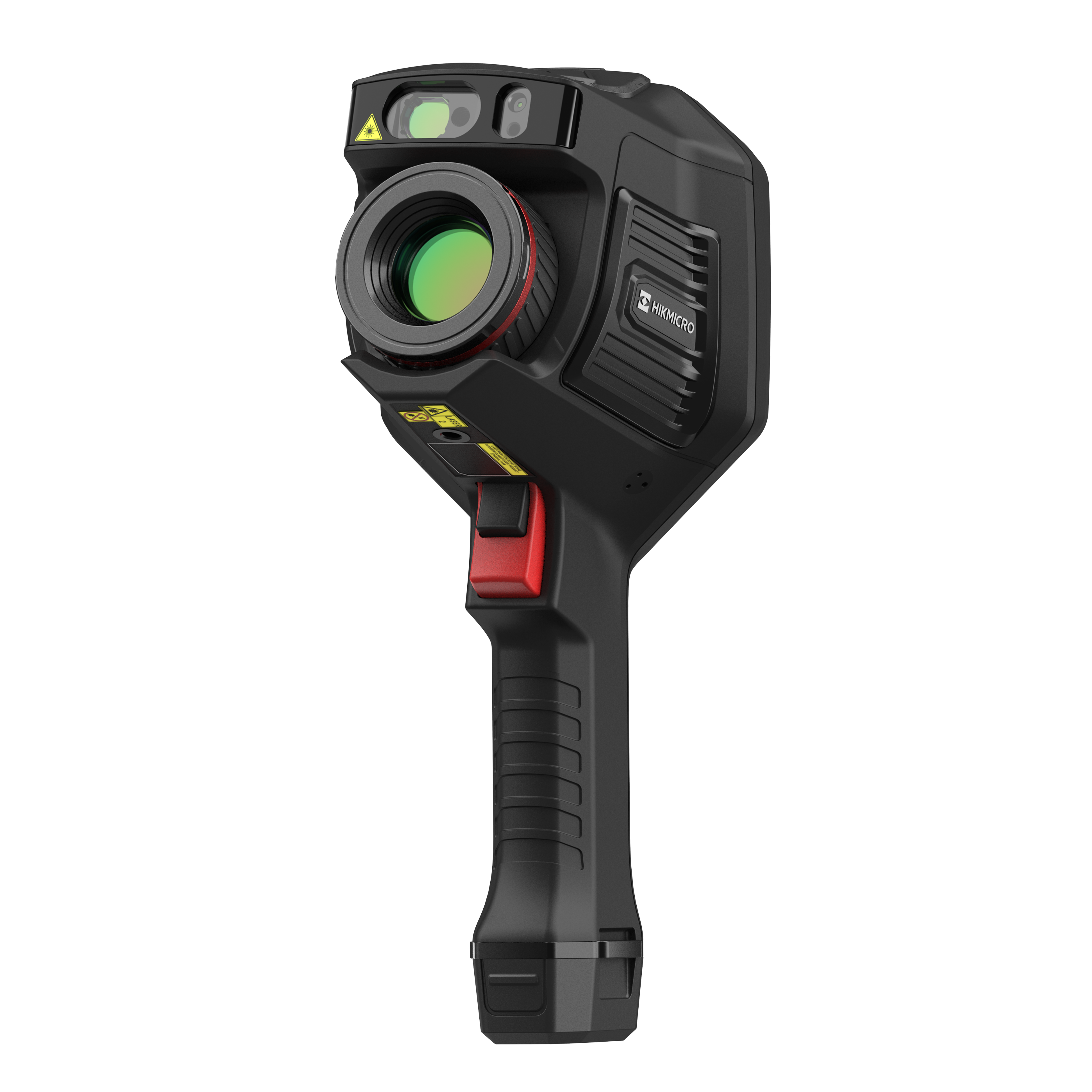

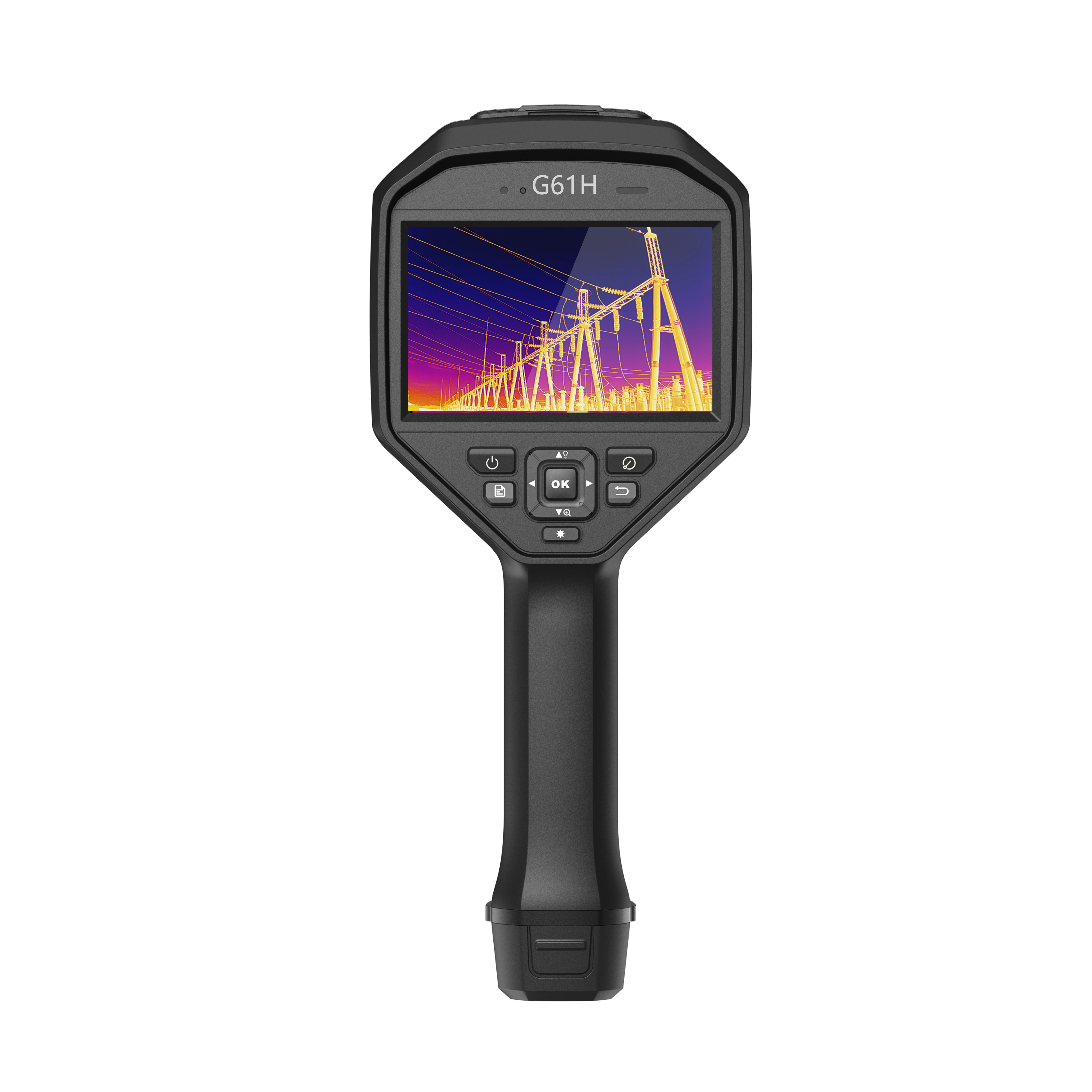

HIKMICRO G61H Handheld Thermal Camera

Model: G61H

The HIKMICRO G61H Handheld Thermal Camera is purpose-built for extreme high-temperature industrial thermography, critical process monitoring, and advanced predictive maintenance in demanding environments. Designed for foundries, metal processing plants, furnace and kiln inspection, refractory assessment, glass manufacturing, and power generation, the G61H enables professionals to safely measure and analyse temperatures up to 2000°C with precision and confidence.

Equipped with a powerful 640 × 480 high-sensitivity thermal detector, the G61H delivers exceptionally sharp, high-detail thermal imagery for accurate fault detection and condition monitoring. With NETD < 35 mK sensitivity, even subtle temperature variations are clearly visible—supporting early detection of developing issues in mission-critical assets.

The G61H features three measurement ranges, including an ultra-high temperature range of 300°C to 2000°C, making it ideal for continuous monitoring of furnaces, molten materials, refractory linings, high-energy systems, and other extreme-heat industrial processes.

An integrated 8 MP visual camera provides clear optical reference images to complement thermal data, improving documentation accuracy, reporting clarity, and compliance tracking.

Designed for operational efficiency in the field, the G61H includes a bright 4.3” 800 × 480 LCD touchscreen, advanced autofocus options such as laser-assisted AF and touch AF, and multiple imaging modes including thermal, visual, fusion, PIP, and blending. With smooth 50 Hz real-time imaging, inspections remain fluid—even when observing dynamic high-temperature processes.

Built to perform in harsh industrial conditions, the G61H features an IP54-rated rugged housing, 2-metre drop protection, and an interchangeable rechargeable Li-ion battery system to support extended use in demanding job sites.

Key Features

  • 640 × 480 high-resolution thermal detector
  • NETD < 35 mK for precise temperature differentiation
  • 50 Hz image frequency for smooth live inspections
  • Triple temperature ranges including 300°C to 2000°C high-temperature capability
  • High accuracy: ±2°C or ±2% (range dependent)
  • 8 MP visual camera for detailed reference imaging
  • Thermal / Visual / Fusion / PIP / Blending imaging modes
  • Advanced measurement tools including Delta T, multi-spot, line and area analysis
  • 4.3” 800 × 480 LCD touchscreen display
  • Laser Assisted AF / Continuous AF / Touch AF / Manual Focus
  • 1× to 8× continuous digital zoom
  • Built-in laser pointer and LED work light
  • Wi-Fi (2.4 & 5 GHz) and Bluetooth 4.2 connectivity
  • Rugged IP54 housing with 2 m drop protection
  • Interchangeable rechargeable Li-ion battery

Specifications

Specification Details
Thermal Resolution 640 × 480 (307,200 pixels)
Thermal Sensitivity (NETD) < 35 mK (@ 30 °C, F#=1.0)
Image Frequency 50 Hz
Pixel Pitch 17 μm
Spectral Range 7.5 to 14 μm
Standard Lens 25 mm
Optional Lenses See respective spec sheets
Aperture F 1.0
Field of View (FOV) 25° × 19°
IFOV (Spatial Resolution) 0.68 mrad
Focus Modes Laser Assisted AF / Continuous AF / AF / Manual Focus / Touch AF
Startup Time Approx. 2 seconds
On-Screen Temperature Display Yes, on captured images
Minimum Focus Distance 0.25 m (0.82 ft)
Visual Camera Resolution 3264 × 2448 (8 MP)
Display 800 × 480 resolution, 4.3" LCD Touch Screen
Image Adjustment Manual / Auto
Digital Zoom 1× to 8× continuous
Image Modes Infrared / Visual / Fusion / PIP / Blending
Colour Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Alarm Functions Above / Below / Interval
Advanced Alarm Modes Above / Below / Interval / Insulation / Condensation
Temperature Range 1 -20°C to 150°C (-4°F to 302°F)
Temperature Range 2 0°C to 650°C (32°F to 1202°F)
Temperature Range 3 300°C to 2000°C (572°F to 3632°F)
Accuracy (-20°C to 150°C) -20 to 0°C: ±2°C / 0 to 100°C: ±1°C / 100 to 150°C: ±1%
Accuracy (0°C to 650°C) 0 to 100°C: ±2°C / 100 to 650°C: ±2%
Accuracy (300°C to 2000°C) ±2%
Measurement Tools Center Spot, Hot Spot, Cold Spot
Advanced Measurement Tools Delta T, 10 Spots, 1 Line, 5 Rectangles, 5 Circles
Level & Span Auto / Manual / 1-Tap Touch-screen
Laser Pointer Yes
Image Storage Capacity Approx. 60,000 images
Annotation Voice (max. 60 sec) / Text (max. 200 characters)
Continuous Recording Time Approx. 54 hours
Video Format MP4 & Radiometric Video
Image Format Radiometric JPEG
Image Transfer UVC / Wi-Fi
Storage Media Extendable 128 GB SD Card
Wi-Fi 802.11 b/g/n (2.4 GHz & 5 GHz)
Bluetooth Bluetooth 4.2
USB Interface USB Type-C
HDMI Output Yes
Wireless Range Indoor: 50 m (164 ft); Outdoor: 10 m (33 ft)
Remote Access Yes
Battery Type Interchangeable & Rechargeable Li-ion
Battery Runtime Approx. 4 hours
Charging Time Approx. 4 hours
Hot Swappable Battery Yes
Protection Rating IP54 (IEC 60529)
Drop Test 2 m (6.56 ft), IEC 60068-2-31
Safety Standard IEC 61010-1
EMC Compliance EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 61326-1, EN IEC 61326-2-2
Vibration Resistance 2 g, IEC 60068-2-6
Shock Resistance 25 g, IEC 60068-2-27
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity < 95% non-condensing
Weight Approx. 1058 g (2.33 lb)
Dimensions 284.7 × 120.6 × 124.5 mm (11.21 × 4.75 × 4.9 in)
Tripod Mount UNC ¼”-20
LED Work Light Yes
Warranty 3 years (product), 10 years (detector), 2 years (battery)
Laser Class Class II, 635 nm, < 1 mW

What’s Included – G61

  • G61 Handheld Thermal Camera
  • Interchangeable Rechargeable Li-ion Battery
  • Battery Charger
  • USB Type-C Cable
  • Power Adapter
  • 64 GB SD Card
  • Wrist Strap
  • Protective Carrying Case
  • Quick Start Guide / User Manual
  • Calibration Certificate

Which Model Should You Choose?

Choose the G61 if you need:

• Advanced predictive maintenance inspections
• Electrical systems & switchboard diagnostics
• Substation and power distribution inspections
• HVAC and mechanical fault detection
• Building envelope and insulation analysis
• High-resolution thermal imaging (640 × 480)
• Industrial temperature measurements up to 650°C

Choose the G61H if you need:

• Furnace, kiln or refractory inspection
• Foundry, metal forging or casting applications
• Glass manufacturing or high-heat processing
• Monitoring of molten materials or extreme heat zones
• Industrial process monitoring above 650°C
• Safe and accurate measurement of temperatures up to 2000°C
Battery

2 years of coverage for the rechargeable battery.

Full Product

3 years components and labor coverage for the full product.

Detector

10 years of coverage for the detector - the most important part of the whole product
