FIELDPIECE

FIELDPIECE Dual-Display True RMS Clamp Meter

$487.17 AUD (Inc GST)
SC440

Pickup available at 36 Enterprise Drive

Usually ready in 24 hours

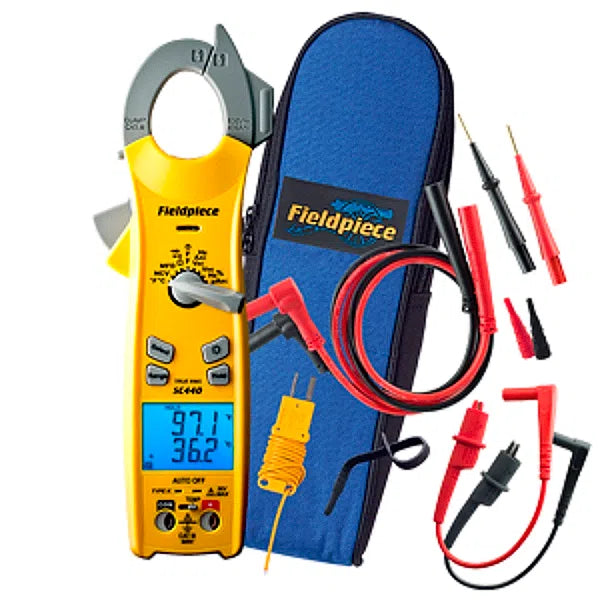

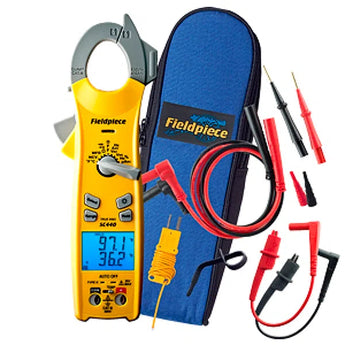

FIELDPIECE Dual-Display True RMS Clamp Meter

SC440



A step-up from the Fieldpiece SC420 Clamp Meter, use the Dual-Display SC440 your way - auto or manual ranging.

The SC440 includes the electrical ranges technicians use for most HVAC-R work, plus temperature, capacitance and duty cycle. It also has several safety features like a high-voltage LED and beeper, a continuity warning, push button non-contact voltage (NCV), a lead holder on the clamp, and MAX hold so you can concentrate on the test point, hook up, and see the results after you’ve disconnected.

Details:

  • Lead storage

  • Swivel-head clamp

  • Magnetic strap

  • Dual display

  • Frequency via leads and clamp

        Specifications:

        • Display: 5000 count dual display

        • Backlight: 60 seconds duration with auto-off, blue colour

        • Overrange: (OL) or (-OL) is displayed

        • Measurement rate: 3.3 times per second, nominal
        • Zero: Automatic

        • Operating environment: 0 to 50 °C at <70% RH

        • Storage temperature: -20 to 60 °C, 0 to 80% RH (with battery removed)

        • Accuracy: Stated accuracy @ 23 °C ±5 °C, <75% RH

        • Temperature coefficient: 0.1 x (specified accuracy) per °C [0 to 19 °C, 28 to 50 °C]

        • APO (Auto Power Off): approx 30 minutes

        • Power: Single standard 9-Volt battery, NEDA 1604, JIS 006P, IEC 6F22

        • Battery life: 100 hours typical alkaline

        • Low battery indication: Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level

        • Dimensions (mm): 233 x 79 x 45
        • Weight: approx 315 g including battery

        • Altitude: Up to 2000 m

        • Overload protection: 600 VDC or 600 VAC rms unless otherwise stated

        • Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600 V or above. Included test leads are gold-plated and have removable safety

          caps.

        What's included:

        • SC620 meter

        • ADLS2 deluxe silicone lead set with gold plated tips and removable sheath

        • ATB1 wrap tab type K thermocouple

        • ASA2 short alligator lead extensions
        • 9 V battery

        • ANC7 padded case

        • Velcro strap

        WARRANTY

        12 months from date of purchase.
        *All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
