FIELDPIECE

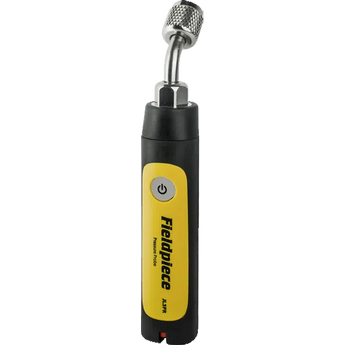

FIELDPIECE Wireless Pressure Probe

JL3PR
$275.36 AUD (Inc GST)
Tax included. Shipping calculated at checkout.
JL3PR

Usually ready in 24 hours

FIELDPIECE Wireless Pressure Probe

JL3PR



With Beacon Bluetooth Technology with a 300 m range this Fieldpiece Probe is activated via the Job Link App.

Simply allow the App to update & when the probe is connected, the App will wirelessly update the probe. Set up your Log via Job Link App & retrieve your data in a Microsoft Excel table. This allows a high level of data analysis & graphing for refrigeration system pressure. Monitor & confirm your "Oil" pressure and cure those annoying oil failure drop-outs.

Details:

  • Minimum requirement: BLE 4.0 devices running iOS® 7.0 or Android 5.0

  • Pressure range: 29” Hg V to 580 psig, 74 cm Hg V to 4000 kPa

  • Wireless range: 300 m line of sight, IP55 rated

  • Powerful enough to go through most walk-in coolers and freezers

  • Directly transmits to your mobile device

  • Reliable pressures regardless of location

  • 45° angled 1/4" SAE F Swivel fitting easily connects in tight spaces

  • Pressure sensors are accurate at any elevation

  • Calibrates automatically when powered on
App Logging Ease:

  • Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system. To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure Probe … the Saturation Temperatures will show for your readings. Meld the table cells from your JL3PC Pipe Clamp Probe Log—either Suction or Liquid line & your superheat or sub-cooling values will be presented. Save the results in your service or commissioning PDF report. Free to download for the base user.

    Use the JL3PC to test your delta T across the filter drier. Temperature differences over 1.0 °C need to be monitored for loss of system efficiency.

Specifications:

  • Wireless range: +100 m

  • Wireless frequency: 2.4 GHz

  • Battery: 2 AAA (included)

  • Battery life: 150 h typical alkaline

  • Auto power off (APO): 2 h (can be disabled)

  • Minimum device requirement: BLE 4.0 devices running iOS® 7.0 or AndroidT 5.0

  • Connector type: 45° Standard 1/4” NPT F flare

  • Best accuracy: ±1 psig (±7 kPa)

  • Measurement Range: 0 to 580 psig (0 to 4000 kPa)

  • Maximum Overload: 800 psig (5500 kPa)

  • Water Resistant: Designed to IP55

WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
