FIELDPIECE DR58 Heated Diode Refrigerant Leak Detector
Pickup available at 36 Enterprise Drive
Usually ready in 24 hours
FIELDPIECE Heated Diode Refrigerant Leak Detector
DR58
CAN DETECT TRACER GAS
Rugged and Accurate with a State-of-the-Art Heated Diode Sensor, the DR58 Heat Diode Refrigerant Leak Detector is designed exclusively to make the HVACR Technician's job easier, faster, safer and more efficient. You are in control with the manual or automatic zeroing function … it's your choice.
If you want to find leaks faster for your customers, the Fieldpiece DR58 Refrigerant Leak Detector offers the highest possible sensitivity. It can sniff out leaks at <1.0 g/yr. That’s 20 times more sensitive than soap bubbles. This exceeds detection standards so you can quickly find and pinpoint leaks. DR58 triggers on all HFC, CFC, HCFC, HFO and blends.
The ergonomic design fits naturally in your hand. The rugged construction stands up to abuse most other leak detectors can't handle. The 18-hour battery life lets you work all day before recharging. If need be, you can still use it while charging! The Mute and Max mode functions allow you to work the way you want to work.
DR58's features designed for HVAC-R:
-
Heated diode sensor 300 hour life, typical
-
Compact—designed to fit in your hand
-
Dual audible and visual alarms … turn the beep on or off when you want
-
LED lighted tip and loud beep help find leaks in noisy and dark environments
-
Sensitivity better than 1.0 g/yr
-
Rugged and IP54-certified
-
18-hour USB rechargeable battery means you can work all day and all night on one charge
-
Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
- Non-conductive, sturdy probe that stays where you want it
-

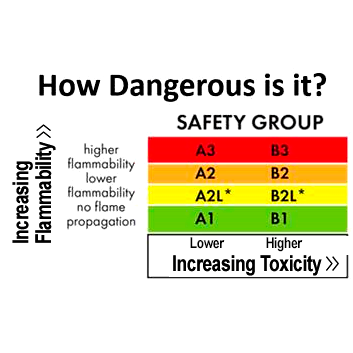

Works on A2L Refrigerants
-
Light weight
Specifications:
-
Sensor type: Heated diode
-
Sensor life: 300 hours typical
-
Sensitivity levels: High, medium, low (selectable)
- Maximum sensitivity: 1.0 g/yr, stationary; 3.0 g/yr, in motion
-
Detection feedback: Red tip LED, LCD bar graph, LCD digits, beeper
-
Refrigerants: HFC, HCFC, CFC, HFOs, and blends
-
Response time: <1 s typical
-
Recovery time: <10 s typical
-
Battery type: 3.7 VDC (nominal) 2600 mAh, non-replaceable
-
Charge time: 6 h typical with included charger:
-
Battery life: 18 h typical, backlight off
-
Auto power off: 10 min without detection or button press
-
Operating environment: 0 to 40 °C, < 75% RH (non-condensing)
- Storage temperature: -20 to 60 °C, < 80% RH
-
Water resistance: Designed to IP54
-
Weight: 400 g
What's included:
-
Heat Diode Refrigerant Leak Detector [ DR58 ]
-
1 heat diode sensor [ RHD1 ]
-
5 replacement filtered tips [ RFT6 ]
- Wall charger with USB-C cable [ RCA3]
-
Blow-molded case [ ABM2]
-
Operator’s manual
WARRANTY:
12 months from date of purchase.
*All warranties exclude consumables such as; filters, gaskets, leads, batteries, fuses, sensors, cases etc*
